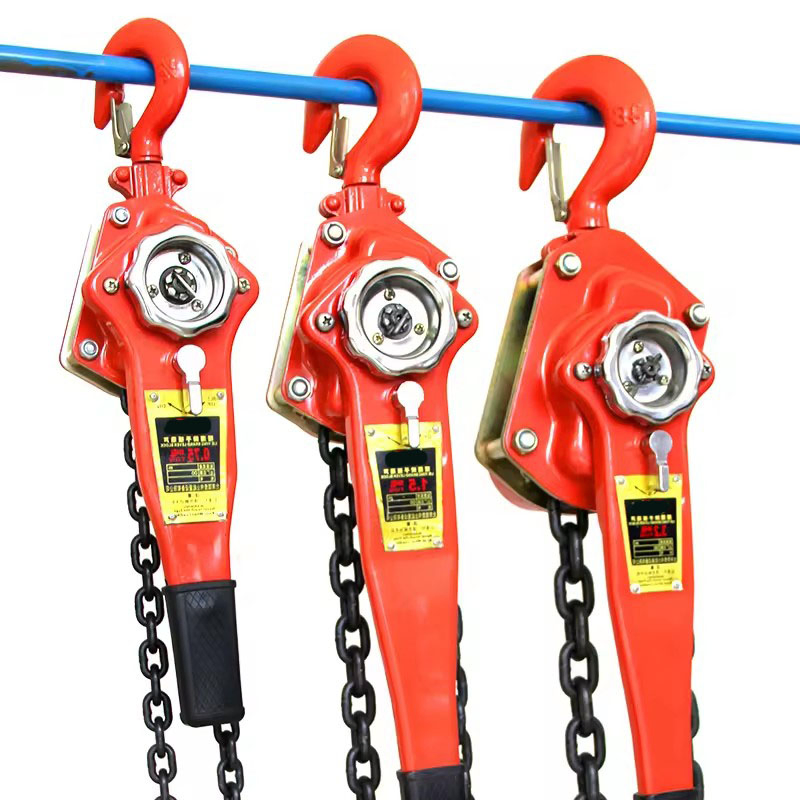

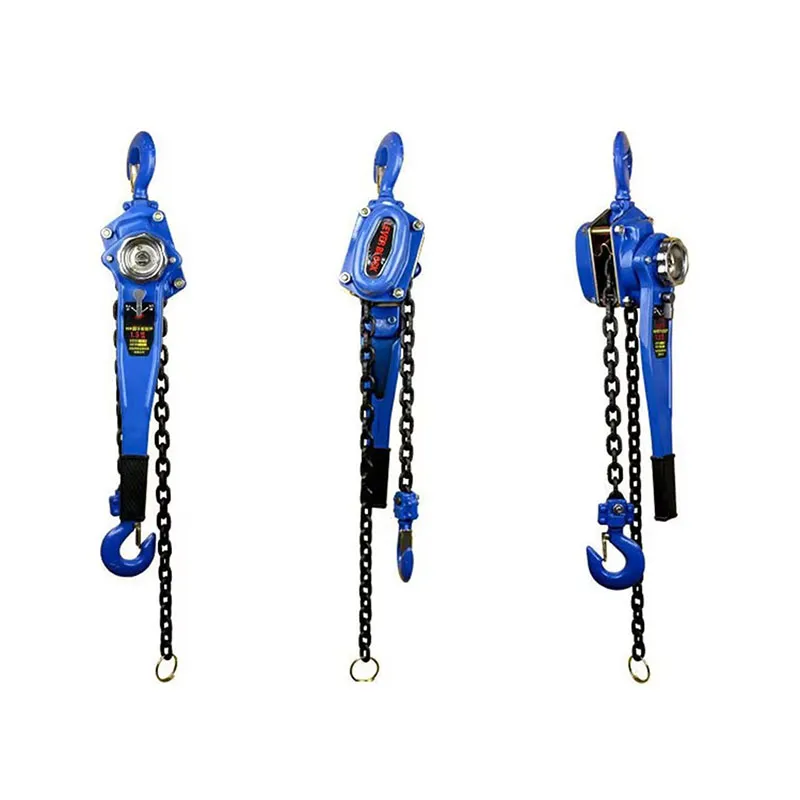

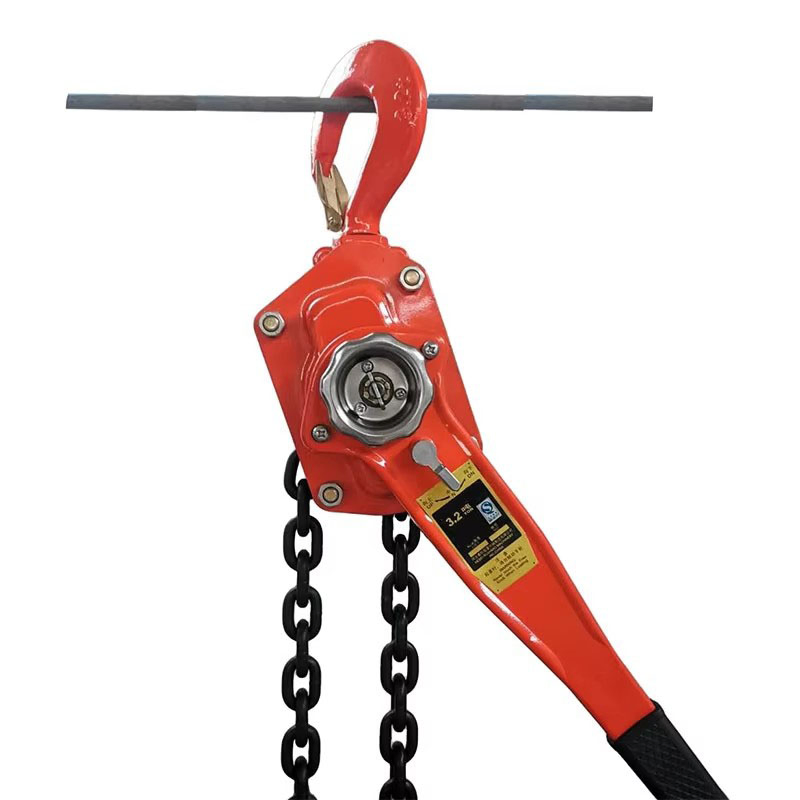

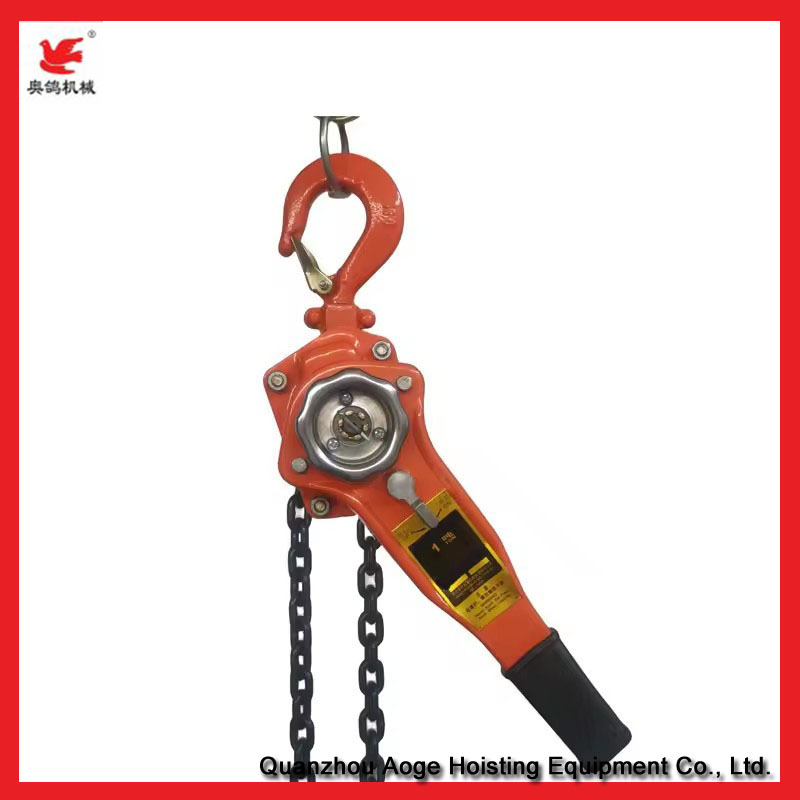

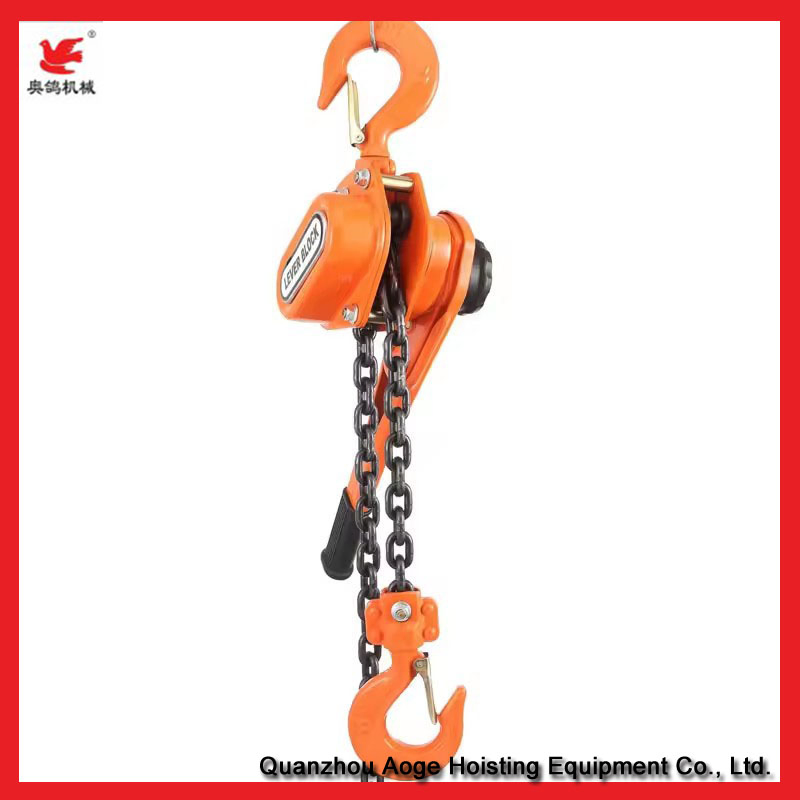

Precision-Engineered Chain Crane Lever Hoist Mechanism

Customization:	Available
Application:	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type:	Lever Hoist

Send Inquiry

Product Description

📦 Basic Information

Model NO.

HSH-VA

Sling Type

Chain

Lift Speed

<2m/min

Maximum Lifting Height

>20m

Chain Falls

Certification

Condition

New

Chain Material

G80 Grade

Lifting Capacity

0.75t - 9t

Usage

Construction Hoist

Origin

Made in China

HS Code

8425190000

🚛 Packaging & Delivery

Package Size

120.00cm * 60.00cm * 60.00cm

Package Gross Weight

15.000kg

Production Capacity

10000 Piece/Pieces Per Month

🛠️ Product Description

Lever hoist capacity ranges from 0.75 ton to 9 ton.

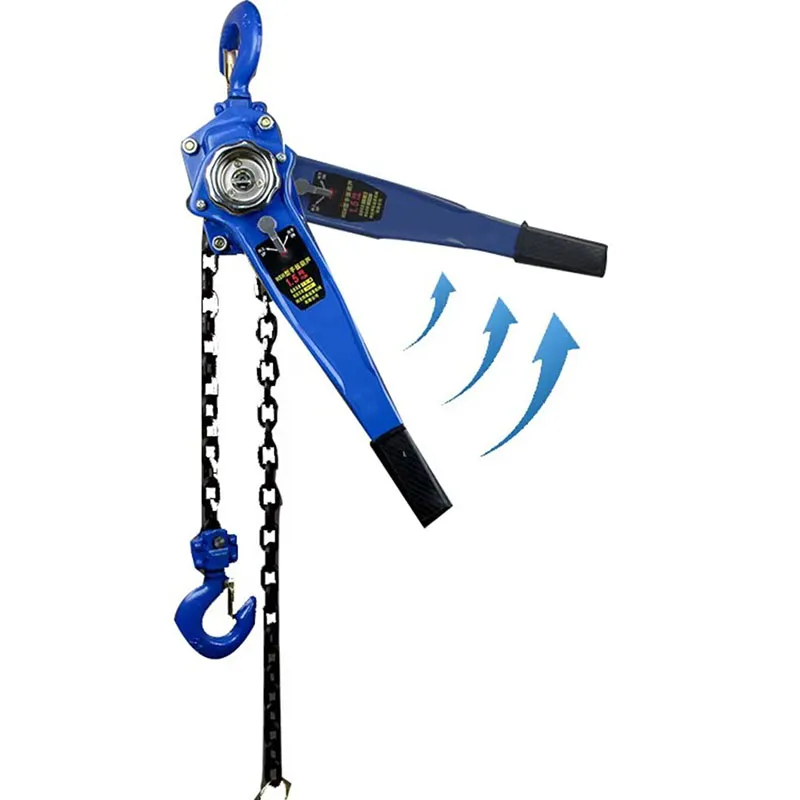

Ergonomic handle design ensures the hoist is easy to operate, suitable for all applications.

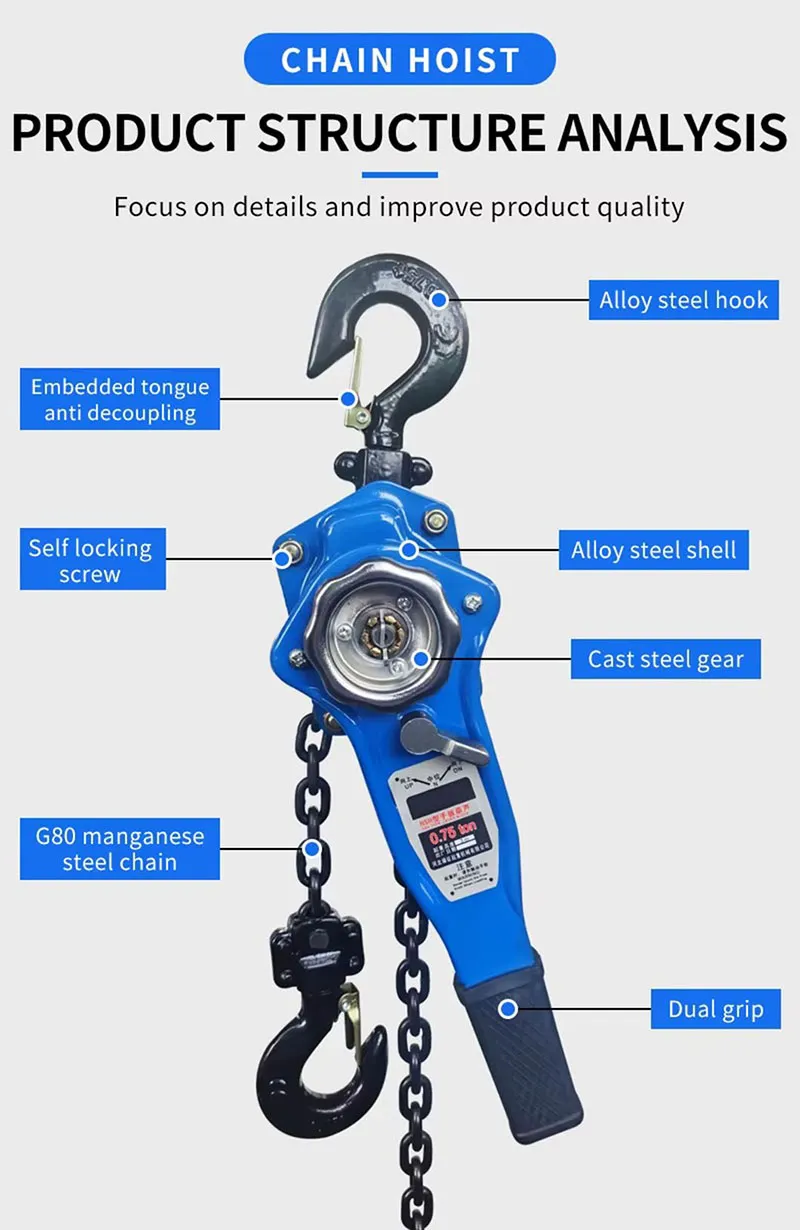

Suspension and load hooks are made of alloy steel 35CRMO, heat treated and fitted with heavy-duty safety latches.

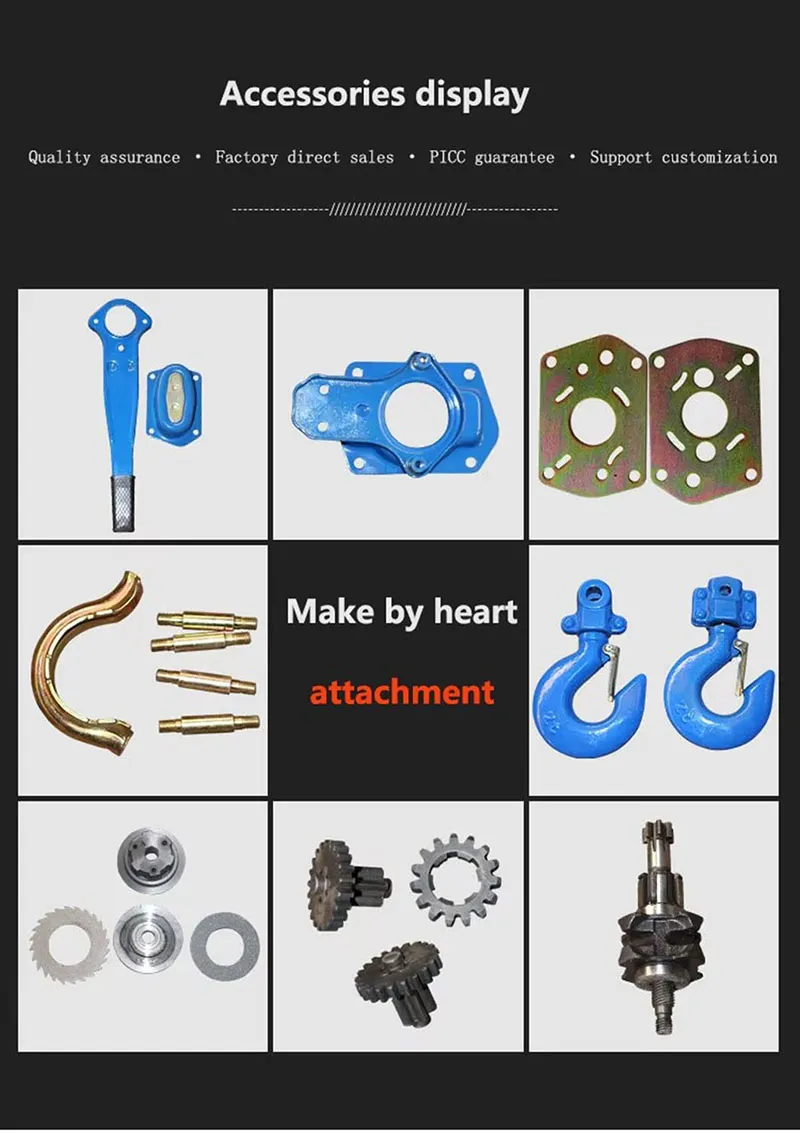

Machined chain sprocket and gears provide smoother, more efficient operation.

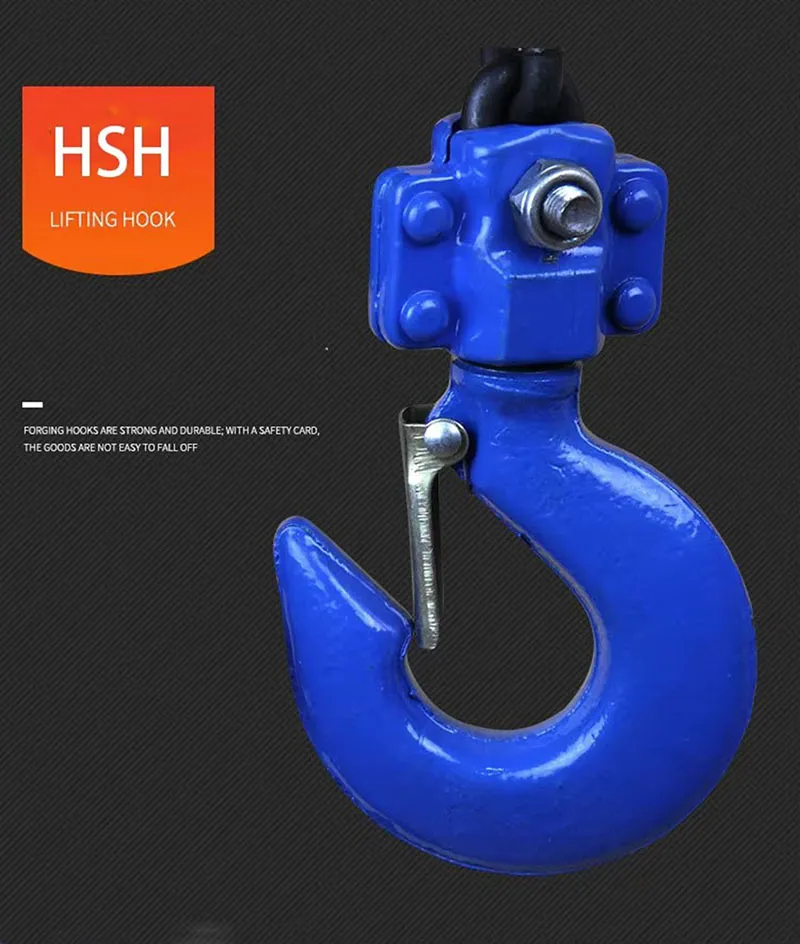

Hook with safety latch can rotate freely 360 degrees.
Gears are made of 20CRMNTI material, ensuring toughness and superior strength.

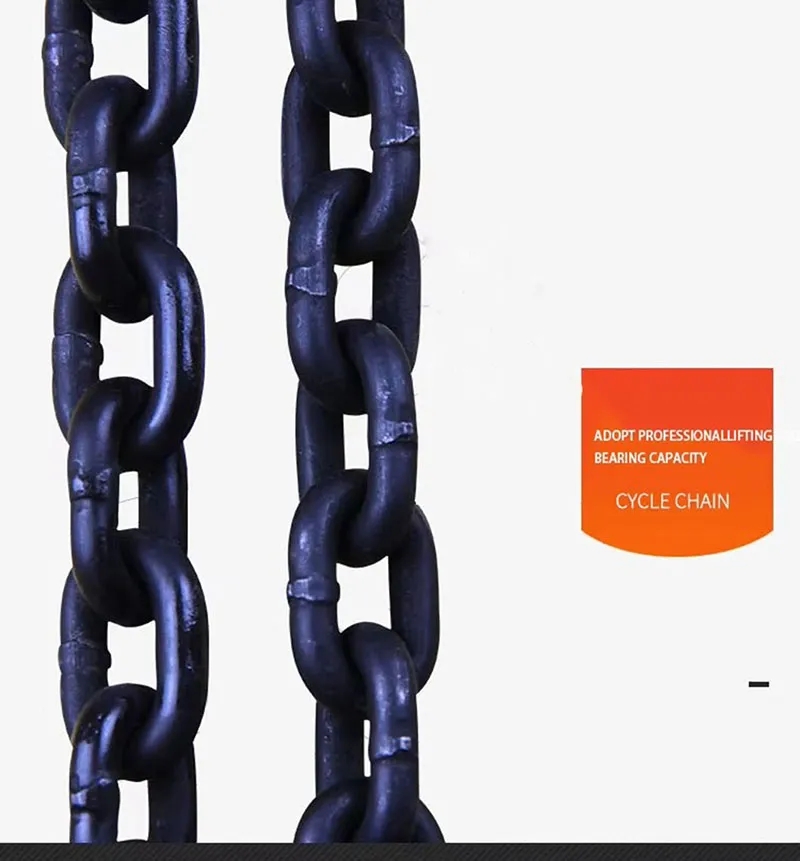

Fitted with high-strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (Comply with EN 818, Safety Factor 4).
Load chain marked with T8 marks as per EN 818-7.
Heavy-duty guide rollers to avoid slippage of the load chain.
Features a durable nylon pull ring.
All hoists are tested at 1.5 times the Working Load Limit (WLL).

📊 Technical Parameters

Model HSH	AG0025	AG005	AG0075	AG015	AG030	AG060	AG090
Capacity (kg)	250	500	750	1500	3000	6000	9000
Standard Lift (m)	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Load Chain Falls	1	1	1	1	1	2	3
Effort to Lift Max Load (n)	260	260	220	240	330	360	380
Test Load (kg)	375	750	1125	2250	4500	9000	13500
Chain Dia. (mm)	4×12	4×12	5.6×16.7	7.1×21.2	9×27	9×27	9×27
Net Weight (kg)	2.2	3.2	5.3	8.6	15.2	23	43
Packing Size (cm)	21×12×11	23×13×12	31.5×16×12	35×18×13	48×20×13.5	48×21.5×17	53×28×25
