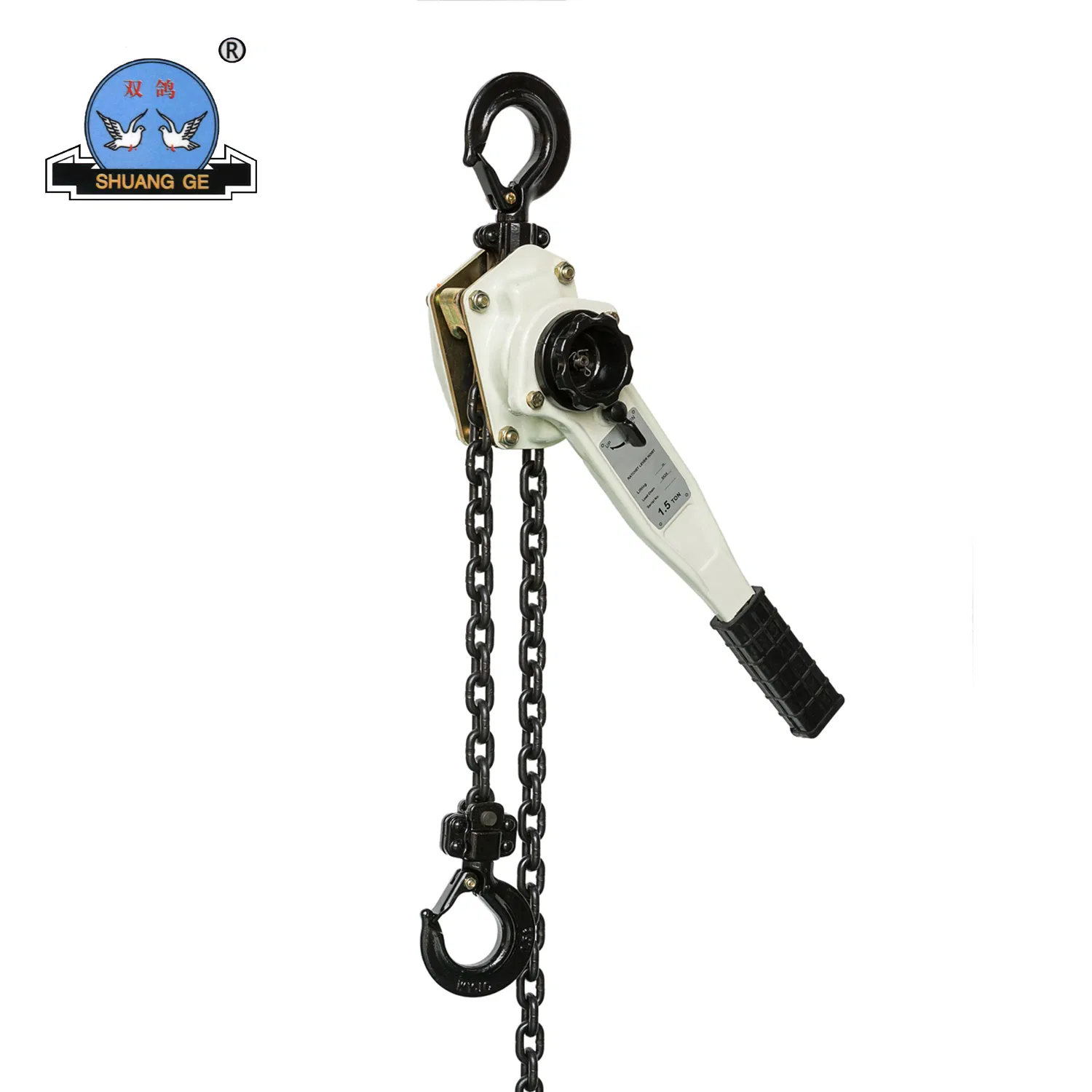

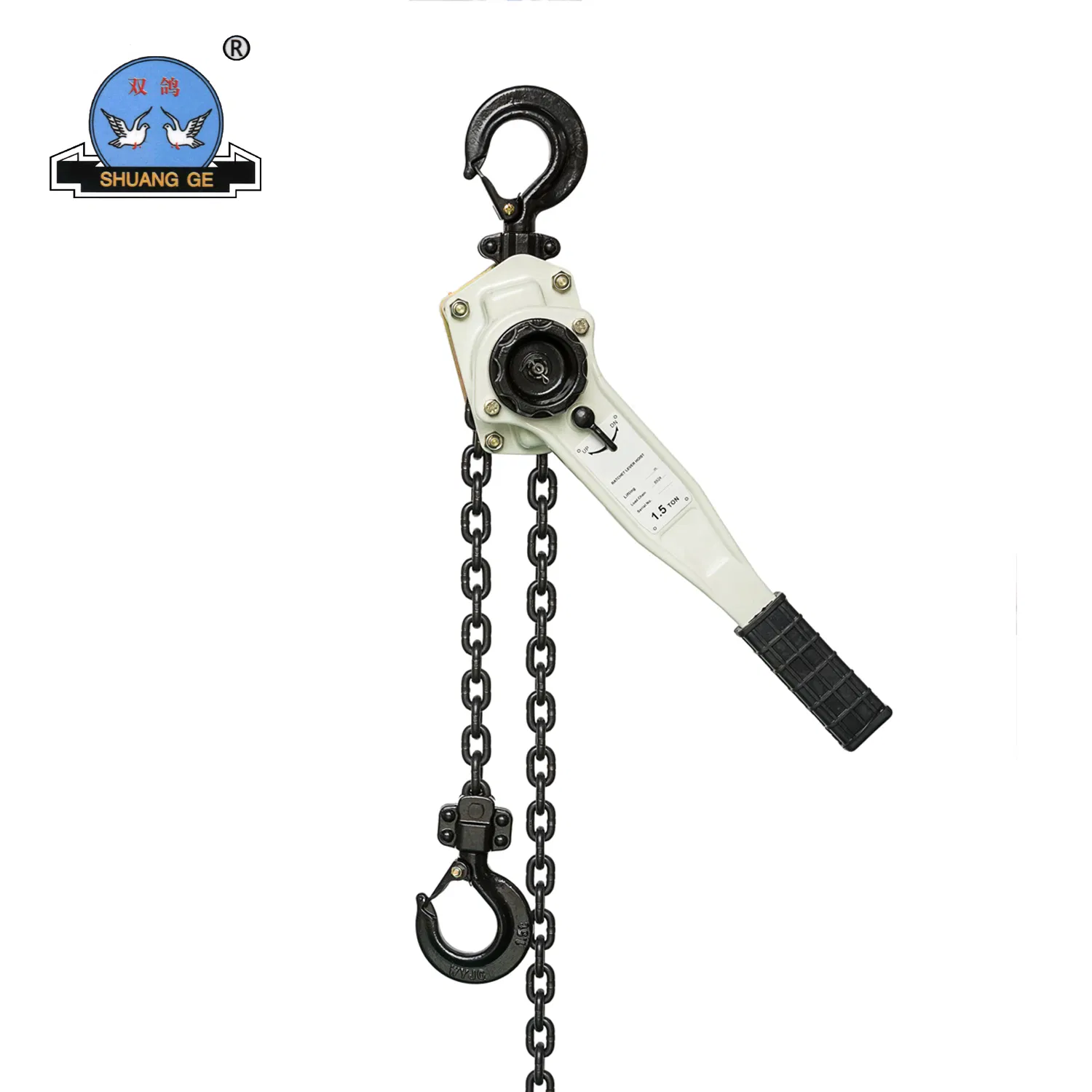

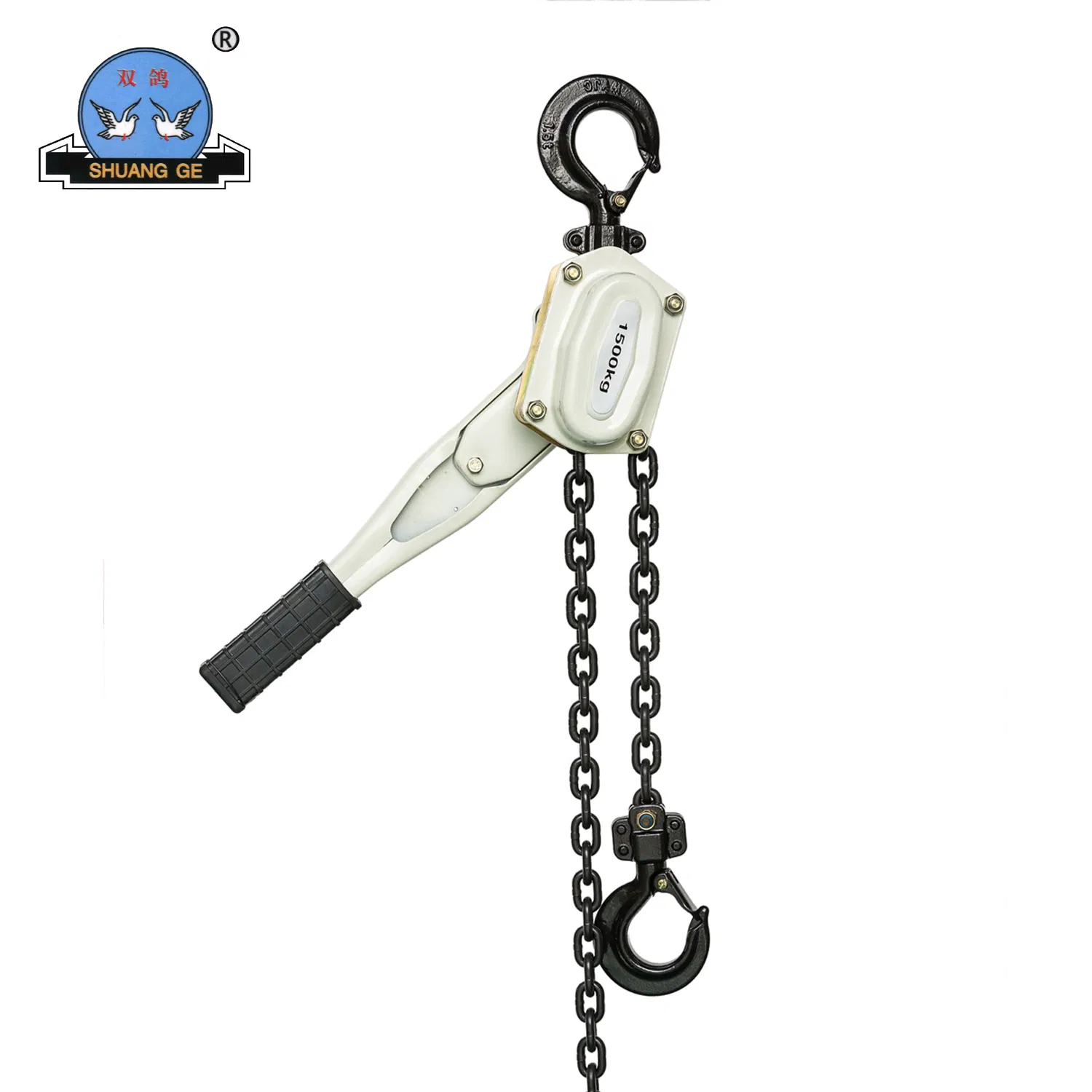

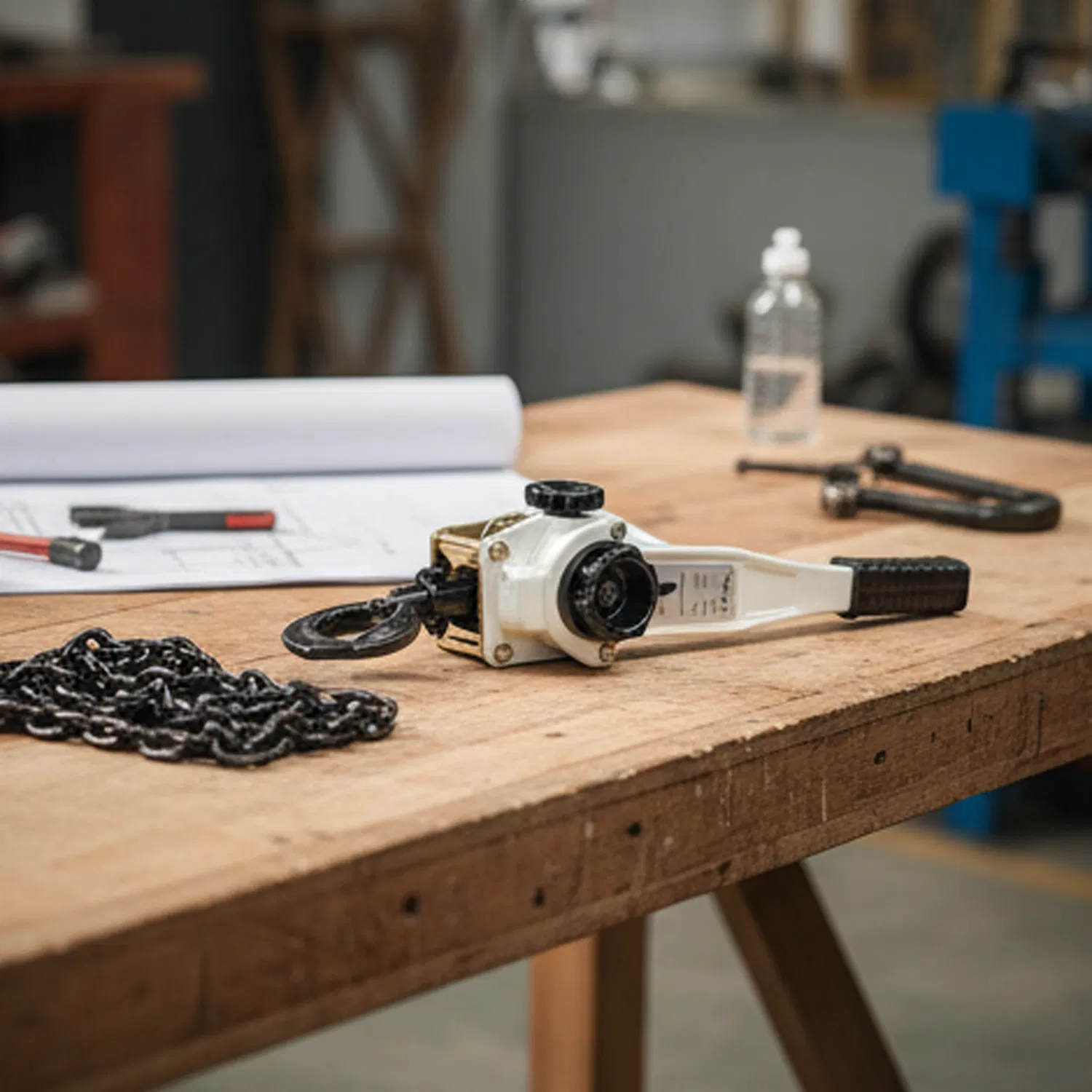

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

1 / 5

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Hsh-E Type 1.5 Ton Manual Lever Block Construction Hoist CE Certificated

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Product Overview

Model NO.

HSH-E-1.5

Application

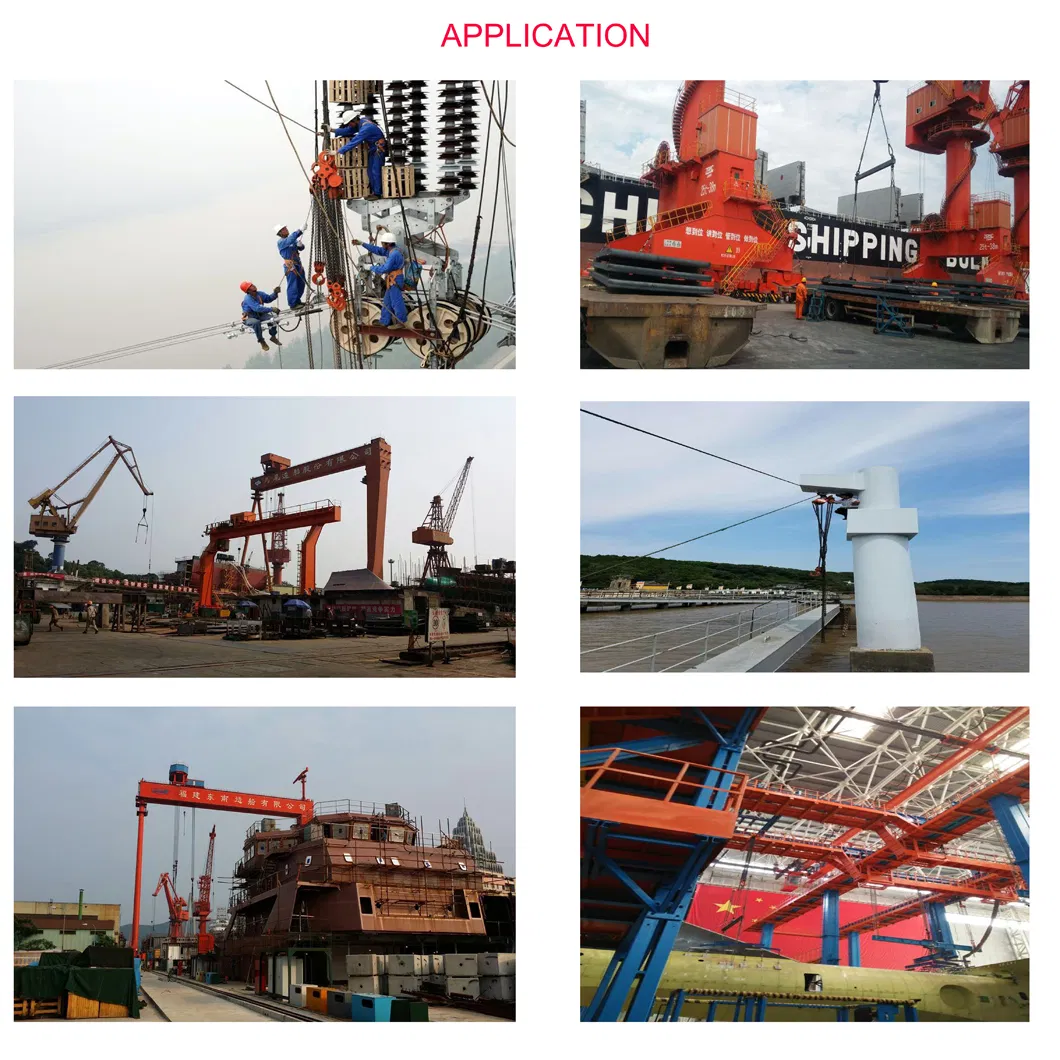

Bridge/Tower/Small Crane, Lifting Platform

Type

Chain Hoist / Lever Block

Capacity

1.5t

Lift Speed

<2m/min

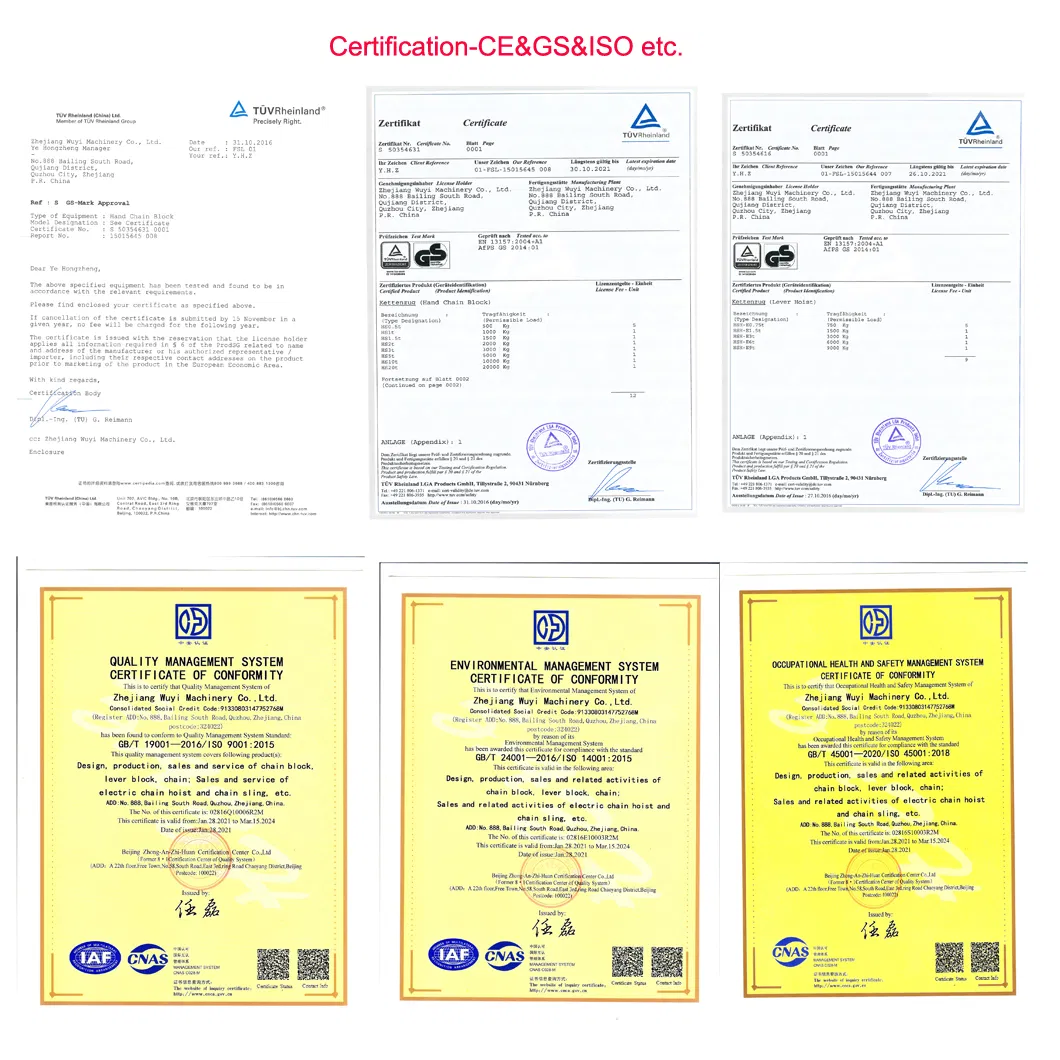

Certification

CE, ISO9001:2000, GS

Max Lifting Height

1.5m

Color

Orange

Test Load

2.25t

HS Code

8425190000

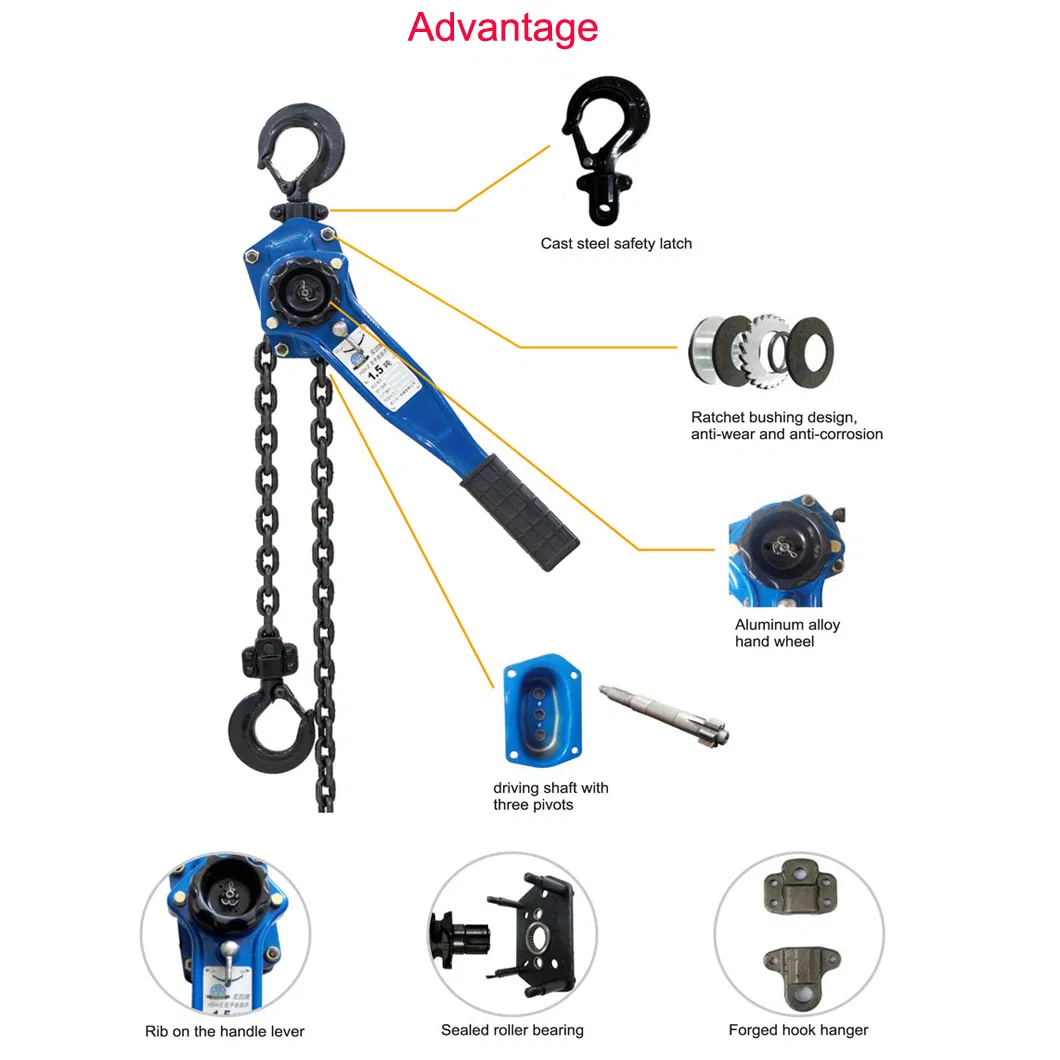

Key Features & Advantages

360° handle rotation with short stroke to ratchet loads
Aluminum alloy hand wheel for light weight operation
Three pivots for driving shaft ensures anti-shock performance
Durable steel frame with heat treated load bearing components
Caged roller bearings maximize efficiency and serviceability
Non-slip rubber grip fastened to high strength handle lever
Tested to 150% of rated capacity, safety coefficient 4:1
Meets or exceeds EN13157 and pertinent world standards
Self-manufactured superior G80 load chain (DIN standard)
Double pawls brake system & Non-Asbestos brake discs

Technical Parameters

Model	Capacity (t)	Std Lift (m)	Test Load (t)	Load Chain		Effort (N)	Dimensions (mm)			Net Weight (kg)
Model	Capacity (t)	Std Lift (m)	Test Load (t)	Col	Dia (mm)	Effort (N)	A	B	C	Net Weight (kg)
HSH-E0.5	0.5	1.5	0.75	1	5	340	105	78	95	4
HSH-E0.75	0.75	1.5	1.125	1	6	140	148	90	136	7
HSH-E1	1	1.5	1.5	1	6	250	148	90	136	7.2
HSH-E1.5	1.5	1.5	2.25	1	8	220	172	98	160	11
HSH-E3	3	1.5	4.5	1	10	320	200	115	180	21
HSH-E6	6	1.5	7.5	2	10	340	200	115	235	31
HSH-E9	9	1.5	11.25	3	10	360	200	115	340	47

Product Display

Lever Block Front View

Lever Block Side View

Lever Block Detail

Handle Mechanism

Load Hook

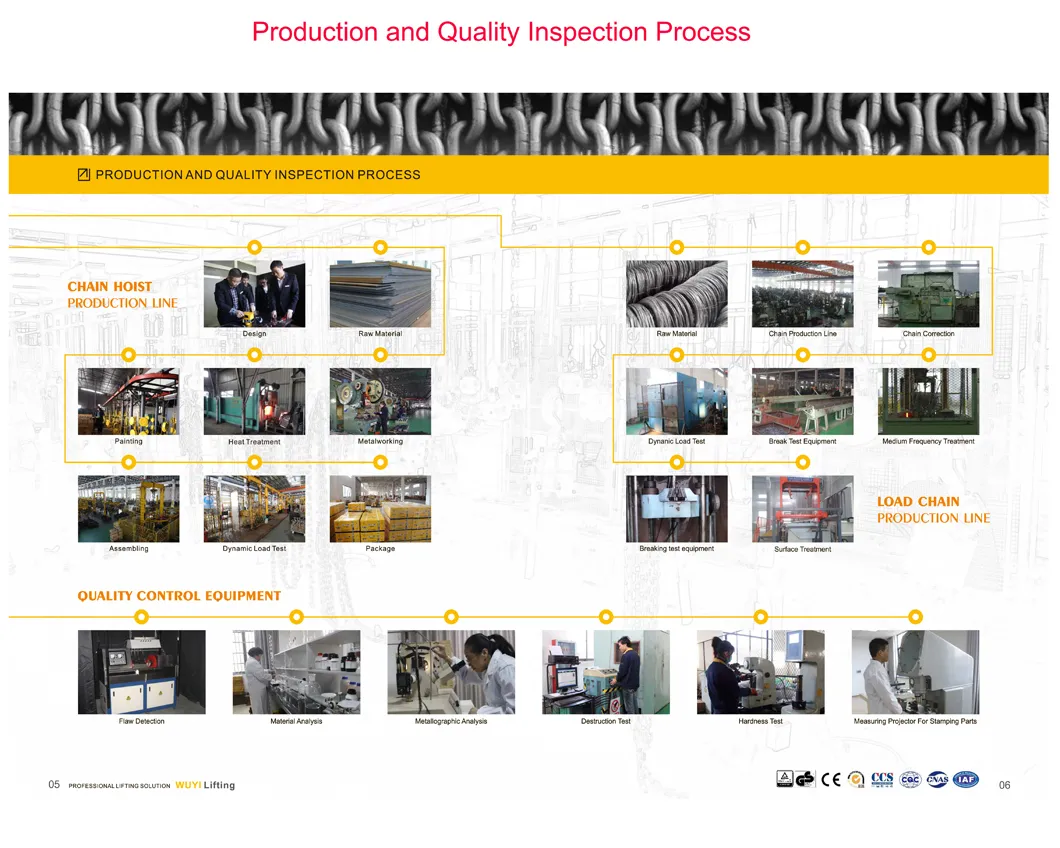

Testing Process

Factory Testing

Frequently Asked Questions

What is the safety factor of the HSH-E lever block?

The lever block is designed with a safety coefficient of at least 4:1 and each unit is tested to 150% of its rated capacity.

What international standards does this hoist meet?

It meets or exceeds EN13157 and other pertinent world standards, and comes with CE and GS certifications.

What kind of chain is used in this equipment?

We use self-manufactured superior Grade 80 load chains that comply with DIN standards for maximum durability.

Does it have an overload protection system?

An optional overload limiter system can be adopted upon request to enhance operational safety.

What is the warranty period for this product?

We provide a standard one-year guarantee on our lever blocks.

Are samples available for quality testing?

Yes, ready samples can be provided for you to check the quality and perform necessary technical tests.
