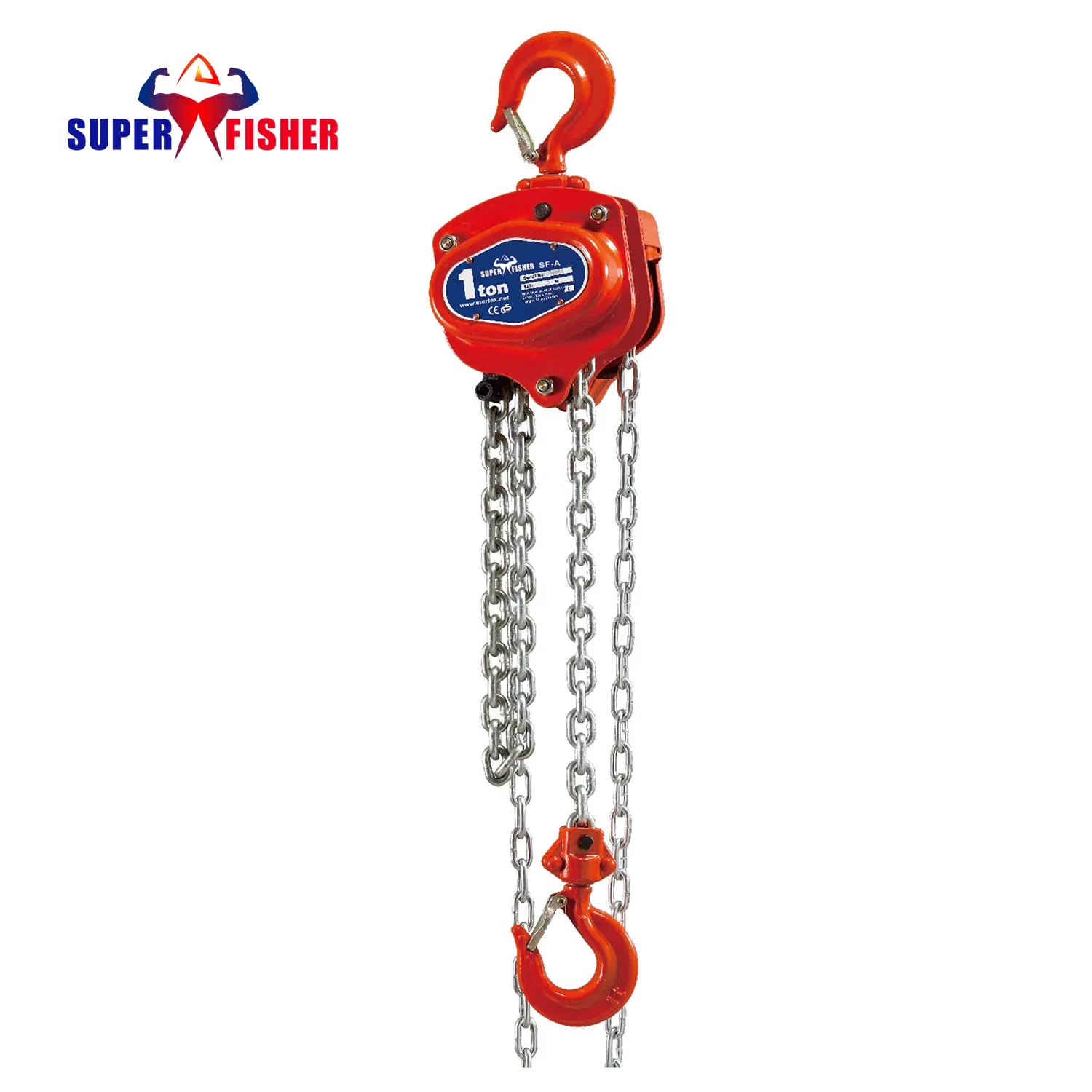

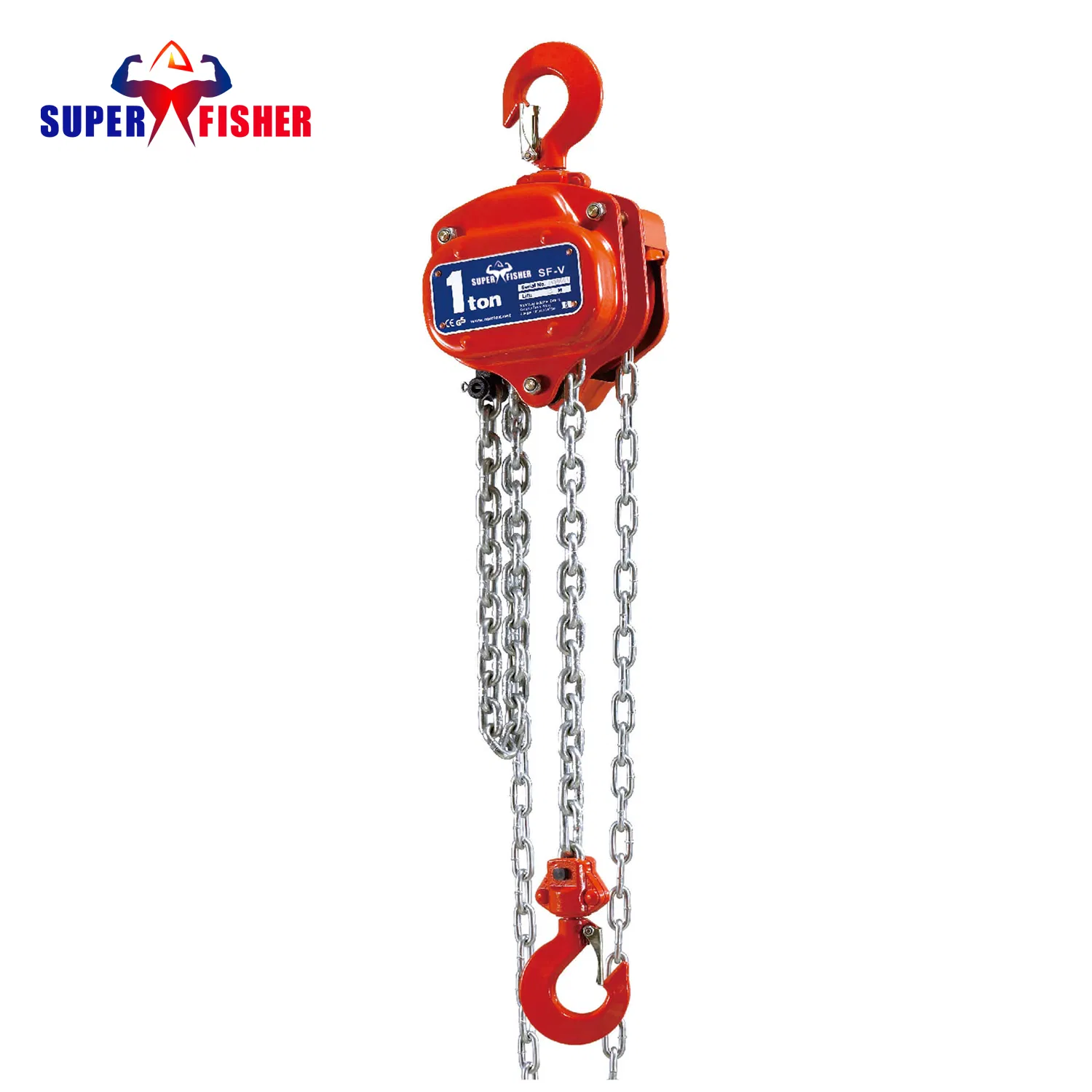

OEM Mini Crane Pulley Thick Manganese Steel Safety Lifting Equipment Lever Block Manual Hand Chain Hoist with G80 Load Chain

📋 Basic Information

Model NO.

SF-A

Type

Chain Hoist

Sling Type

Chain

Lift Speed

>8m/min

Lifting Height

3m

Chain Falls

2

Certification

CE, ISO9001:2000, GS

Load Chain

G80

Hand Chain

Galvanized

Capacity

0.5-30ton

🛠️ Product Description

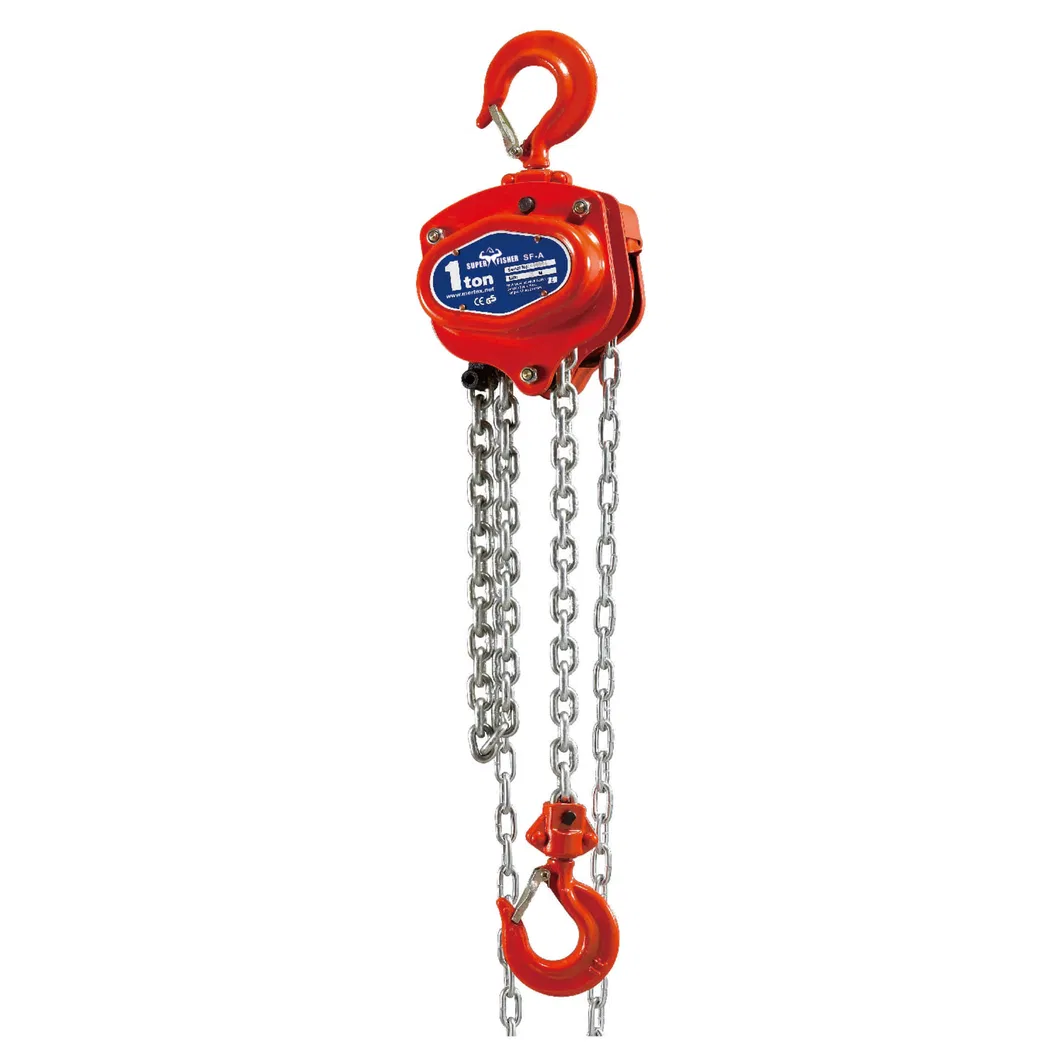

Hand Pulling Manual Chain Hoist with G80 Load Chain & Reinforced Hook

Tested at 1.5 times of Working Load Limit (WLL).
Equipped with an advanced overload protection system.
Capacity range from 0.5 ton to 30 ton to meet various lifting needs.
Compact sized design suitable for diverse industrial applications.
Heavy duty guide rollers to prevent slippage of the load chain.
Forged hook with safety latch, capable of 360-degree rotation.
Precision machined chain sprocket and gears for smooth and efficient operation.

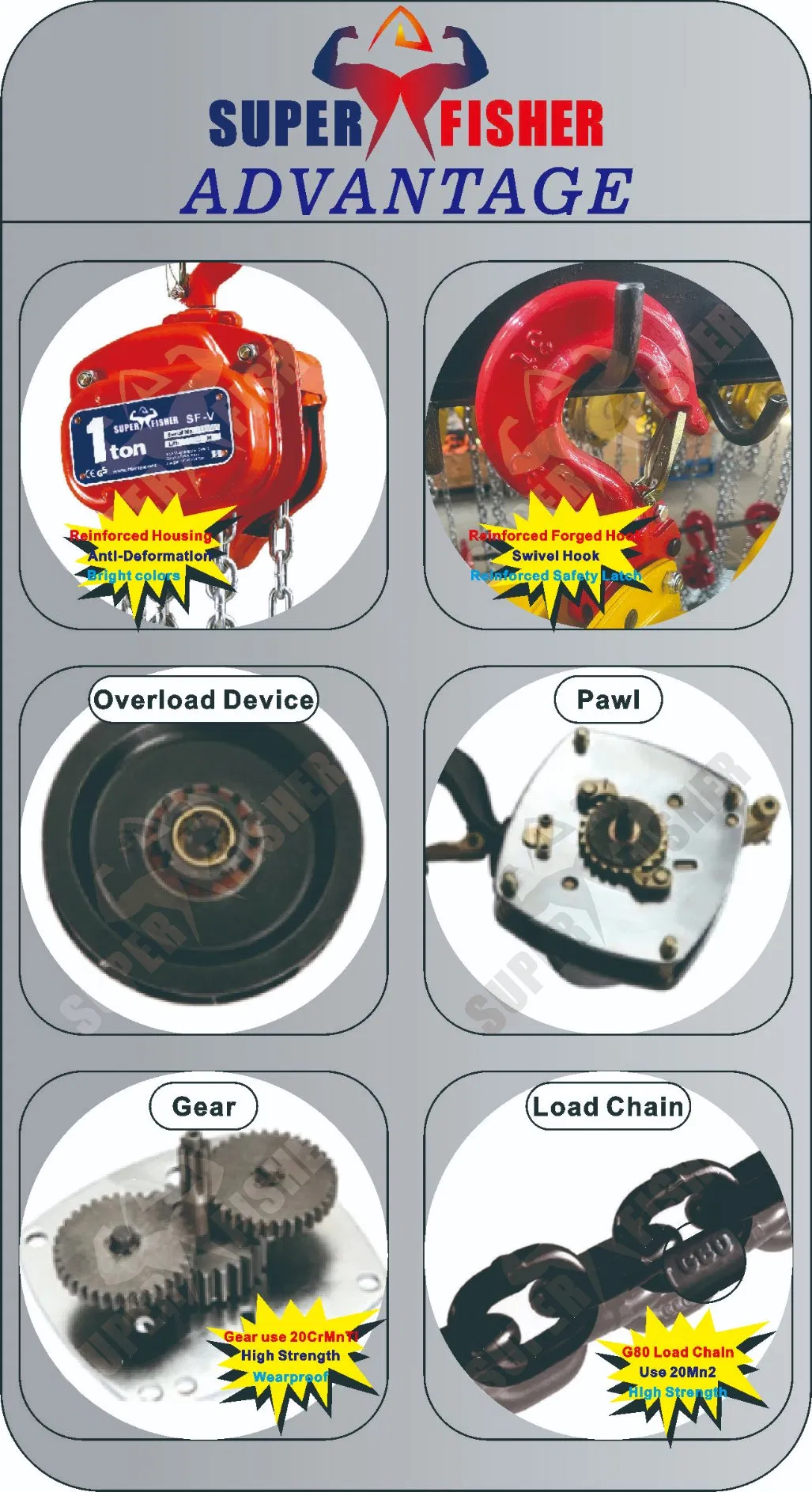

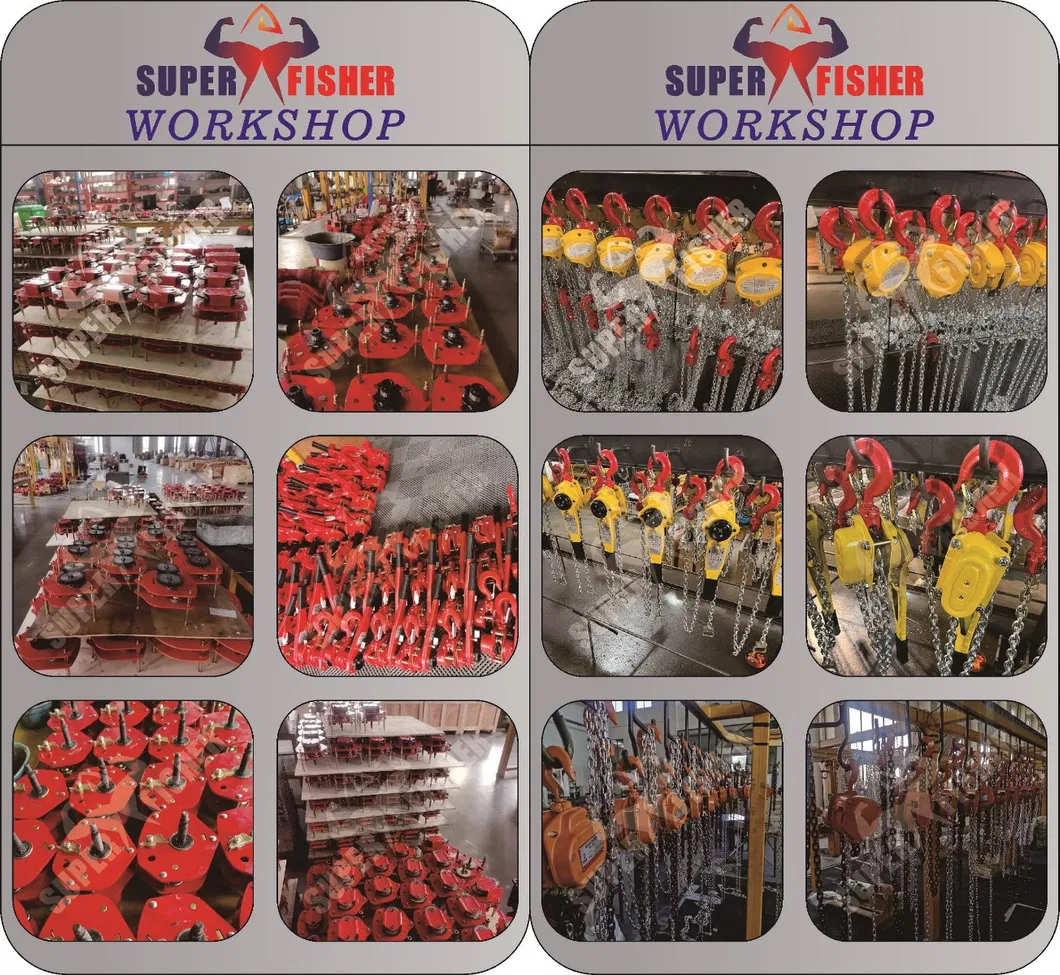

🖼️ Production Gallery

🌟 Our Advantages

Safety: Safe and reliable operation with minimum maintenance required.
Efficiency: High mechanical efficiency with small hand pull effort.
Design: Fine appearance with a compact and portable size.
Handling: Light weight and easy to handle for onsite tasks.
Durability: Long-lasting service life even in demanding environments.

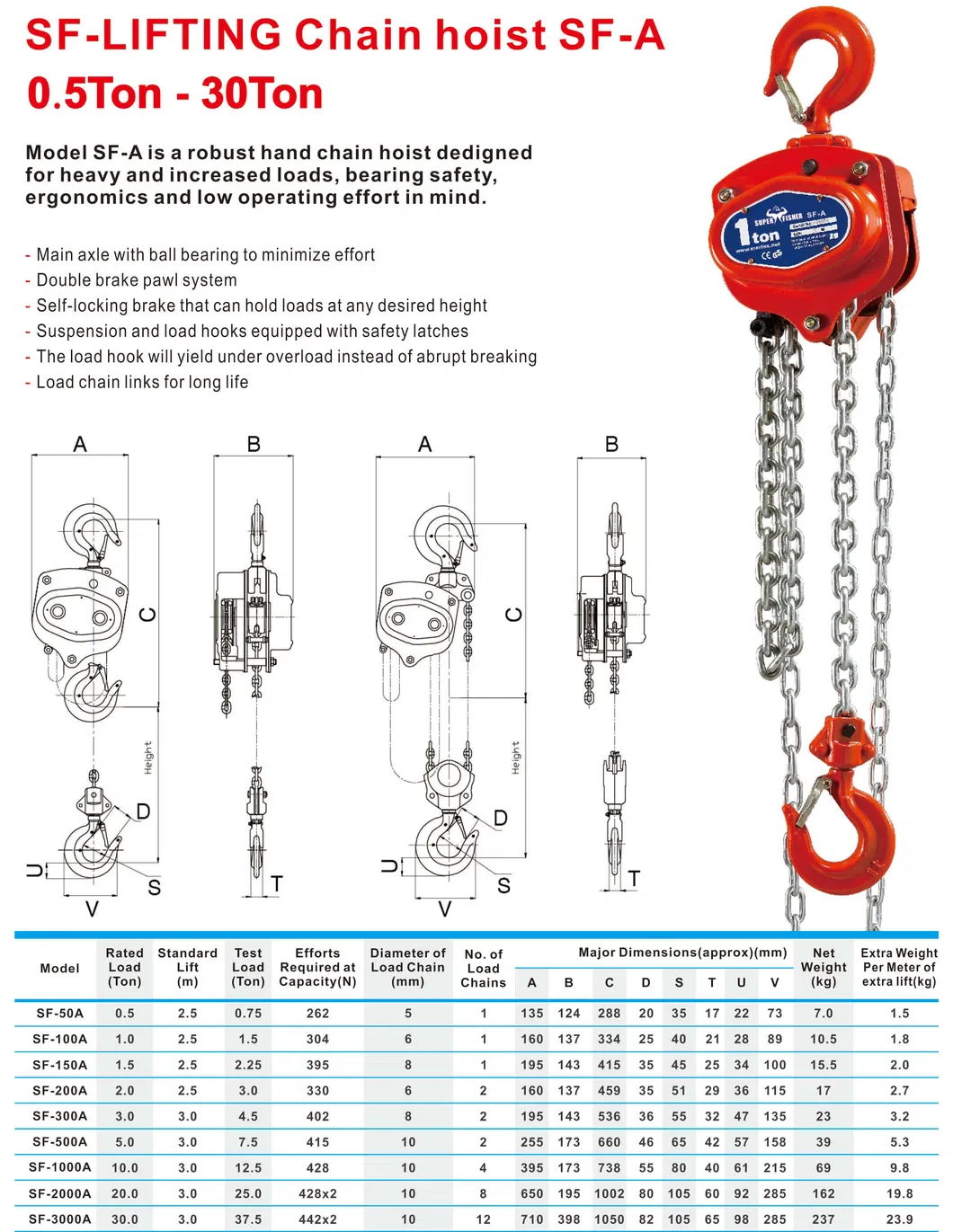

📊 Technical Parameters

Model	Rated load (Ton)	Standard Lift (m)	Test Load (Ton)	Efforts Required (N)	Chain Dia (mm)	No.of Chains
SF-50A	0.5	2.5	0.75	262	5	1
SF-100A	1.0	2.5	1.5	304	6	1
SF-150A	1.5	2.5	2.25	395	8	1
SF-200A	2.0	2.5	3.0	330	6	2
SF-300A	3.0	3.0	4.5	402	8	2
SF-500A	5.0	3.0	7.5	415	10	2
SF-1000A	10.0	3.0	12.5	428	10	4
SF-2000A	20.0	3.0	25.0	428*2	10	8
SF-3000A	30.0	3.0	37.5	442*2	10	12

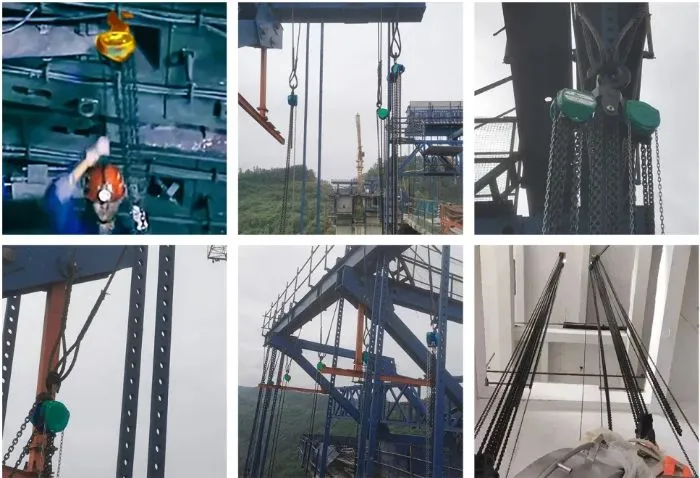

🔍 Detailed Photos & Scenarios

📜 Certifications

❓ Frequently Asked Questions

1. What is the capacity range of this manual chain hoist? The manual chain hoists are available in a wide range of capacities, starting from 0.5 ton up to 30 tons.

2. Does the hoist come with any safety certifications? Yes, our hoists are fully certified with CE, ISO9001:2000, and GS standards to ensure high safety and quality.

3. What kind of chain is used for lifting? We use high-strength G80 load chains, which provide excellent durability and safety for heavy lifting operations.

4. Is the hoist tested for overload? Every unit is tested at 1.5 times the Working Load Limit (WLL) to ensure structural integrity and reliability.

5. Can the hook rotate under load? Yes, the reinforced hook features a safety latch and is designed to rotate freely 360 degrees for easier load positioning.

6. What colors are available for the hoist body? Standard colors include Orange, Yellow, Red, and Blue. Custom colors are also available upon request.
