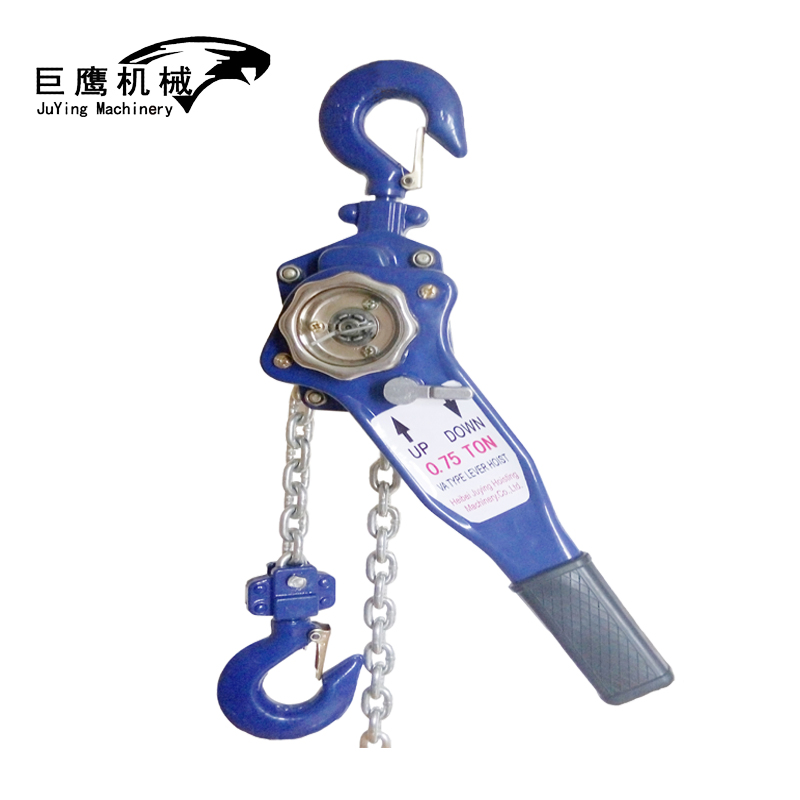

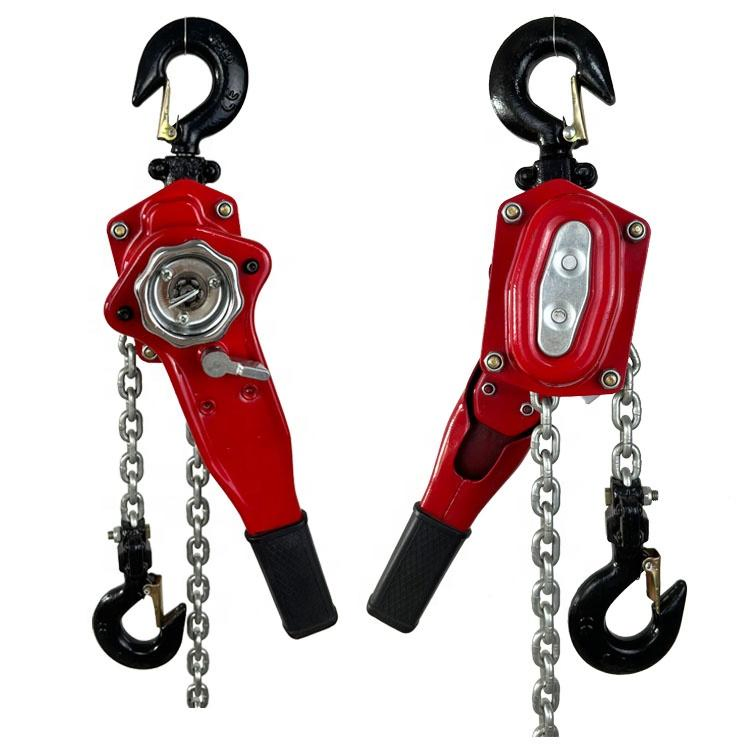

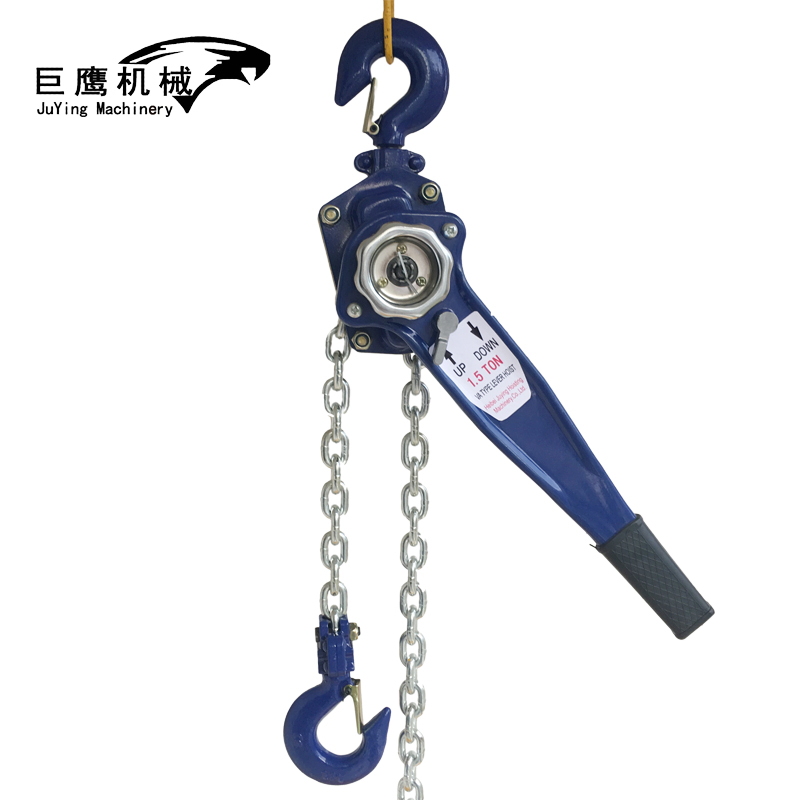

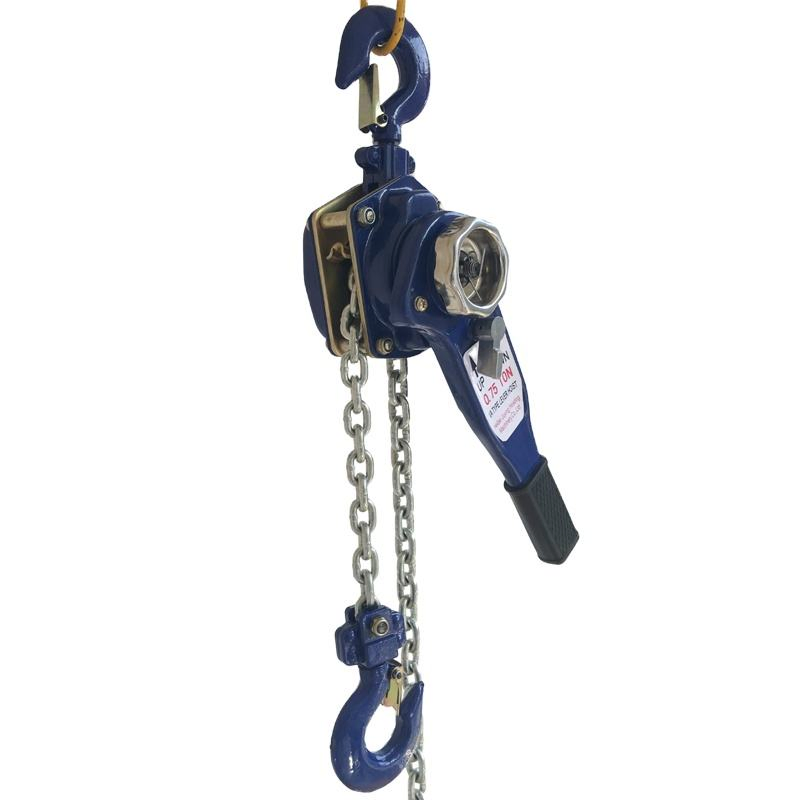

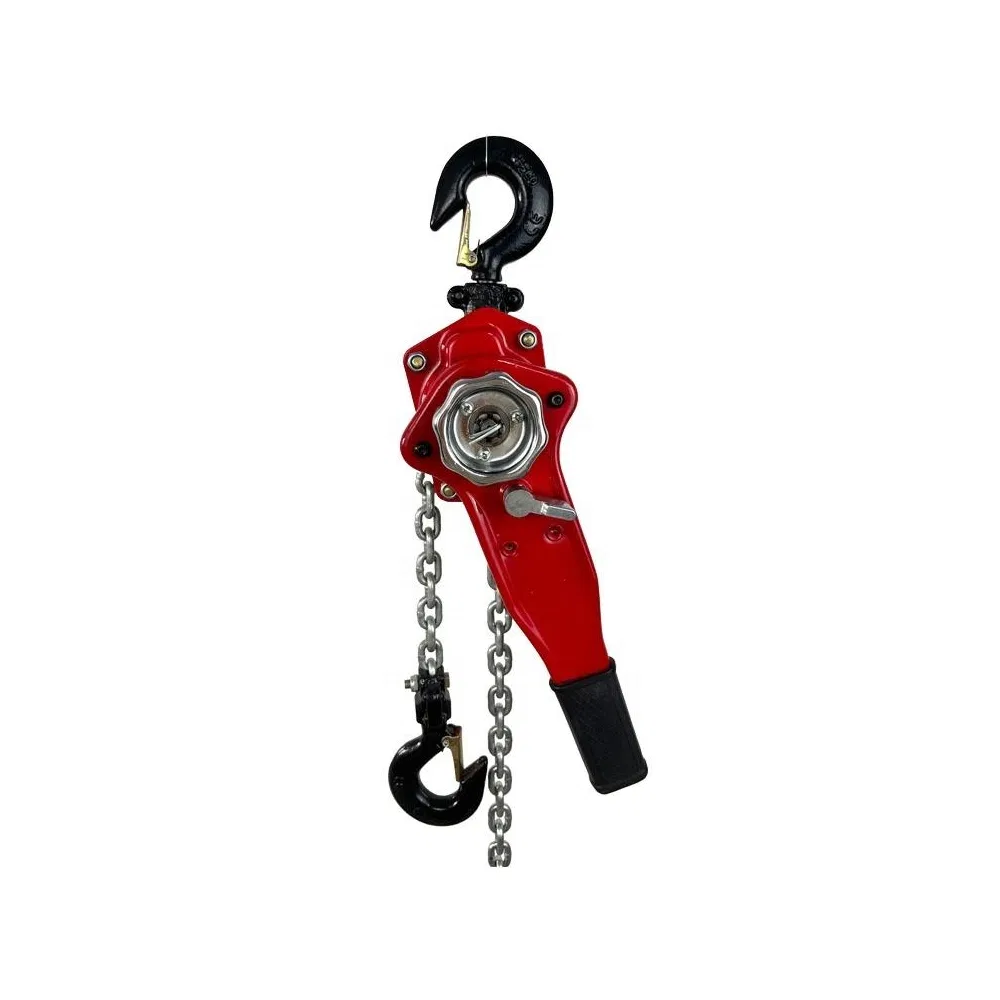

High-Performance Lever Chain Hoist with Standard 1.5 M Lift Height

1 / 5

High-Performance Lever Chain Hoist with Standard 1.5 M Lift Height

Customization:	Available
Warranty:	1 Year
Application:	Small Crane

Send Inquiry

Product Description

Technical Specifications

Model NO.

Type

Lever Hoist

Sling Type

Chain

Lift Speed

2~8m/min

Maximum Lifting Height

12m

Chain Falls

Certification

Color

Blue

Load Chain Material

Alloy Steel G80

Capacity

0.75 ton to 6 ton

Package Size

51.00cm * 16.00cm * 19.00cm

Warranty

1 Year

★

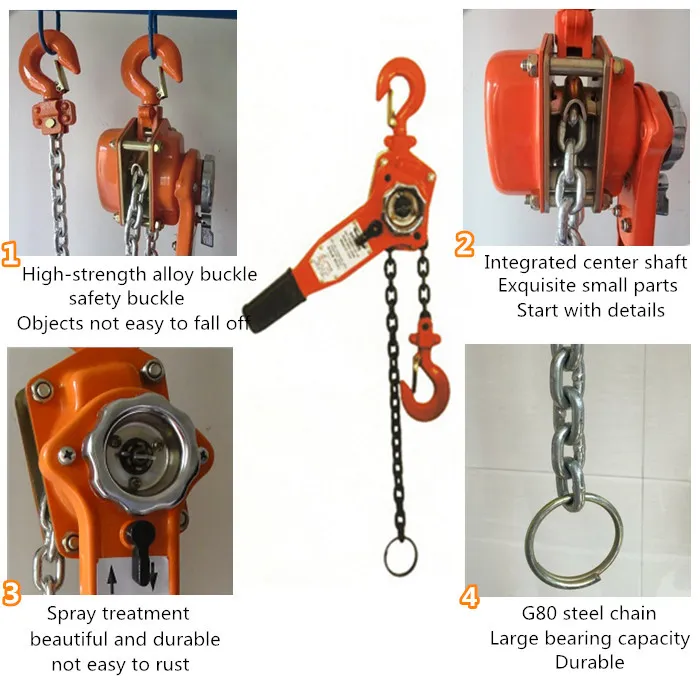

Product Features

✔

Low self-weight and compact mounting dimensions with minimal lever force required at full load.

✔

Innovative asbestos-free brake system ensures secure load holding at any height.

✔

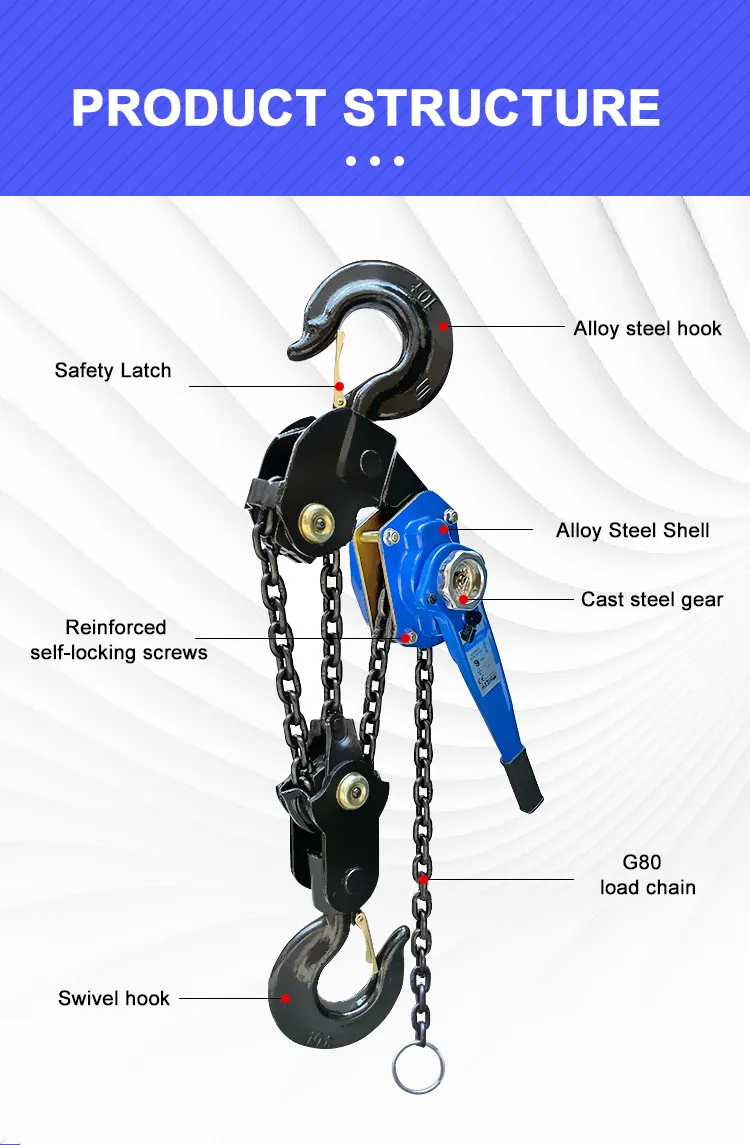

Top and bottom hooks equipped with standard safety latches for enhanced security.

✔

Effortless load chain movement in both directions for easy attachment (restricted under load for safety).

✔

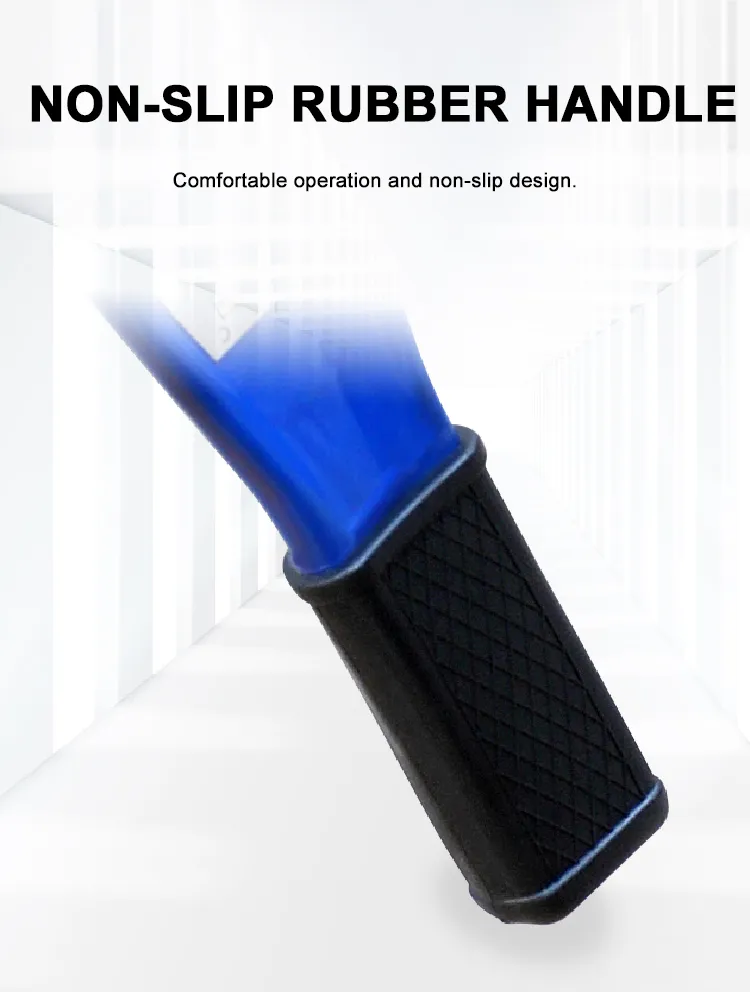

Ergonomic short hand lever with comfortable rubber grip for ease of operation.

✔

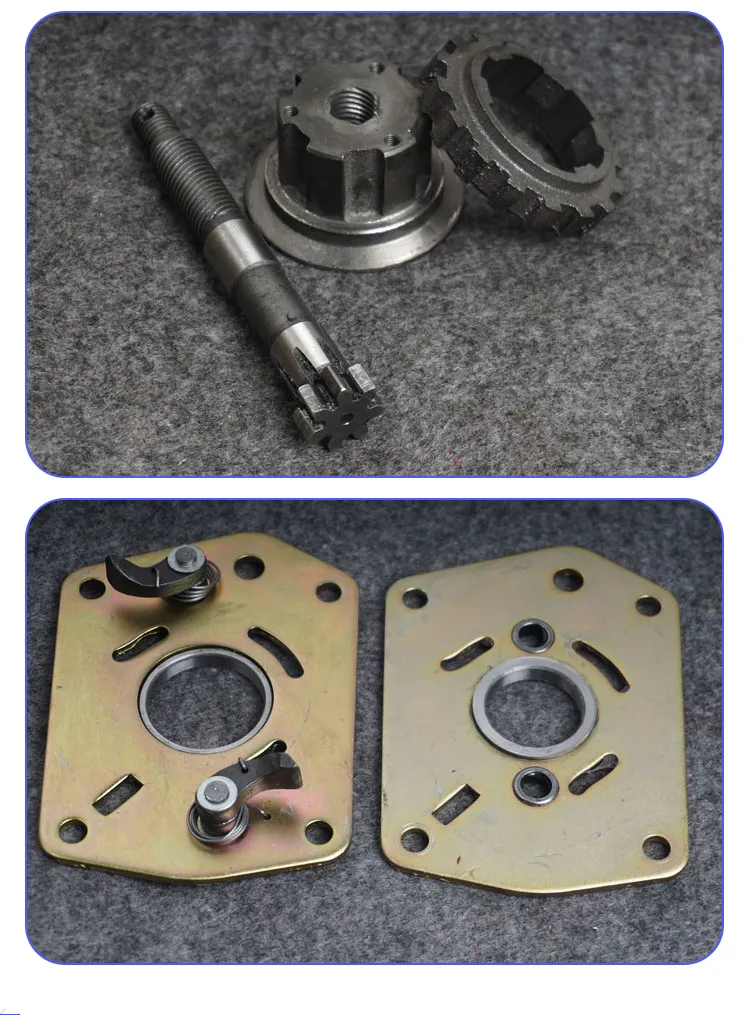

Optimal gear ratio engineering for high efficiency and minimal physical effort.

✔

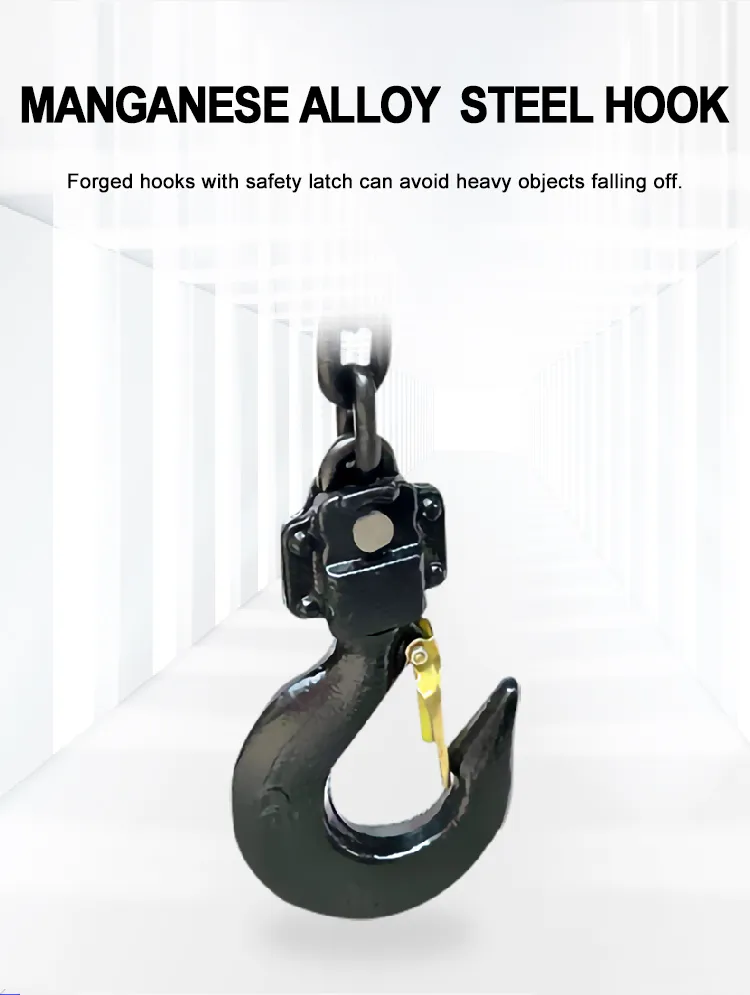

Drop-forged, heat-treated steel hooks designed to yield slowly during overload rather than fracturing.

✔

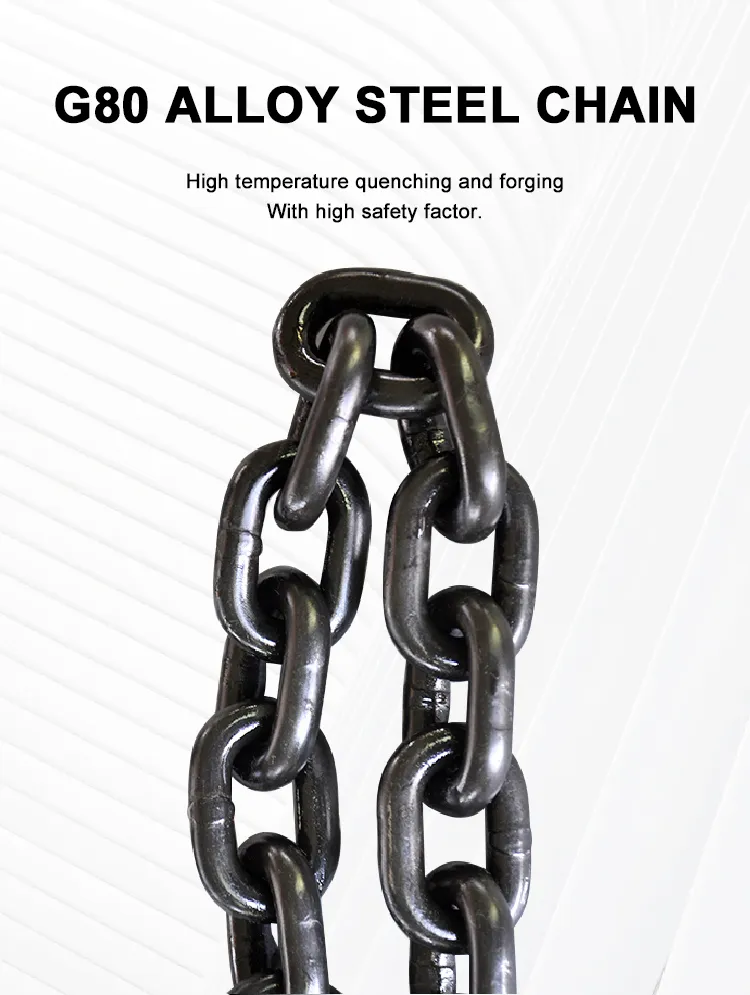

High-grade G80 alloy load chain for superior strength and longevity.

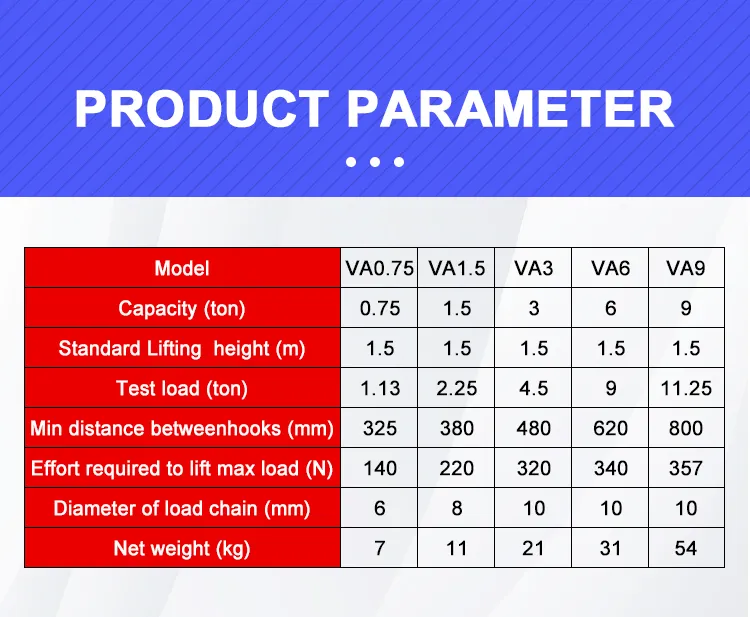

Model	VA-3/4	VA-1	VA-1 1/2	VA-2	VA-3	VA-6
Capacity(t)	0.75 ton	1 ton	1.5 ton	2 ton	3 ton	6 ton
Lifting Height(m)	1.5 m	1.5 m	1.5 m	1.5 m	1.5 m	1.5 m
Test load(t)	1.125t	1.5 t	1.875t	3 t	4.5 t	7.5 t
Chain Diameter	6mm	6mm	8mm	8mm	8mm	10mm
N.W(kg)	7kg	7kg	11kg	11kg	21kg	24kg

📷

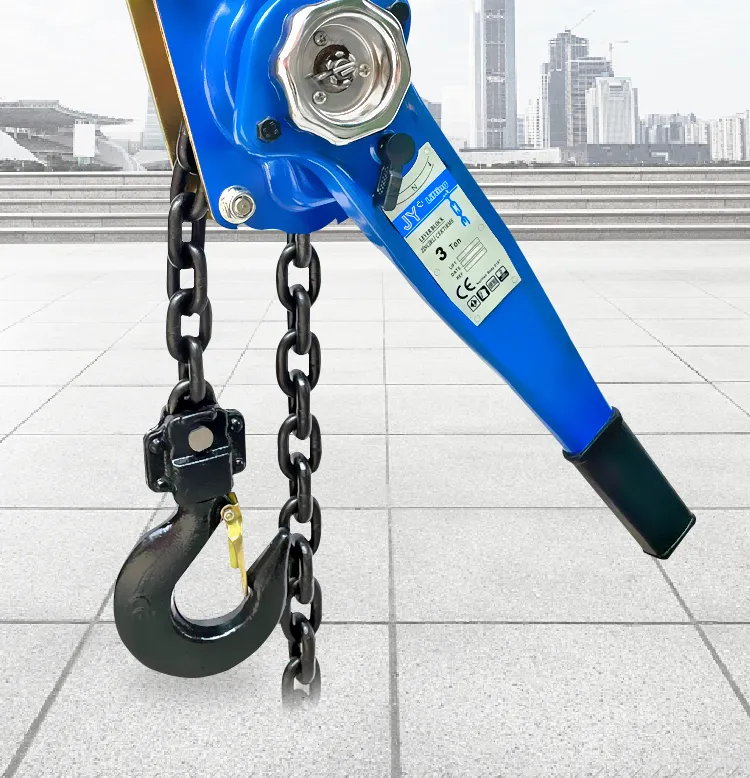

Product Display

📦

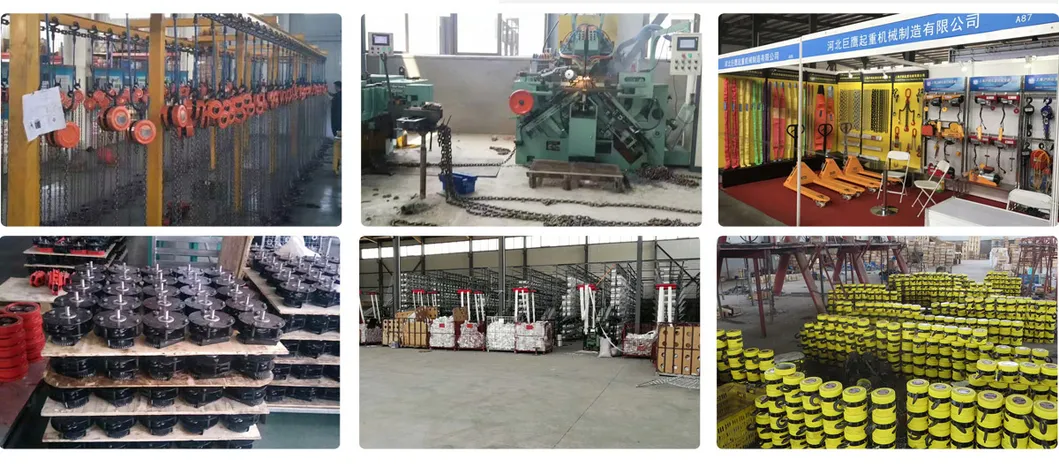

Packing & Production

Specializing in the production of chain hoists, electric hoists, and comprehensive lifting machinery equipment since 2005. The facility maintains a scientific quality management system verified by TÜV Rheinland.

Frequently Asked Questions

How is the product quality guaranteed?

We ensure quality through a pre-production sample check before mass production and a final comprehensive inspection before every shipment. Our products carry CE, TUV, and GS certificates.

What lifting products do you provide?

We offer a wide range of equipment including Electric Hoists, Manual Lever Hoists, G80 Lifting Chains, Permanent Magnetic Lifters, and Webbing Slings.

What is the advantage of your lever hoists?

Our hoists feature drop-forged steel hooks that yield slowly during overload for safety, a high-grade alloy chain, and an ergonomic design that requires minimal lever force even at full capacity.

What are the accepted payment and delivery terms?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or Western Union in USD, EUR, or CNY.

Do you provide maintenance and usage guidance?

Yes, comprehensive inspection reports and detailed manuals are provided with each hoist to ensure proper usage, safety, and long-term maintenance.

What is the production capacity for lever hoists?

Our production capacity allows for approximately 1000 sets per month, ensuring a steady supply for both domestic and international markets.
