Mini Smallest Lightest Lever Hoist

Customization:	Available
Application:	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type:	Lever Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.HSHA series

Sling TypeChain

Max Lifting Height3m

Chain Falls1

CertificationCE, ISO9001:2000

ConditionNew

Capacity100kg~250kg

Safety Factor4 to 1

Standard Height1 Meter

PackageCartons/Wooden Box

OriginChina

HS Code84251900

Mini Smallest Lightest Lever Hoist

✓ These are the smallest, lightest manual hoists designed specifically for professional applications.

✓ High quality internal parts and European load chain ensure superior performance and long-term reliability.

✓ Fully load tested and certified to 150% of the rated capacity with a safety factor of 4 to 1.

✓ The extremely low tare weight and compact design allow for easy operation even in confined working conditions.

*The design, materials and specifications are subject to change for improvements without notice.

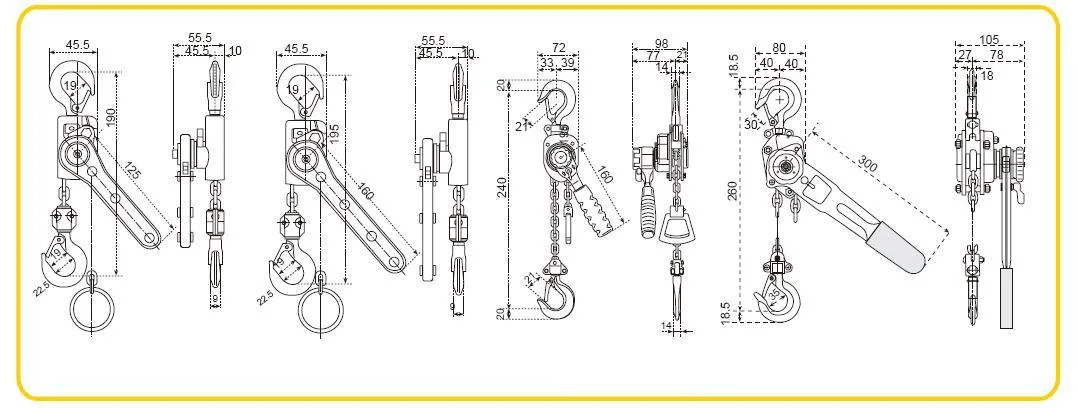

Technical Parameters

Model	HSHA100KG	HSHA150KG	HSHA250KG-1	HSHA250KG-2
Rated capacity(kg)	100	150	250	250
Standard lifting height(m)	1.0	1.0	1.0	1.0
Test load(kg)	150	225	375	375
Effort to rated capacity(kg)	16	16	25	25
Load chain (D*T /mm)	3.1*9.3	3.1*9.3	4*12	4*12
Load chain (No of fall)	1	1	1	1
Min distance between hooks(mm)	190	195	240	290
Handle length (mm)	125	160	160	235
Net weight (kg)	0.8	0.8	2.3	3.5

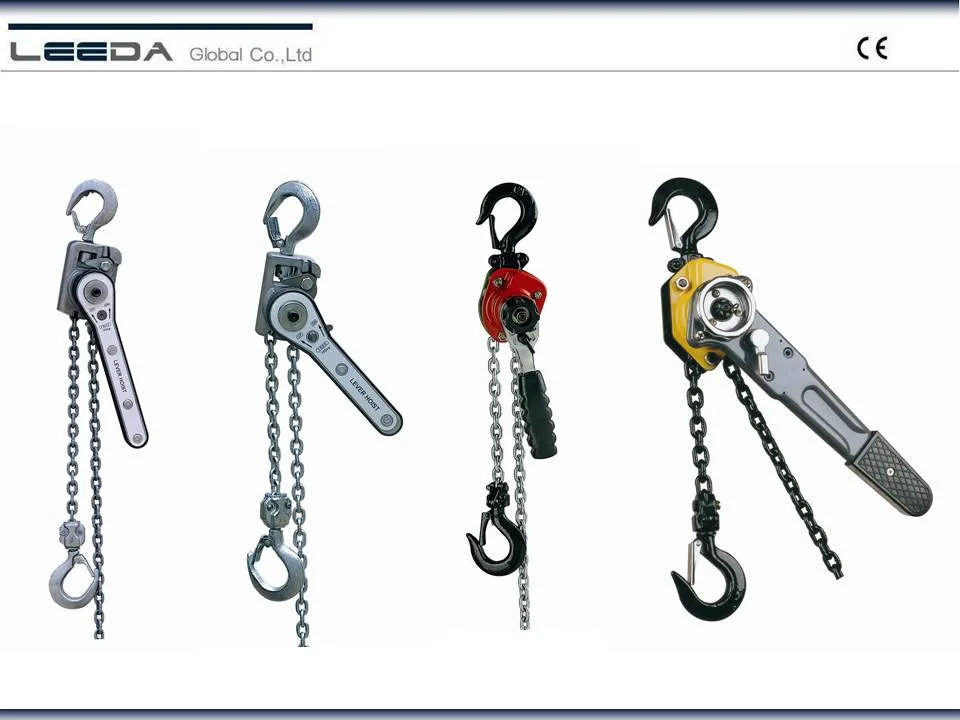

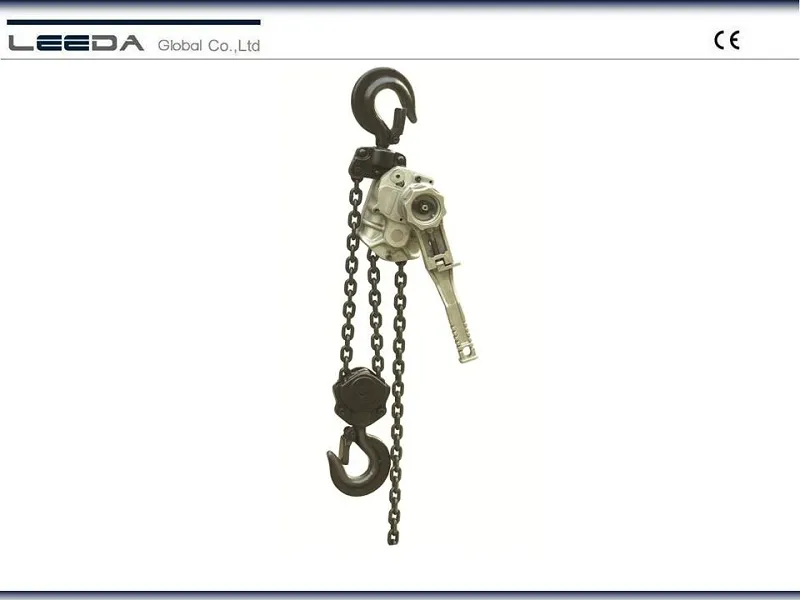

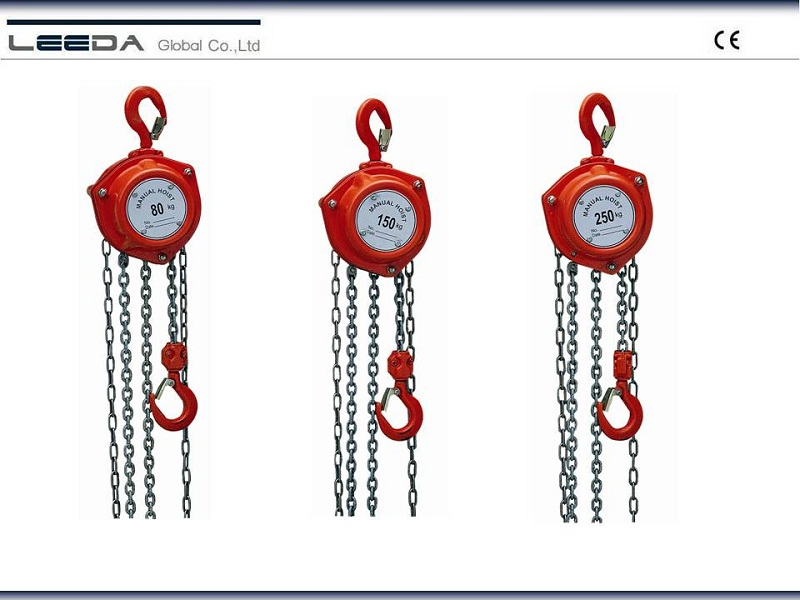

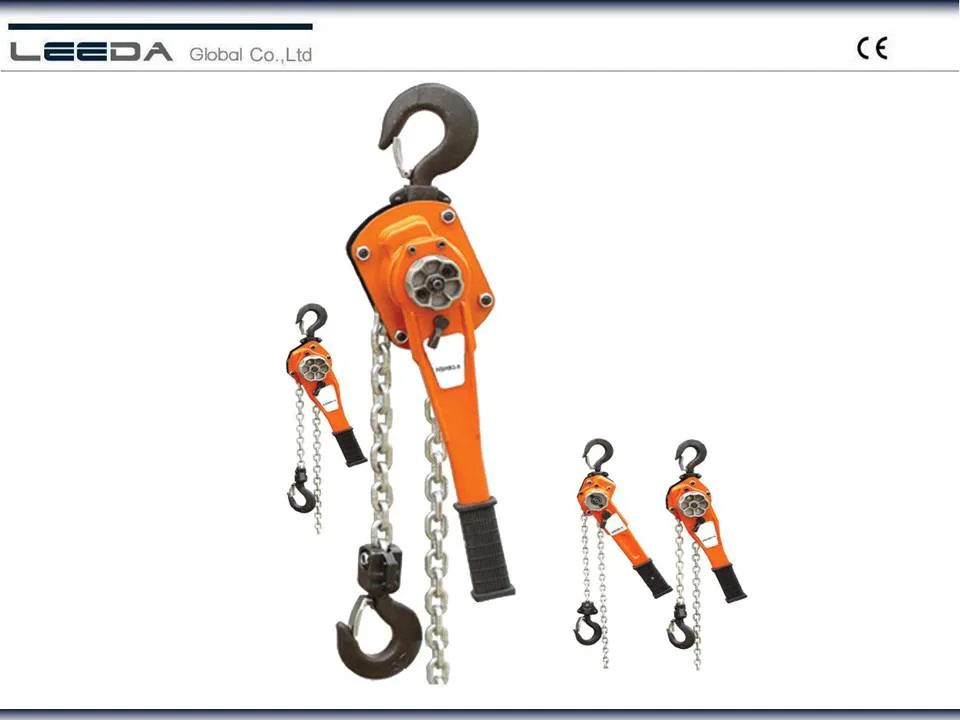

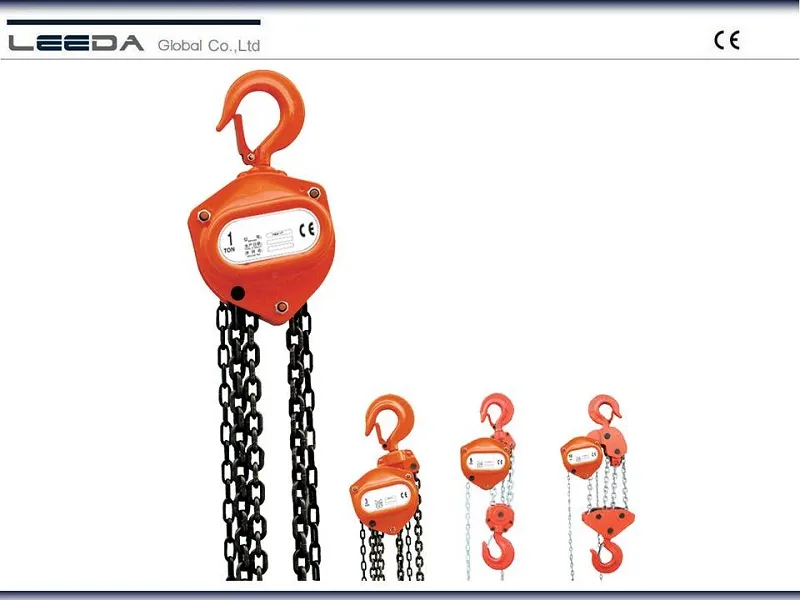

Product Display

Frequently Asked Questions

1. What is the maximum load capacity for this mini lever hoist series? The HSHA series offers capacities ranging from 100kg up to 250kg, suitable for various light-duty professional lifting tasks.

2. How portable is this hoist? This is the smallest and lightest manual hoist available. The net weight starts as low as 0.8kg, making it extremely easy to carry and use in confined spaces.

3. What are the safety standards for these hoists? Each hoist is load tested to 150% of its rated capacity. They feature a safety factor of 4 to 1 and carry CE and ISO9001:2000 certifications.

4. What type of chain is used in the HSHA series? The hoists are equipped with high-quality European load chains to ensure durability, safety, and smooth operation.

5. Can the lifting height be customized? While the standard lifting height is 1 meter, the technical specifications mention a maximum lifting height of up to 3 meters can be provided.

6. What determines the effort required to lift the rated capacity? The effort required depends on the model; for example, the 100kg and 150kg models require 16kg of effort, while the 250kg models require 25kg of effort.
