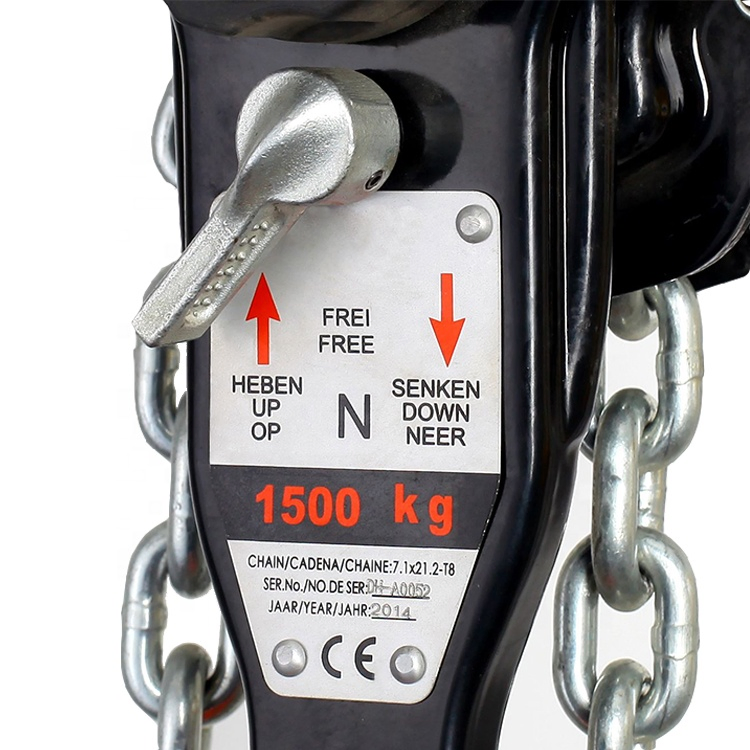

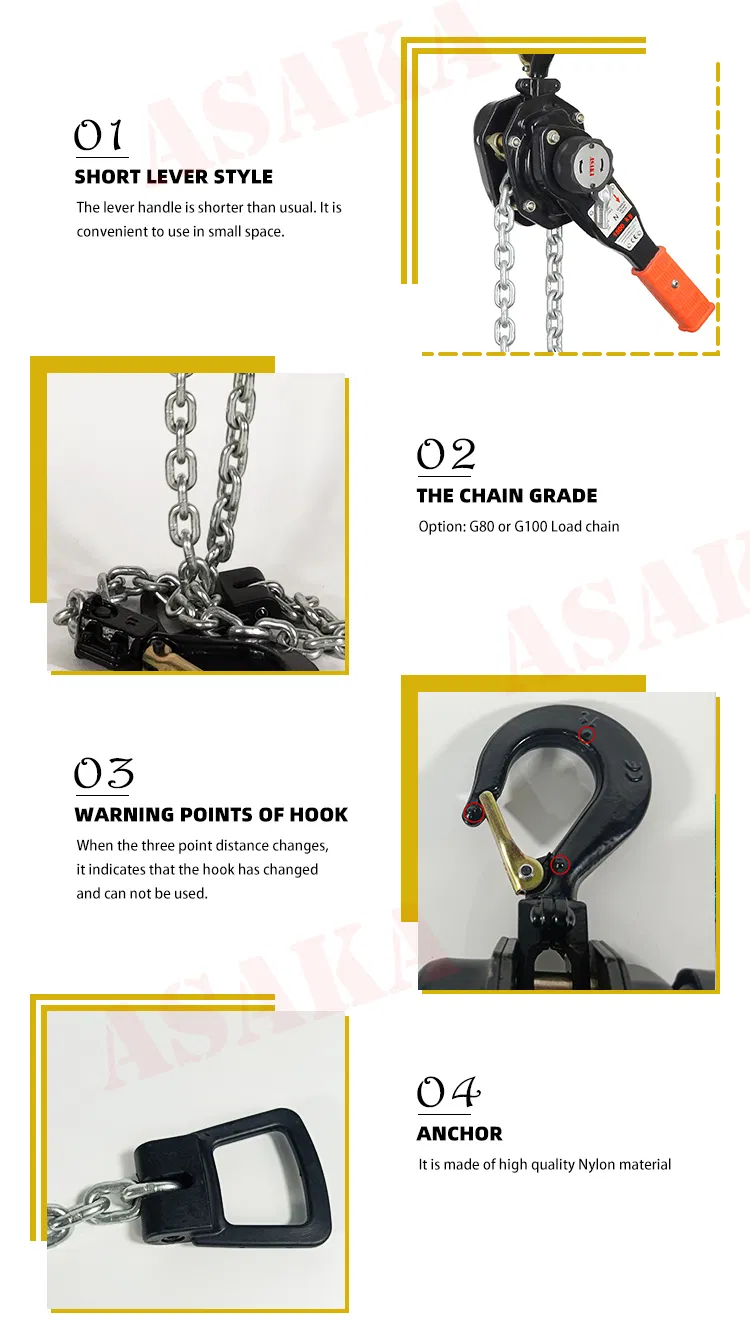

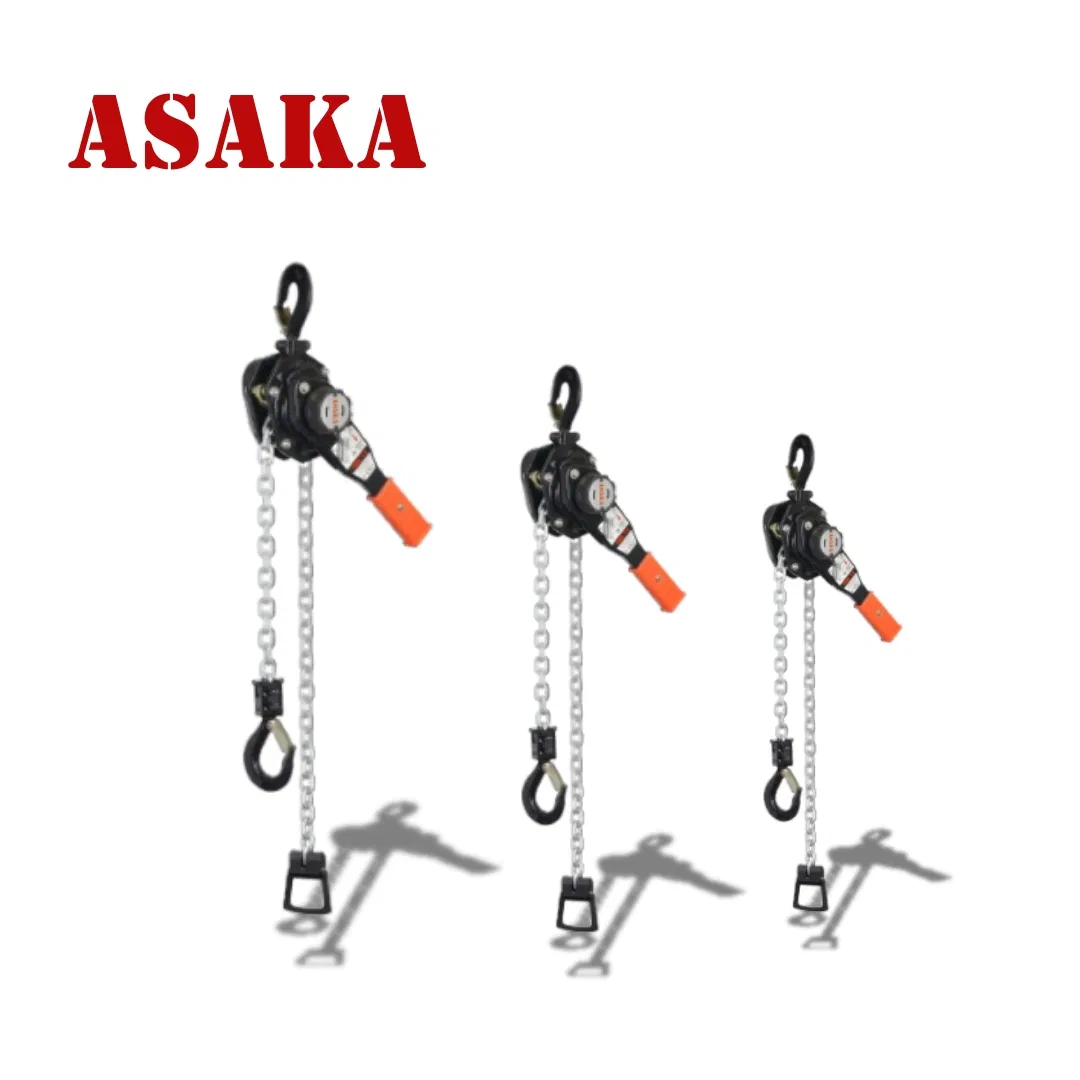

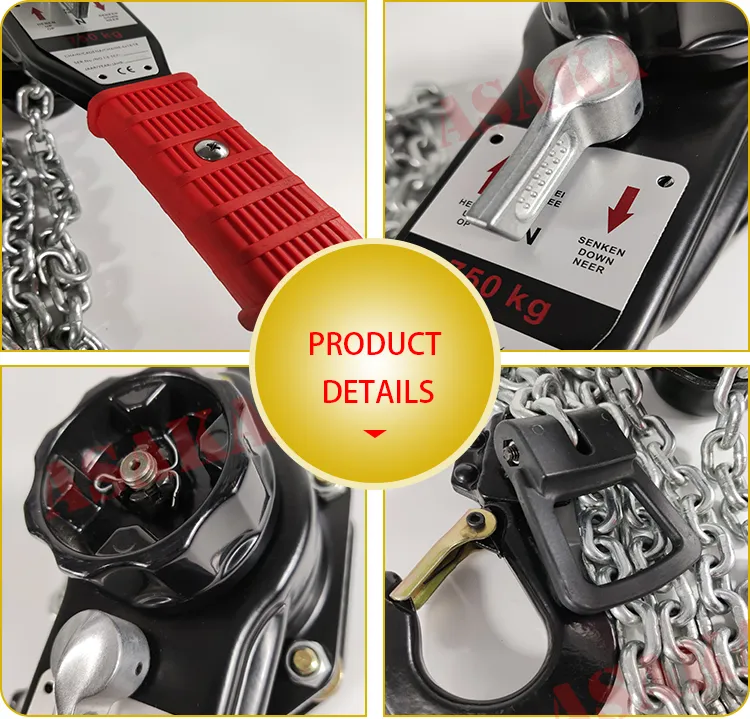

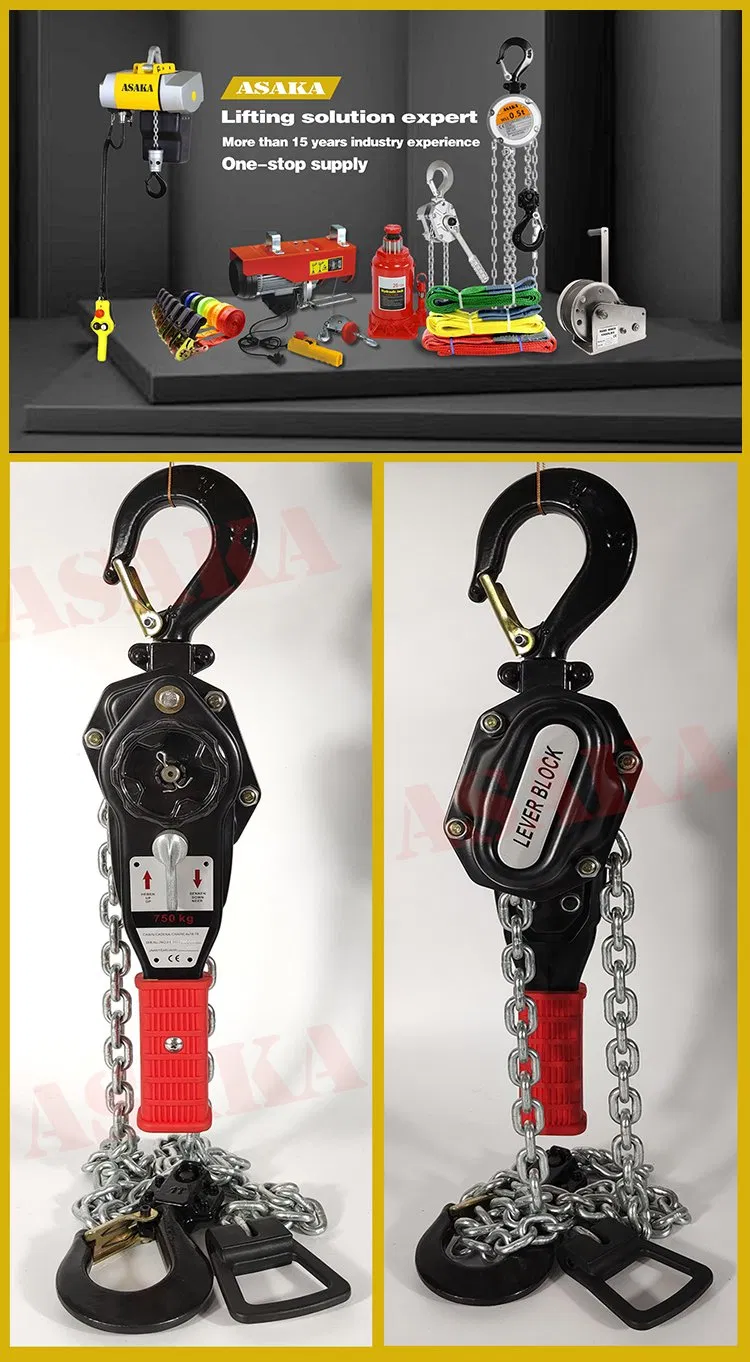

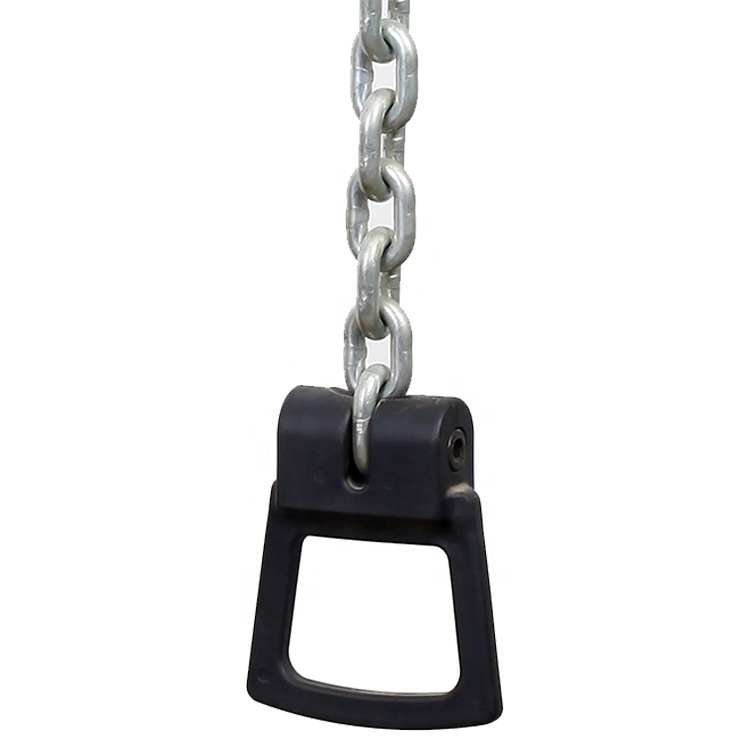

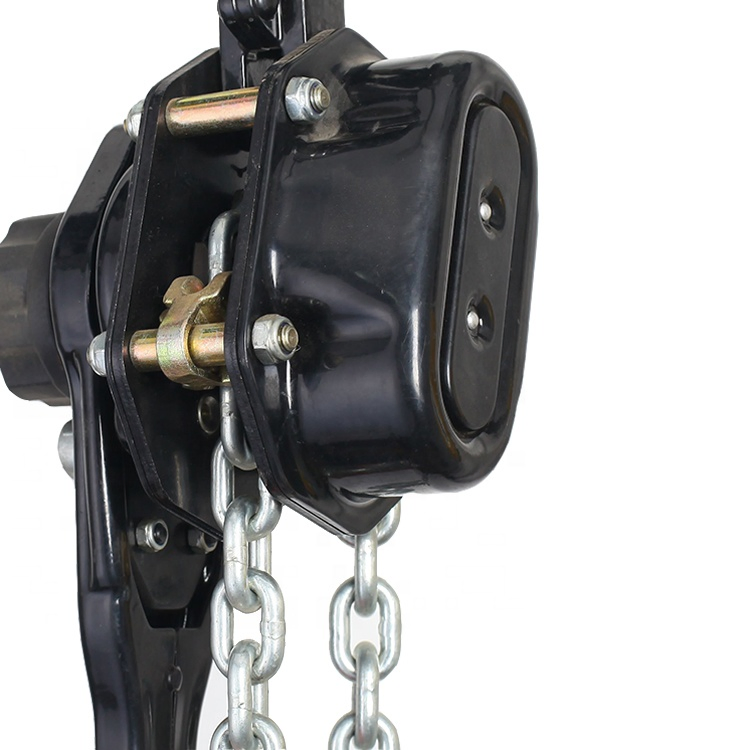

DH hand chain hoist with a lightweight short handle design, but at the same time to maintain a very labor-saving lever operation, for construction, shipbuilding, sheet metal and other industrial areas of the user is a very good tool, especially suitable for use in restricted space. This series of new lever block as an essential tool in the industrial business and service widely used. The block is very light weight, the design is very compact, even in the limited working environment can also be easily used.

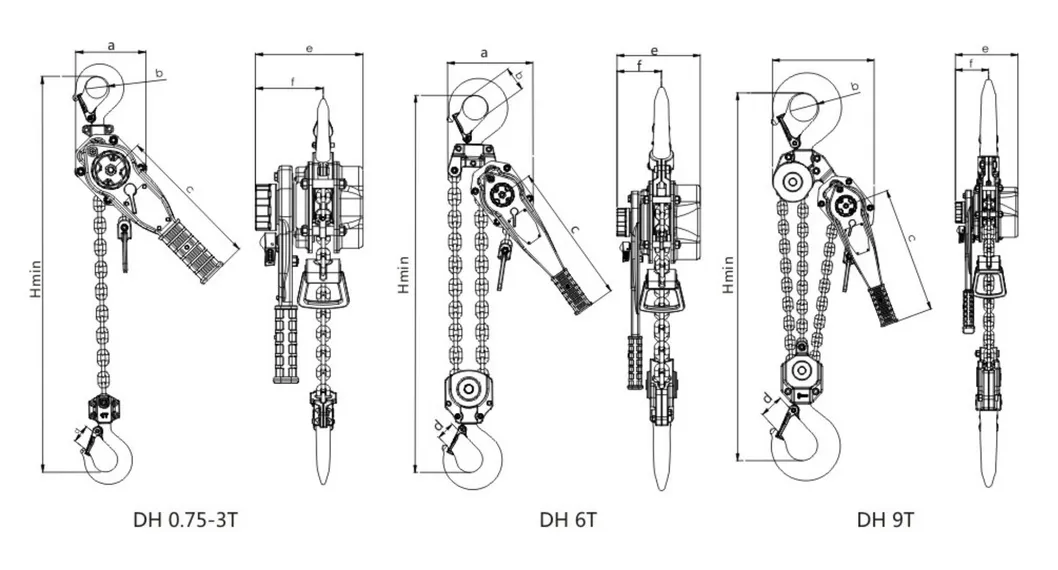

| Model | DH0075 | DH008 | DH010 | DH015 | DH016 | DH030 | DH032 | DH060 | DH090 |
|---|---|---|---|---|---|---|---|---|---|
| Rated weight (kg) | 750 | 800 | 1000 | 1500 | 1600 | 3000 | 3200 | 6000 | 9000 |
| Standard lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Chain row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Hand force (N) | 220 | 225 | 240 | 240 | 250 | 330 | 340 | 360 | 380 |
| Net weight (kg) | 5.3 | 5.6 | 5.6 | 8.6 | 8.6 | 15.2 | 15.2 | 23 | 43 |
| Pack size (cm) | 31.5x16x12 | 31.5x16x12 | 31.5x16x12 | 35x18x13 | 35x18x13 | 48x20x13.5 | 48x20x13.5 | 48x21.5x17 | 53x28x25 |
