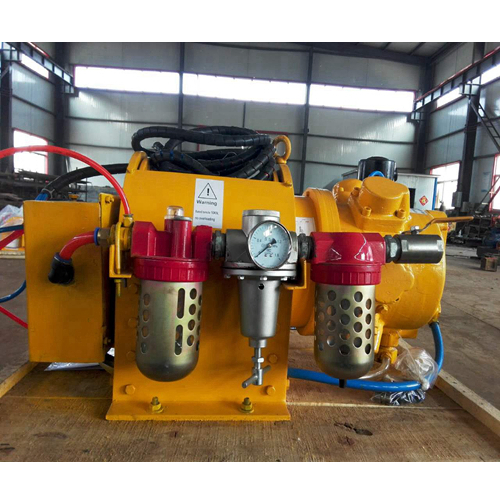

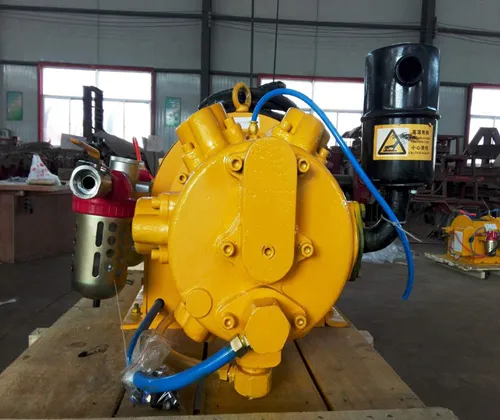

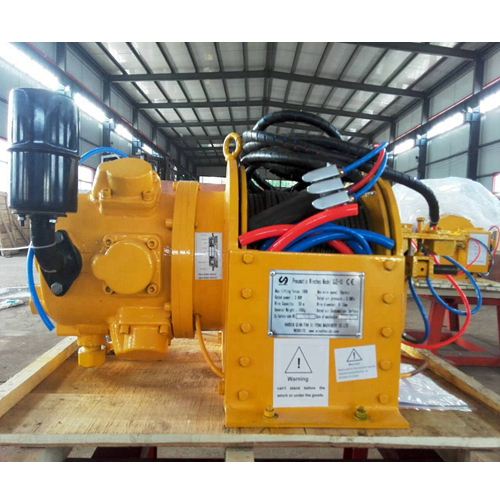

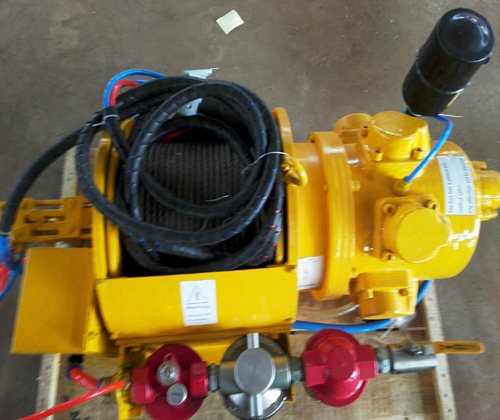

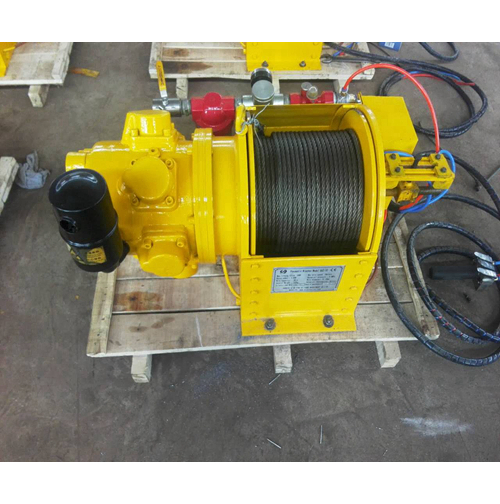

Pneumatic Motor as Driving Force 1000kg 1ton Mining Winch Customization Pneumatic Air Winch with Disk Brake

i

Basic Information

Model NO.

QDJC10

Type

Construction Winch

Driven Type

Air

Speed

Fast

Tonnage

10T

Capacity

1000kg

Lifting Speed

30m/Min

Rated Power

4.1kw

Feature

Explosion-Proof

Certification

ISO 9001

Air Intake Pressure

0.6-0.8 Mpa

Wire Rope Diameter

12mm

P

Packaging & Delivery

Package Size

100.00cm * 600.00cm * 600.00cm

Gross Weight

1800.000kg

Transport Package

Wooden Case

D

Product Description

5000kg 5 ton wire rope Pneumatic Winch Air Winch Tugger for underground coal mine oil field

Available Equipment Range:

Spark proof air chain hoist (0.1 ton - 50 tons)
Air trolley (0.1 ton - 50 tons)
Pneumatic cranes (0.5 tons - 10 tons)
Flame-proof Monorail Trolley (0.5 tons - 30 tons)
Chain Blocks and Chain hoist without spark (0.5 tons - 30 tons)
Air balancer (60kg - 880kgs)
Hand hydraulic carrier
Mobile horizontal hydraulic jack car
Movable gantry crane
Aluminum alloy triangle hoisting frame

AIR WINCH (0.5 ton - 20 ton) with Hand Brake and Disk Brake

Model	QDJC-5	QDJC-10	QDJC-20	QDJC-30	QDJC-50	QDJC-100	QDJC-150	QDJC-200
Max. lifting force	5KN	10KN	20KN	30KN	50KN	100KN	150KN	200KN
Max. lifting speed	48 m/min	30 m/min	24 m/min	20 m/min	12 m/min	6 m/min	4 m/min	3 m/min
Rated power	2.7 KW	4.1 KW	4.6 KW	10.2 KW	16 KW	30 KW	32KW	40KW
Air intake pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Wire capacity	120m	120m	100m	100m	100m	100m	100m	100m
Diameter of wire	7.8mm	12mm	14mm	16mm	20mm	26mm	28mm	30mm
Net weight	70Kg	160Kg	170Kg	310Kg	500Kg	1300Kg	1700kg	2000kg

2 Ton Air Winch Performance by Layer:

First layer: 29.6kn
Second layer: 26.43kn
Third layer: 23.87kn
Fourth layer: 21.76kn
Fifth layer: 20kn

?

Frequently Asked Questions

What is the primary power source for the QDJC series winch?

The winch is pneumatically driven, meaning it uses compressed air (0.6-0.8 Mpa) as its driving force, making it ideal for environments where electricity is unavailable or hazardous.

Is this air winch suitable for mining operations?

Yes, the winch features an explosion-proof design specifically suited for underground coal mines, oil fields, and other high-risk industrial environments.

What kind of braking systems are available?

The air winches are equipped with both hand brake and disk brake systems to ensure maximum safety and control during lifting and tugging operations.

What is the maximum lifting capacity available in this series?

The QDJC series offers a wide range of capacities, from the QDJC-5 (5KN) up to the heavy-duty QDJC-200 which has a maximum lifting force of 200KN.

What certifications do these winches hold?

All winches in this series are manufactured according to National Standards and hold ISO 9001 certification for quality management.

How is the product packaged for international shipping?

To ensure safety during transit, the winches are securely packed in robust wooden cases, suitable for long-distance transport.
