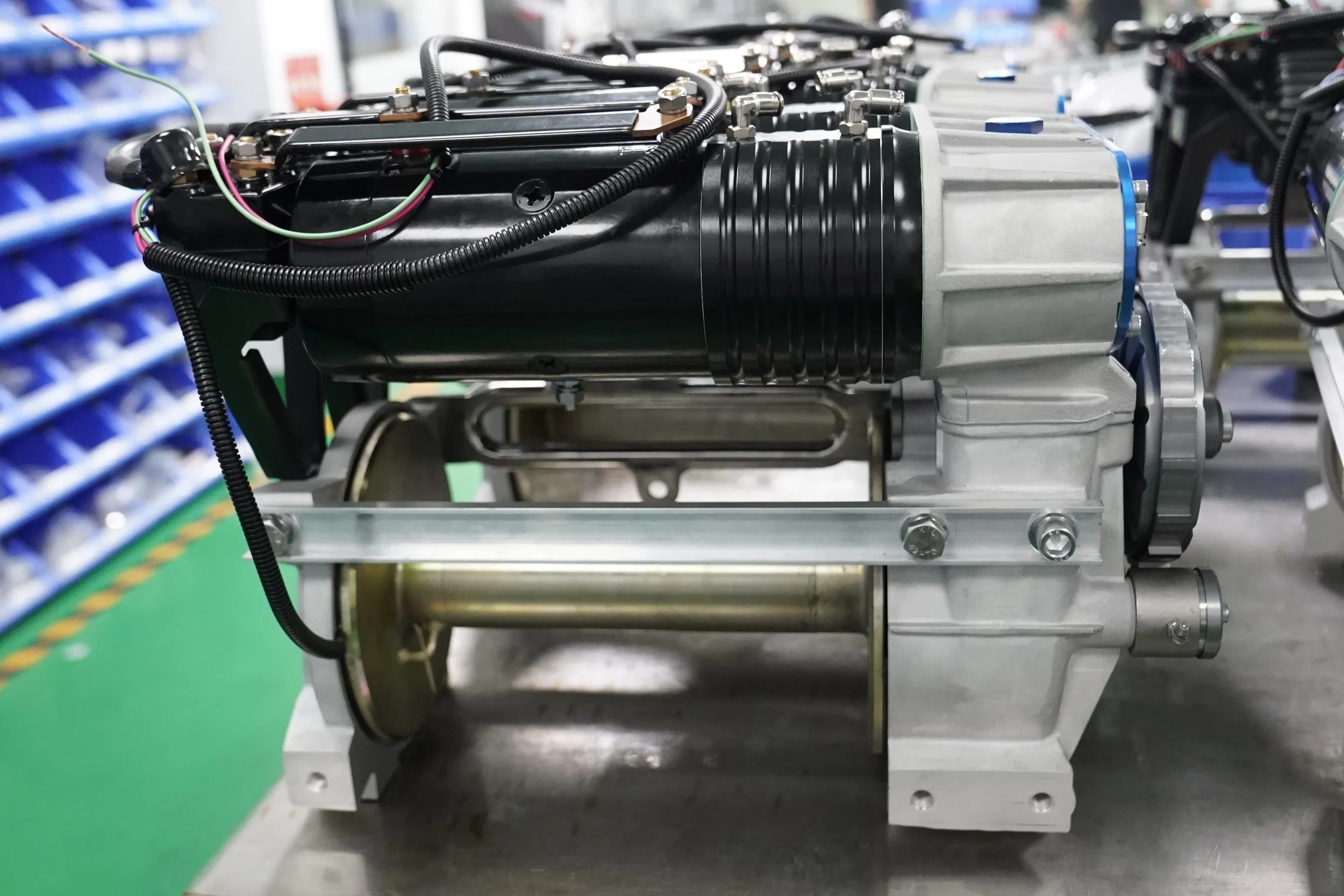

| TT90 Features & Specifications | |||
|---|---|---|---|
| Weight | 70Kg | Fairlead | Carved Alloy Steel |
| Synthetic Rope | 12mm x 40m | Waterproof Rating | IP67 |
| Full Load Line Speed | 9.8M/Min - 6.3M/Min | Braking | External Ratchet Brake |
| No Load Line Speed | 39.8M/Min - 25.5M/Min | Gear Train | 3-Stage Planetary |
| Rated Line Pull | 14000Lbs (6300Kgs) | Full Load Current | 568A |
| Gear Reduction Ratio | 57.6:1 | Dimensions | 524 x 260 x 389mm |

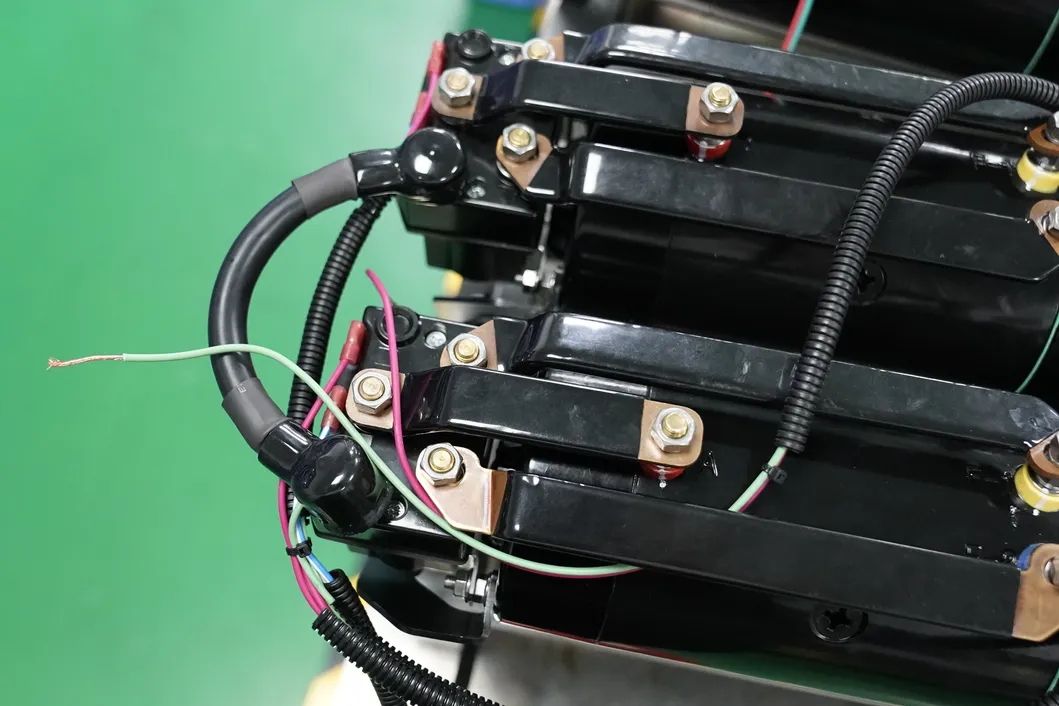

| Solenoid Style | Integrated Solenoid | Battery Requirement | Min. 2 pieces of 90Ah |
Reliability depends on proper care. Follow these recommendations:
The TT90 has a rated line pull of 14,000 lbs (approximately 6,300 kg), making it ideal for heavy-duty competition and recovery.
Yes, the winch features an IP67 waterproof rating, designed to withstand immersion and harsh off-road environments like mud and snow.
It comes equipped with a high-strength synthetic rope measuring 12mm in diameter and 40 meters in length.
For standard use, we recommend an annual oil change. However, if used in competitions, the oil should be replaced after every 3 days of use.
To ensure optimal performance and handle the 568A full load current, we recommend using at least two 90Ah batteries.

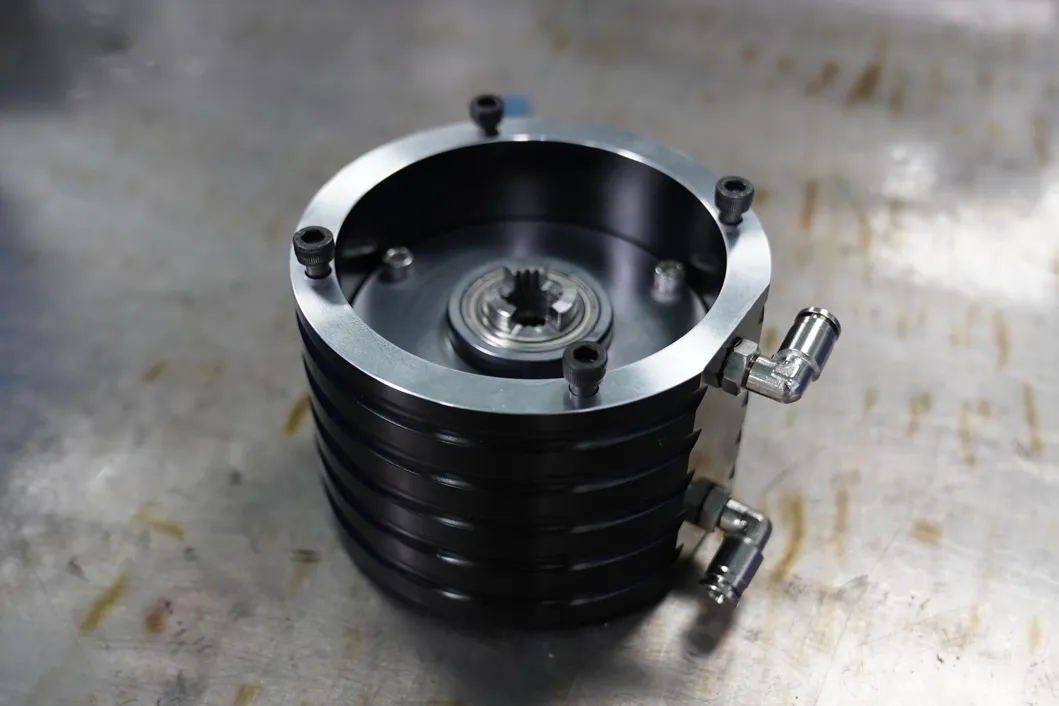

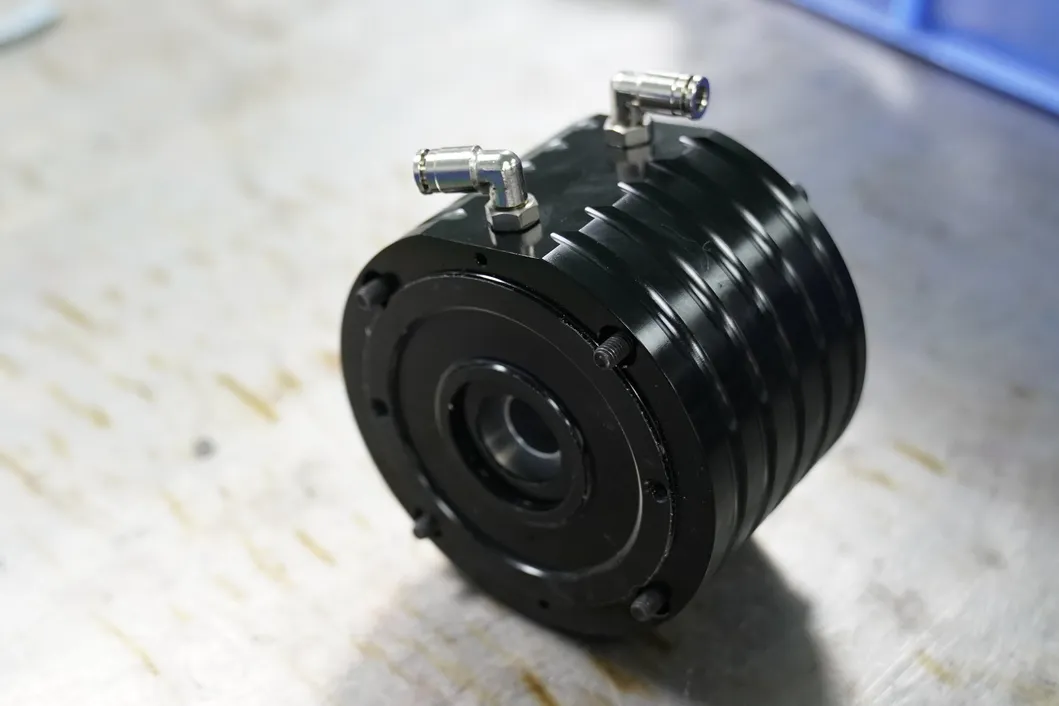

The winch utilizes an external ratchet brake system for reliable stopping power and heat dissipation during operation.
