Basic Information
Carrying Capacity
Middle-Level
Specification
1250*770*1016mm
Benefits & Features
⚙️
Compact Design: Easy mobility designed for safe and efficient operation in various industrial settings.
🛡️
High Durability: Engineered for applications in harsh environments with resistance to overheating and overload.
⚓
Marine Grade: Treated with marine-grade paint to withstand corrosive and harsh atmosphere.
🔄
Continuous Operation: Capable of continuous operation at full load without compromising rope life.
Worldclass Quality & Performance
✔️
Poppet / spool valve construction to eliminate air leakages.
✔️
Built-in radial piston air motor with reverse rotation available.
✔️
Claw clutch mechanism for safe, accurate handling in locked ON/OFF positions.
✔️
Automatic or manual brake options with sealed ball bearings to prevent oil leakage.
Technical Specifications
| Items |
Parameters |
Measurement Unit |
| Rated Working Pressure | 0.6-0.8 | Mpa |
| Rated Pull Force | 50 | KN |
| Rated Cable Speed | 12 | m/min |
| Piston Air Motor Power | 17 | kW |
| Air Consumption | 247 | L/S |
| Drum Diameter | 222 | mm |
| Cable Diameter | 15.875 | mm |
| Cable Storage | 120 | m |
| Weight | 498 | KG |

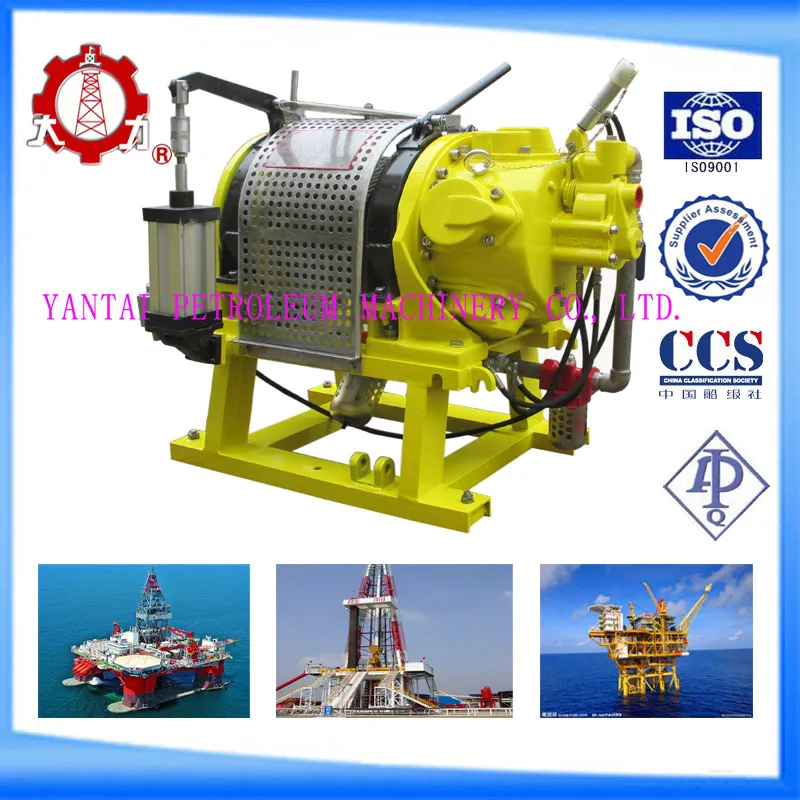

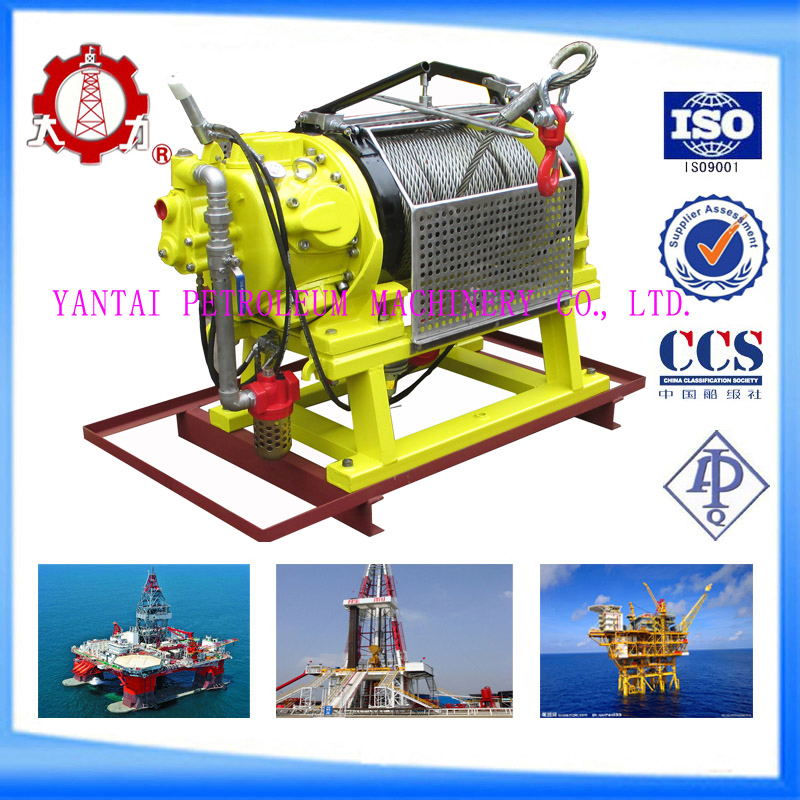

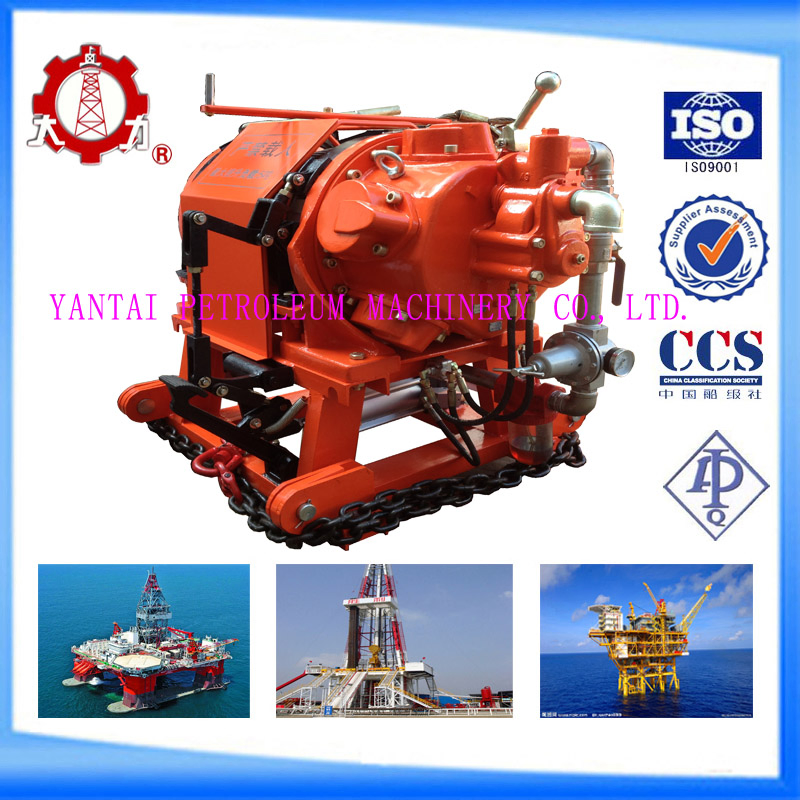

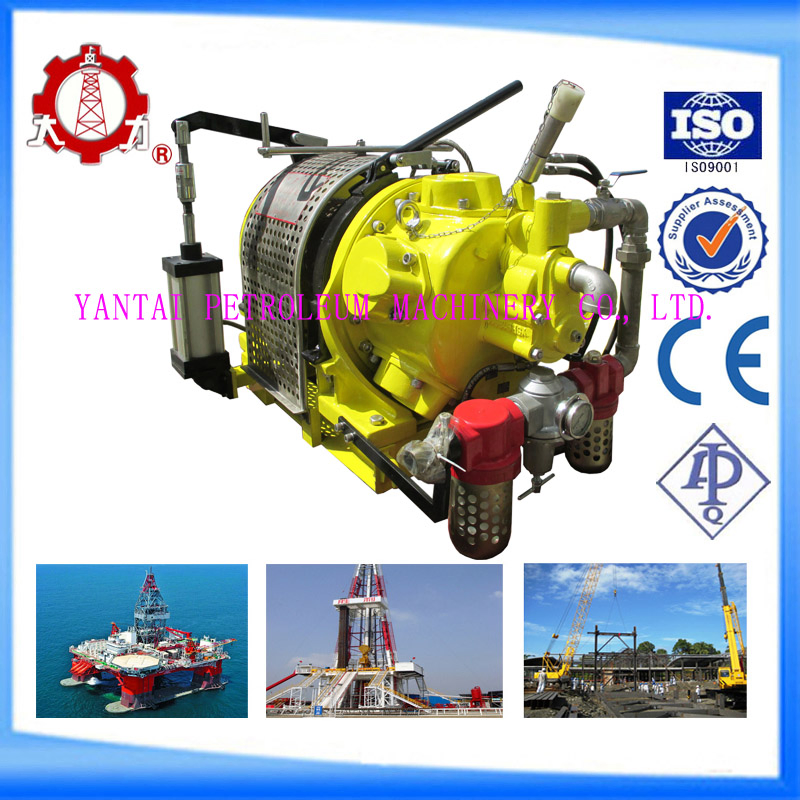

Product Display
Frequently Asked Questions
Is the JQH50*12 air winch suitable for hazardous environments?
Yes, this model is specifically designed with explosion-proof features, making it ideal for mining, oil, and gas applications.
What kind of maintenance does the marine grade paint offer?
The marine grade paint provides superior corrosion resistance, ensuring the winch remains durable even in harsh offshore or coastal environments.
Does this winch support automatic braking?
The JQH50*12 can be configured with either automatic or manual braking systems to ensure safe load handling.
What is the maximum cable storage capacity?
This model has a cable storage capacity of up to 120 meters with a 15.875mm cable diameter.
Can the air motor handle continuous full-load operation?
Yes, the radial piston air motor is designed for continuous operation at full load and is resistant to damage from overheating or overloading.
What certifications does this product hold?
The winch is certified by CE and ABS/Dnv, meeting international safety and quality standards.
