Customization: Available
Type: Construction Winch
Driven Type: Pneumatic/Air
Send Inquiry

Product Description

Basic Information
Model NO.
JQHS100
Speed
Slow
Carrying Capacity
Weight Level
Tonnage
5T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Standard
National Standards, CCS/ISO9001-2008
Remote Control
6~15m
Transport Package
Iron Boxes or Hard Wooden Cases
Specification
CCS/ISO/CE certifications
Trademark
DA LI
Origin
Yantai City, Shandong Province, China
HS Code
842539
Production Capacity
1000sets Per Month
ABS Certified 10T Offshore Air Winch Trawl Winch
ABS Certified 10t Offshore Air Winch Trawl Winch
Introduction:

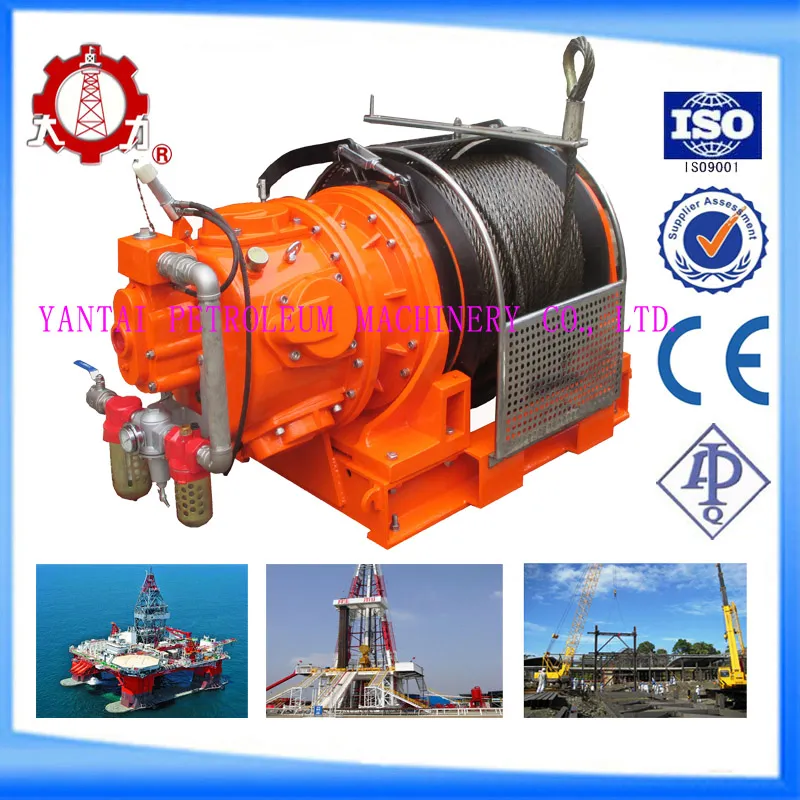

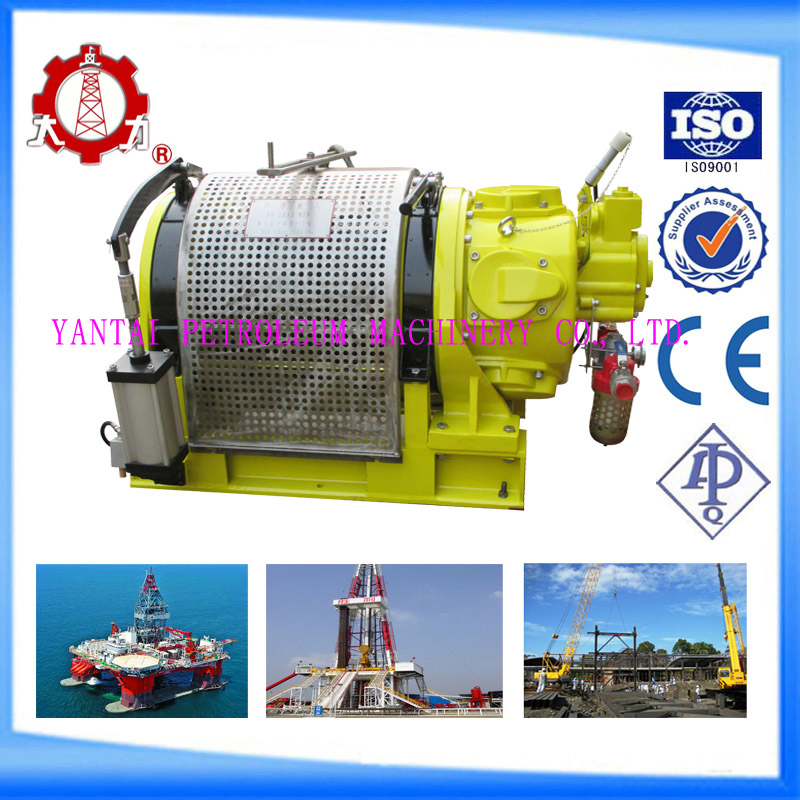

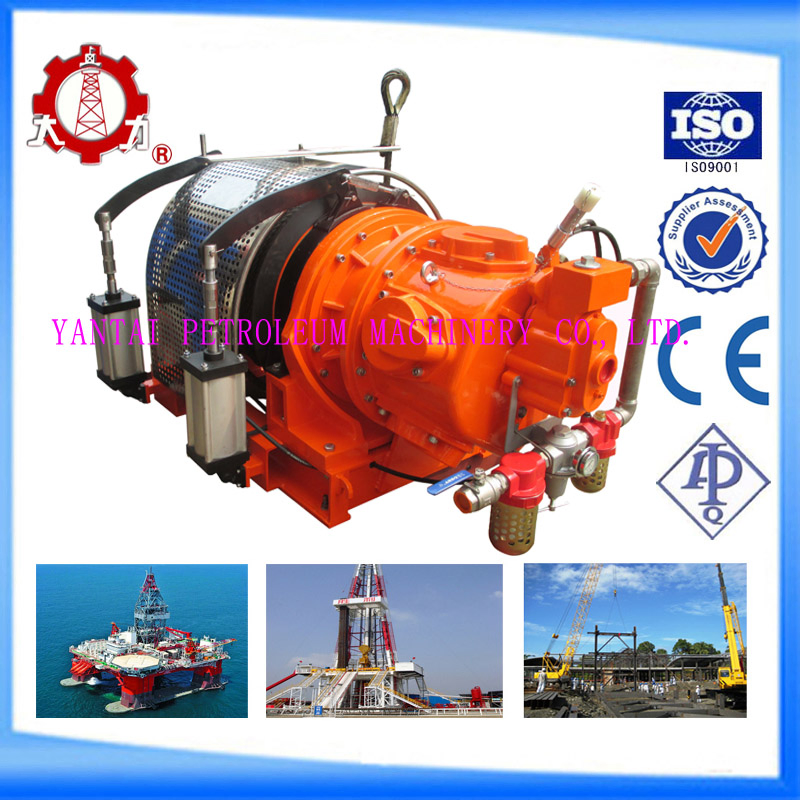

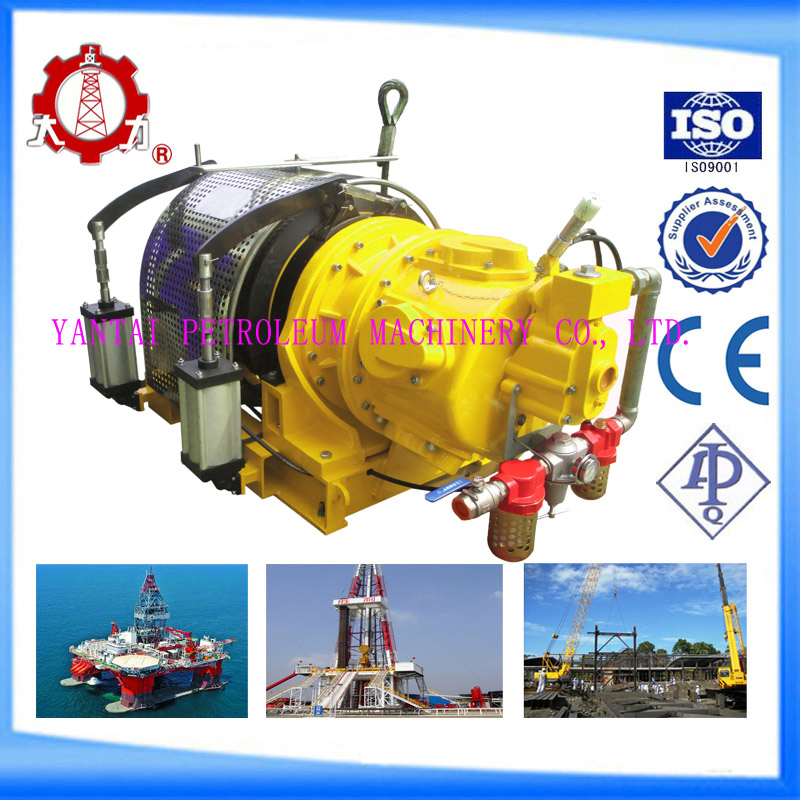

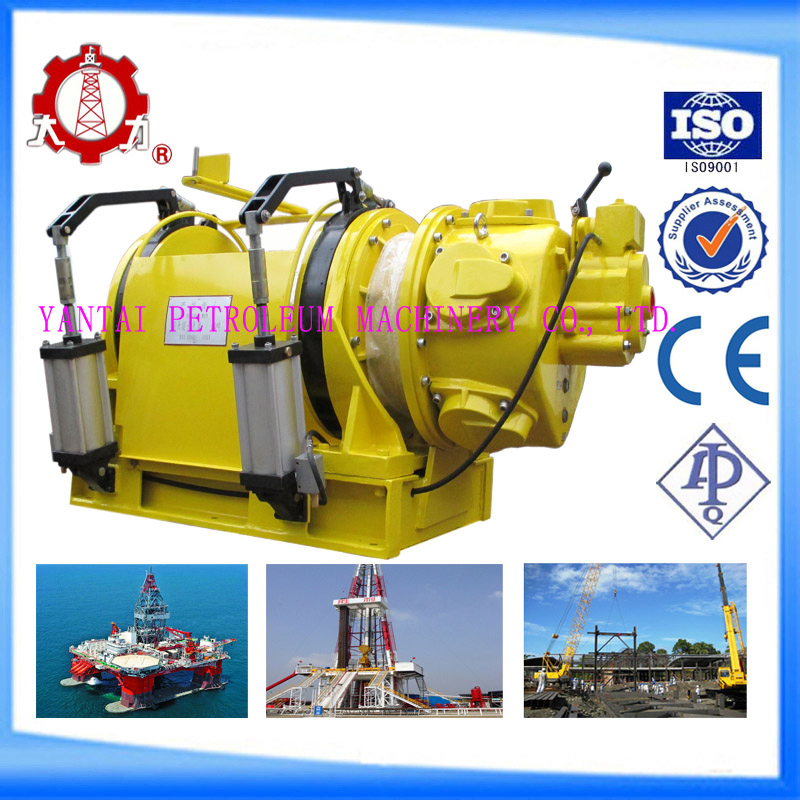

The JQHS100 Air Winch adopts compressed air as power to drive the TMH30 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents.
Key Features
  • ✓ Compact in size and light in weight, portable to move and easy to install.
  • ✓ Simple and reliable operation with little noise.
  • ✓ Stable in inflammable, explosive, wet, damp and other extremely operating conditions.
  • ✓ Low maintenance relieves your anxiety and assures you to use it freely.
  • ✓ High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
  • ✓ Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc.
  • ✓ The Normal Pull Force can be tailor-made to your requirement.
  • ✓ ISO, CCS approved.
Technical Parameters
Parameter Item Specification Details
Working Air Pressure0.8-1.0 MPa
Rated Load (1st layer)100 kN
Rope Speed0-8 m/min
Drum Diameter300 mm
Wheel Diameter800 mm
Drum Length608 mm
Rope Diameter26 mm
Rope Capacity300 M
Motor Air Inlet sizeRc1 1/2″
Brake TypeDouble Automatic Band Brake
Manual Level WinderYes
Control TypeLocal Control
Safety ProtectionDrum Guard
Air MotorCylinder Number5 PCS
Diameter of Cylinder160 mm
Rated Power30 kW
Consumption400 L/S
DimensionLength*Width*Height1900mm*1100mm*1200mm
Weight1800 kg
Frequently Asked Questions
What is the power source for the JQHS100 Air Winch?
The winch uses compressed air as its power source to drive a TMH30 piston air motor.
Is this winch suitable for hazardous environments?
Yes, it is specifically designed to be explosion-proof and stable in inflammable, explosive, wet, and damp conditions.
What safety braking systems are included?
The winch is equipped with hand and foot double manual brakes, as well as a double automatic band brake for maximum safety.
Can the pull force be customized?
Yes, the normal pull force can be tailor-made according to your specific project requirements.
What certifications does this air winch hold?
The JQHS100 air winch is ABS certified and complies with ISO, CCS, and CE standards.
What are the primary applications for this equipment?
It is ideal for hauling and lifting in mines, construction sites, oilfield platforms, and offshore marine environments.
