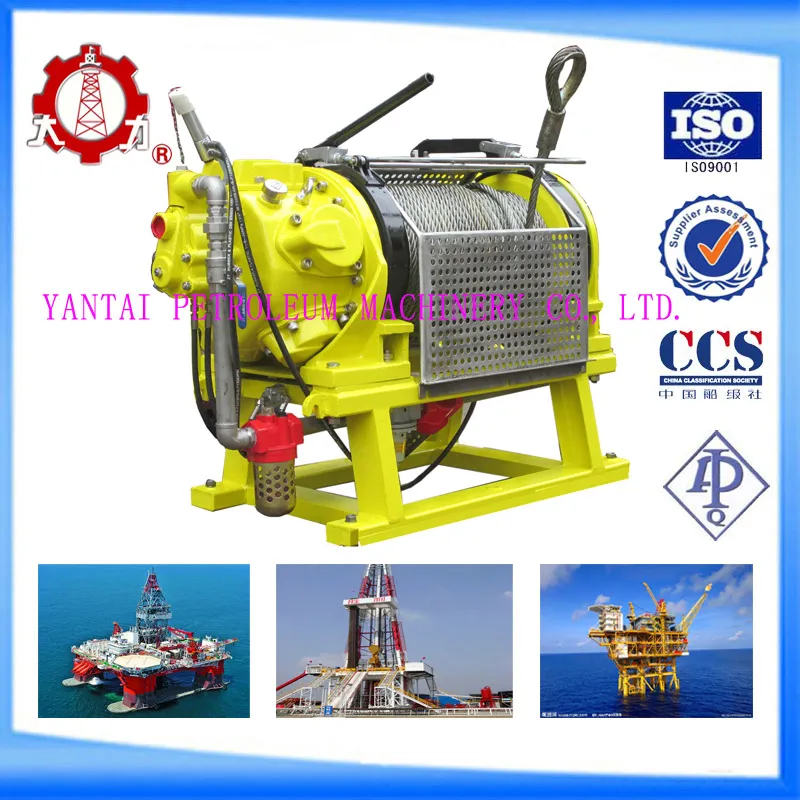

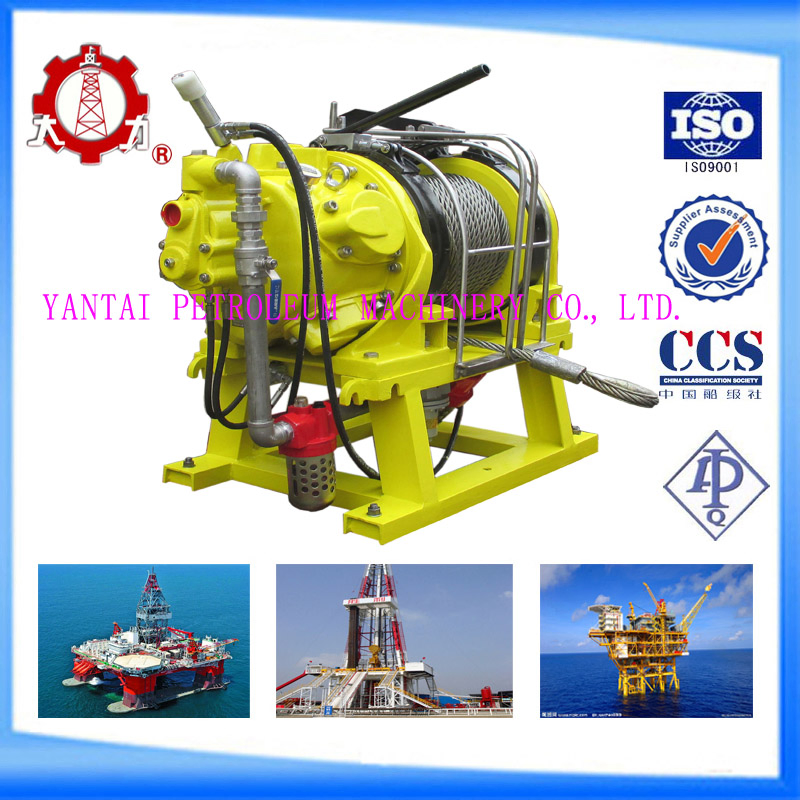

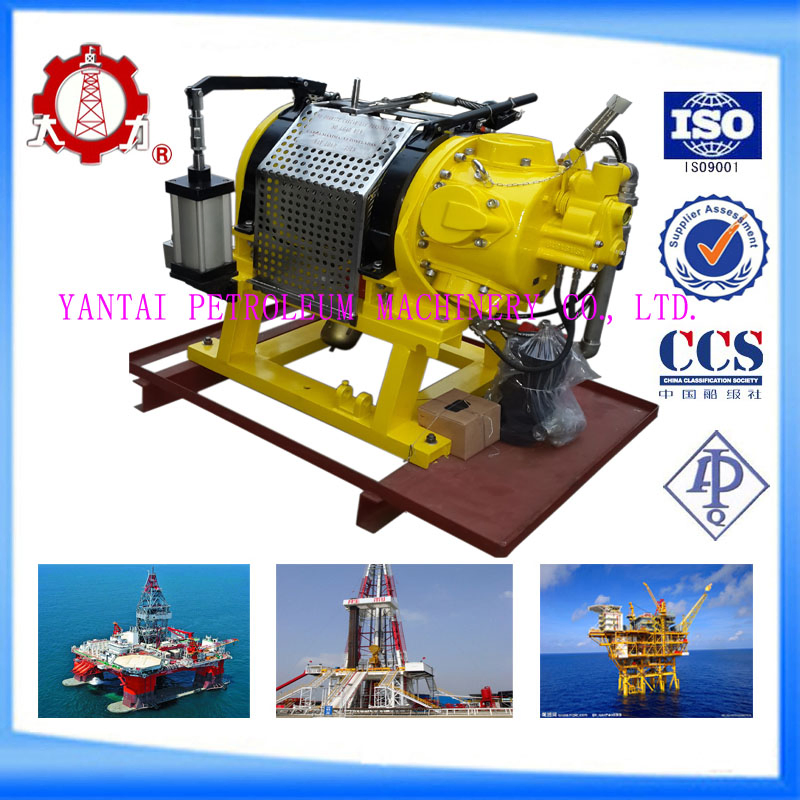

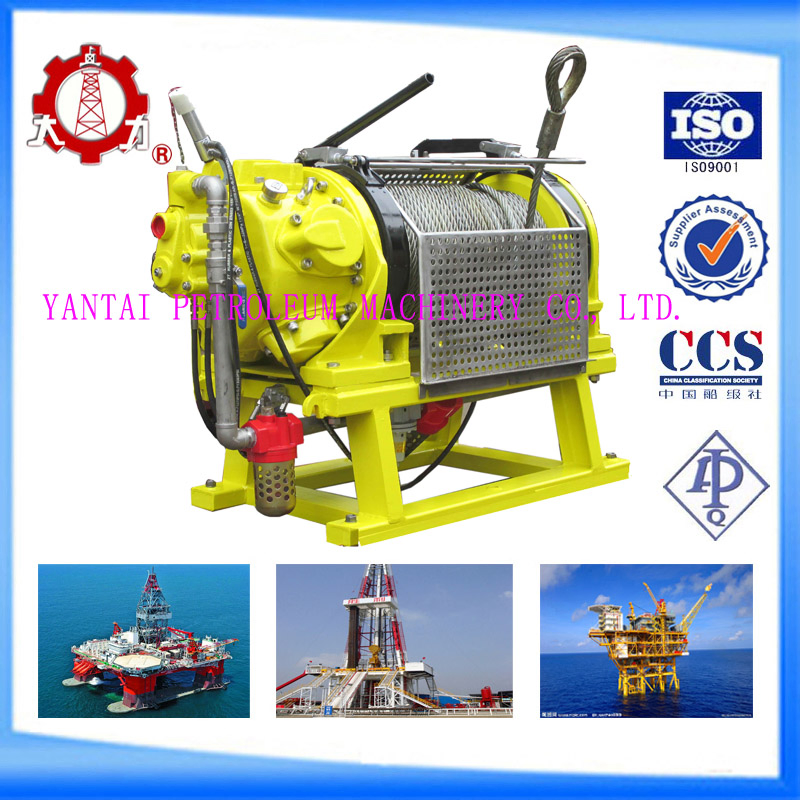

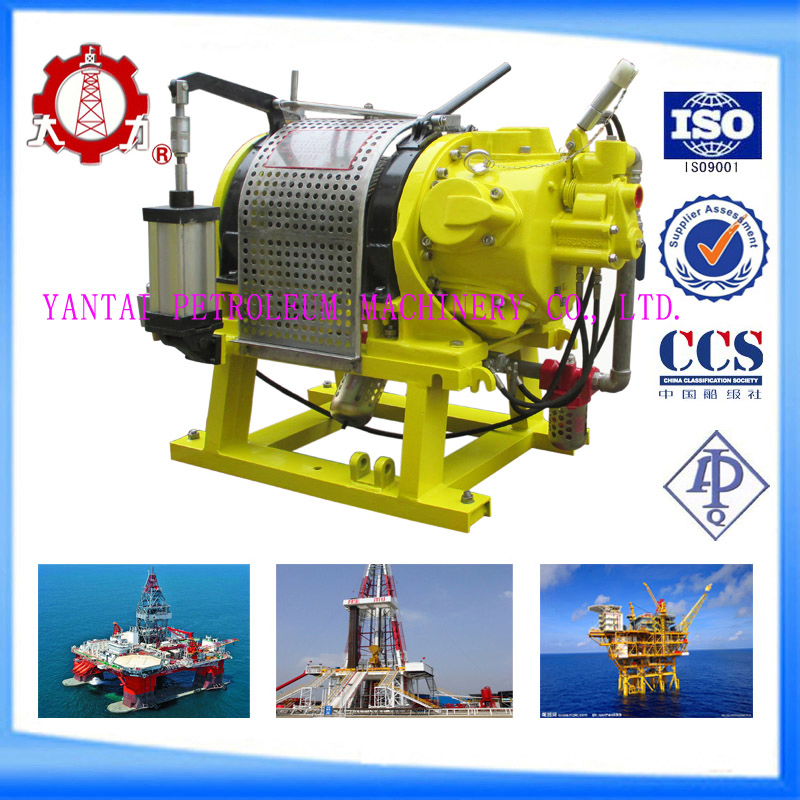

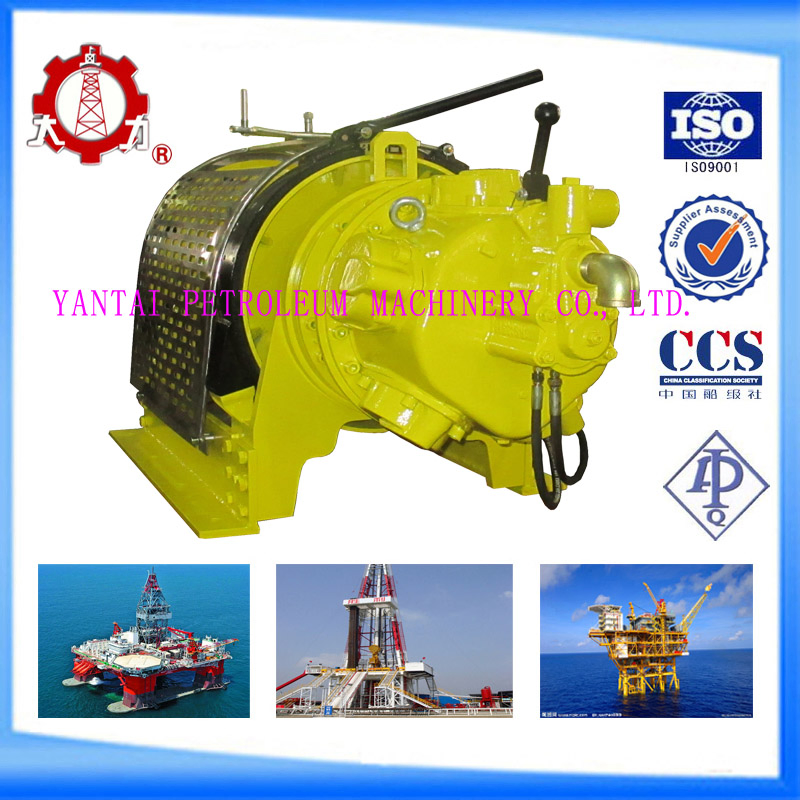

5 Ton Air Winch for Offshore Drilling/Oilfield Platforms
Introduction:
The JQHSB50*12 Double-braking Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents. The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. (Its maximum load is up to 5 ton) The roatry-base make it flexible on the oilfield floor, and the pin-base assure its safety.
Key Features:
- ✔ 1. Compact in size and light in weight, portable to move and easy to install;
- ✔ 2. Simple and reliable operation with little noise;
- ✔ 3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
- ✔ 4. Low maintenance relieves your anxiety and assures you to use it freely;
- ✔ 5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
- ✔ 6. Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;
- ✔ 7. The Normal Pull Force can be tailor-made to your requirement;
- ✔ 8. Good after-sale service with high quality.
🟦 Technical Parameters
| Items |
Parameters |
| Working Pressure Of Compressed Air (MPa) | 0.7-0.9 |
| Max. Pull Force (KN) | 50 |
| Max. Wire Rope Speed (m/min) | 12 |
| Piston Air Motor | Model | TMH17 |
| Rated Power (KW) | 17 |
| Air Consumption (L/s) | 247 |
| Drum | Diameter (mm) | 222 |
| Width (mm) | 335 |
| Wheel Rim Diameter (mm) | 465 |
| Rope Diameter (mm) | 16 |
| Rope Storage (m) | 120 |
| Air Inlet Diameter (inch) | 1 1/4" |
| Brake Type | Hand Brake and Auto Band Brake |
| Dimension | Length (mm) | 1200 |
| Width (mm) | 920 |
| Height (mm) | 1020 |
| Weight (KG) | 620 |
🔹 What is the primary power source for this 5-ton winch?
The winch is powered by compressed air, which drives a TMH17 piston air motor for reliable performance in various conditions.
🔹 Is this air winch safe for explosive environments?
Yes, it is designed to be stable in inflammable, explosive, wet, and damp conditions, making it ideal for hazardous mining and oilfield platforms.
🔹 What kind of braking system does it use?
For maximum security, it features a double manual braking system consisting of a hand brake and a foot/auto band brake.
🔹 Can the pulling force be customized?
Yes, the normal pull force can be tailor-made to meet your specific operational requirements.
🔹 What are the main applications for the JQHSB50 air winch?
It is specially suited for hauling and lifting in mines, construction engineering sites, and both offshore and inland oilfield platforms.
🔹 Is the winch easy to install and move?
Yes, the unit is compact in size and relatively light in weight, making it portable and simple to install on-site.
