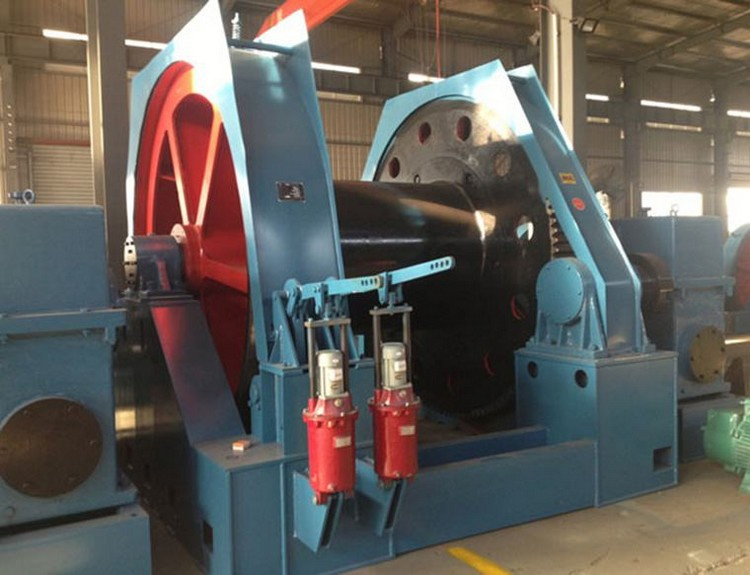

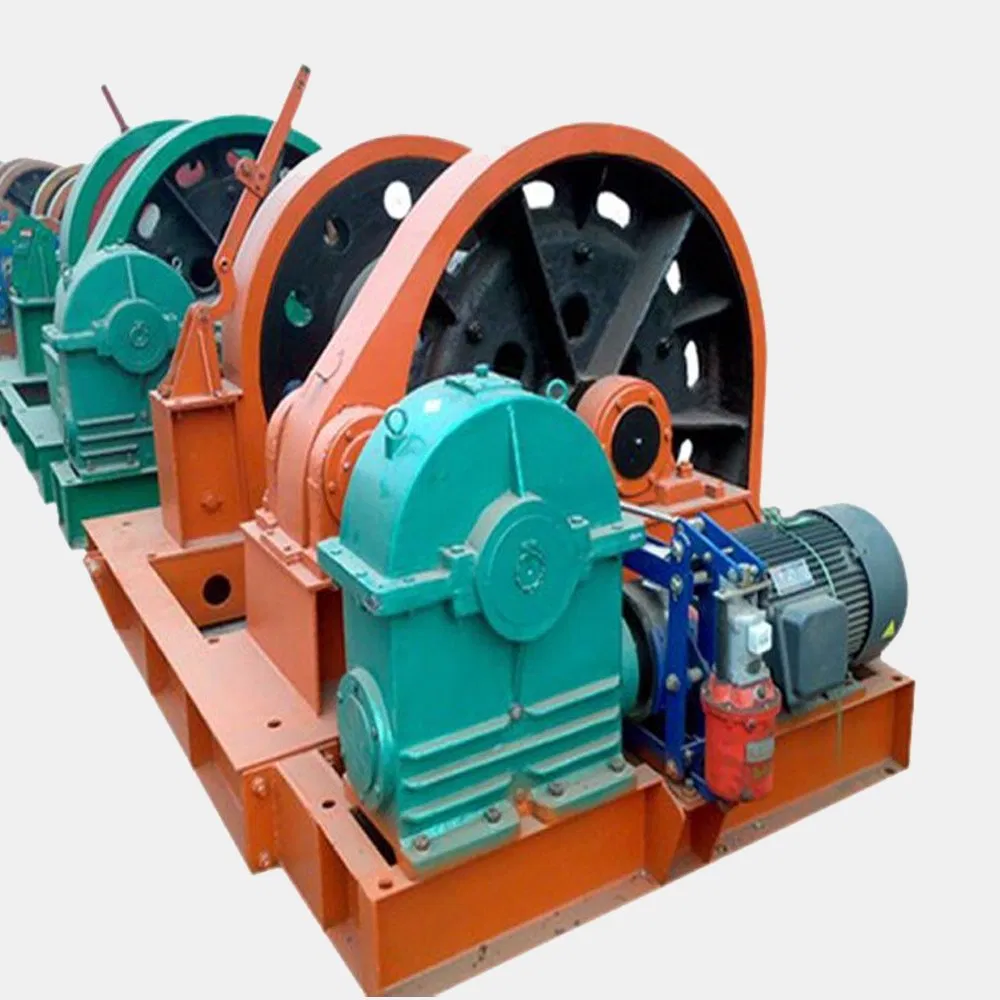

2jz16/1000 Air Mining Dispatching Lifting Hoist Winch Portable Hydraulic Scraper Explosion-Proof Sinking Winches

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Model NO.

2JZ16/1000 Shaft Sinking Winch

Type

Electric Winch

Driven Type

Speed

Fast

Reel Number

Feature

Explosion-Proof

Certification

CE, ISO 9001

Standard

National Standards

Static Tension (Kn)

160

Rope Capacity (M)

1320

Drum Diameter (mm)

1000

Drum Width (mm)

1400

Production Capacity

10 Sets Per Month

⚙️

Operation Environment & Conditions:

The 2JZ16/1000 Mining Lifting Winch is designed for specific shaft sinking operations. Key working conditions include:

The ambient temperature for winch operation ranges from -25°C to 40°C.
Avoid use in environments with flammable and explosive gases like gas and coal dust unless specified for those zones.
For altitudes exceeding 1000m, cooling efficiency and dielectric strength must be adjusted according to technical agreements.

Model	JZ10/800	JZ16/800	JZ16/1000	2JZ16/1000	JZ25/1000	JZ40/1000
Max. Static Tension (KN)	100	160	160	160	250	400
Wire Rope Capacity (m)	800	800	1000	1320	1000	1000
Drum Diameter (mm)	800	1000	1000	1000	1050	1250
Drum Width (mm)	820	1400	1400	1400	1210	1480
Rope Diameter (mm)	32	40	40	40	52	60
Motor Power (KW)	22	30	30	55	45	90
Voltage (V)	380	380	380	380	380	380
Weight (kg)	7480	11500	11500	18000	14680	35000
