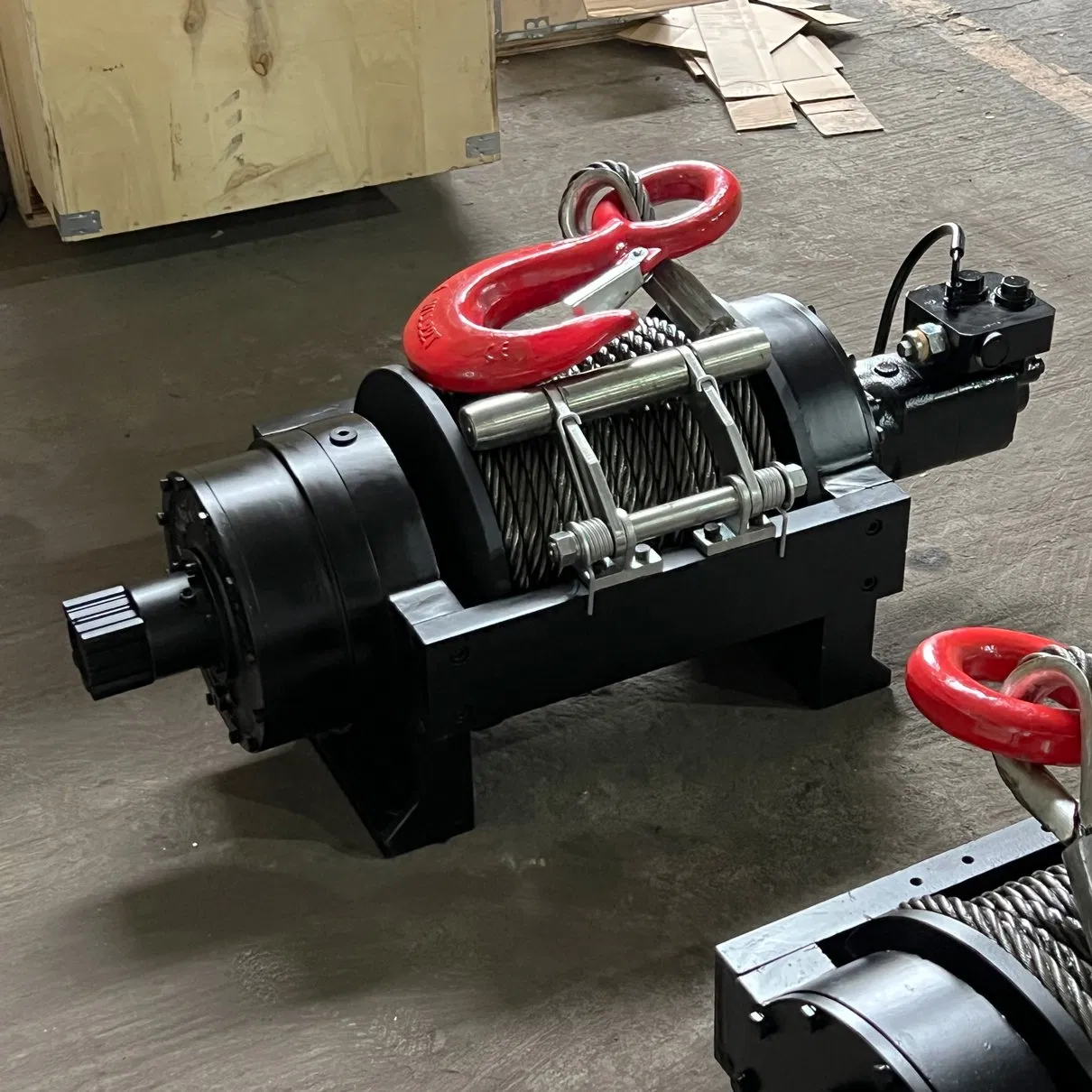

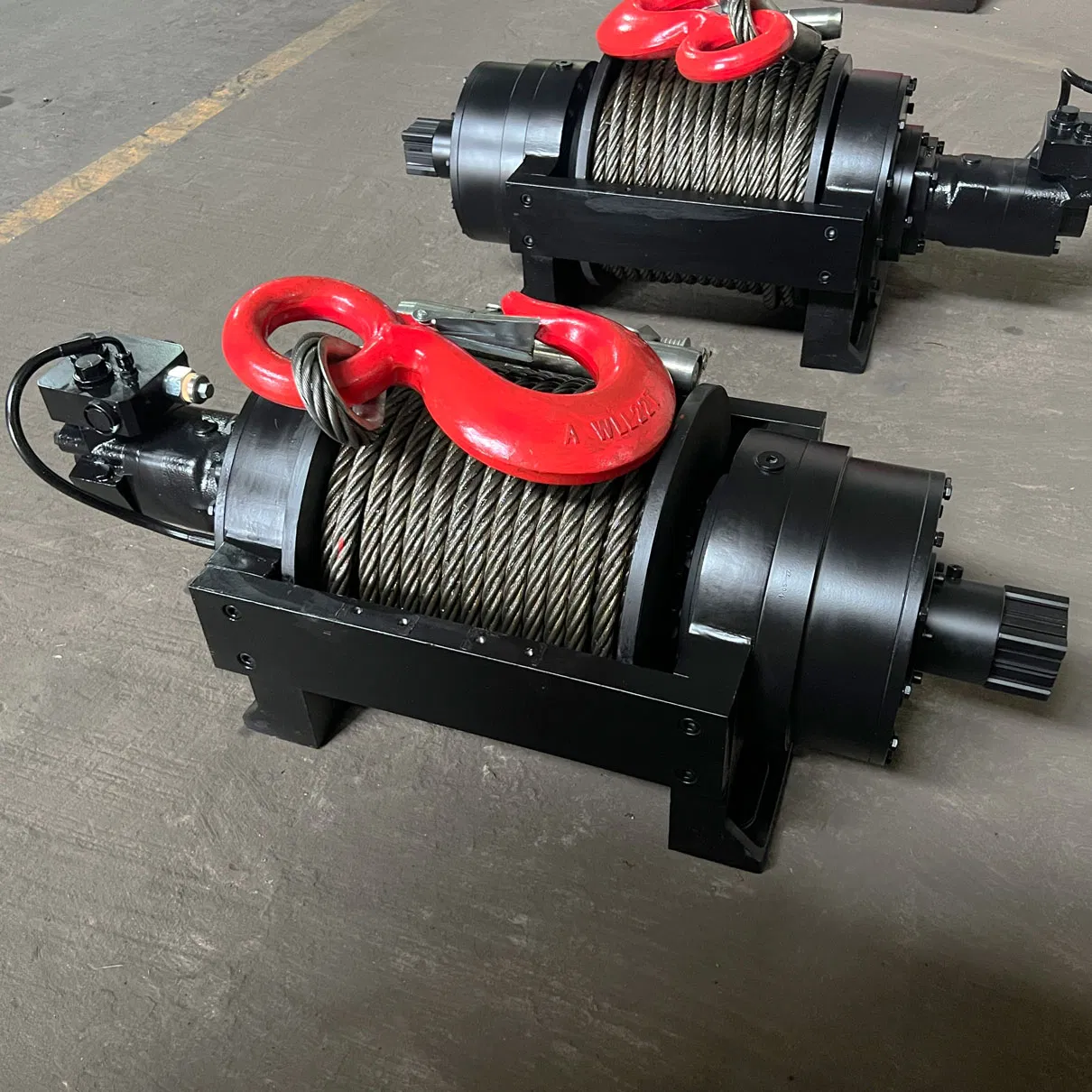

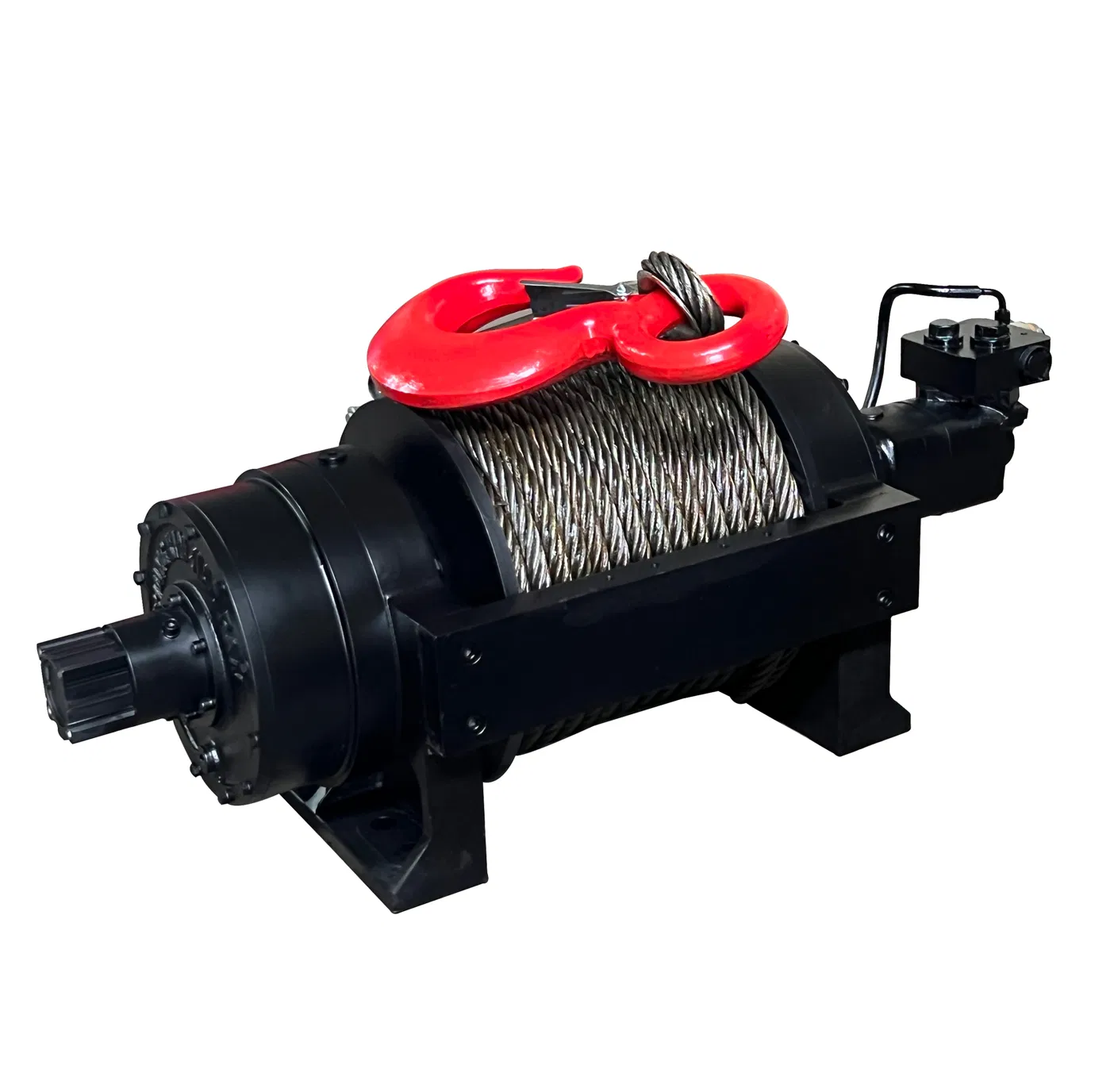

20 Ton Hydraulic Truck Winch Free Spooling Air Clutch

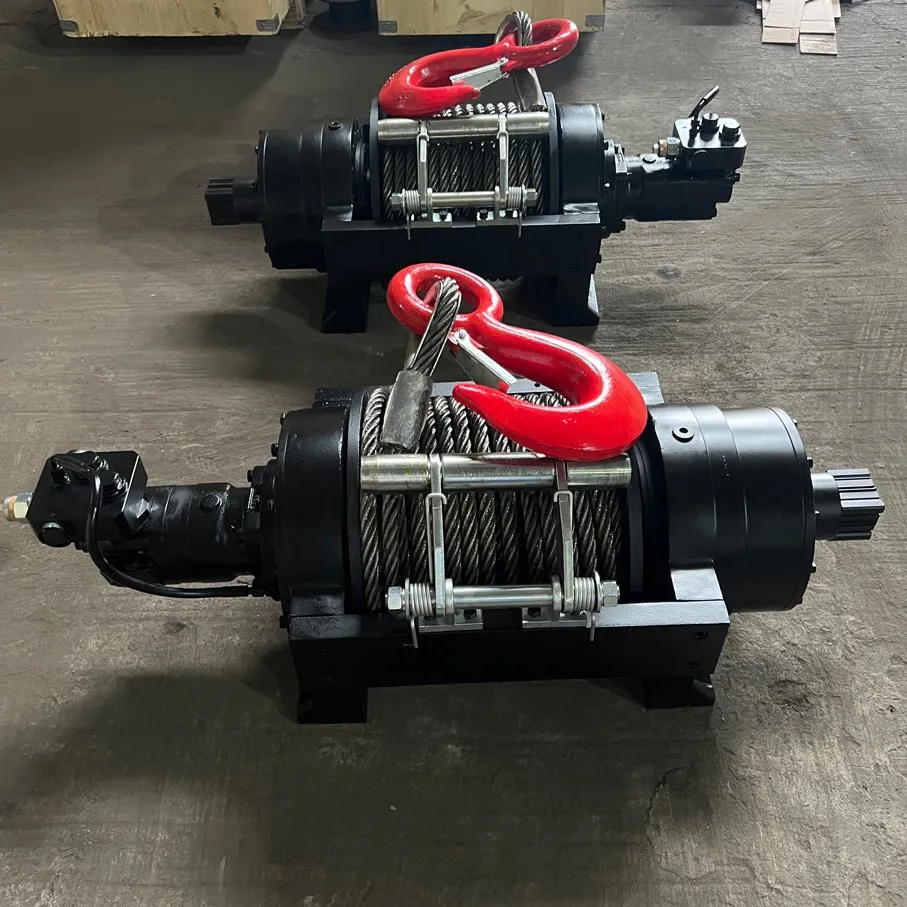

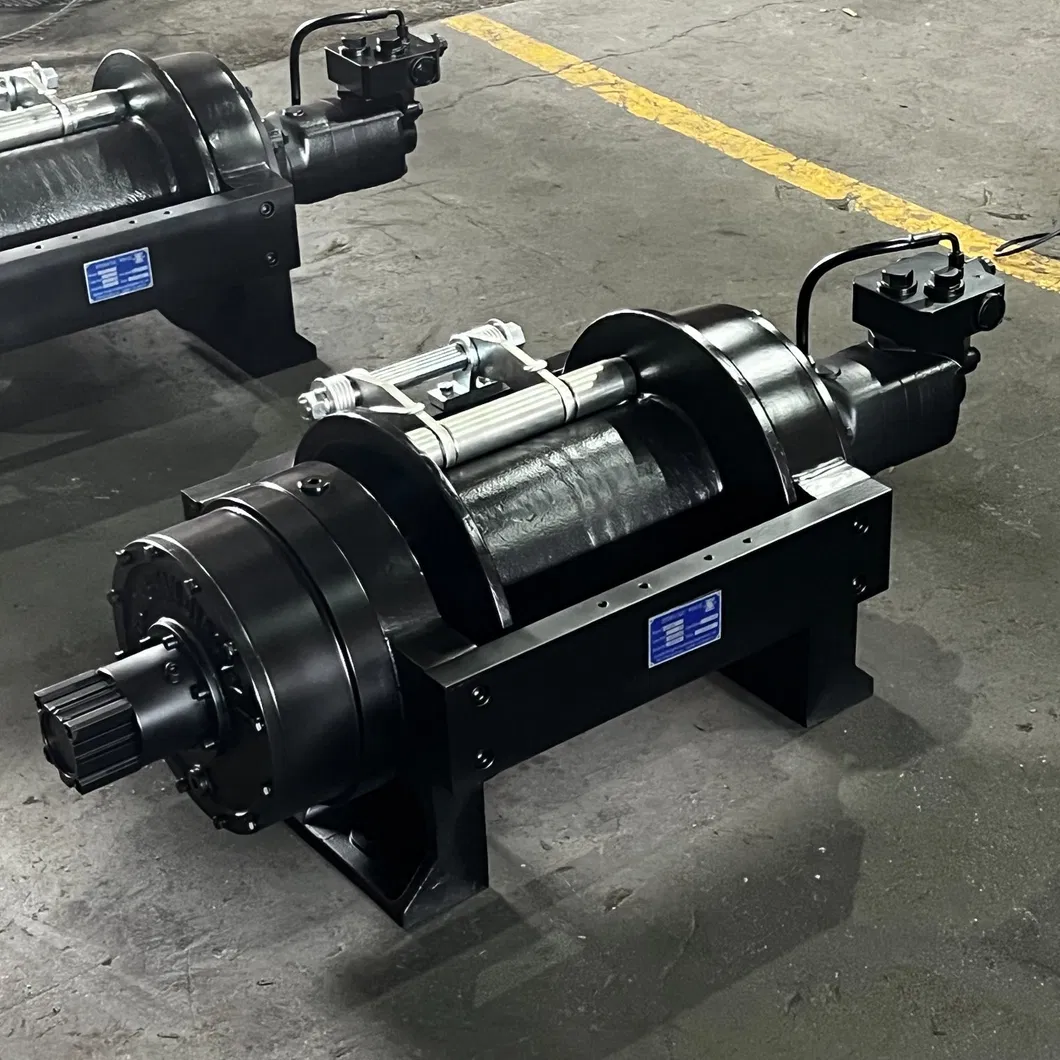

The YJP200 is a versatile hydraulic lifting winch that revolutionizes efficiency and performance with its condensed size and high transmission efficiency. It consists of a hydraulic motor, 2-stage planetary gear reducer, arrester, drum, and other key components.

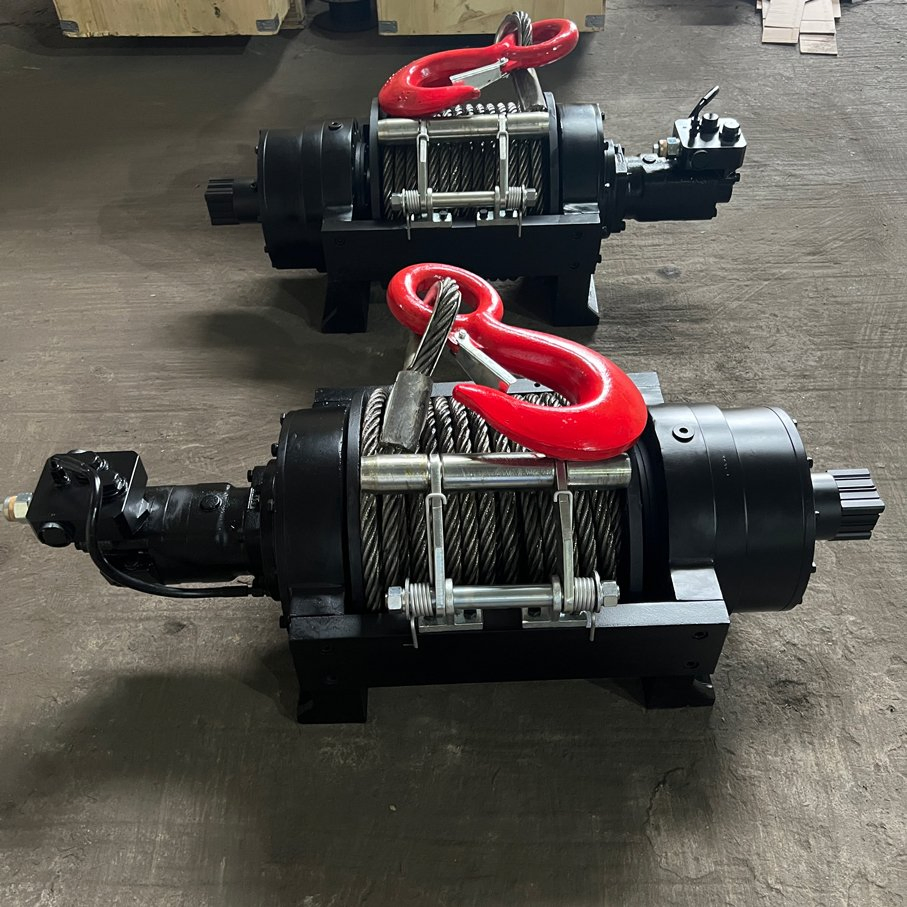

Optional components: Cable+hook, manual clutch, or roller fairlead.

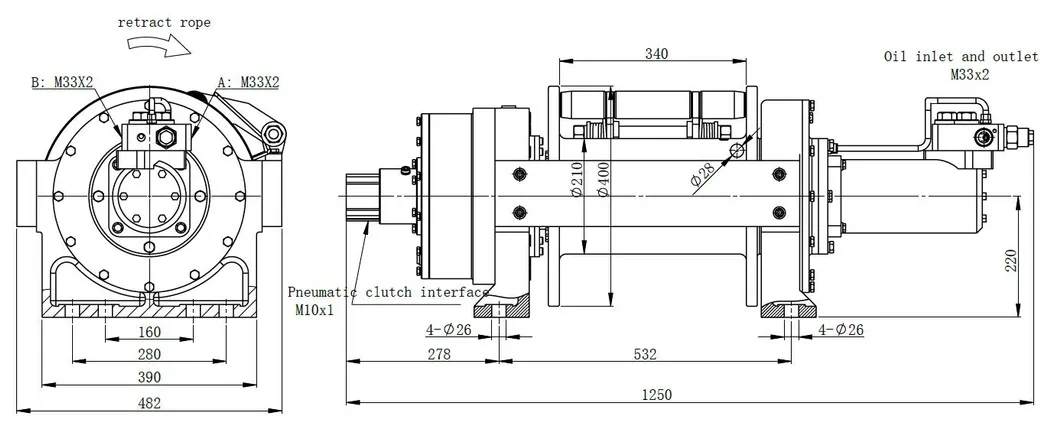

Product Structural Drawing
| Parameter | Unit | Value |
|---|---|---|
| Rated line pull (1st layer) | KN / Kgs / lbs | 196 / 20000 / 45000 |
| Line speed (1st layer) | m/min | 6 |
| Response pressure of brake | MPa / Bar | 2.5 / 25 |
| Oil pressure | MPa / Bar | 17 / 170 |
| Oil flow | L/min | 120 |
| Drum Dimensions (D x d x L) | mm | 400 * 210 * 340 |
| Drum capacity | m | 52 |
| Wire rope diameter | mm | Φ22 |
| Net weight | Kg | 295 |

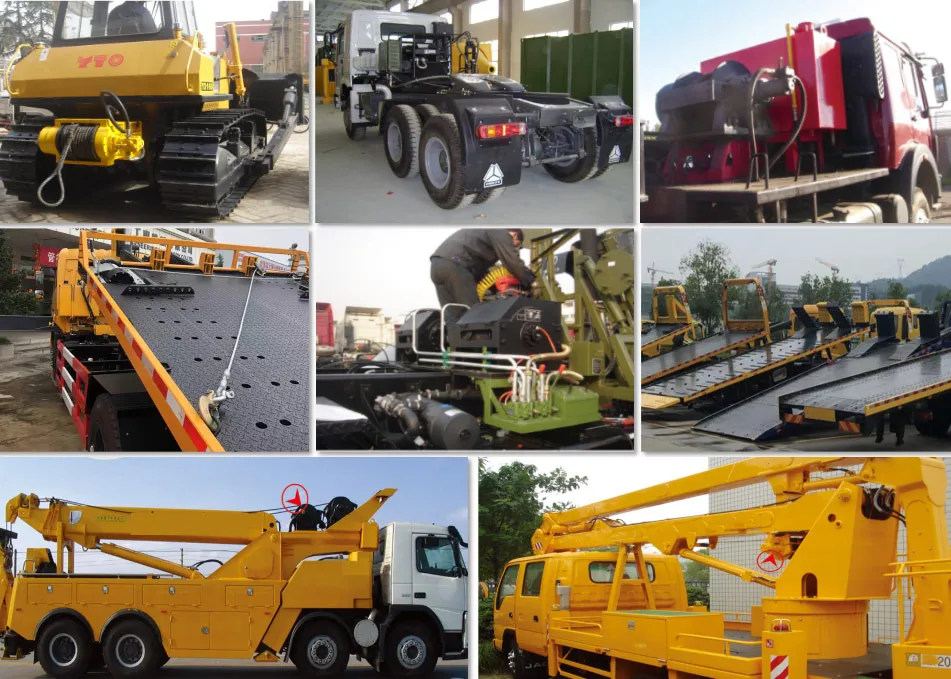

Our winches are ideal for use in a variety of engineering and shipboard equipment, including:

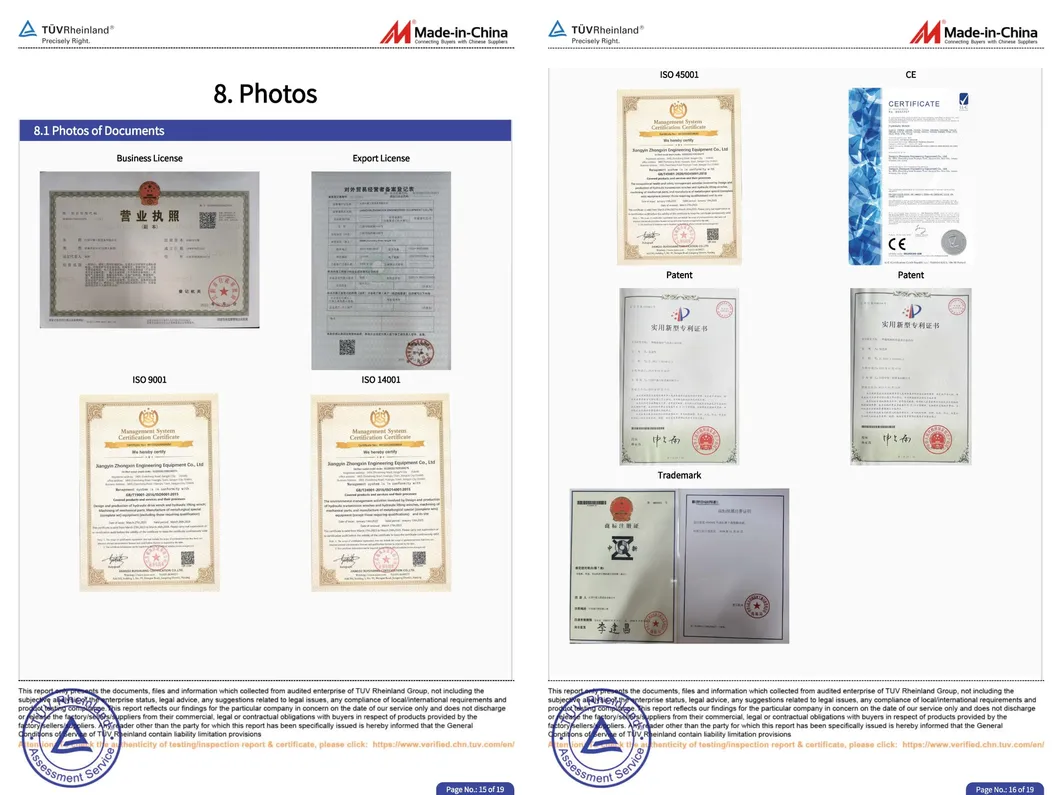

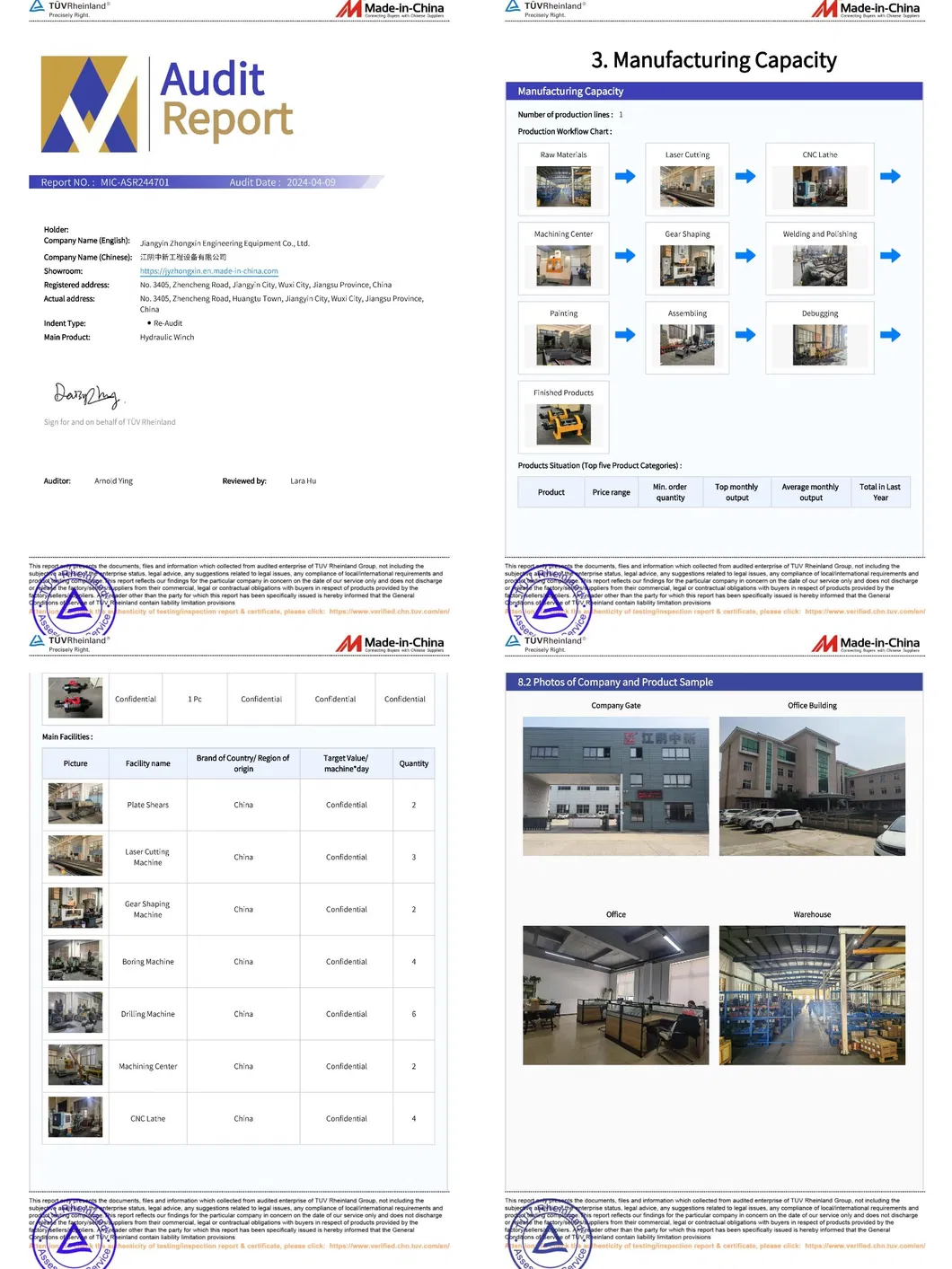

We are a specialized company dedicated to the research, development, and production of high-quality hydraulic winches. Following strict ISO9001 standards, our technical engineers and technicians ensure every product meets international quality requirements.
