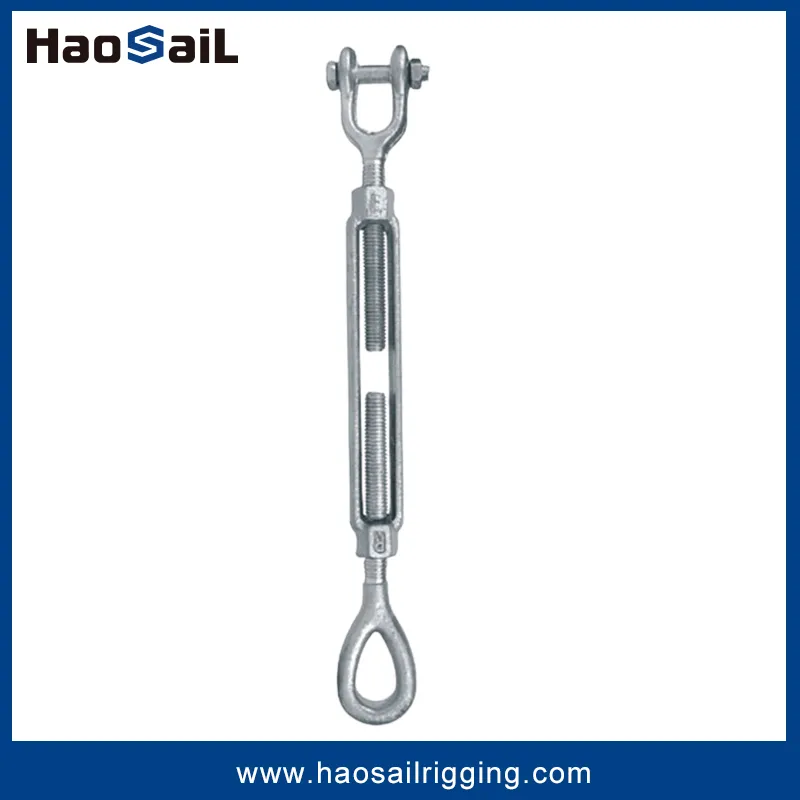

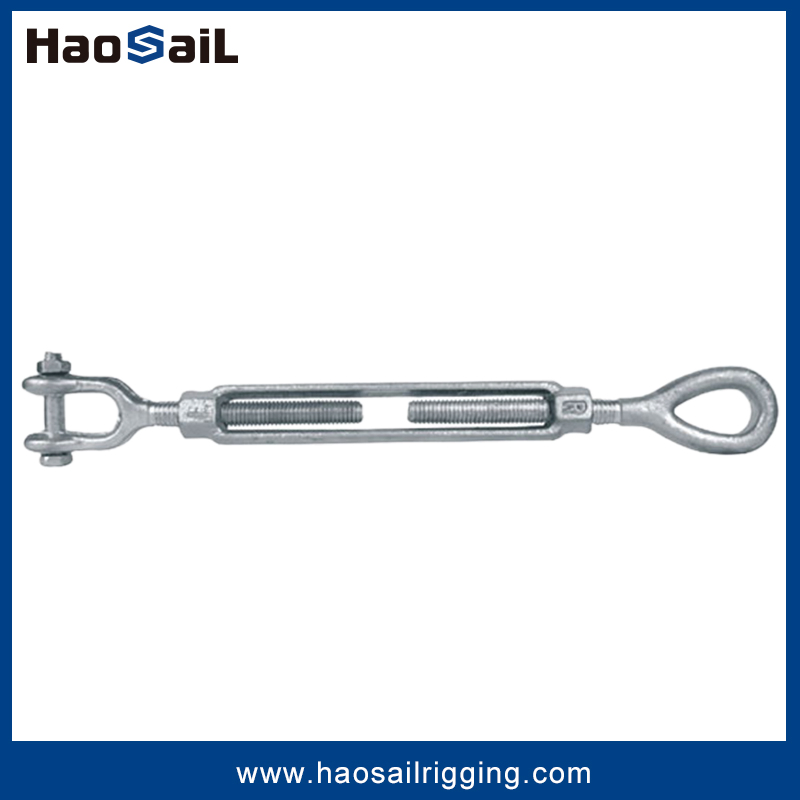

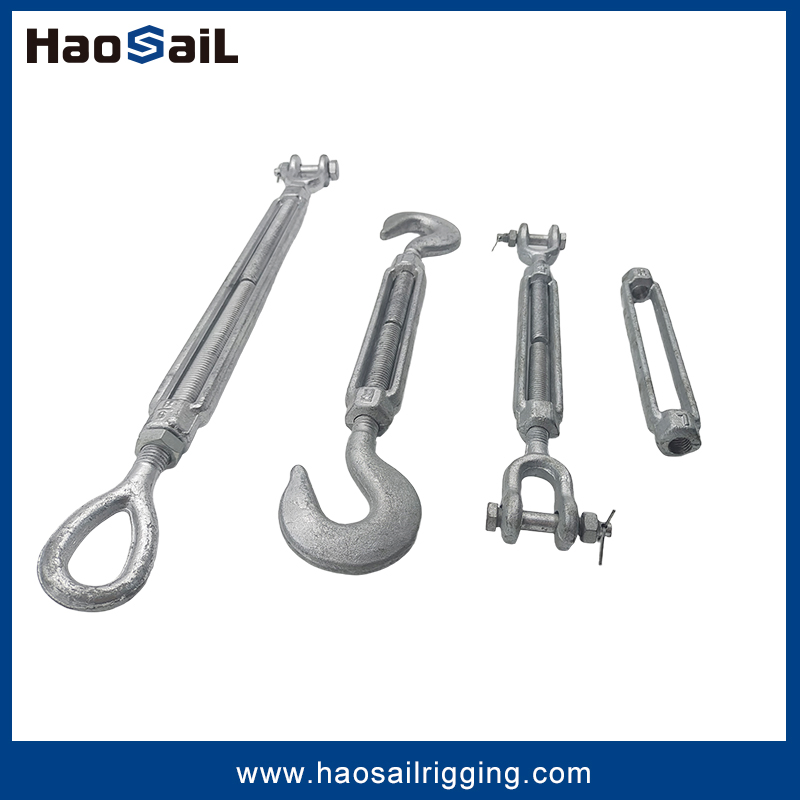

A turnbuckle is a mechanical device used to adjust the length or tension of ropes, cables, or rods.

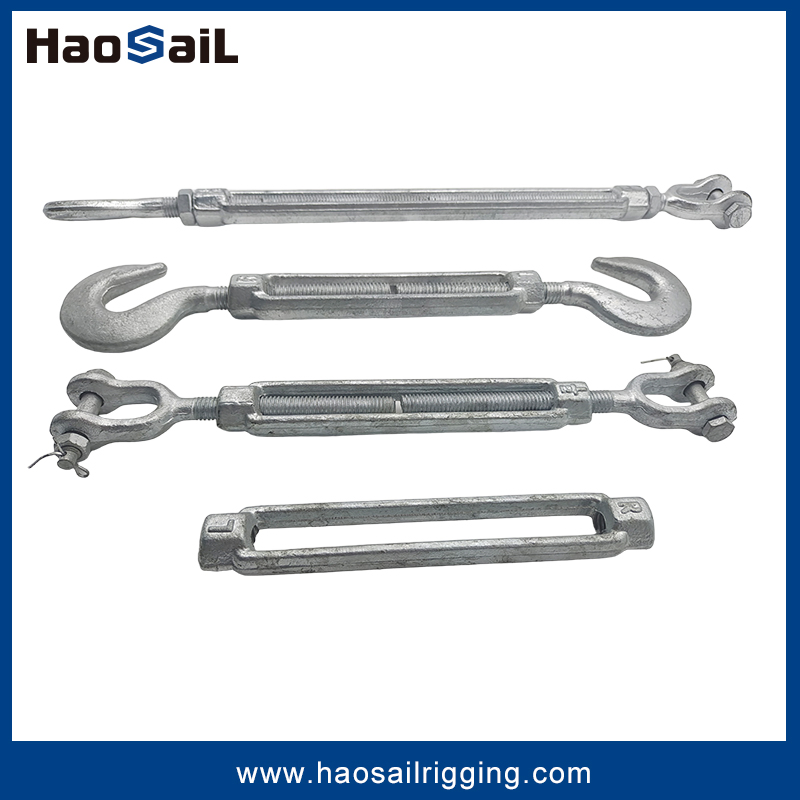

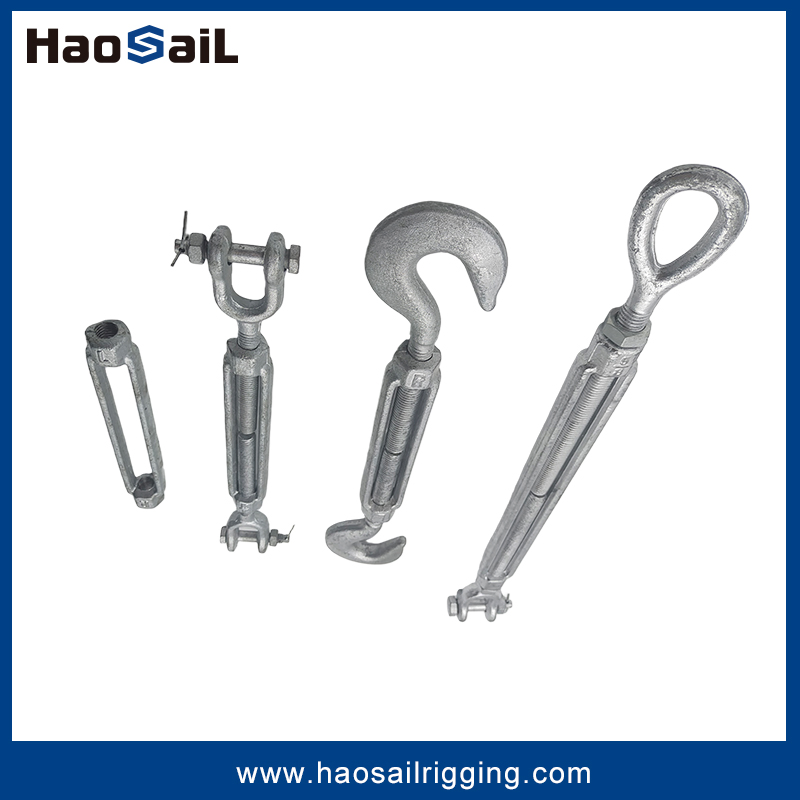

A turnbuckle typically consists of a threaded body with right-hand threads on one end and left-hand threads on the other end. Each end is attached to a hook, eye, or other type of connector. This unique design with opposite threads allows for a special kind of adjustment mechanism.
The turnbuckle works by rotating the central body. When you turn the body, the two ends, which have different threaded directions, either move closer together or farther apart. Rotating the turnbuckle in one direction pulls the connectors together, shortening the overall length and increasing tension. Rotating it in the opposite direction increases the length and reduces tension.
Marine Industry: Used to adjust the tension of rigging ropes and wires on sailing ships for stability and performance.
Construction: Tensioning cables in suspension bridges, support structures, or aligning steel rods in frameworks.
Aviation: Used in aircraft control cable systems for precise flight control of ailerons, elevators, and rudders.
Automotive: Suspension systems in racing and off-road vehicles for fine-tuning geometry and handling.
General DIY: Securing fences, tensioning clotheslines, or custom furniture construction.

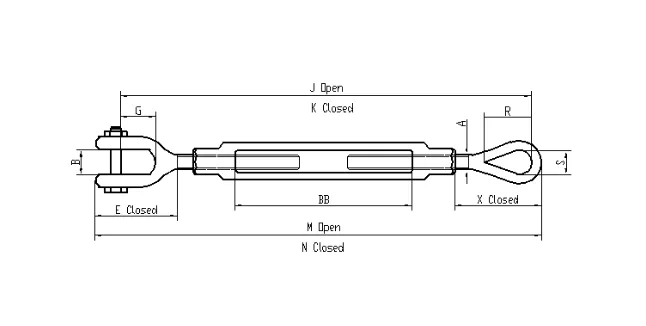

| Stock no. | Size (in) | WLL (lbs) | Weight (lbs) | Dimensions(in) | |||
|---|---|---|---|---|---|---|---|
| A | B | E Closed | G | ||||
| HS2021001 | 1/4*4 | 500 | 0.32 | 0.25 | 0.41 | 1.58 | 0.62 |
| HS2021002 | 5/16*4-1/2 | 800 | 0.47 | 0.31 | 0.47 | 1.98 | 0.87 |
| HS2021003 | 3/8*6 | 1200 | 0.76 | 0.38 | 0.50 | 2.12 | 0.87 |
| HS2021004 | 1/2*6 | 2200 | 1.53 | 0.50 | 0.63 | 2.75 | 1.06 |
| HS2021010 | 3/4*6 | 5200 | 4.00 | 0.75 | 0.94 | 4.18 | 1.50 |
| HS2021016 | 1*6 | 10000 | 8.92 | 1.00 | 1.19 | 5.53 | 2.06 |

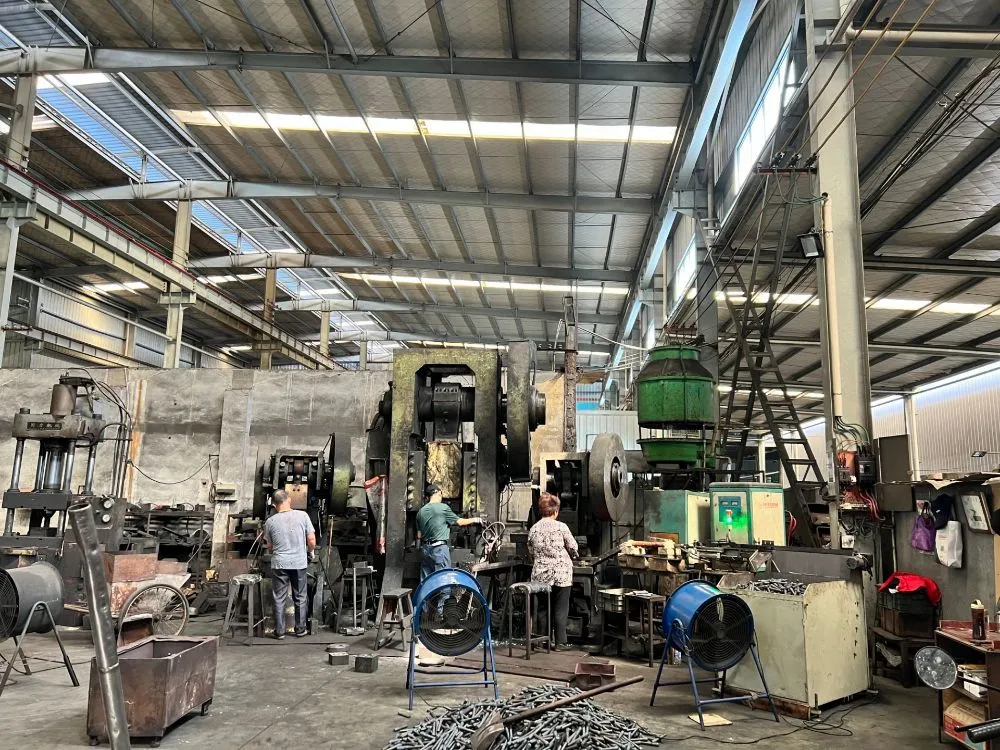

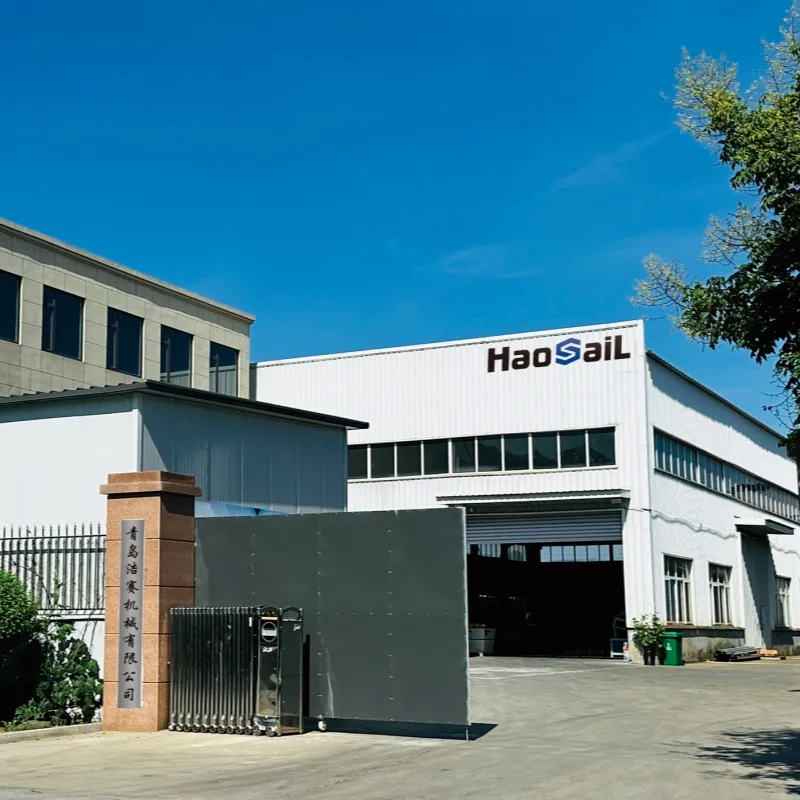

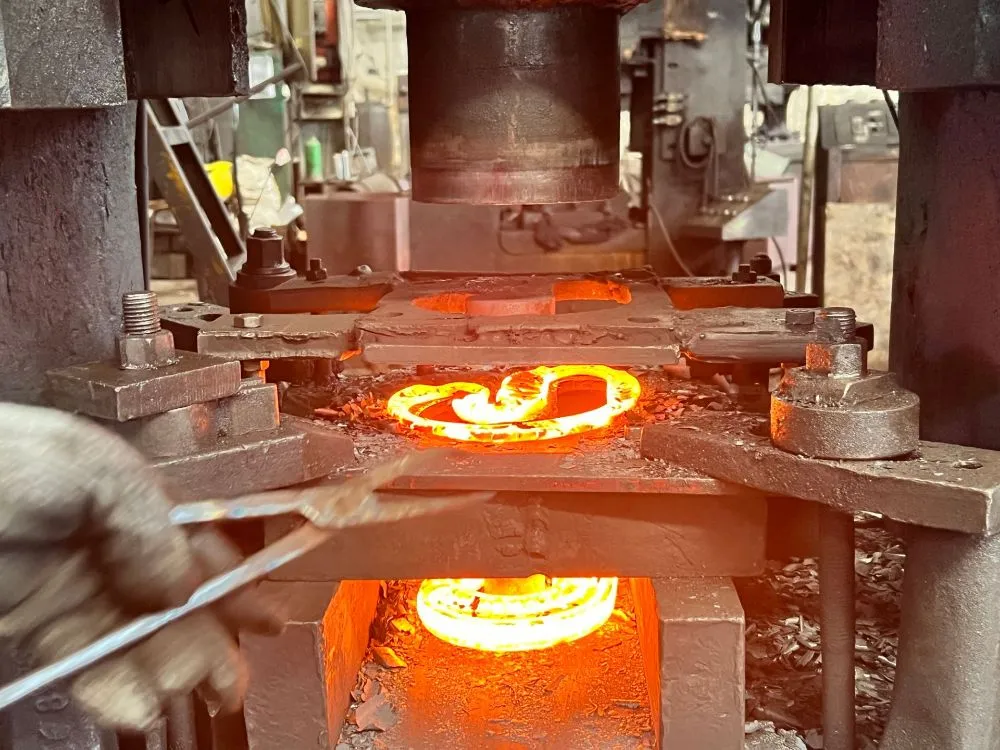

Leading Manufacture: One of the most professional high-quality forged product manufacturers with more than 20 years' production experience.

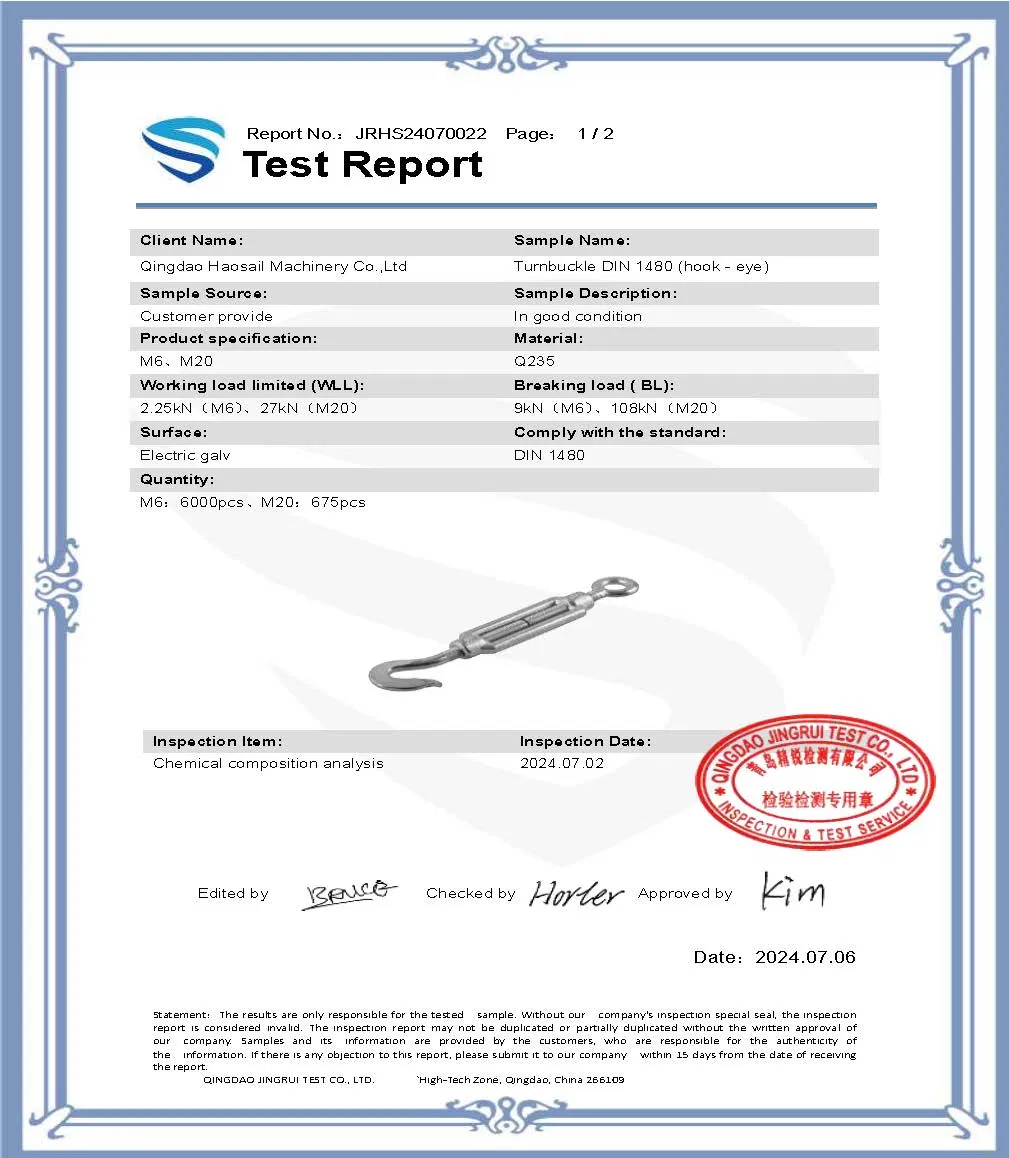

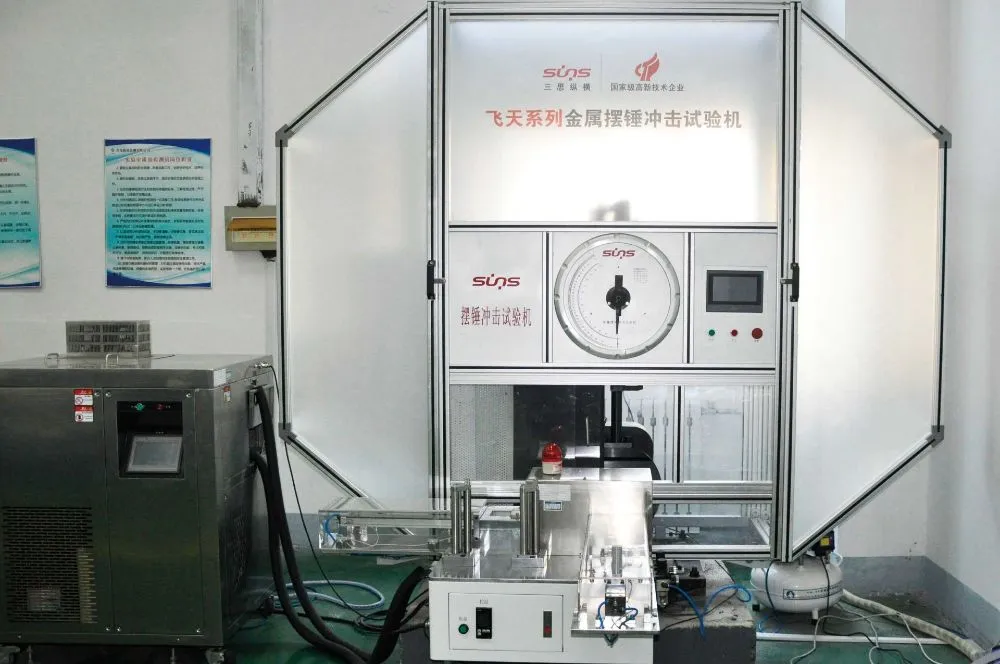

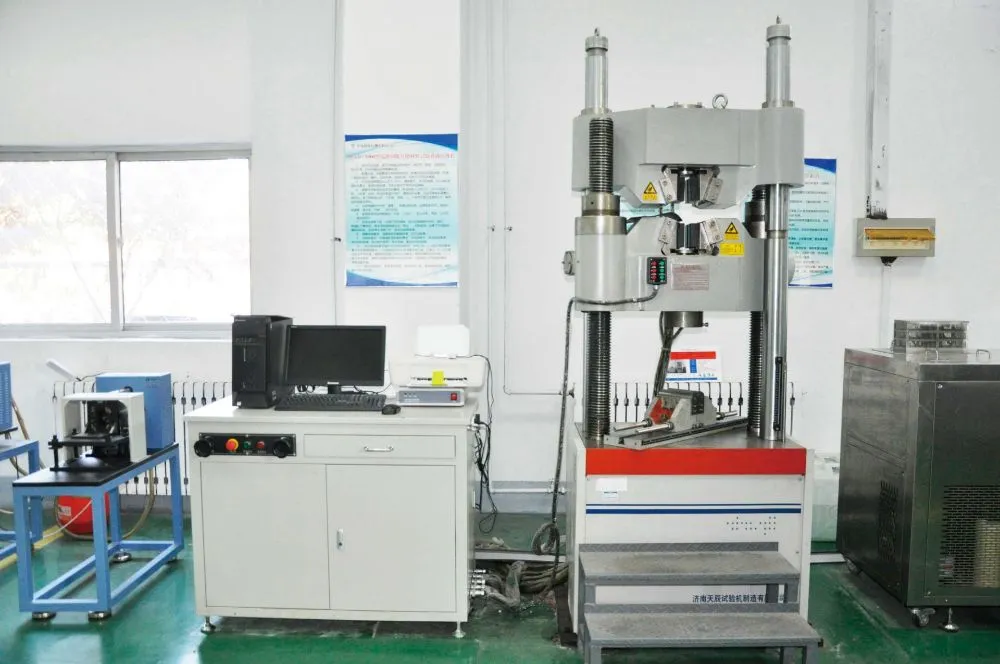

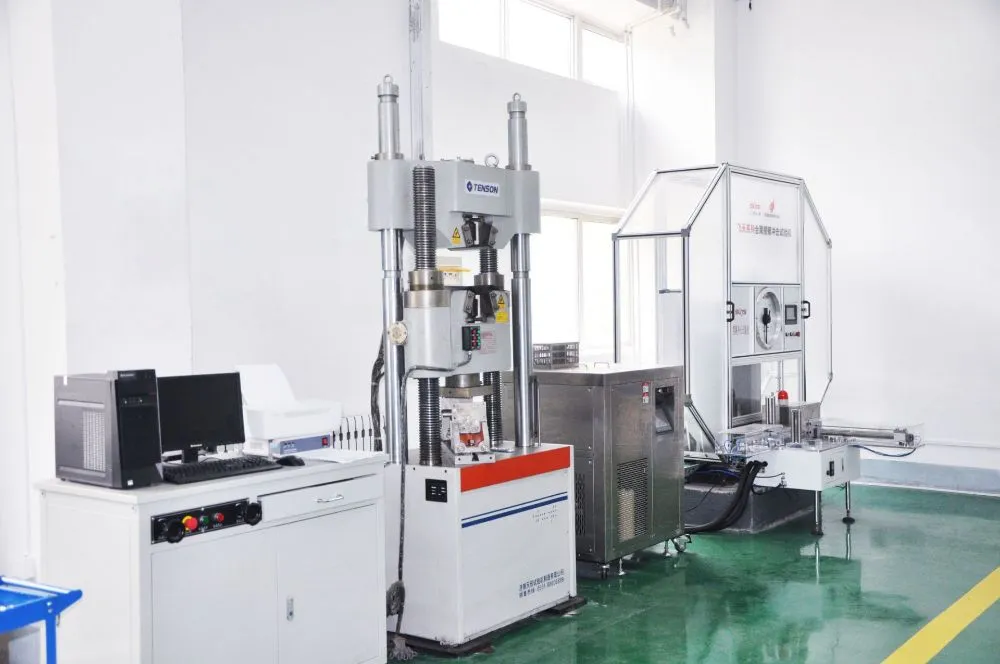

Strict Quality Control: We are committed to providing high-quality products that meet and exceed customer expectations through rigorous testing.
Supply Chain Management: Effective management to improve efficiency, reduce costs, and optimize risk control.

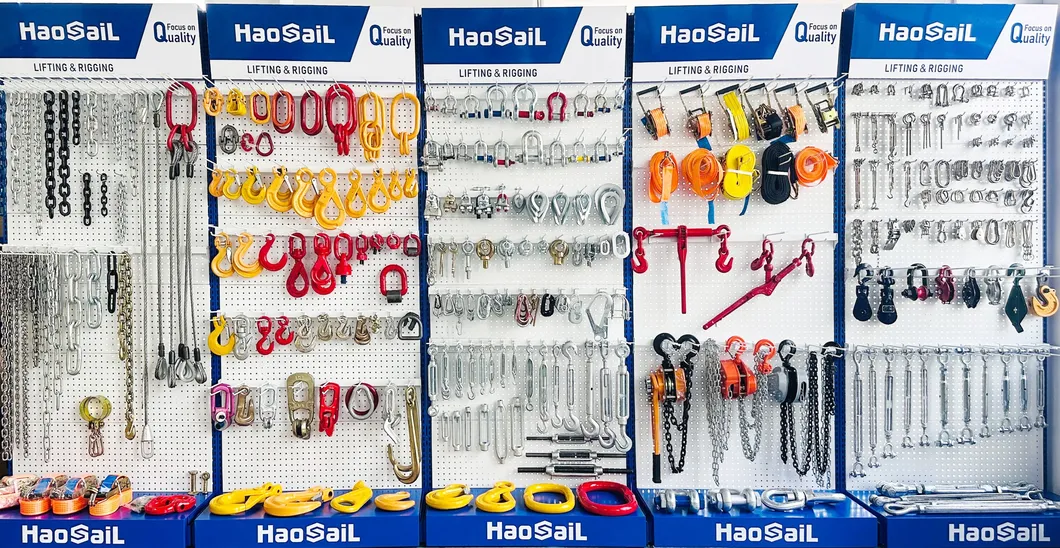

Professional Service: Dedicated customer support team to resolve quality issues within 24-48 hours. Customer satisfaction is our top priority.
