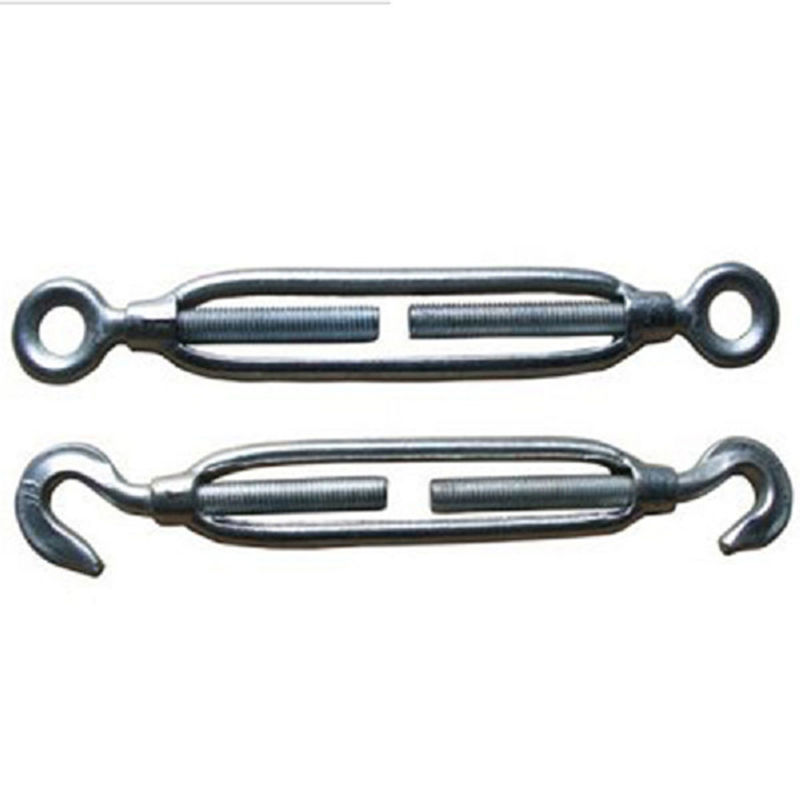

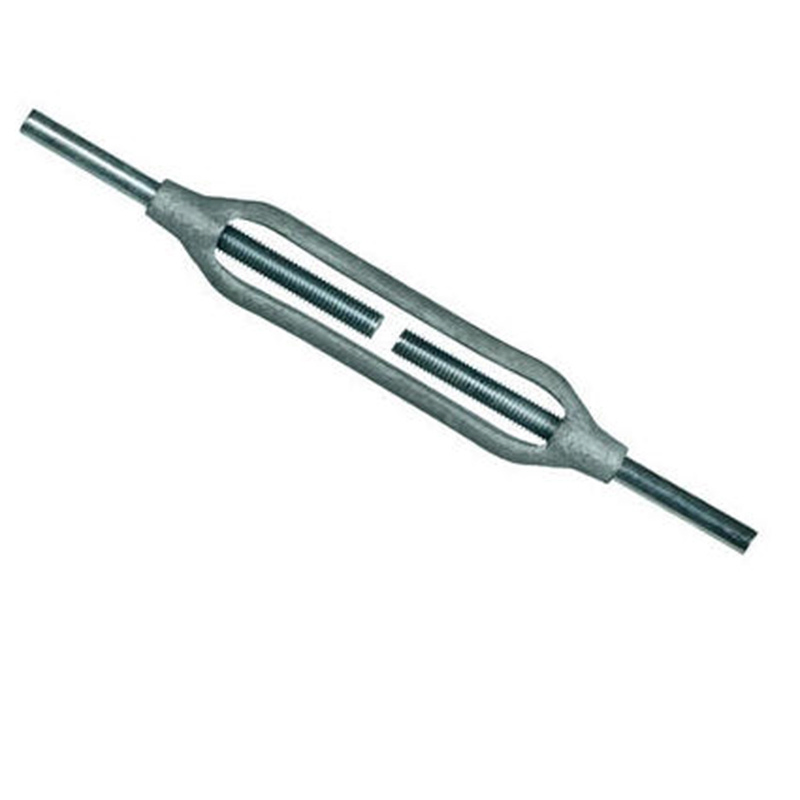

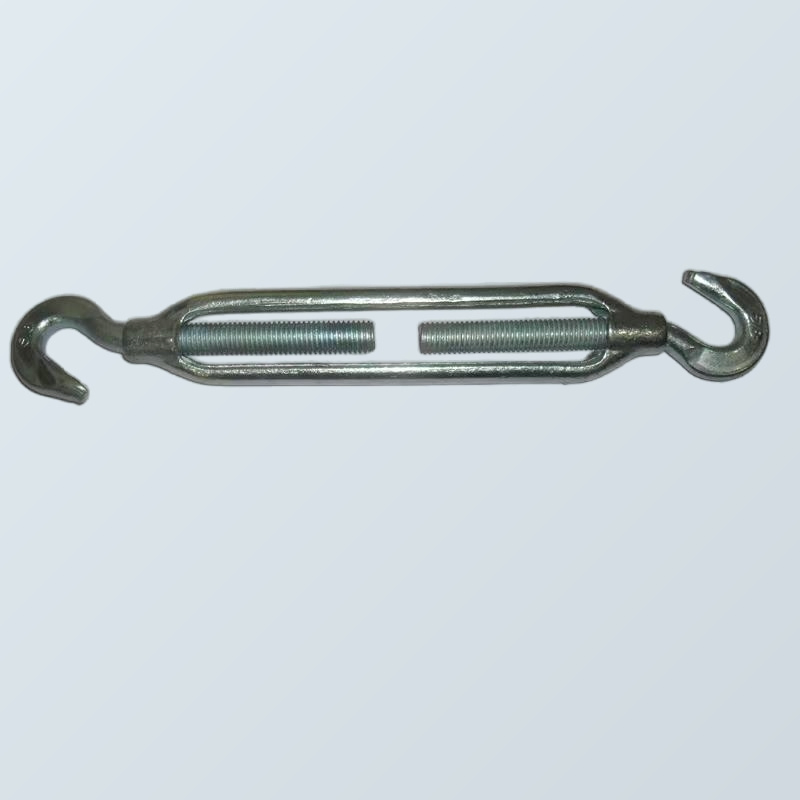

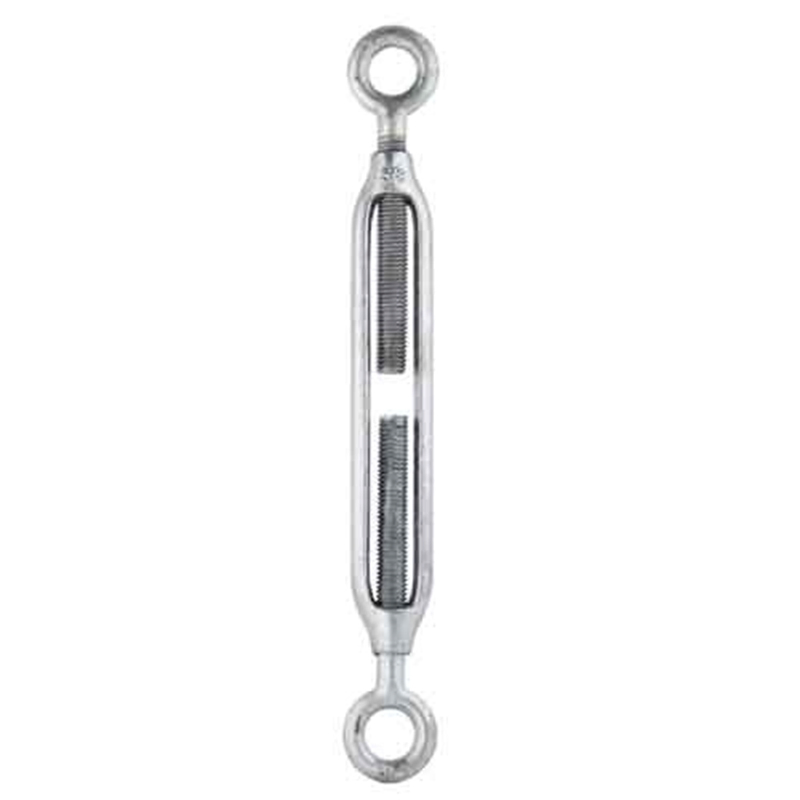

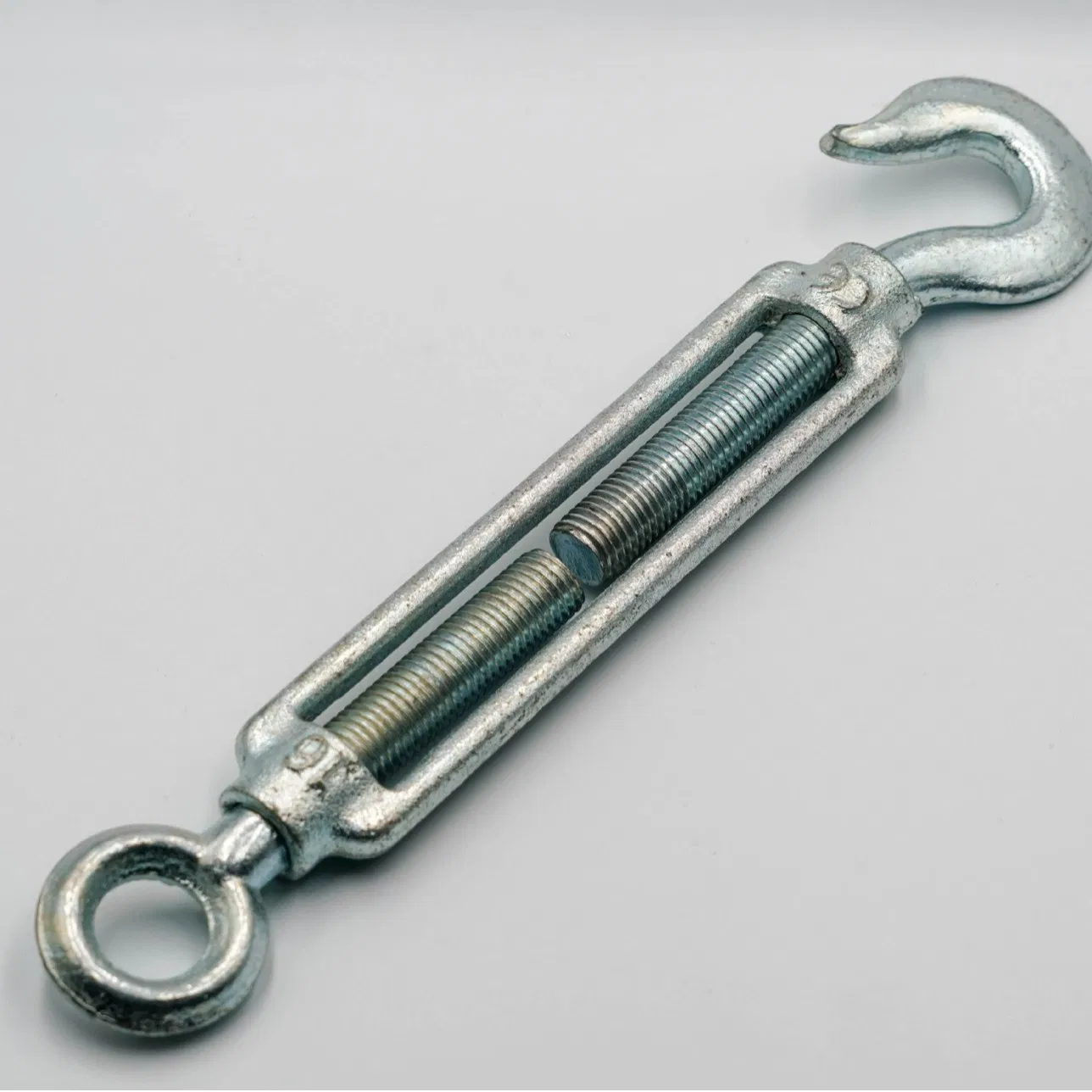

Electro-Galvanizing Frame Type Turnbuckle Hook and Eye JIS Type Turnbuckle

1 / 5

Electro-Galvanizing Frame Type Turnbuckle Hook and Eye JIS Type Turnbuckle

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

JIS Type Turnbuckle Hook and Eye

Usage

Industrial, Household

Condition

New

Surface Treatment

Electro-Galvanizing

Other Treatment

Hot-DIP Galvanizing, Oiling

Process

Drop Forged

Quality

100% Inspection

Package

Bag+Pallet

Specification

6MM-32MM

Origin

China

HS Code

7326909000

Capacity

5,000,000

🛠️

Product Description

SIZE (mm)	A (mm)	B (mm)	C (mm)	E (mm)	F (mm)	T.L (Ton)	N.W./PC (Kg)
6	100	78	11	9	10	0.04	0.114
8	125	100	12.5	9	12	0.08	0.218
9	150	120	12.5	11	16	0.15	0.293
12	200	164	18	16	20	0.35	0.585
16	250	202	21.5	19	22	0.7	1.05
19	300	250	25	20	28	1	1.78
22	325	269	28	21	33	1.5	2.58
25	350	285	32.5	26	35	2	3.77
32	400	310	45	34	36	3	7.52
38	450	350	55	35	40	4	12.8

❓

Frequently Asked Questions

What is the primary application of the JIS Type Turnbuckle?

These turnbuckles are widely used in both industrial and household applications for adjusting the tension or length of ropes, cables, and tie rods.

What surface treatments are available for these turnbuckles?

The standard treatment is Electro-Galvanizing, but we also offer Hot-DIP Galvanizing and Oiling to enhance corrosion resistance based on your environment.

How do you ensure the quality of the products?

We implement a strict 100% inspection process. Every turnbuckle undergoes quality checks to ensure it meets the required specifications and safety standards.

What is the manufacturing process for the Hook and Eye turnbuckle?

The products are manufactured using a drop-forged process, which provides superior strength and durability compared to cast alternatives.

What are the packaging options for bulk orders?

Our standard export packaging consists of bags and pallets to ensure the products are protected and easy to handle during transport.

Can you provide different sizes than those listed in the table?

Our standard range covers 6mm to 32mm (and up to 38mm as shown in specifications), which meets most industrial requirements. Please refer to the technical table for specific dimensions.
