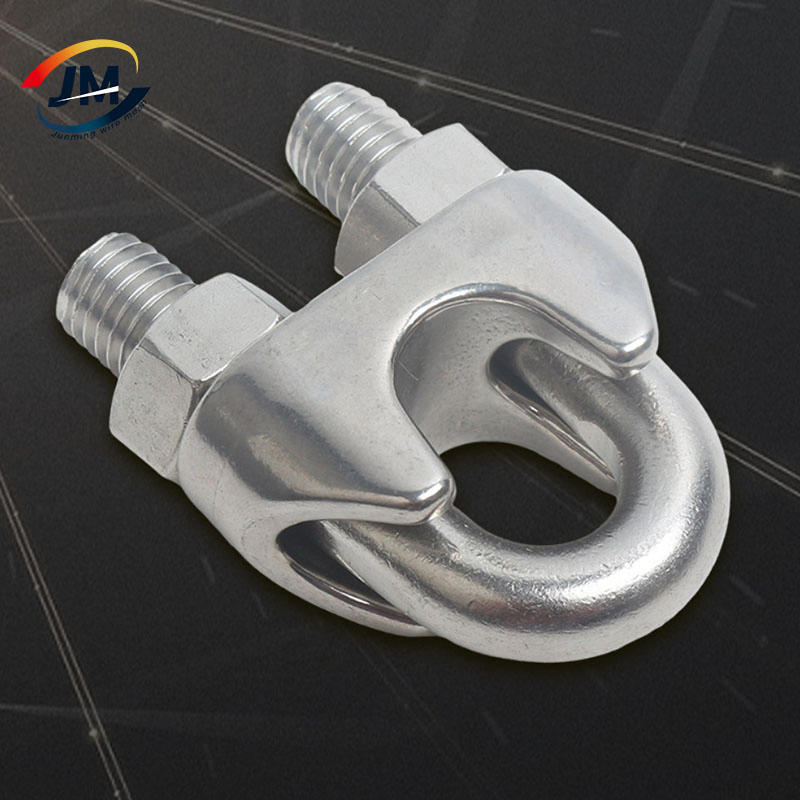

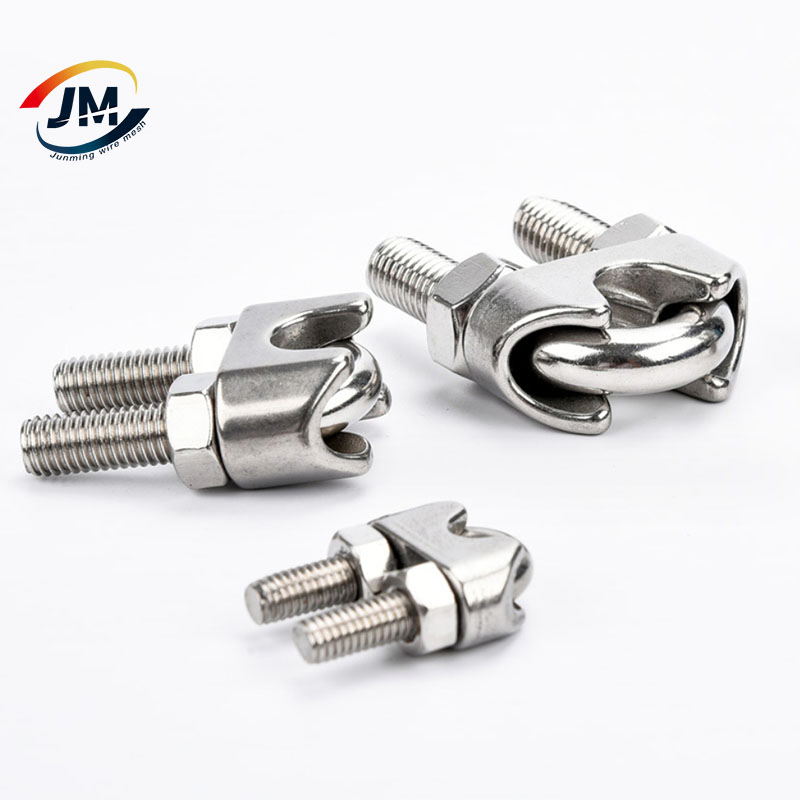

Stainless Steel DIN 741 1142 Malleable Wire Rope Clip 3mm 5mm 5/16"

📋 Basic Information

Model NO.

JM-232186

Standard

Condition

New

Product Name

Galvanized Wire Rope Clips DIN741 DIN1142

Usages

Stainless Steel Wire Ropes

Technic

Casting and Forging

Package Size

30.00cm * 30.00cm * 25.00cm

Gross Weight

15.000kg

Origin

Made in China

HS Code

7326909000

⚙️ Product Description

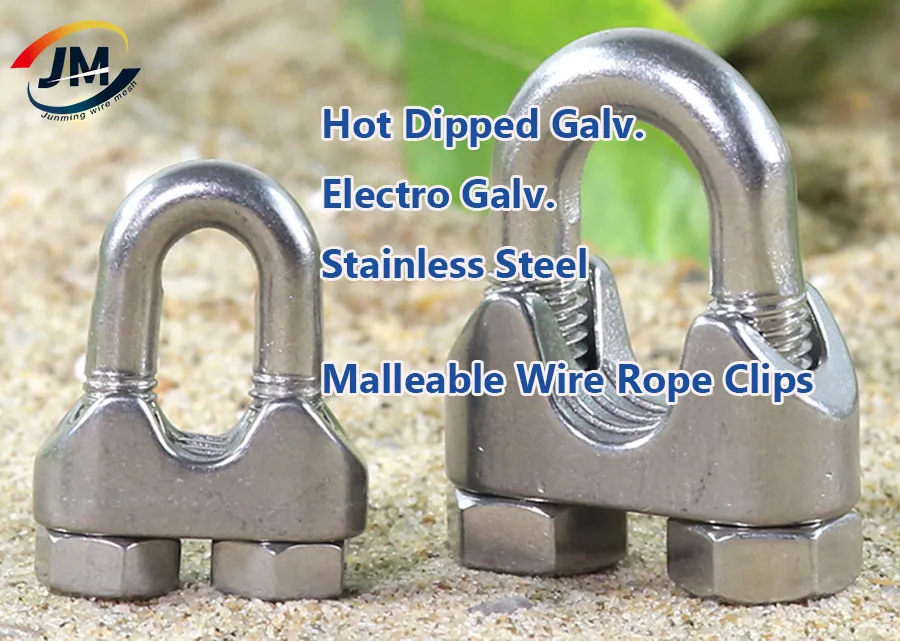

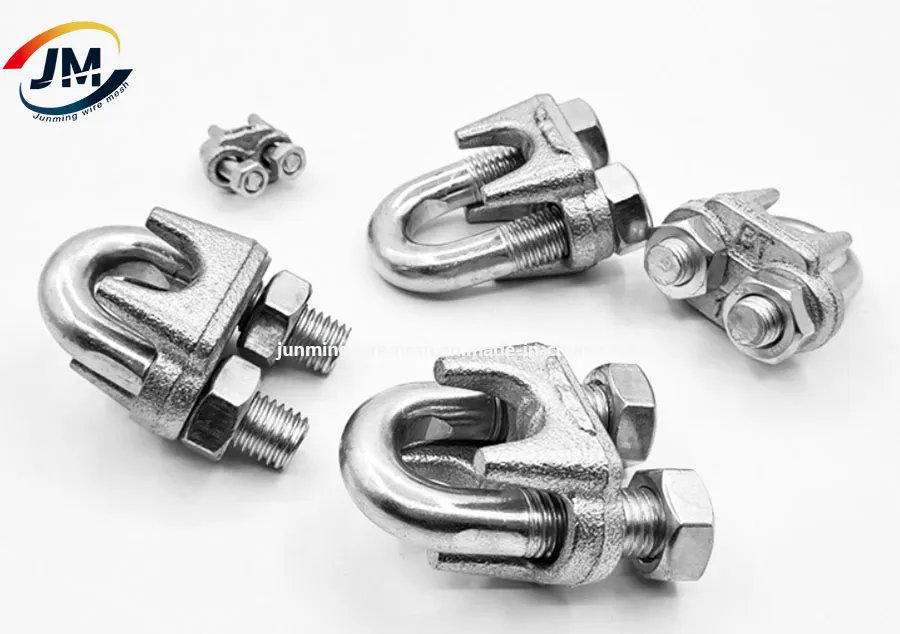

Material: SS304 316 Stainless Steel, Zinc Plated, Electro Galvanized, Hot-dipped Galvanized.

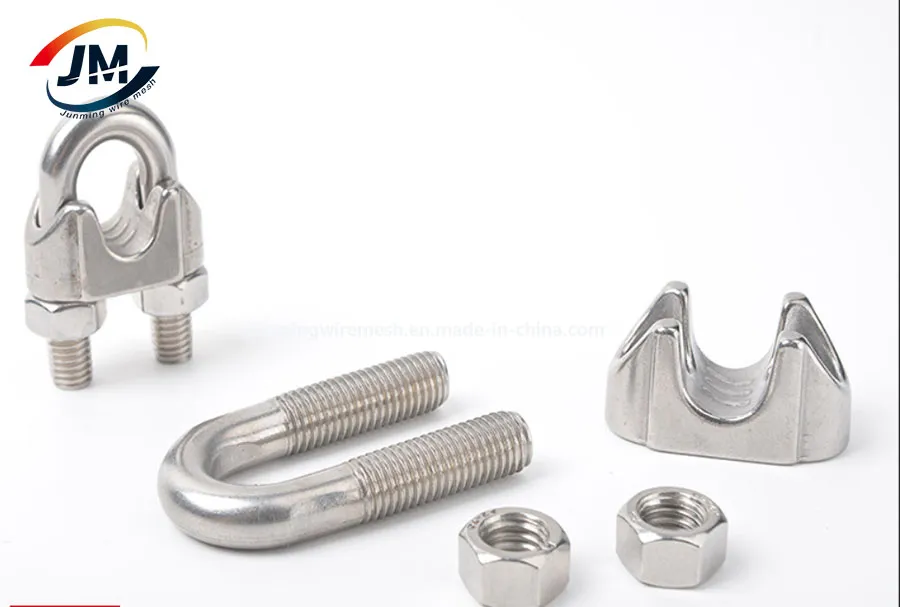

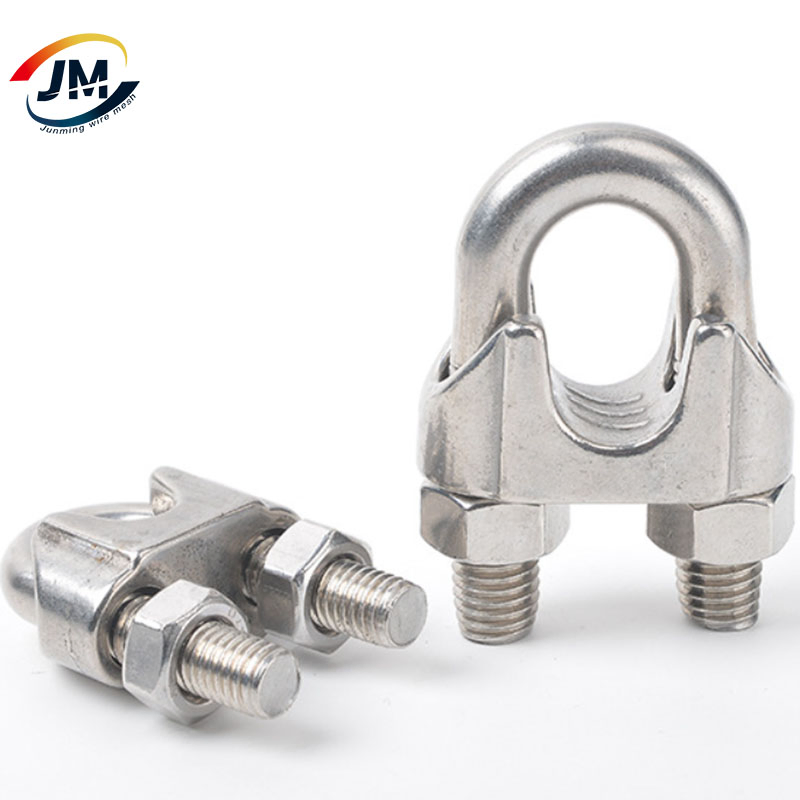

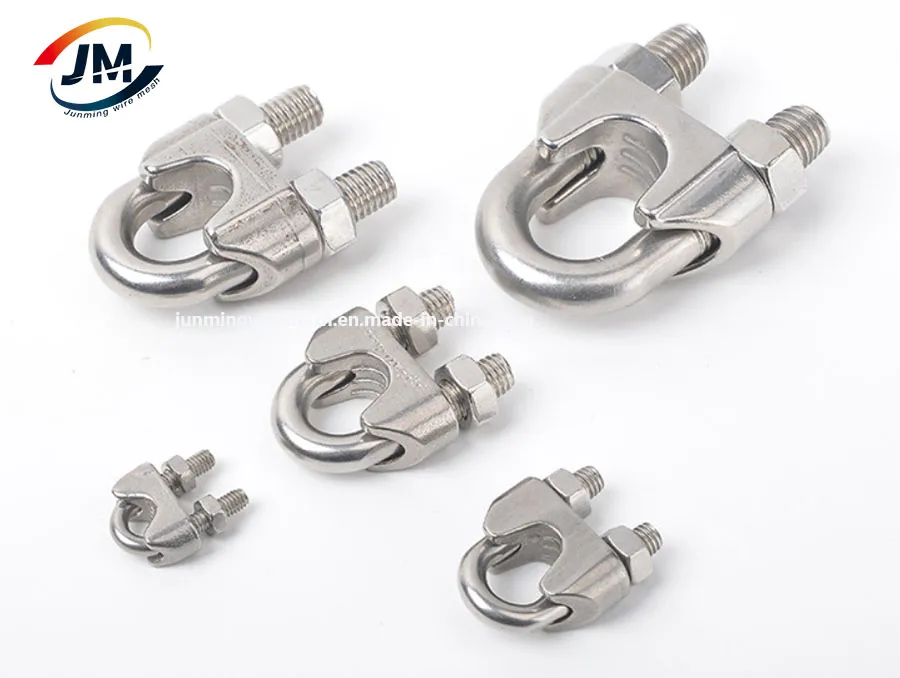

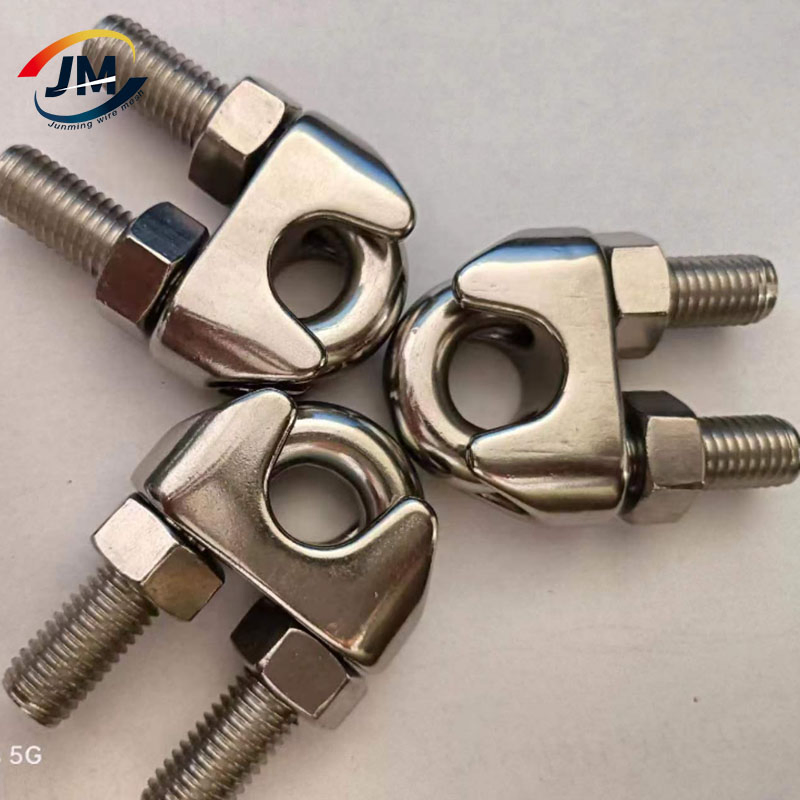

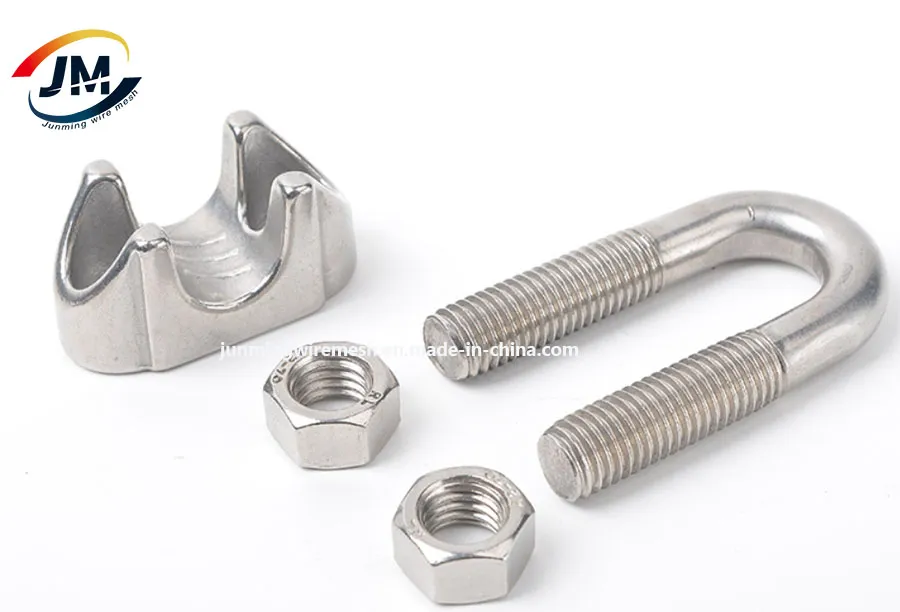

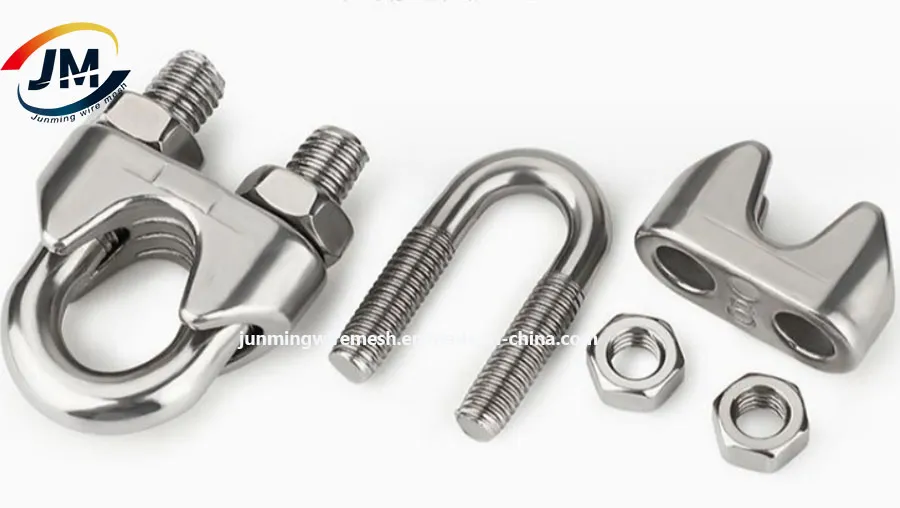

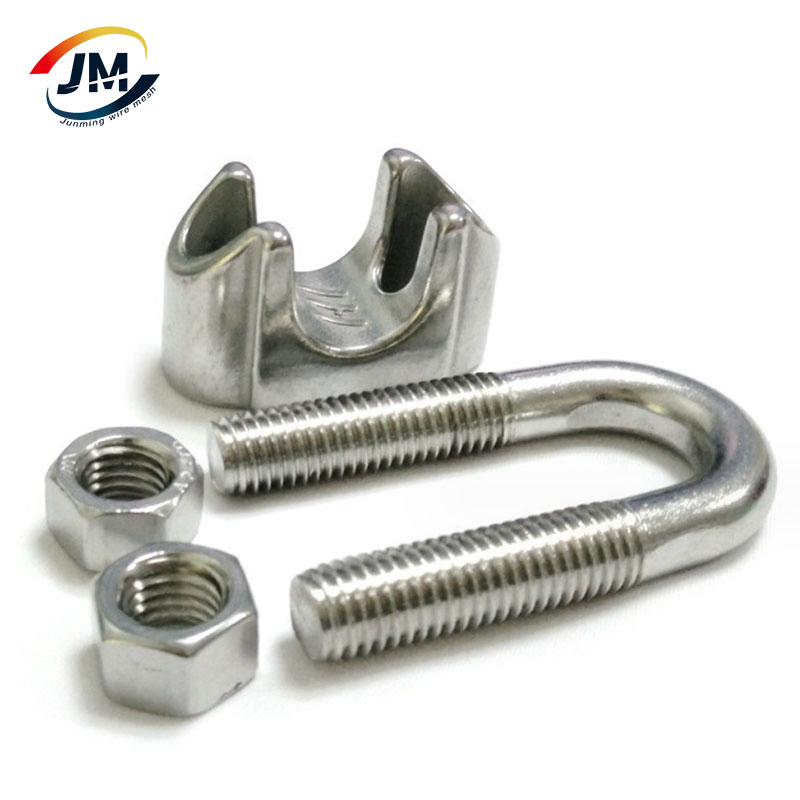

A wire rope clip, also called a clamp, cable clamp, U-clip, or U-Clamp, is used to fix the loose end of the loop back to the wire rope. It consists of a U-shaped bolt, a forged or cast saddle, and two nuts. The two layers of wire rope are placed in the U-bolt, the saddle is fitted over the ropes, and nuts secure the arrangement.

Required Details for Quotation:

Product Name, Measure (Diameter and Length)
Order Quantity
FOB or CIF Requirements
Surface Treatment & Material Type
Drawing or Application Type

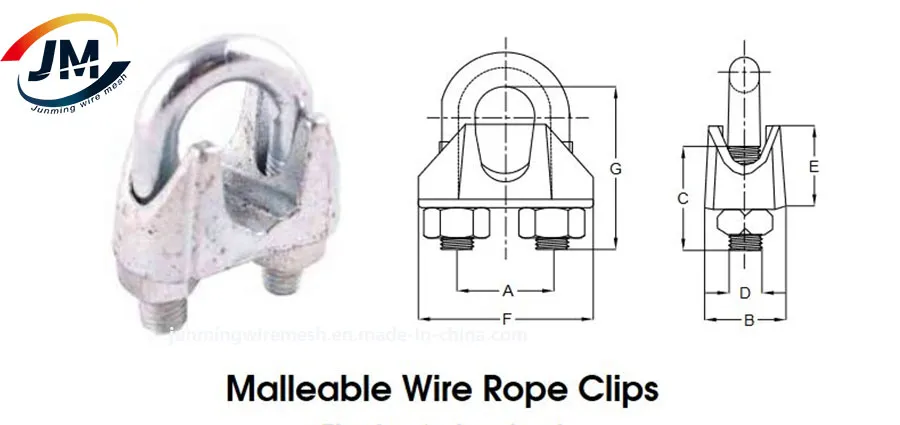

Item No.	Wire Rope Size (mm/in)		Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
DIN741-3	3	1/8	0.014	9	10	12	4	10	21	16
DIN741-5	5	3/16	0.015	11	11	13	5	10	23	19
DIN741-6.5	6.5	1/4	0.021	13	12	15	5	11	26	23
DIN741-8	8	5/16	0.041	16	14	19	6	15	30	28
DIN741-10	10	3/8	0.068	19	18	22	8	17	34	34
DIN741-13	13	1/2	0.13	24	23	30	10	21	42	45
DIN741-16	16	5/8	0.21	29	26	33	12	26	50	51
DIN741-19	19	3/4	0.28	32	29	38	12	30	54	63

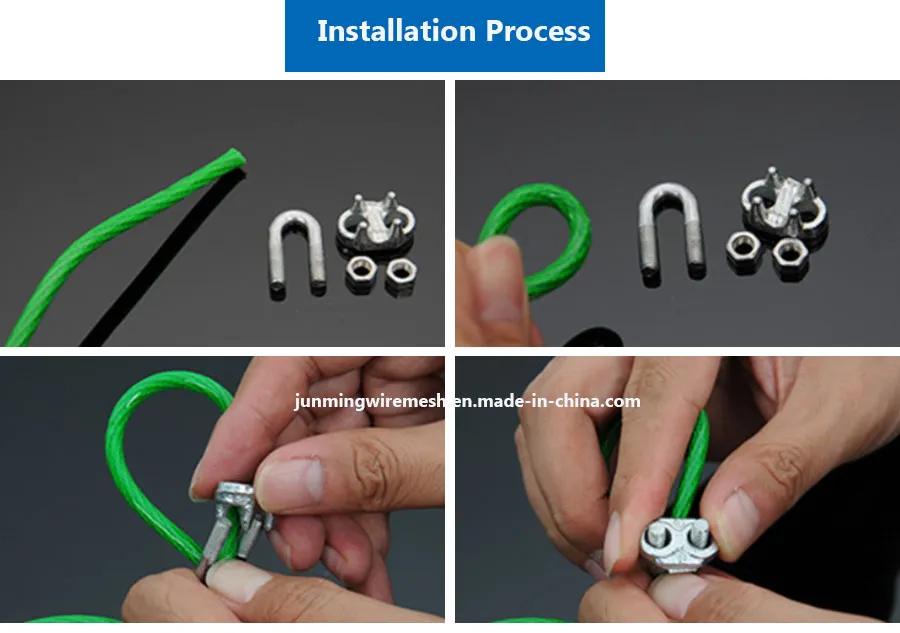

🛠️ Installation Instructions

🏗️ The Application

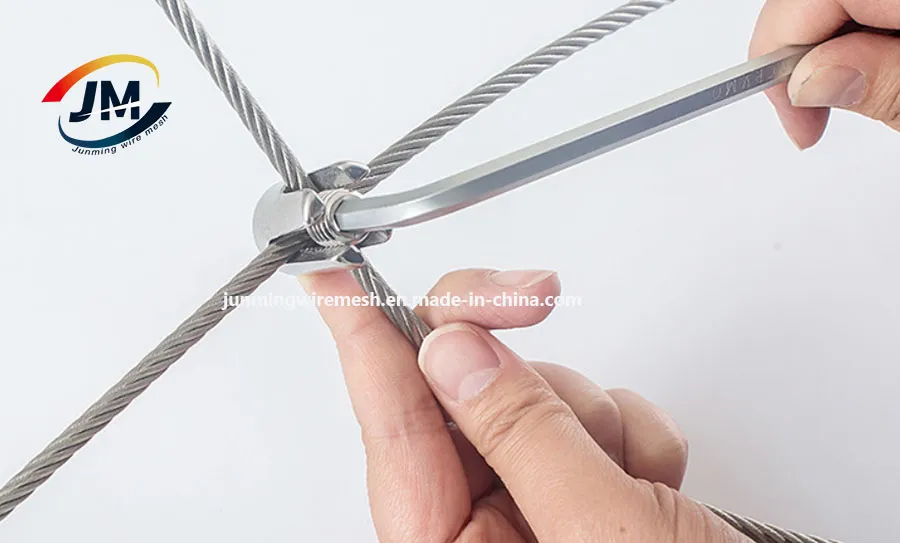

Malleable wire rope clips are suitable for fixing and locking both ends of the wire rope. They can be used with wire rope collars and are easy to remove.

🔗 Related Product

❓ FAQ & Why Choose Us

Are you a factory/manufacturer or trader?

We are a direct factory with our own production lines and workers, offering flexibility and avoiding extra middleman charges.

Can I get free samples?

Yes, samples are available freely. Special specifications can be customized to your requirements.

What is your minimum order quantity (MOQ)?

There is no strict MOQ. We recommend quantities based on optimal pricing, considering freight and production costs.

Which payment methods do you accept?

We accept T/T, L/C, Western Union, Paypal, and Money Gram.

How long is the delivery time after payment?

In-stock items usually ship in 7-15 days; customized products take approximately 30 days.

Why should we choose your services?

15 years of professional and experienced factory production.
Dedicated quality control and design teams.
Quick delivery times and superior product quality.
Certified supplier with multiple transport options (Sea, Air, Rail).
