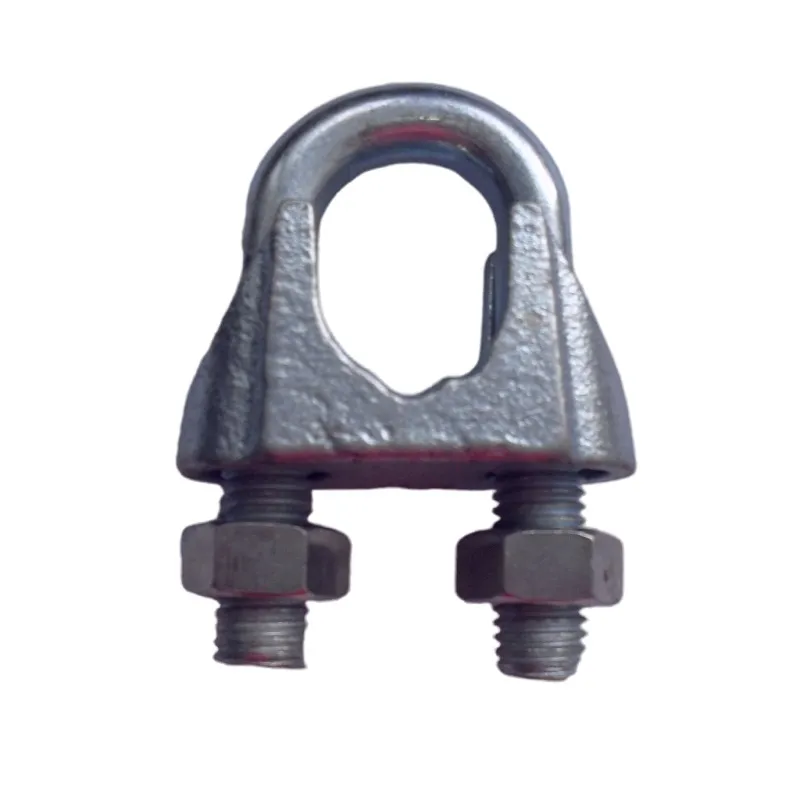

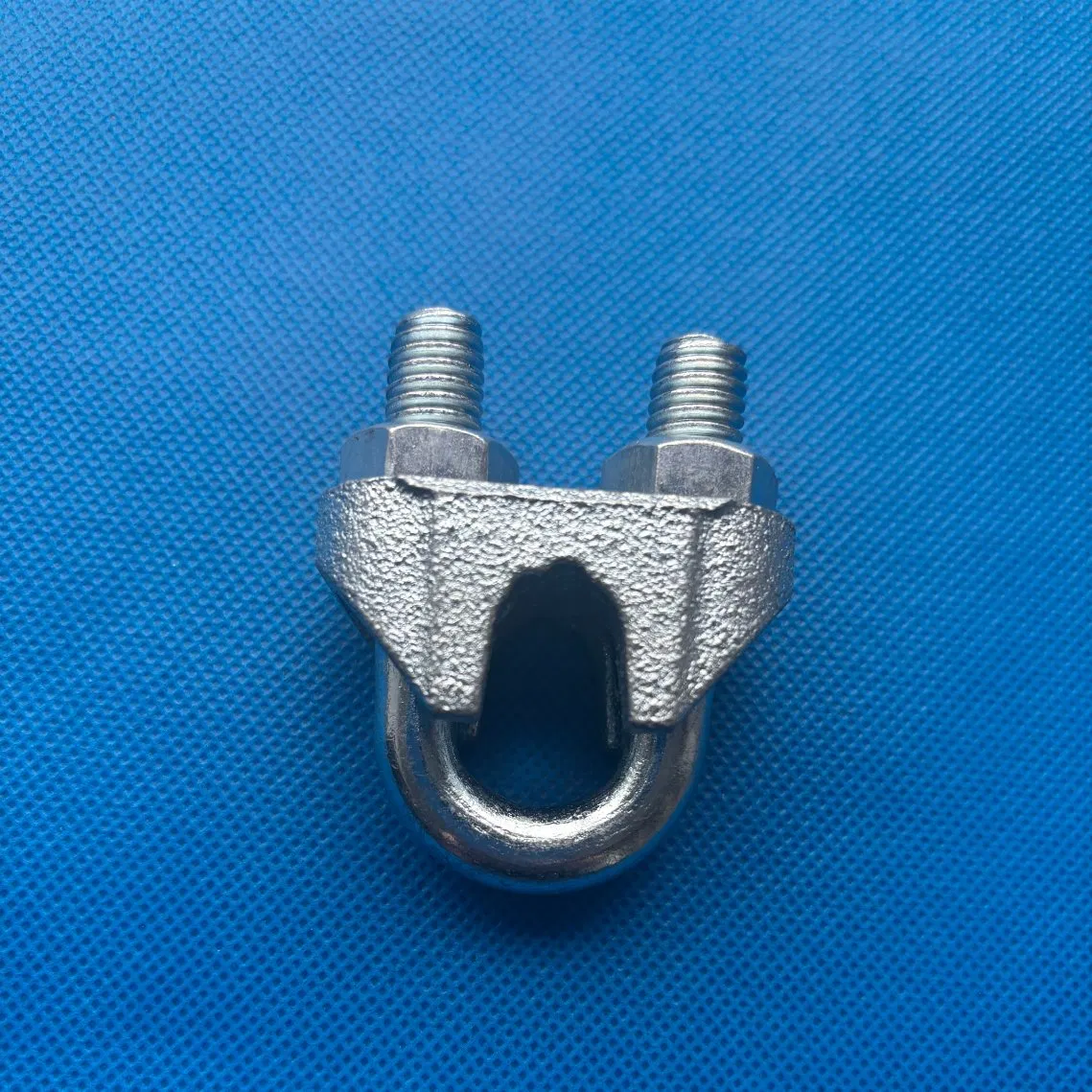

Galv. Zinc Plated DIN741 Wire Rope Clip

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🟦 Basic Information

Model NO.

DIN741 Wire Rope Clip

Usage

Industrial, Household

Color

Silver

Condition

New

Body Material

Malleable

U-Bolt Material

Carbon Steel

Process

Casting

Surface Treatment

Electro-Galvanizing

Quality

100% Inspection

Transport Package

Bag/Carton+Pallet

Specification

3MM-40MM

Origin

China

HS Code

7326909000

Capacity

5,000,000

🟦 Product Description

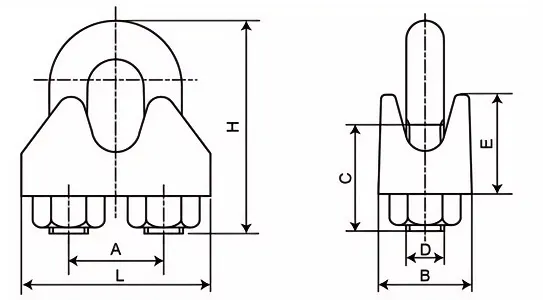

Galv. Zinc Plated DIN741 Wire Rope Clip Technical Drawing

Size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)	L (mm)	N.W./PC (kg)
3	9	10	12	4	10	20	21	0.14
5	11	11	16	5	11	24	23	0.15
6.5	13	12	15	5	12	28	26	0.21
8	16	14	19	6	14	34	30	0.41
10	19	18	22	8	18	42	34	0.65
11	20	19	22	8	19	44	36	0.72
13	24	23	30	10	23	55	42	1.30
14	25	23	30	10	23	57	44	1.35
16	29	26	33	12	26	63	50	2.10
19	32	29	38	12	29	76	54	2.80
22	37	33	44	14	33	85	61	4.00
26	41	35	45	14	35	95	66	4.40
30	48	37	50	16	37	110	74	6.60
34	52	42	55	16	42	120	80	8.50
40	58	45	60	16	45	140	88	10.40

🟦 Frequently Asked Questions

What are DIN741 wire rope clips primarily used for?

DIN741 wire rope clips are designed for light-duty rigging applications, including both industrial and household use. They are commonly used for securing the loose end of a wire rope loop where high safety requirements are not critical.

What materials are used in the construction of these clips?

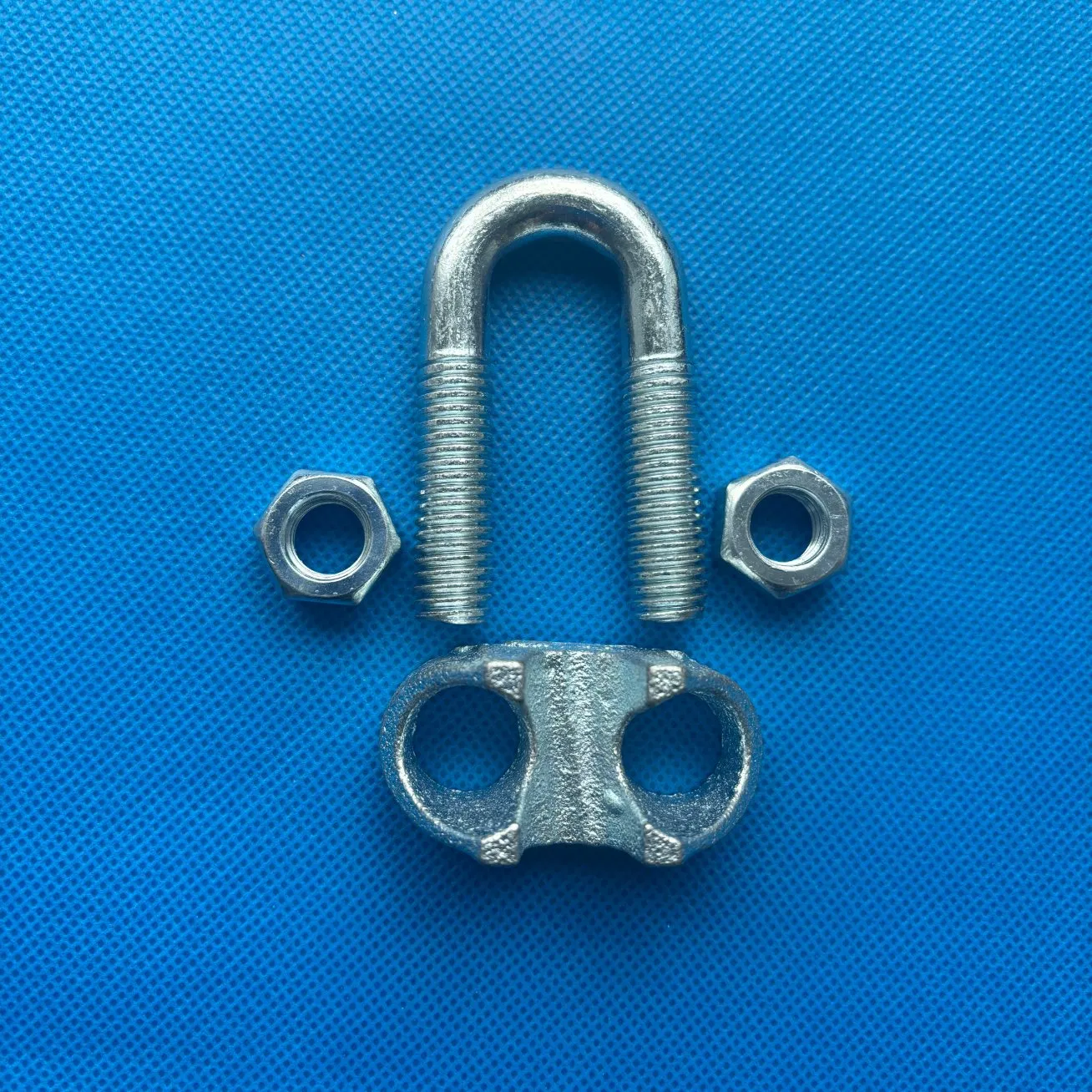

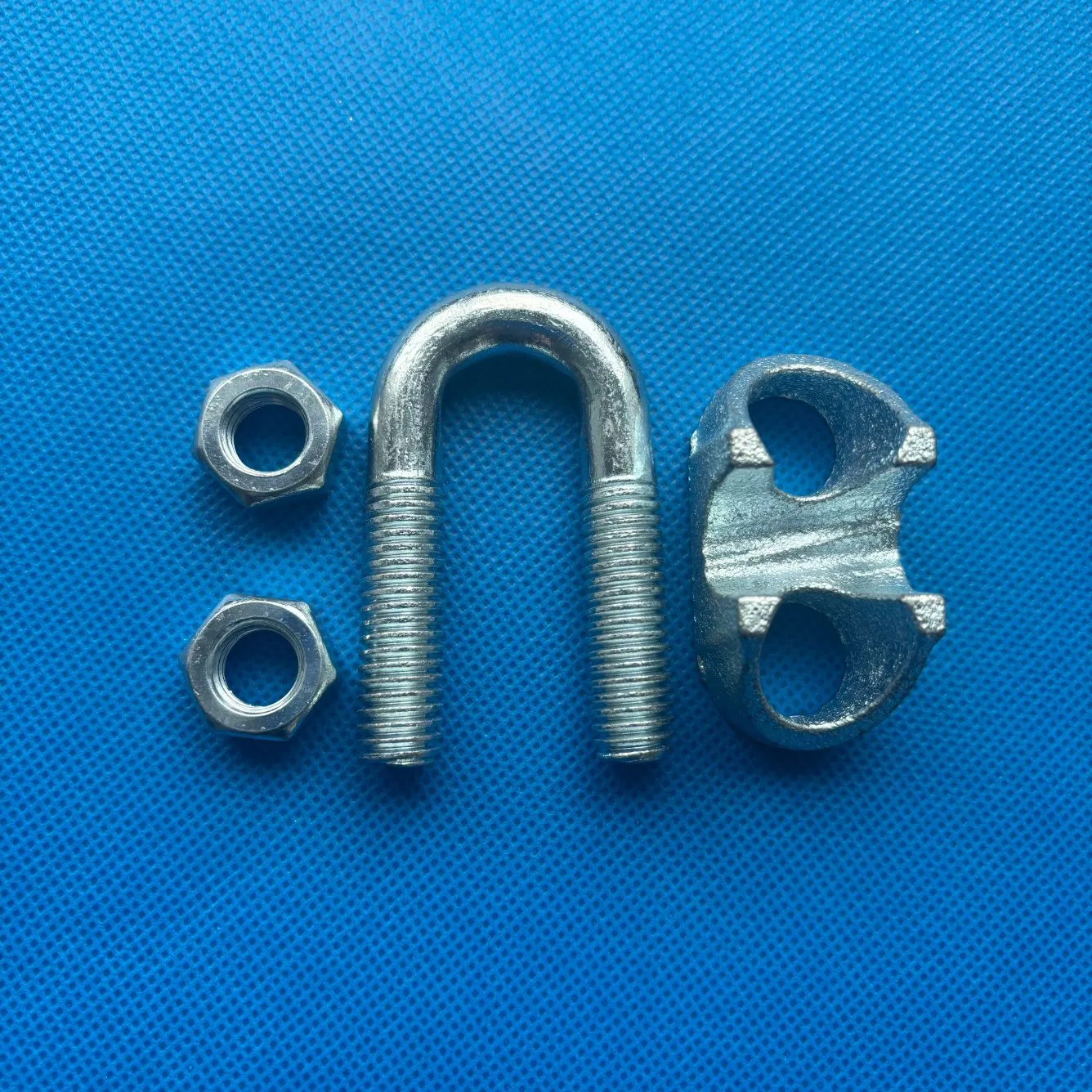

The body of the clip is made from high-quality malleable iron, while the U-bolt is crafted from durable carbon steel, ensuring a balance between strength and flexibility.

What surface treatment is applied for corrosion resistance?

These clips undergo an electro-galvanizing process. This silver zinc-plated finish provides excellent protection against rust and environmental corrosion.

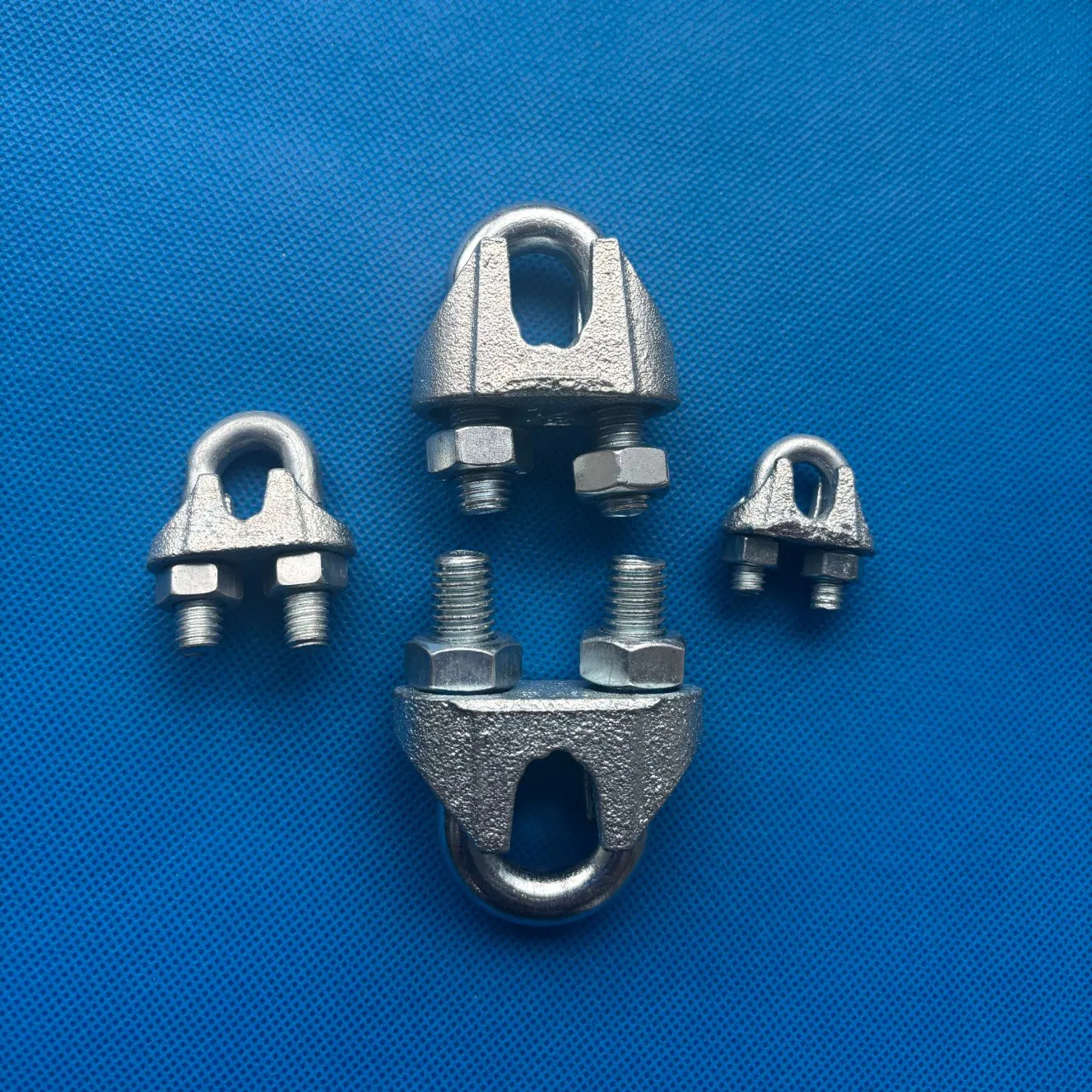

What size range is available for the DIN741 clips?

We offer a comprehensive range of specifications from 3mm up to 40mm to accommodate various wire rope diameters and technical requirements.

How is the quality of the wire rope clips guaranteed?

Every batch of wire rope clips undergoes a 100% inspection process during production to ensure each piece meets international quality standards and dimensional accuracy.

How are these products typically packaged for transport?

To ensure safe delivery and easy handling, clips are usually packed in bags or cartons, which are then secured on pallets for international shipping.
