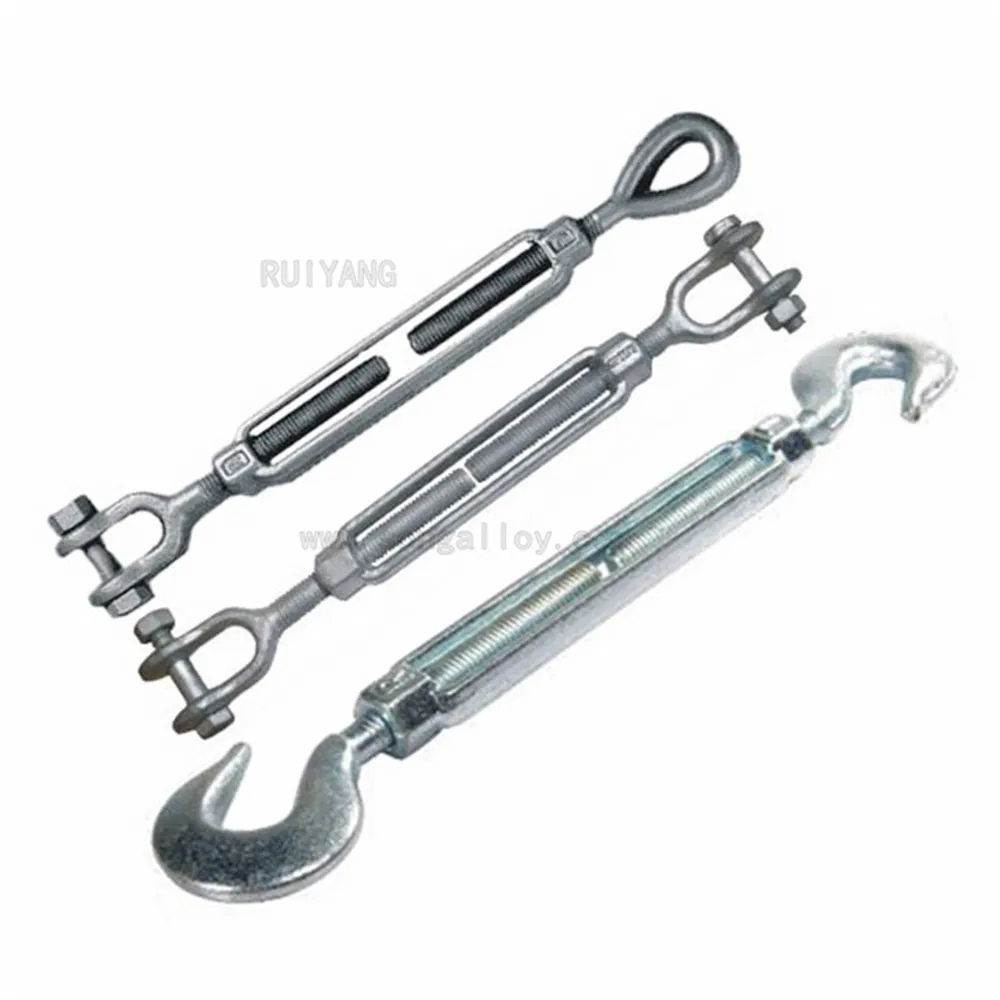

Ruiyang Stainless Steel Turnbuckle Hardware for Rigging Wire Rope, 6mm-30mm

Basic Information

Model NO.

6mm-30mm

Usage

Industrial, Household

Color

Silver

Condition

New

Stock

Yes

Delivery

Soonest

Package

Wooden Box

Specification

6mm-30mm

Origin

China

HS Code

73269090

Capacity

1000ton/Year

Product Overview

⚙️ Professional Industrial Hardware Solutions

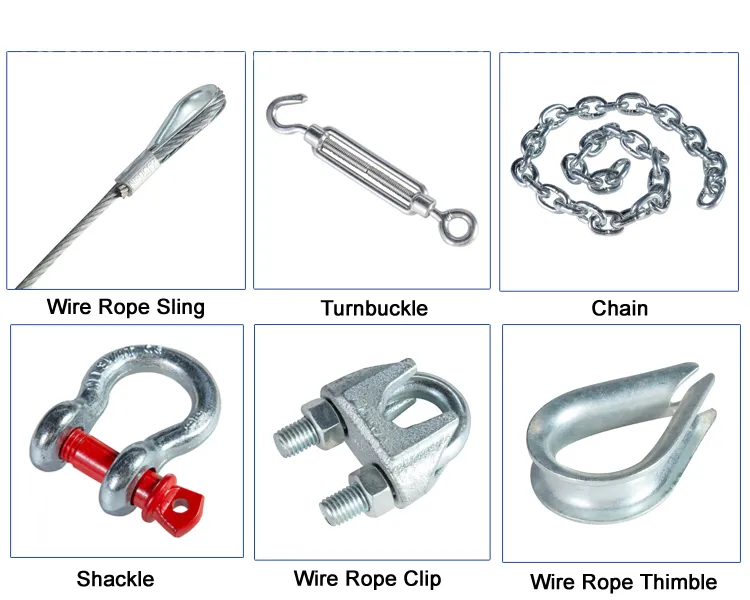

Engaged in providing the best quality of stainless steel wire rope and wire rope fittings, rigging hardware, marine hardware, fasteners in stainless steel and titanium, titanium alloy, lifting accessories and auto-parts, such as turnbuckles, hooks, wire rope clips, shackles, eye bolts, eye nuts, and so on.

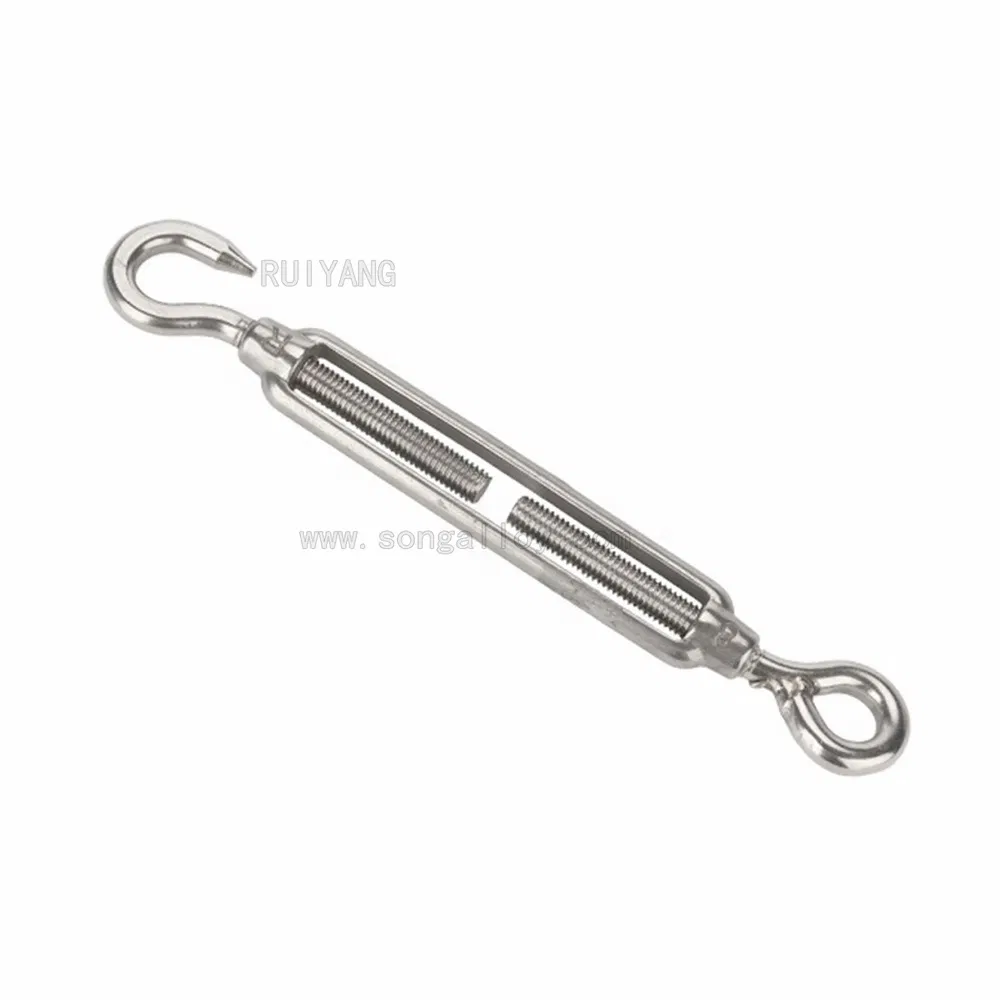

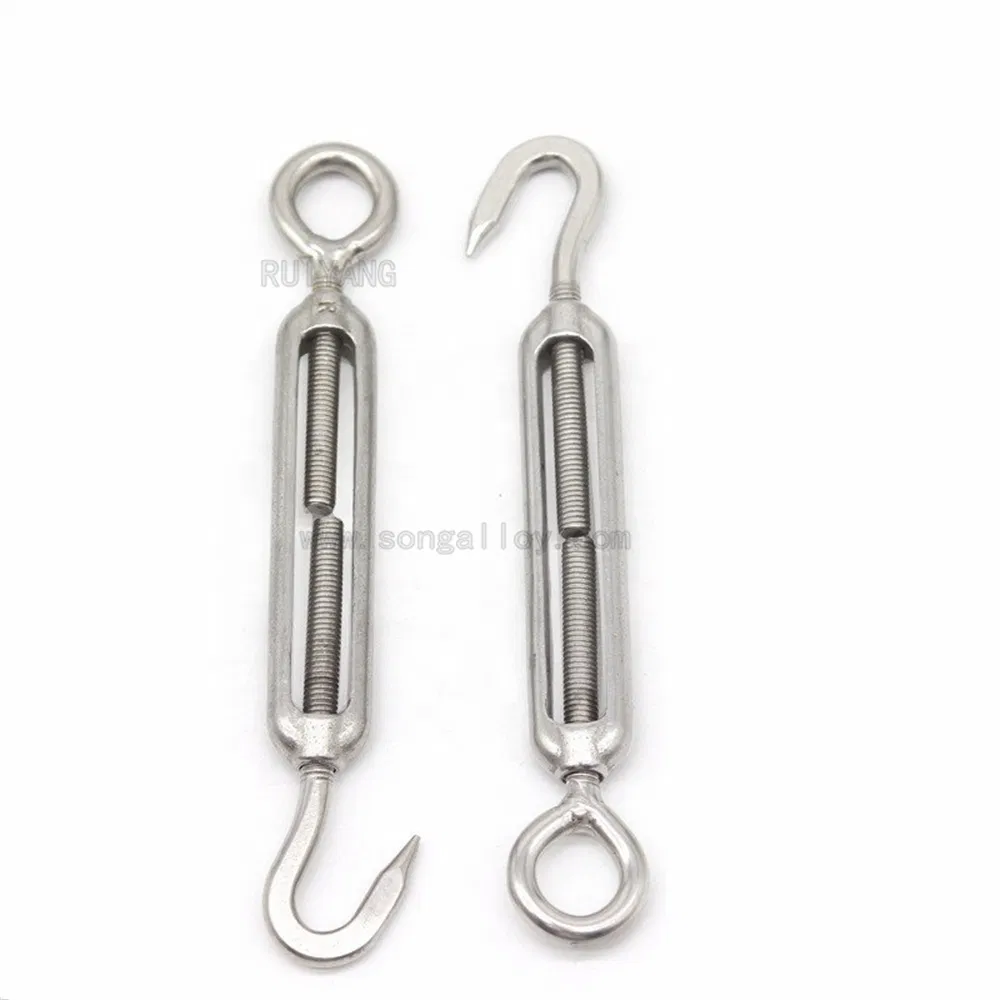

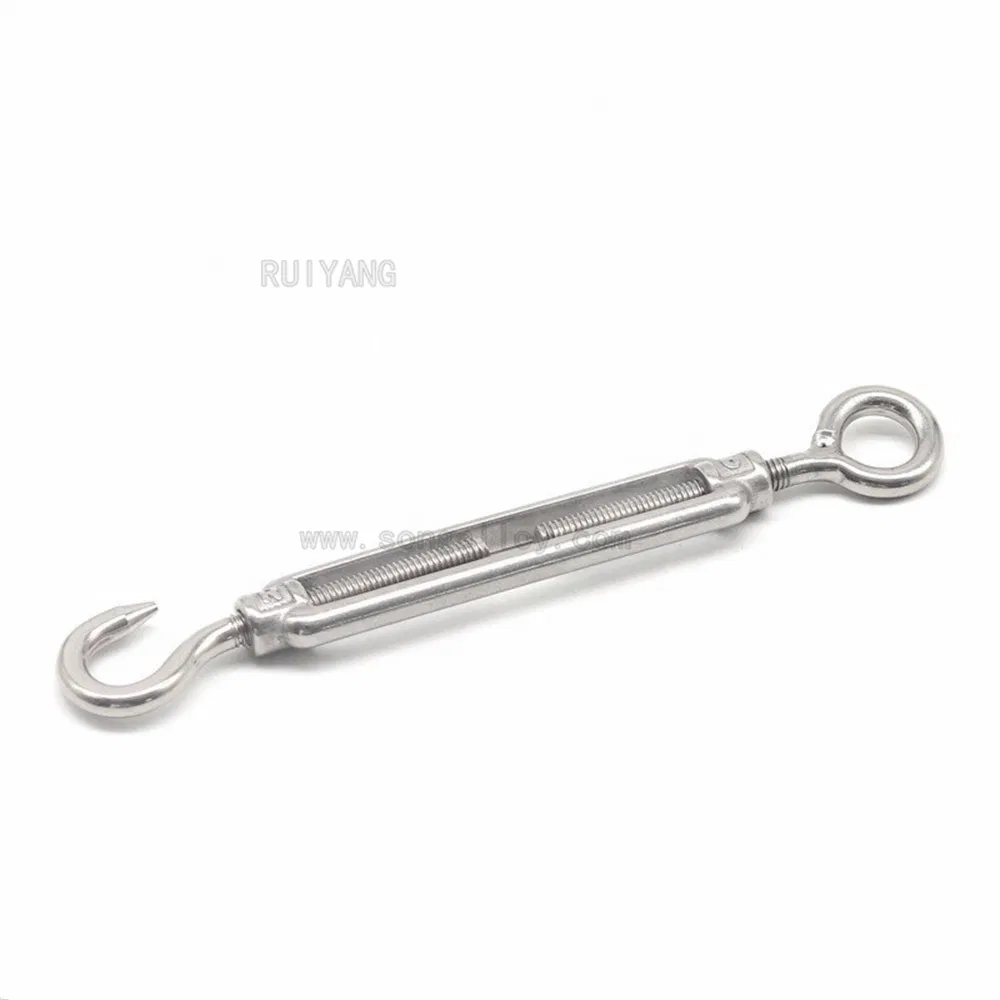

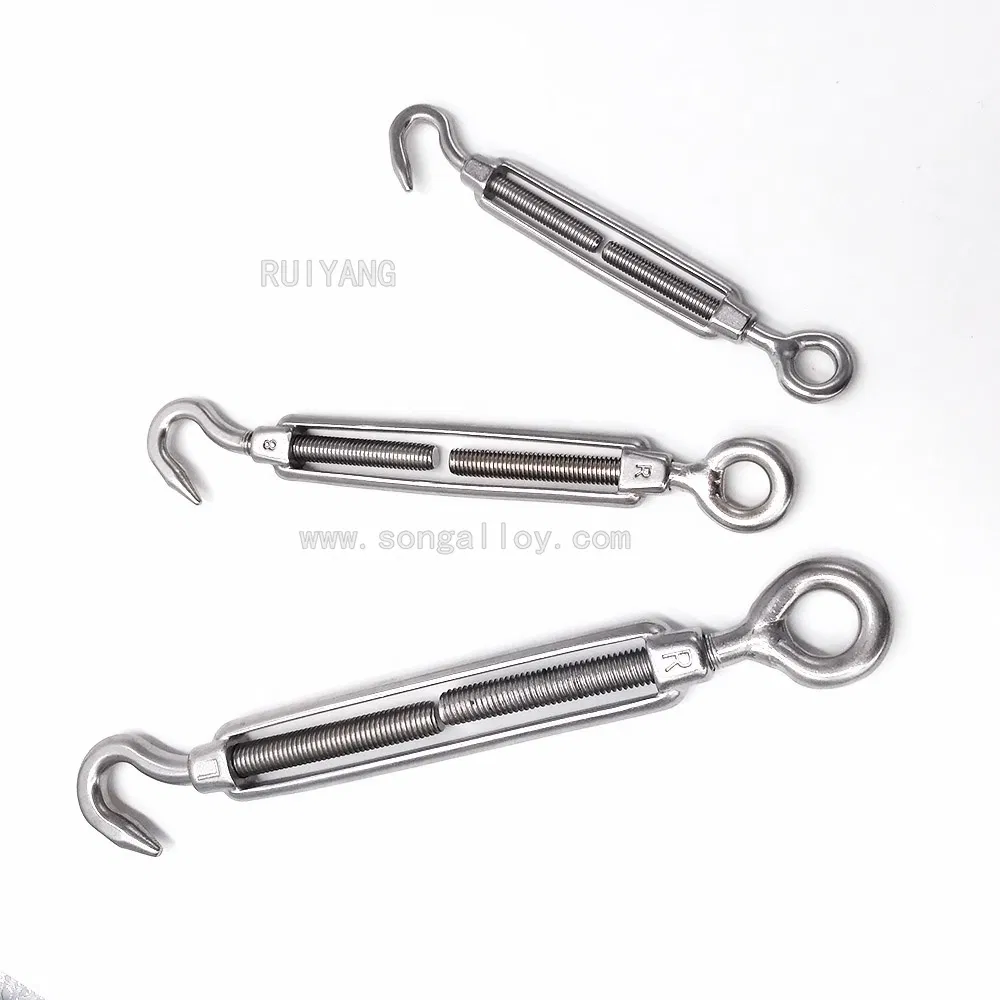

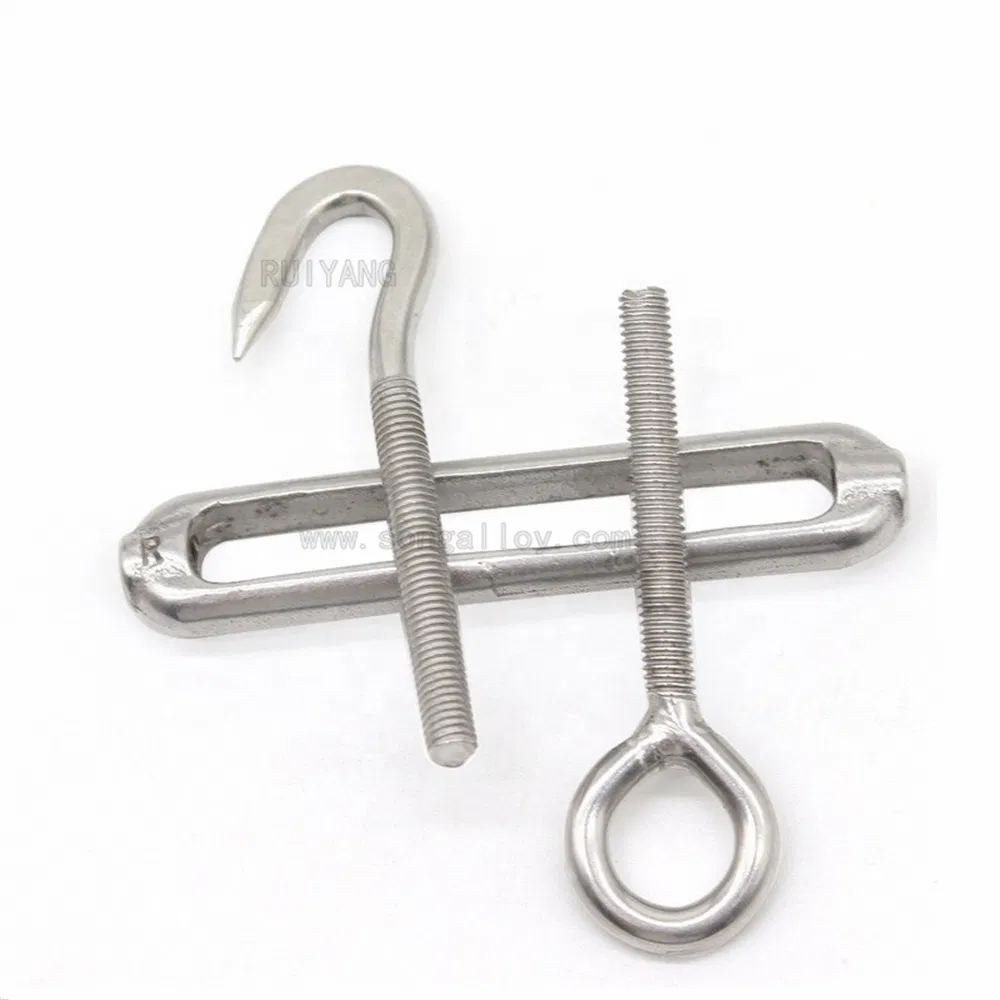

🔧 DIN 1480 Turnbuckle Specifications

Product name	Wire Rope Turnbuckle
Standard	European Type
Material	Stainless steel AISI 316/304
Surface Treatment	Polished

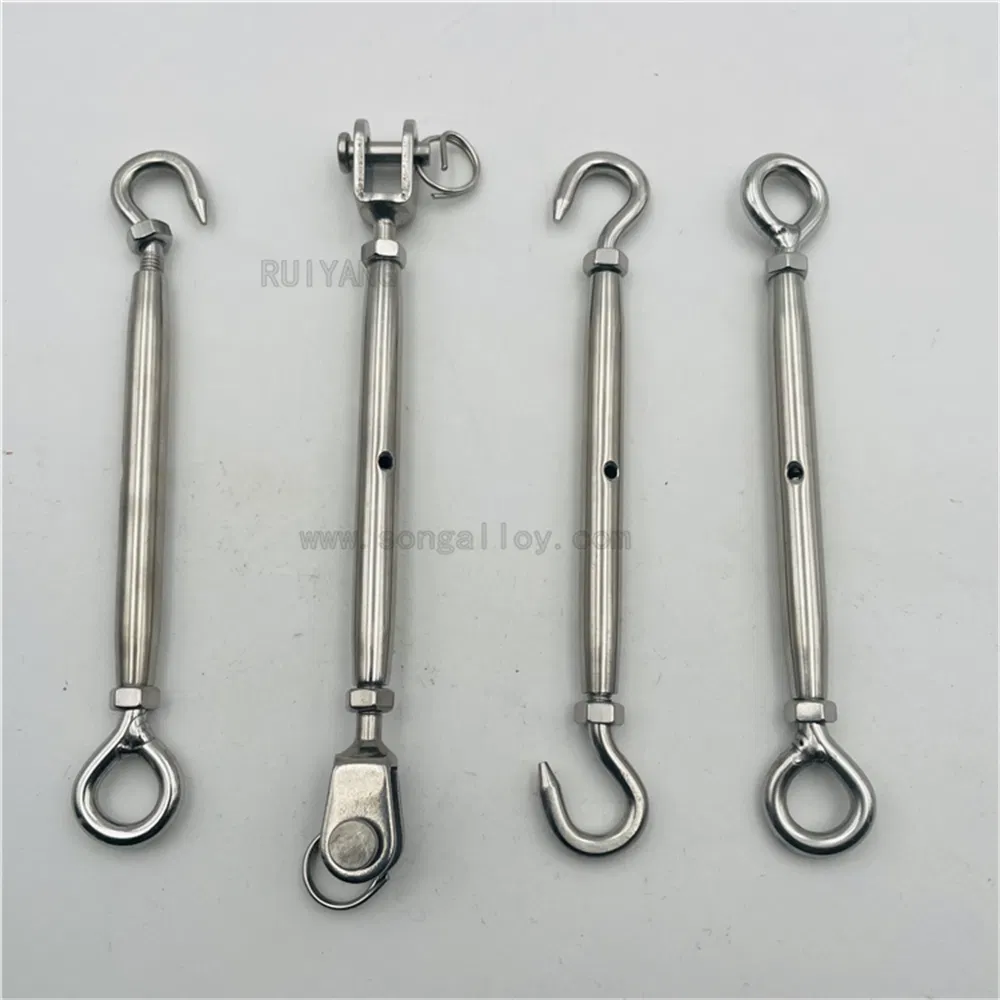

Type	Eye and Hook, Jaw/eye, hook/hook, jaw/jaw, eye/eye, Stub End
Technical	Precision Casting
Application	Lifting Fittings / Assemble with wire rope
Packaging	Polybag, carton or as per customer's requirements
Related type	U.S. Type, Korean Type, DIN1478, DIN1480, JIS Type, Open/Closed body, etc.

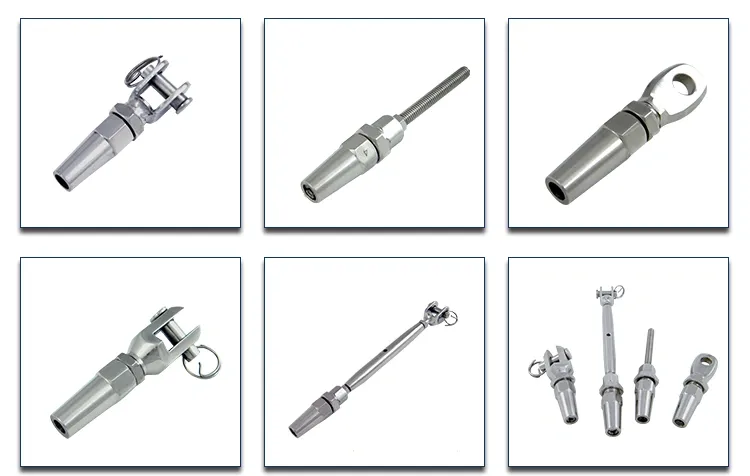

Stainless Steel Swage Terminal Turnbuckle

Material	Stainless steel 316 or 304
Surface finish	Highly Polished
Standard	Metric and UNF
Advantage	Type 316 stainless steel has the best corrosion resistance. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread	Coarse, Fine
Used For	Sail boats and yachts, cable railing, and shade sails.

Technical Dimensions (mm)

Dimension	Size A	L1	L2	D1	N1
5*3	5	79	42	3	10
6*3	6	85	47	3	10
6*4	6	92	47	4	12
8*5	8	111	57	5	13
10*5	10	117	63	5	13
12*6	12	145	80	6	16
14*7	14	162	89	7	18
14*8	14	171	89	8	19
16*8	16	182	100	8	19

Frequently Asked Questions

1. What materials are available for the turnbuckles?

We provide turnbuckles in high-grade Stainless Steel AISI 304 and AISI 316. AISI 316 is recommended for marine environments due to its superior corrosion resistance.

2. Which standards do these turnbuckles comply with?

Our products follow various international standards including European Type (DIN 1480, DIN 1478), U.S. Type, Korean Type, and JIS Type.

3. What types of end fittings can be combined?

The bodies can be mixed and matched with multiple end types, including Hook & Eye, Jaw & Eye, Hook & Hook, Jaw & Jaw, Eye & Eye, and Swage Stud ends.

4. Can these be used for architectural cable railings?

Yes, the polished stainless steel swage terminal turnbuckles are ideal for cable railings, yacht rigging, and shade sail installations.

5. What is the production capacity for these fittings?

The current production capacity is approximately 1000 tons per year, ensuring steady supply for both small and large-scale industrial projects.

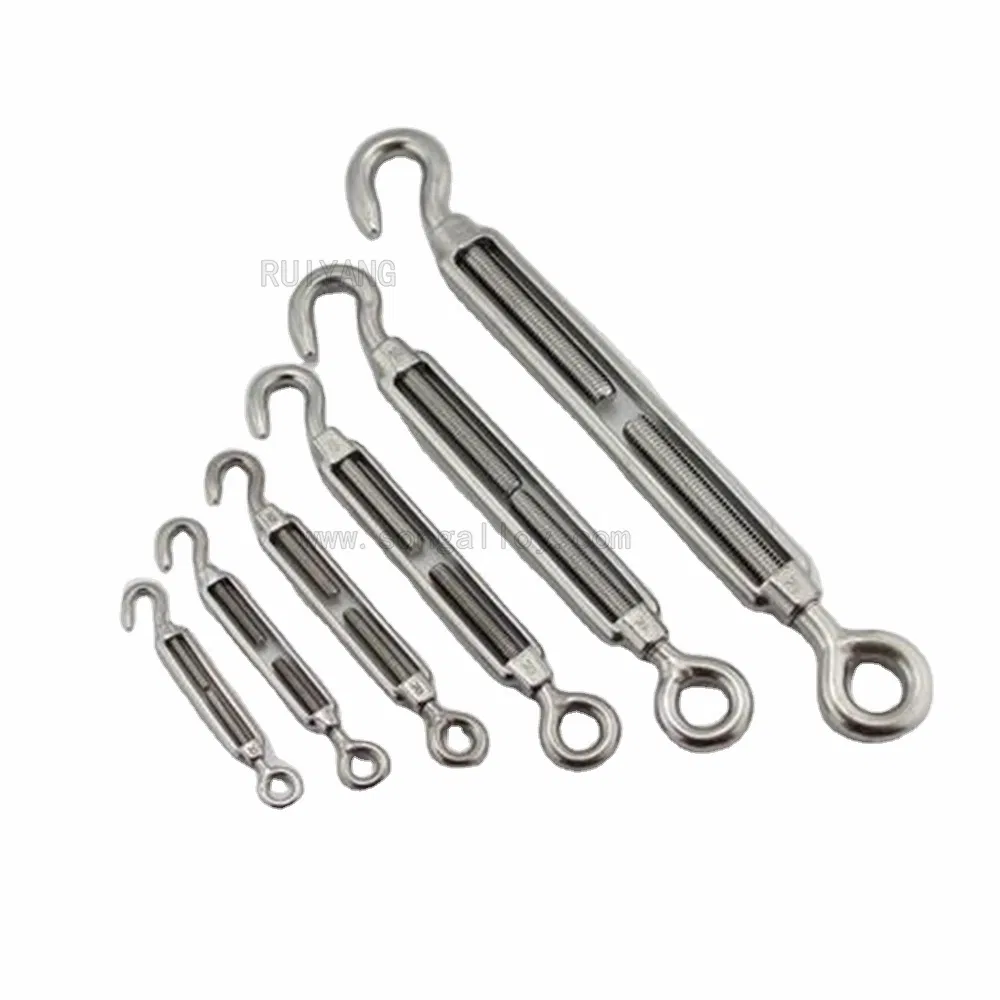

6. What size range do you offer?

Standard sizes range from 6mm to 30mm, but various dimensions are available according to specific technical requirements and thread types (Metric or UNF).
