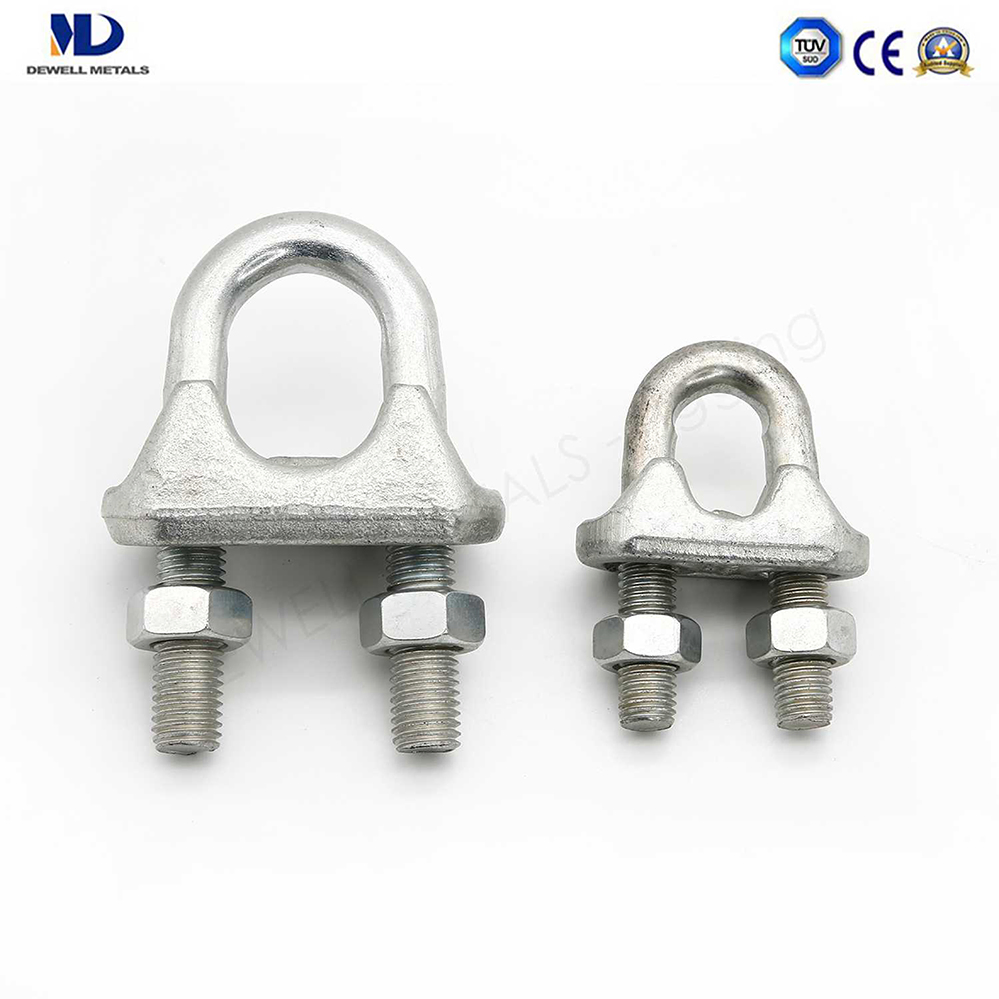

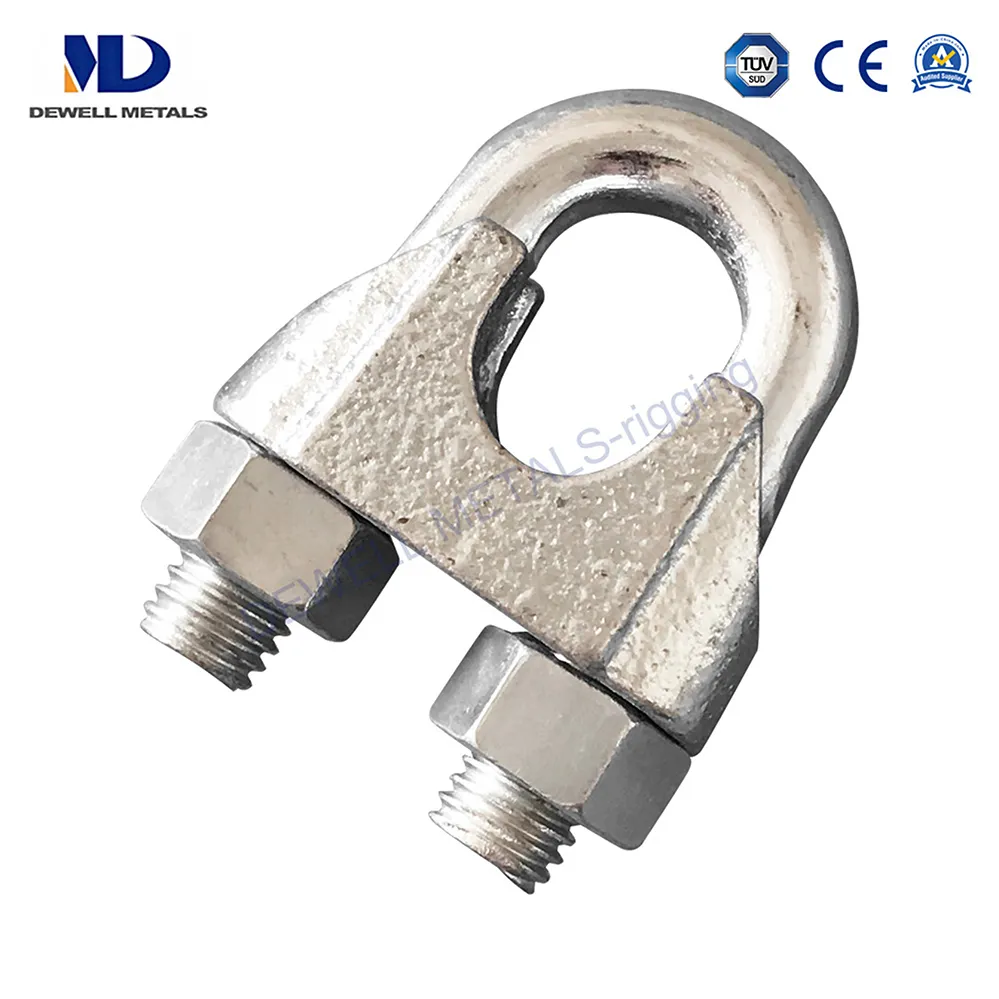

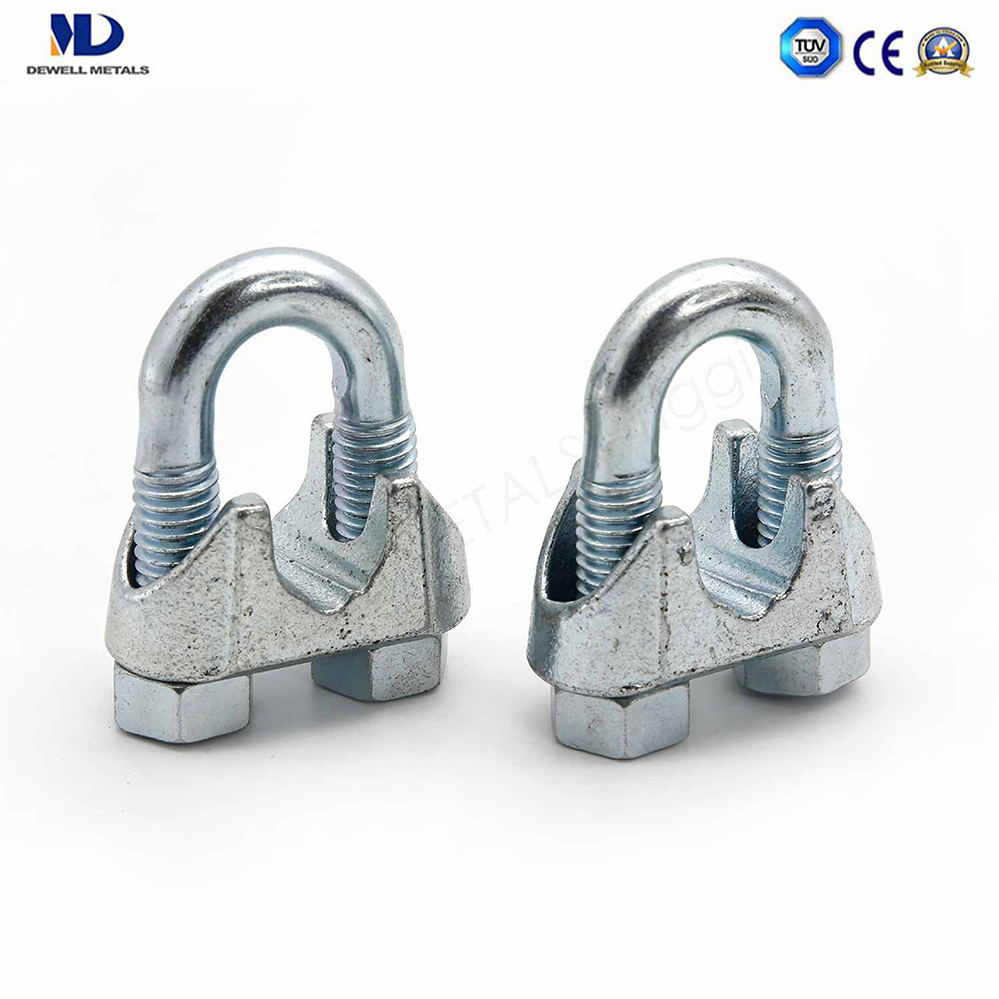

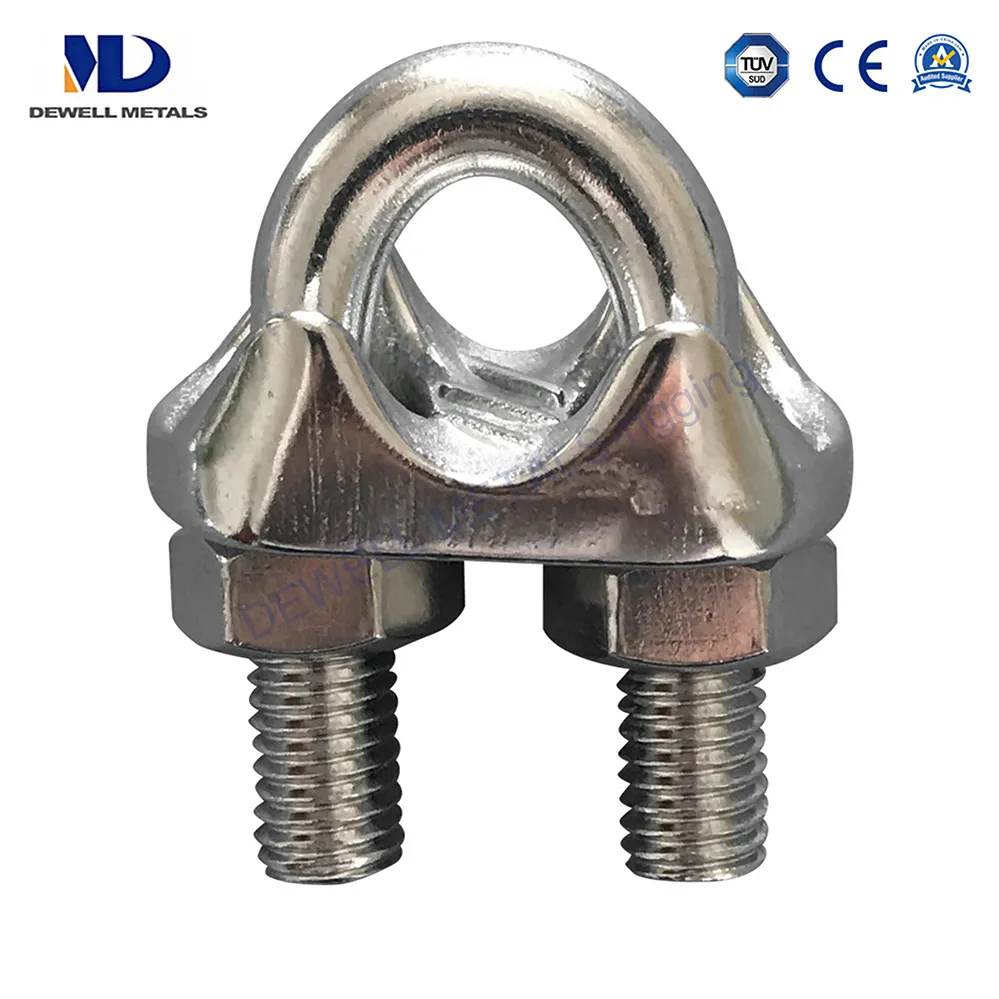

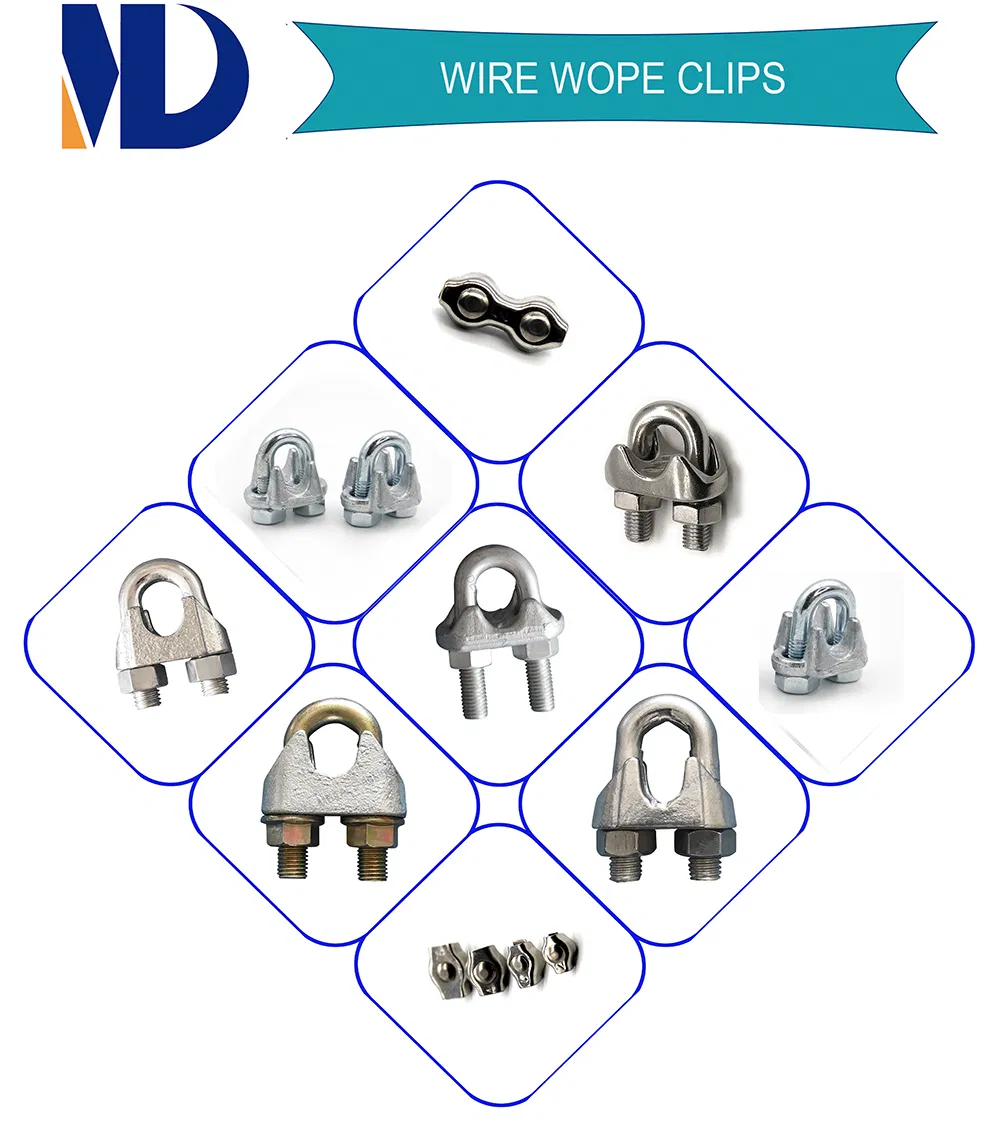

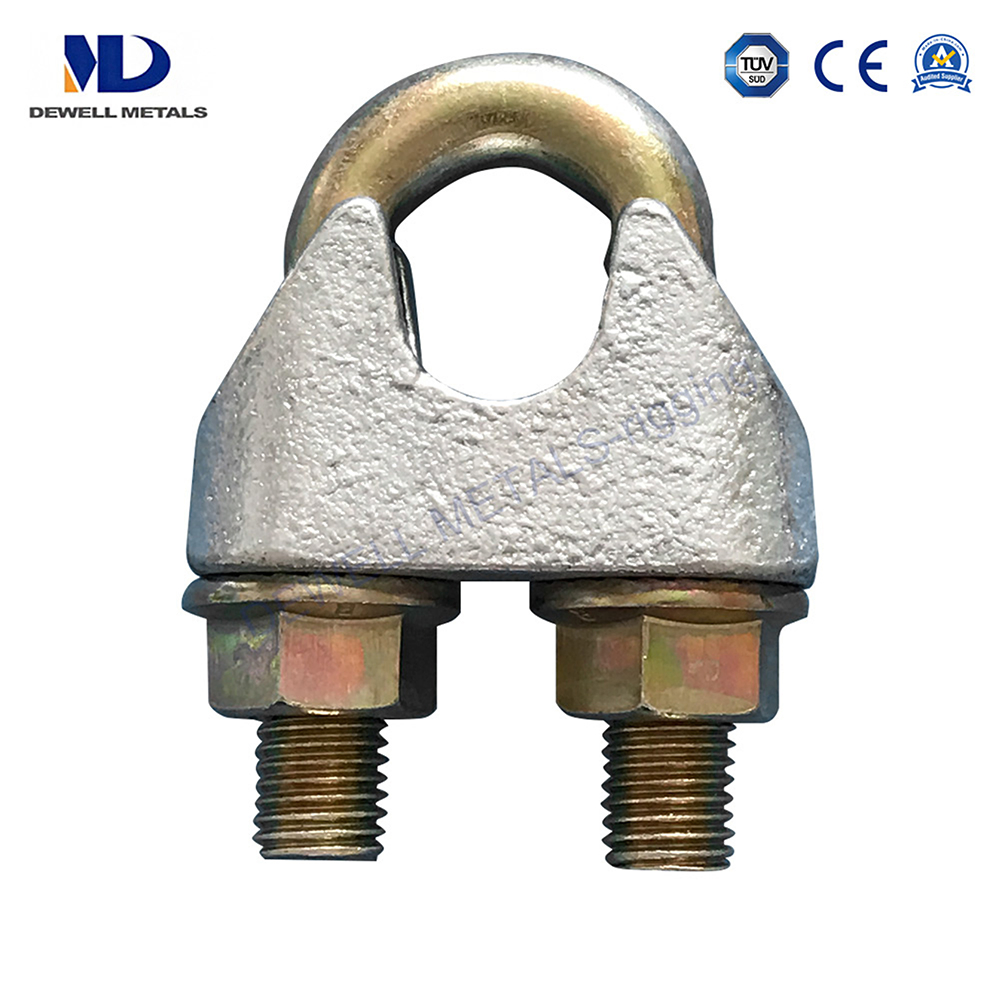

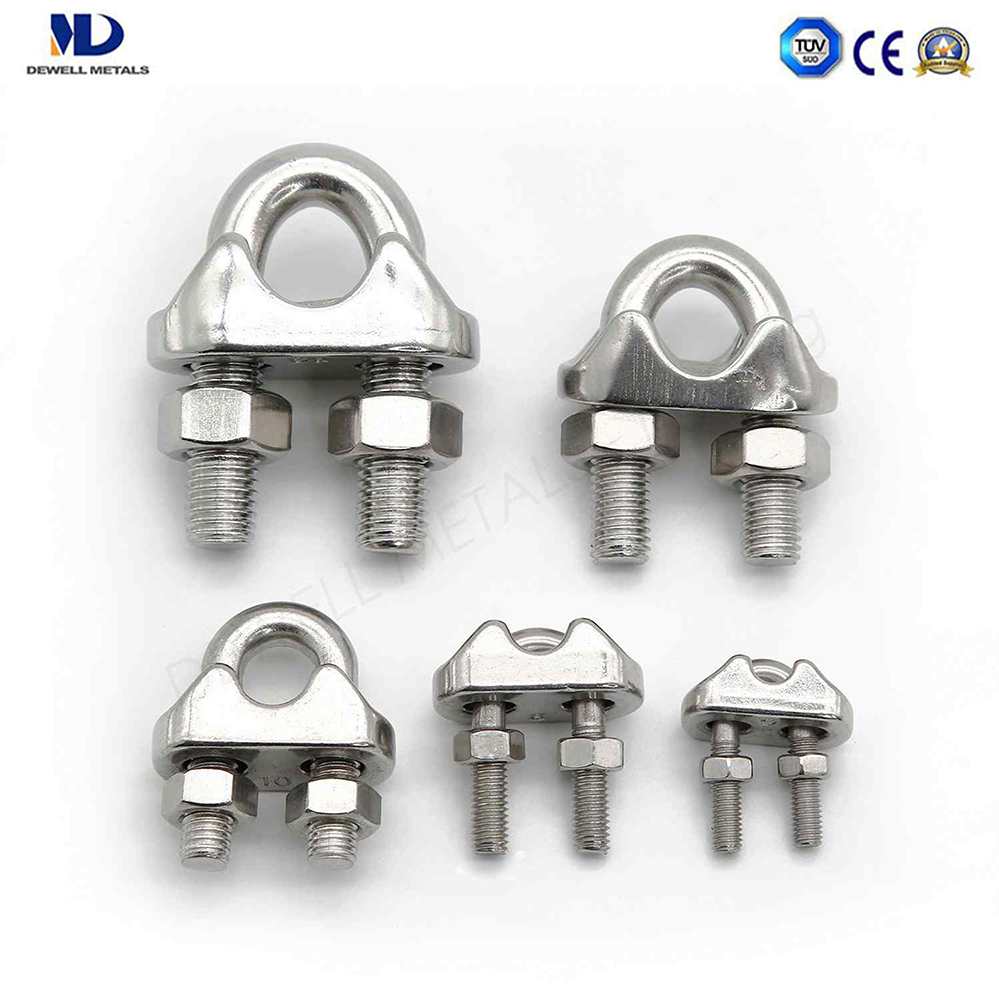

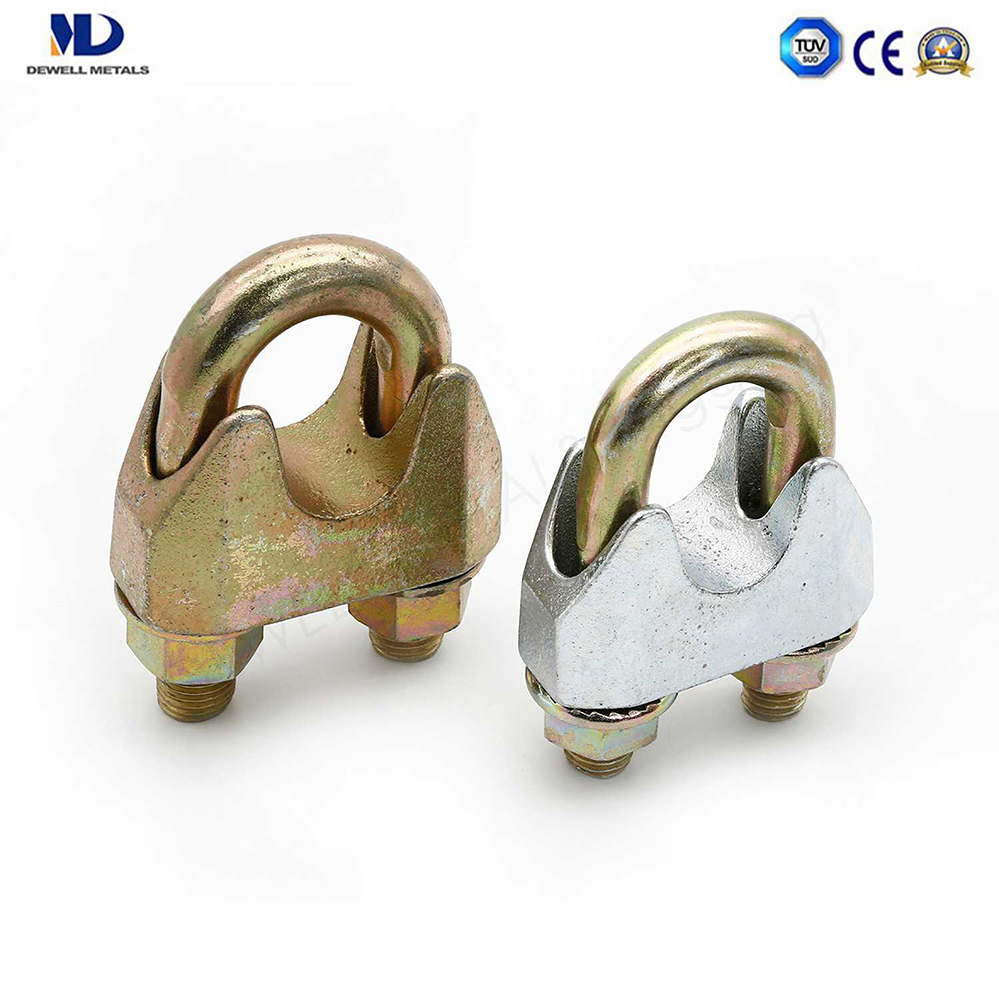

Rigging Hardware Electric Galv. Casting Malleable Uni En 13411-5 Wire Rope Clip

i

Basic Information

Model NO.:

EN 13411-5

Material:

Malleable Iron

Fitting:

Steel Wire Rope

Usage:

Industrial, Household, Marine

Technology:

Casting

Condition:

New

Package:

as Request

Customized:

Available

Certifications:

BV, ISO, CE, SGS

Specification:

5mm to 40mm

HS Code:

732690

Capacity:

100tonne/Month

P

Product Parameters

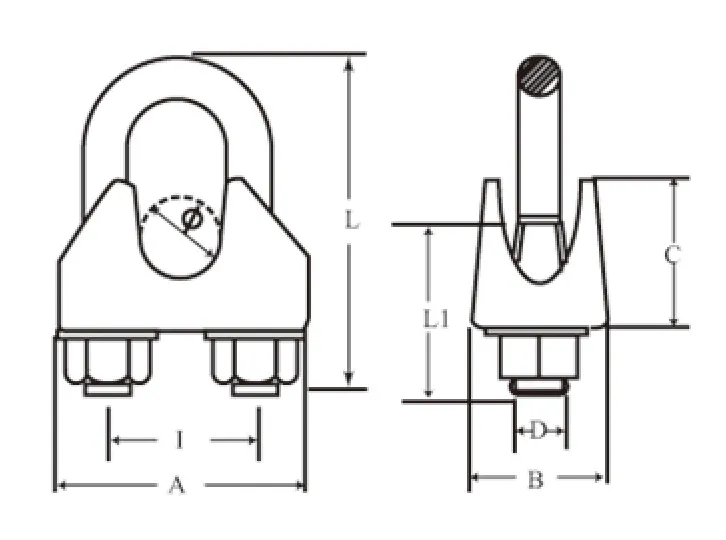

WIRE ROPE CLIPS EN13411-5

SIZE(mm)	A(mm)	B(mm)	C(mm)	D	I(mm)	L(mm)	L1(mm)	Weight(kg/pc)
5	25	13	13	M5	12	25	13	0.02
6.5	30	16	14	M6	14	32	17	0.04
8	39	20	18	M8	18	41	20	0.082
10	40	20	21	M8	20	46	24	0.092
12	50	24	25	M10	24	50	28	0.250
14	59	28	30	M12	28	66	31	0.30
16	64	32	35	M14	32	76	35	0.43
19	68	32	40	M14	36	83	36	0.49
22	74	34	44	M16	40	96	40	0.68
26	84	38	51	M20	46	111	50	1.17
30	95	41	59	M20	54	127	55	1.40
34	105	45	67	M22	60	141	60	2.13
40	117	49	77	M24	68	159	65	2.68

C

Profile

We are an international corporation ranking among the leaders on the market of rigging hardware and ornamental products. Our credo is providing our partners and their clients with high quality products at reasonable prices.

Our Product Ranges:

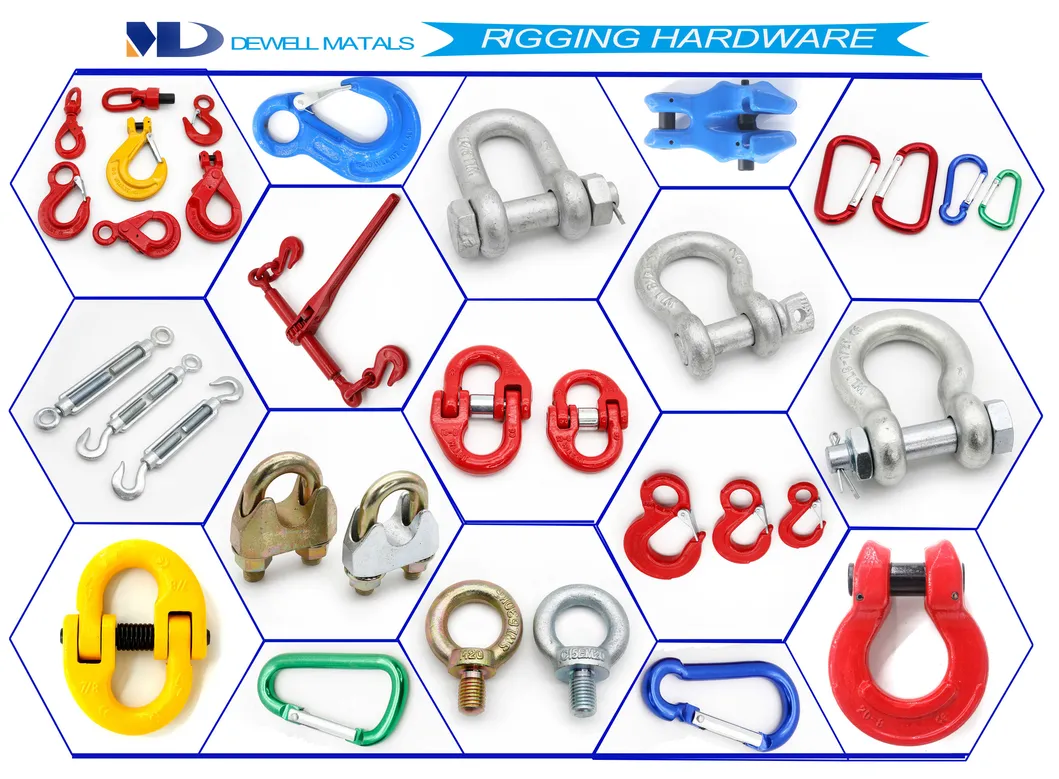

Rigging Hardware: Chain, Anchor, Steel wire rope, Shackle, Turnbuckle, Wire rope clip, Thimble, Hook, Connecting Link, Master Link, Eyebolt, Swivel, Load binder, etc.
Ornamental Products: Forging and casting spears, Bushes, Scrolls, Post tops, Leaves, Gate fittings, Balcony bars, etc.
Building Hardware: Hinge, Wire Netting, Scaffold, Formwork, Connect Fittings, etc.
