| Model NO. | Double Beam Tire Gantry Crane | Certification | CE, ISO9001 |
| Condition | New | Maximum Lifting Weight | 150-200t |
| Maximum Lifting Height | 30-40m | Operation Form | Air Operation + Ground Operation |
| Type | Common Gantry Crane | Main Girder Form | Double Girder |
| Weight (Kg) | 9800 Kg | Control Method | Wireless Remote Control |
| Material | Q235B/Q345b | Span | Customized |
| Travelling Speed | 20m/Min | Production Capacity | 5/Month |
| Package Size | 1000.00cm * 1000.00cm * 1200.00cm |
| Package Gross Weight | 1000.000kg |
| Transport Package | Wooden Case |

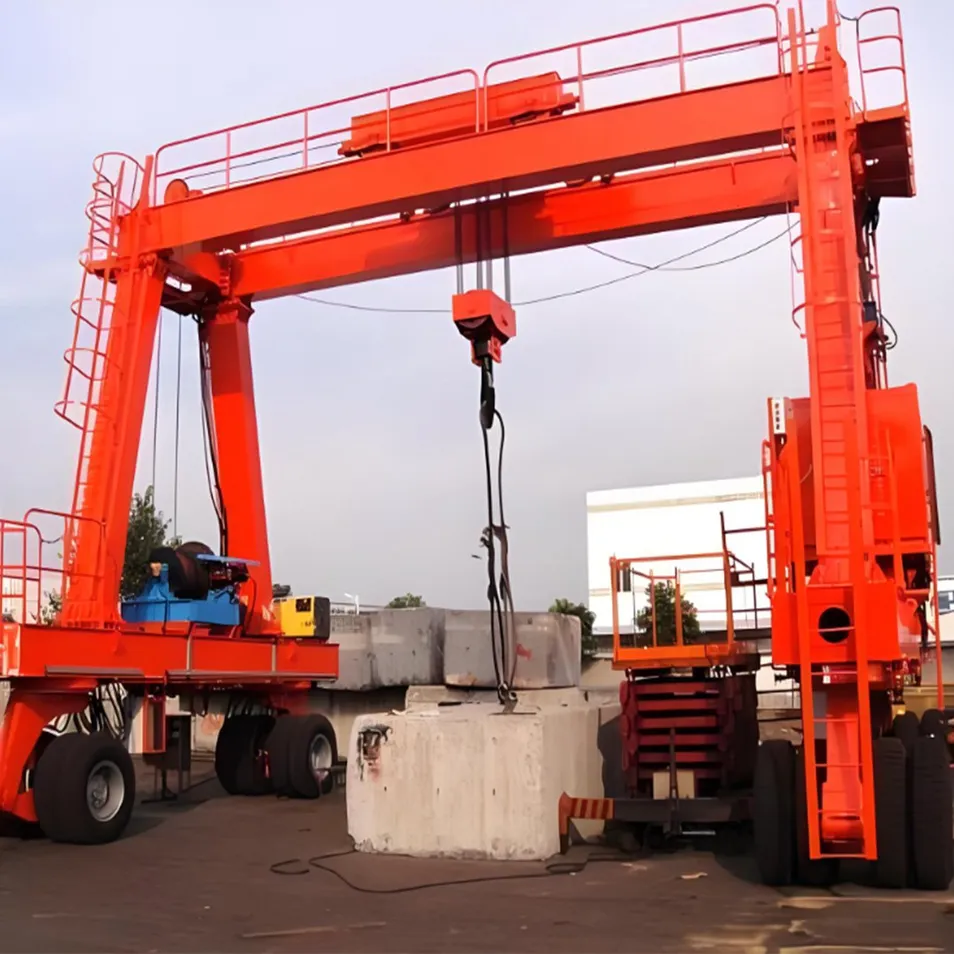

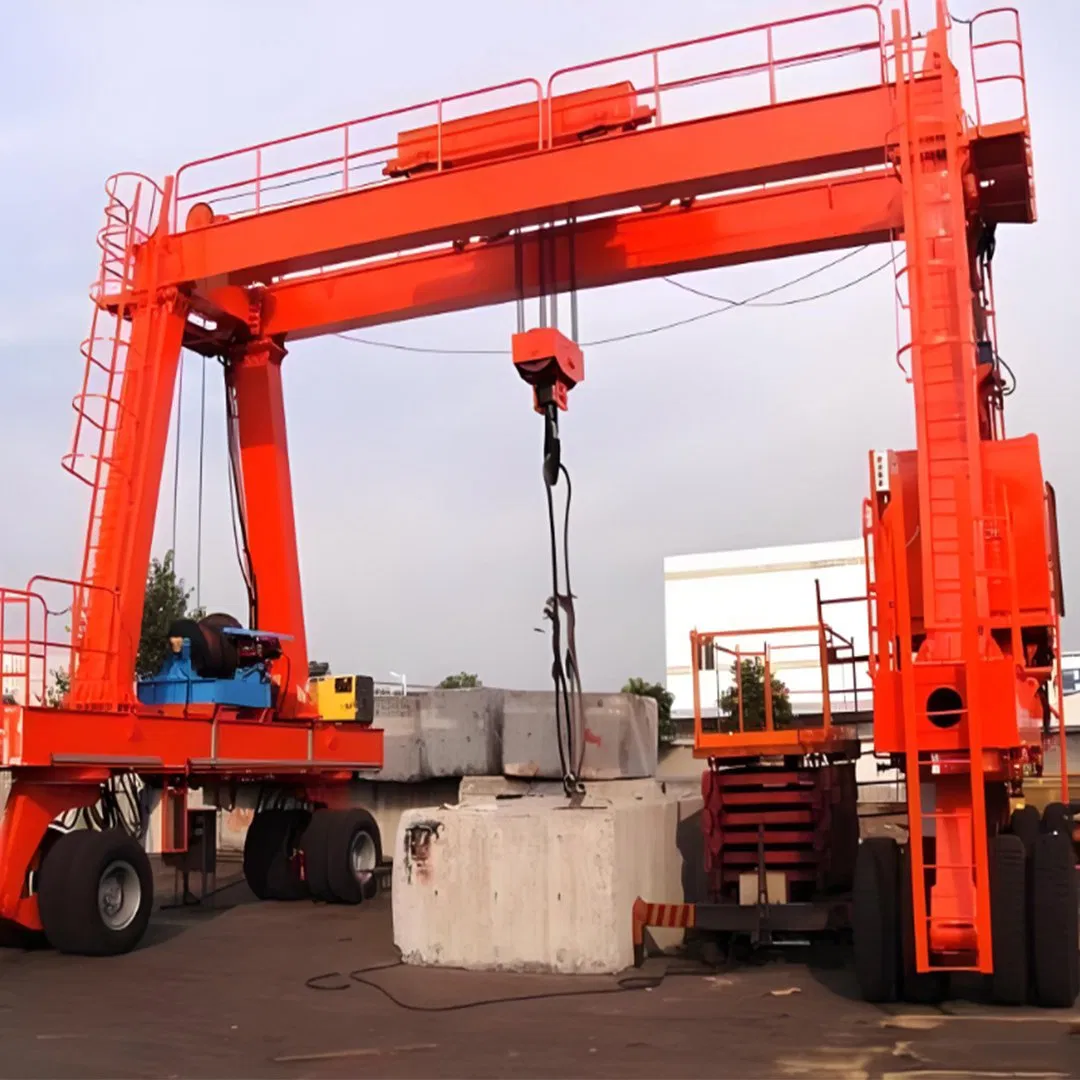

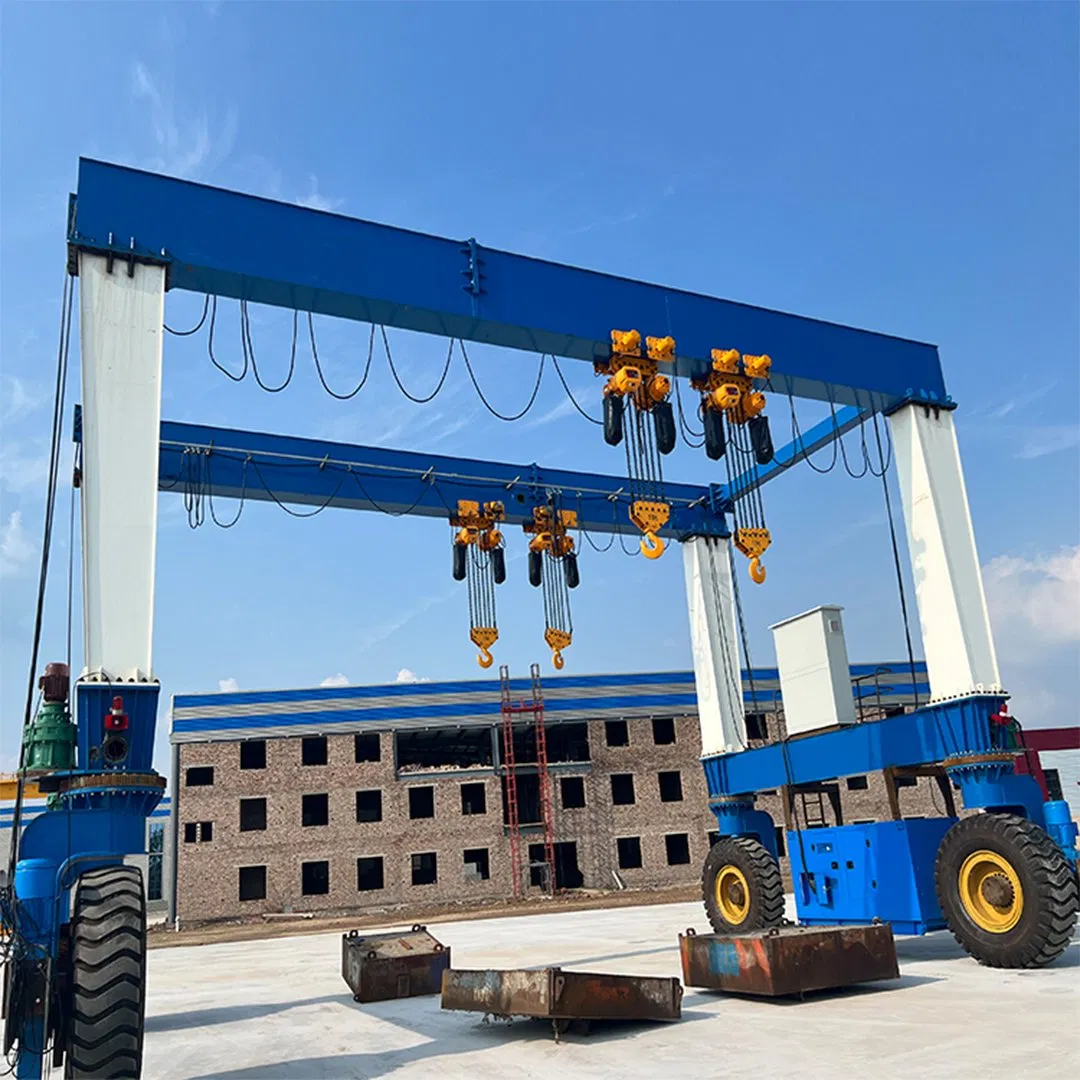

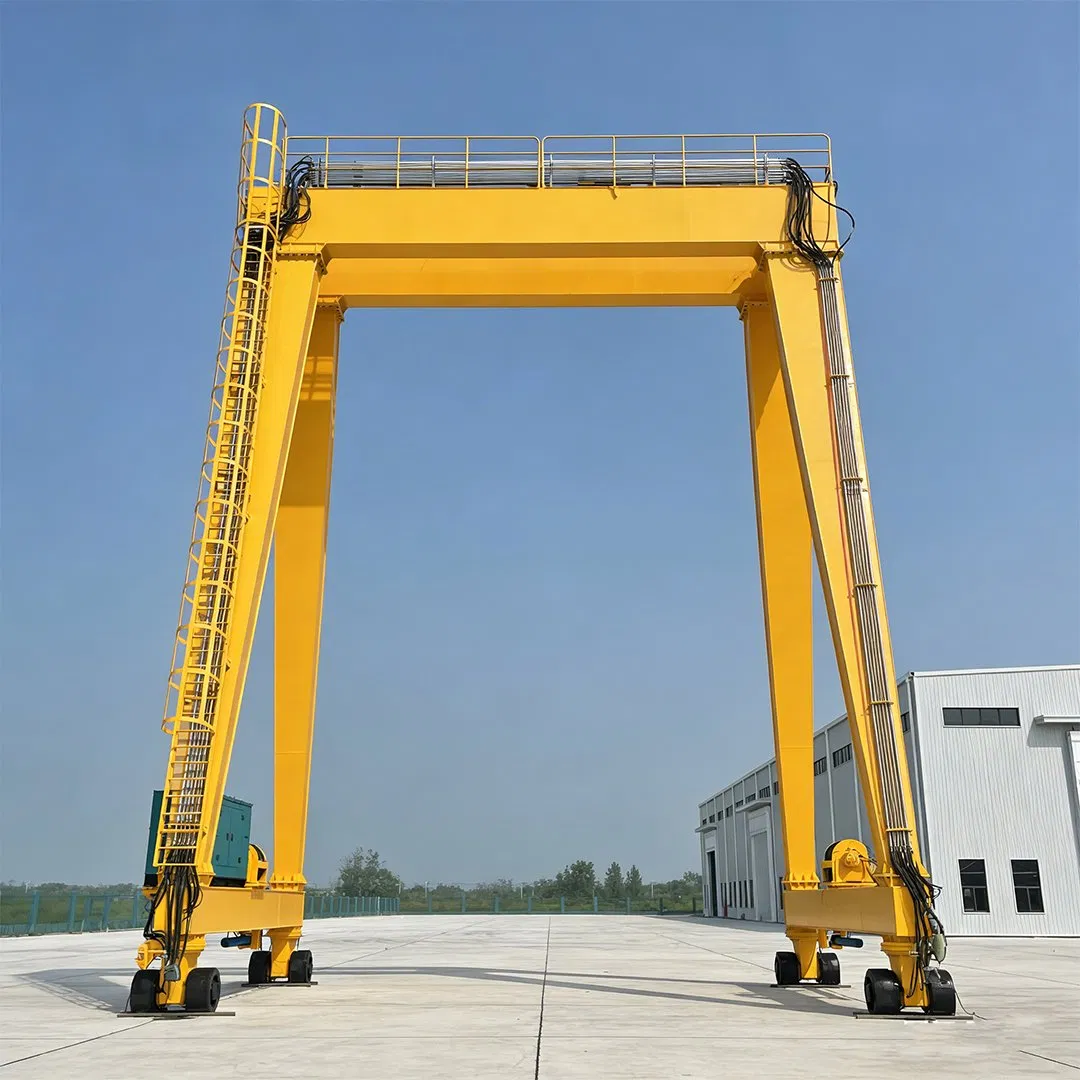

Double Beam Tire Gantry Crane is a "movable gantry crane equipment" with a gantry structure, featuring 4-8 large engineering tires (all wheel steering in some models) at the door legs' base. The top houses a horizontally movable lifting trolley and a telescopic lifting device.
Performs finite element analysis to ensure design and structural safety.
Electric hoist for lifting: Cost-effective and economical solution.
Multiple steering modes, operable via remote control or cab.
Small turning radius conserves workspace efficiently.
(Custom configurations available upon request.)
| Model | KE-5T | KE-10T | KE-20T | KE-30T | KE-40T |
|---|---|---|---|---|---|
| Lifting Capacity | 5t | 10t | 20t | 30t | 40t |
| Effective Inner Width (ODM) | 3100mm | 4000mm | 4000mm | 5000mm | 6000mm |
| Lifting Height (Customizable) | 3000mm | 3000mm | 4000mm | 4000mm | 5000mm |
| Power Type | Diesel Engine / Cable / Battery | ||||
| Walking Device | Hydraulic / Motor | ||||
| Steering Mode | Diagonal Running / Straight Running | ||||
| Lifting Tools | Hook, Lifting beam, lifting magnet, permanent magnet | ||||
1. Port Container Terminals: Facilitates rapid loading and unloading between ships and storage yards.
2. Railway Freight Terminals: Supports efficient container transfer from trains to yards.
3. Logistics Parks: Handles stacking, destacking, and short-distance container movement.
4. Inland Waterway Hubs: Offers a flexible alternative to rail-mounted cranes in trackless sites.
Single Beam Rubber Tyred Gantry Crane
U Type Subway Turn Slag Hook Gantry Crane

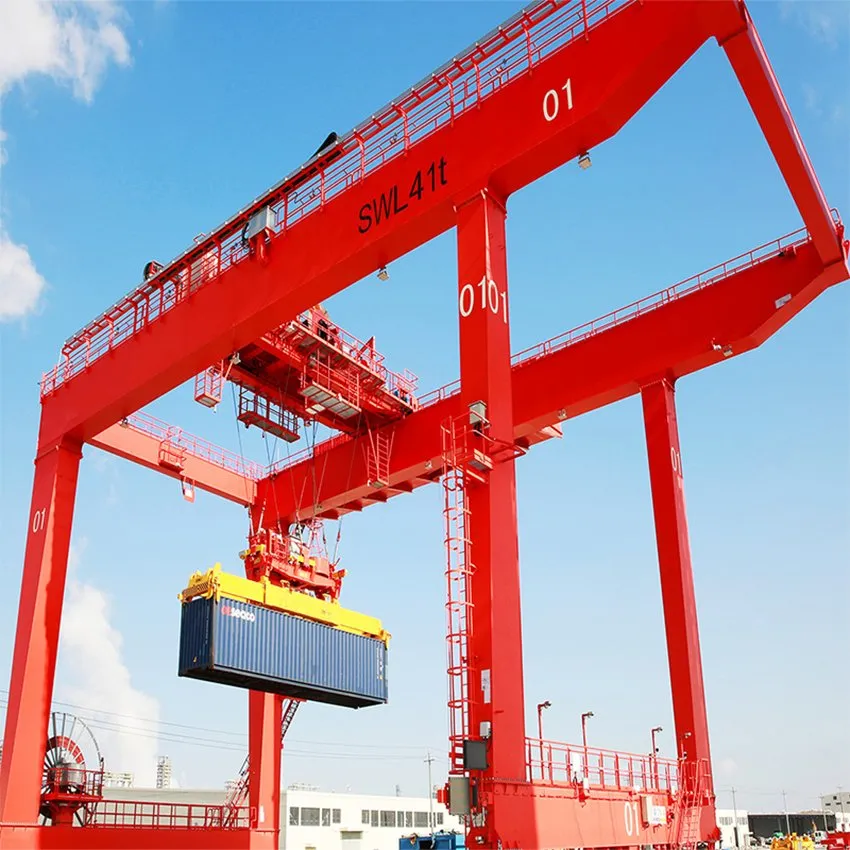

The RTG rubber-tyred container gantry crane is vital in large yards. Its lifting capacity ranges from 10 to over 60 tons, efficiently handling 20- to 40-foot containers. This model spans wide, covering over 10 rows of containers.
