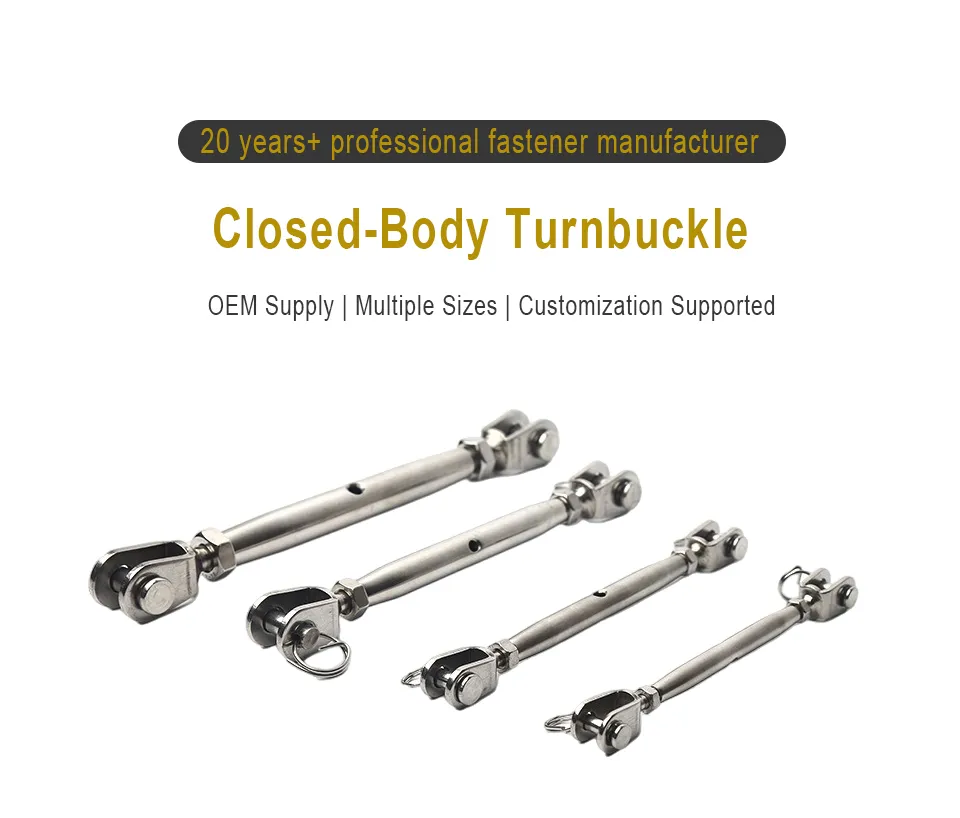

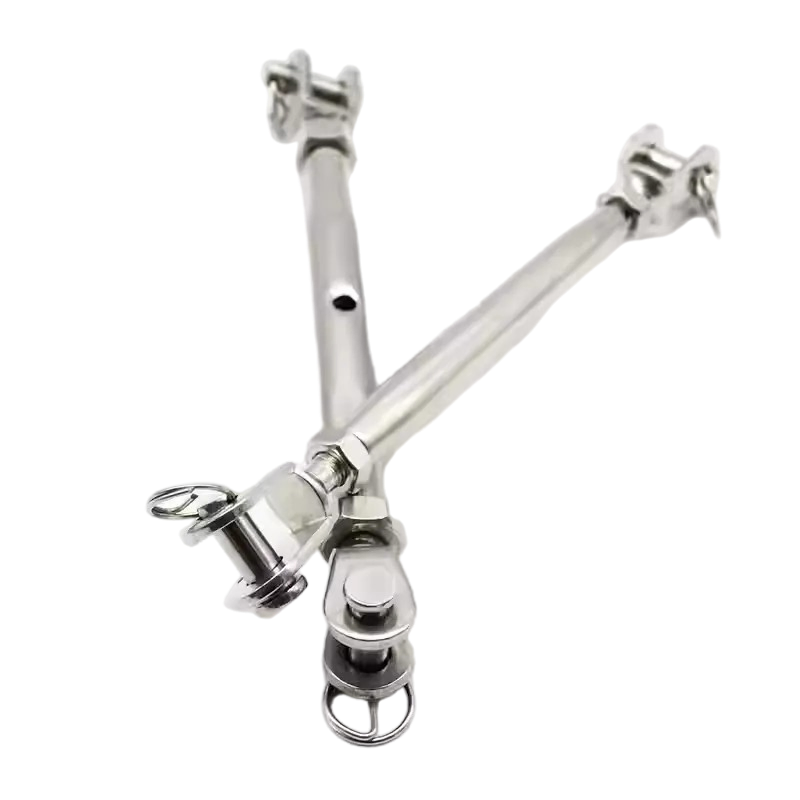

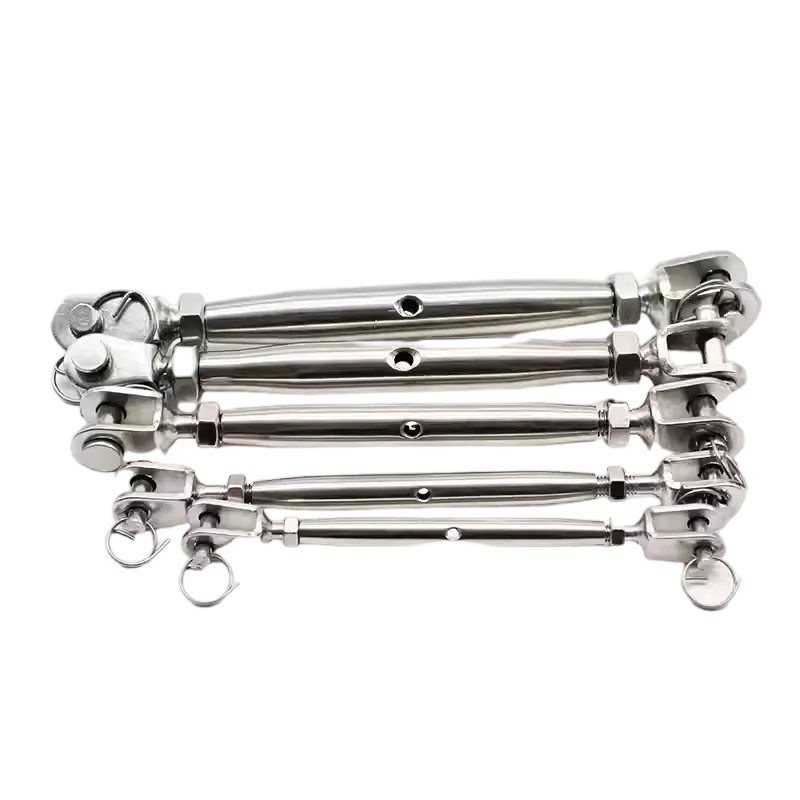

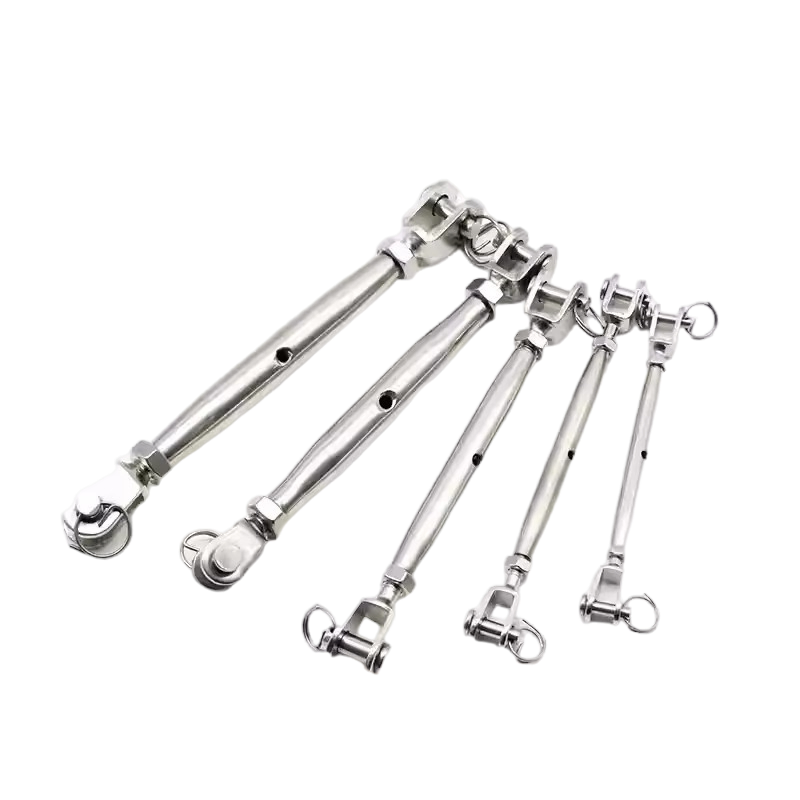

Marine Grade 304 Stainless Steel M5 to M20 Jaw/Jaw Closed Body Turnbuckle

1 / 3

Marine Grade 304 Stainless Steel M5 to M20 Jaw/Jaw Closed Body Turnbuckle

Customization:	Available
Casting Method:	Directional Crystallization
Process:	Lost Wax Casting

Send Inquiry

Product Description

Basic Information

Model NO.

CT006

Molding Technics

Gravity Casting

Material

Stainless Steel

Surface Preparation

Polishing

Standard

AISI

Certification

CE, RoHS, ISO 9001:2000, ISO 9001:2008

Style

Jaw & Jaw Turnbuckle

Specification

M5/M6/M8/M10/M12/M16/M20

Product Description

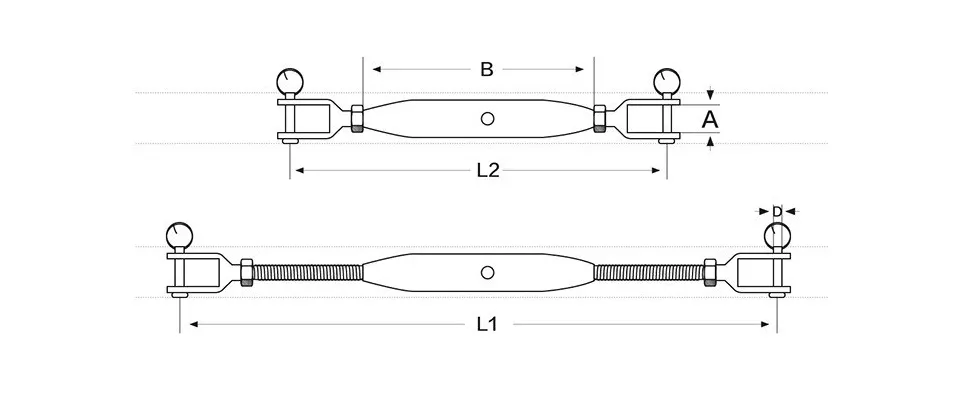

Technical Specifications

Specifications	A (mm)	B (mm)	D (mm)	L1 (mm)	L2 (mm)	Adjustable distance (mm)
M5	9.0	81.0	5.0	180.0	122.0	58.0
M6	9.0	90.0	5.0	210.0	137.0	73.0
M8	10.0	110.0	6.0	250.0	155.0	95.0
M10	11.0	120.0	8.0	275.0	178	97.0
M12	16.0	150.0	10.0	350.0	237.0	113.0
M14	16.3	170.0	16.8	410.0	254.0	140.0
M16	15.0	190.0	14.0	450.0	280.0	170.0
M20	24.0	222.0	15.0	525.0	350.0	175.0

Our Advantages

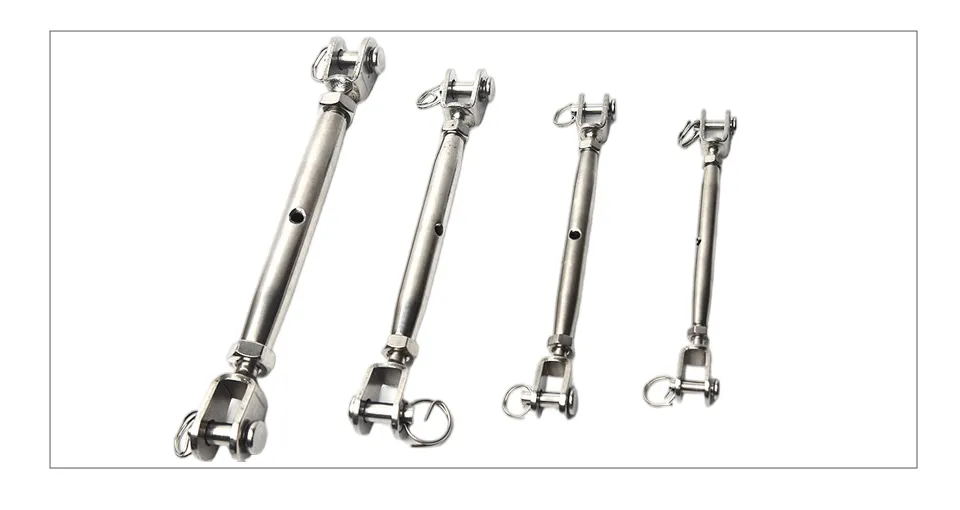

01 304 Stainless Steel

Superior Durability: Anti-Oxidation, Corrosion-Resistant & Ultra-Strong – Solid Construction for Heavy-Duty Performance!

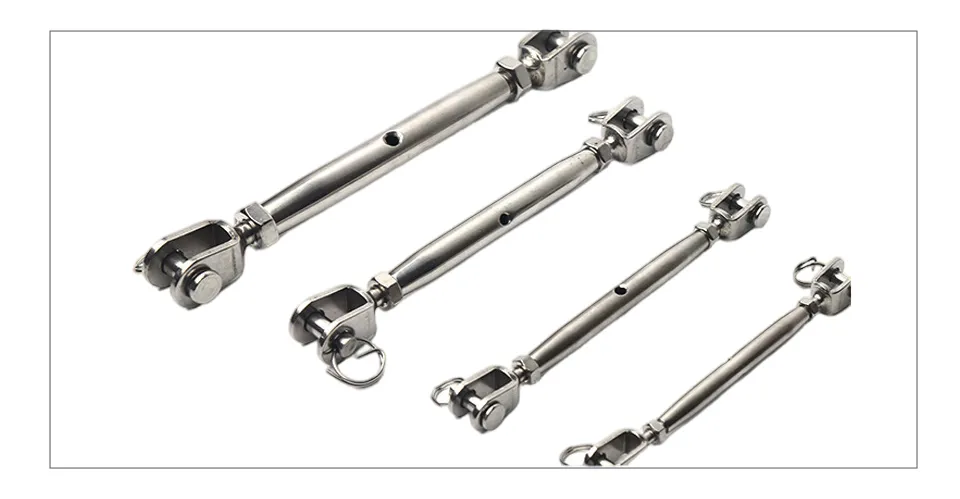

02 Mirror-finished Surface

Expertly crafted from superior materials featuring a brilliant polished surface - beautifully designed for both style and durability.

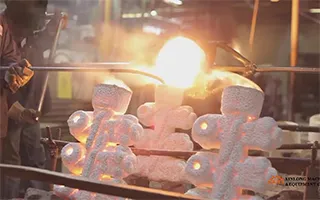

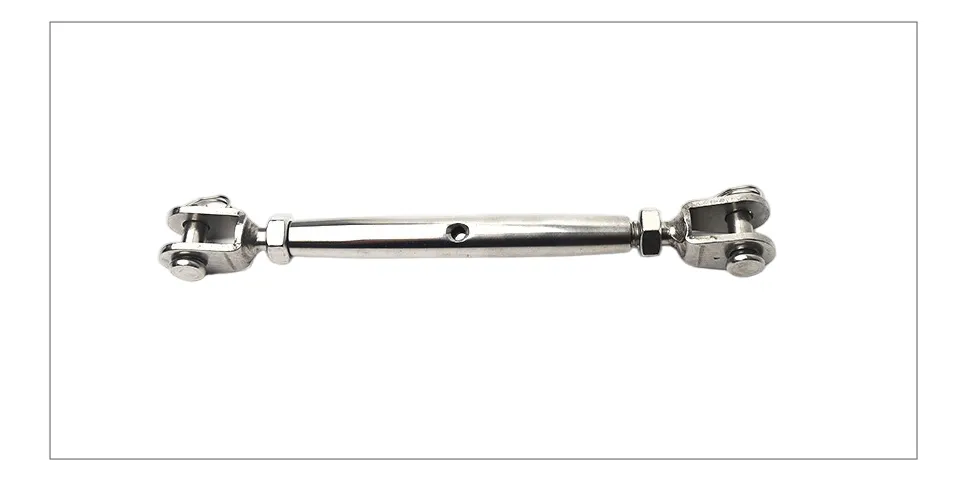

03 Investment Casting

Investment casting is the ideal process for manufacturing high-precision, corrosion-resistant, and long-life stainless steel turnbuckles, particularly suited for industrial applications with stringent requirements for reliability and aesthetics.

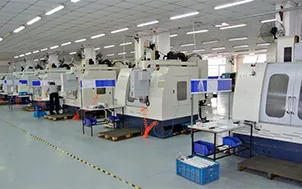

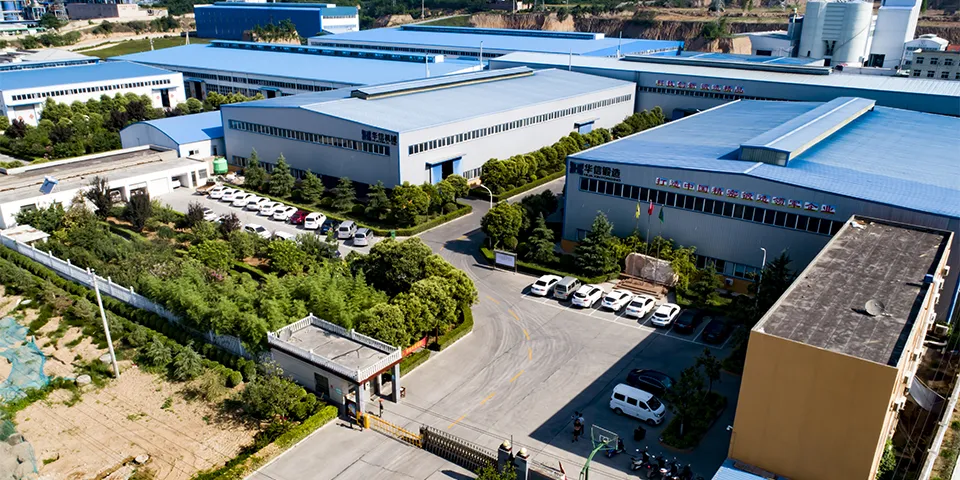

Professional Manufacturing

We are a manufacturing enterprise specializing in precision casting, machining, and heat treatment. We have established a modern silica sol investment casting production line, achieving an annual production capacity of 3,500 tons of high-quality full silica sol precision castings.

Our rigging products have developed over 1,000 product varieties, including stainless steel rigging components, 304/316 turnbuckles (jaw & jaw, eye & eye, hook & hook types), and lifting eye nuts & screws. These products meet international quality standards for marine, construction, and industrial applications.

Frequently Asked Questions

Q1: What materials are your turnbuckles made of?

Our turnbuckles are primarily manufactured from high-quality 304 and 316 stainless steel, ensuring superior corrosion resistance and durability for marine and industrial use.

Q2: What sizes are available for the Jaw & Jaw closed body turnbuckles?

We offer a wide range of standard sizes including M5, M6, M8, M10, M12, M14, M16, and M20 to suit various load requirements.

Q3: Which manufacturing process is used for these products?

These products are made using the silica sol investment casting (precision casting) process, followed by professional polishing for a mirror-like finish.

Q4: Do your products meet international quality standards?

Yes, our production facility is certified under ISO 9001 standards, and our products comply with CE and RoHS certifications.

Q5: Can I request custom sizes or services?

Custom services are available. We have extensive experience in precision casting and can develop products based on specific customer requirements.

Q6: What is the surface finish of the rigging hardware?

The products feature a professional mirror-polished surface which not only enhances aesthetics but also provides an extra layer of protection against oxidation.
