Glinder lift
1 / 5

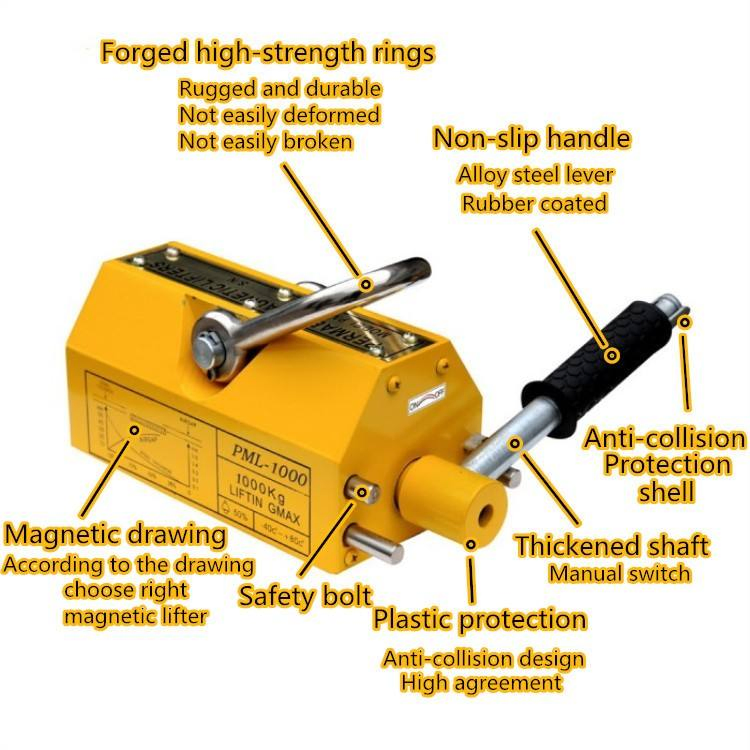

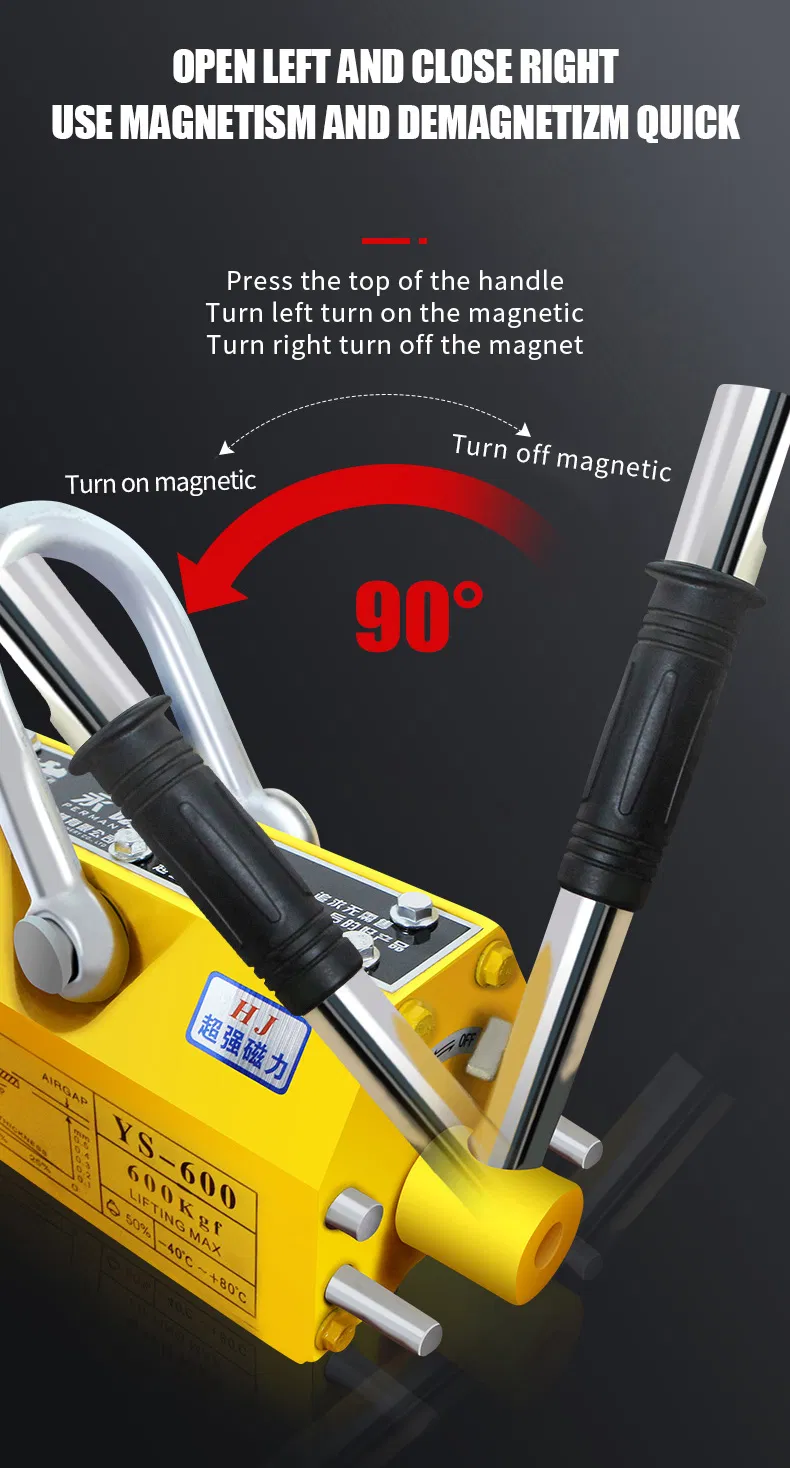

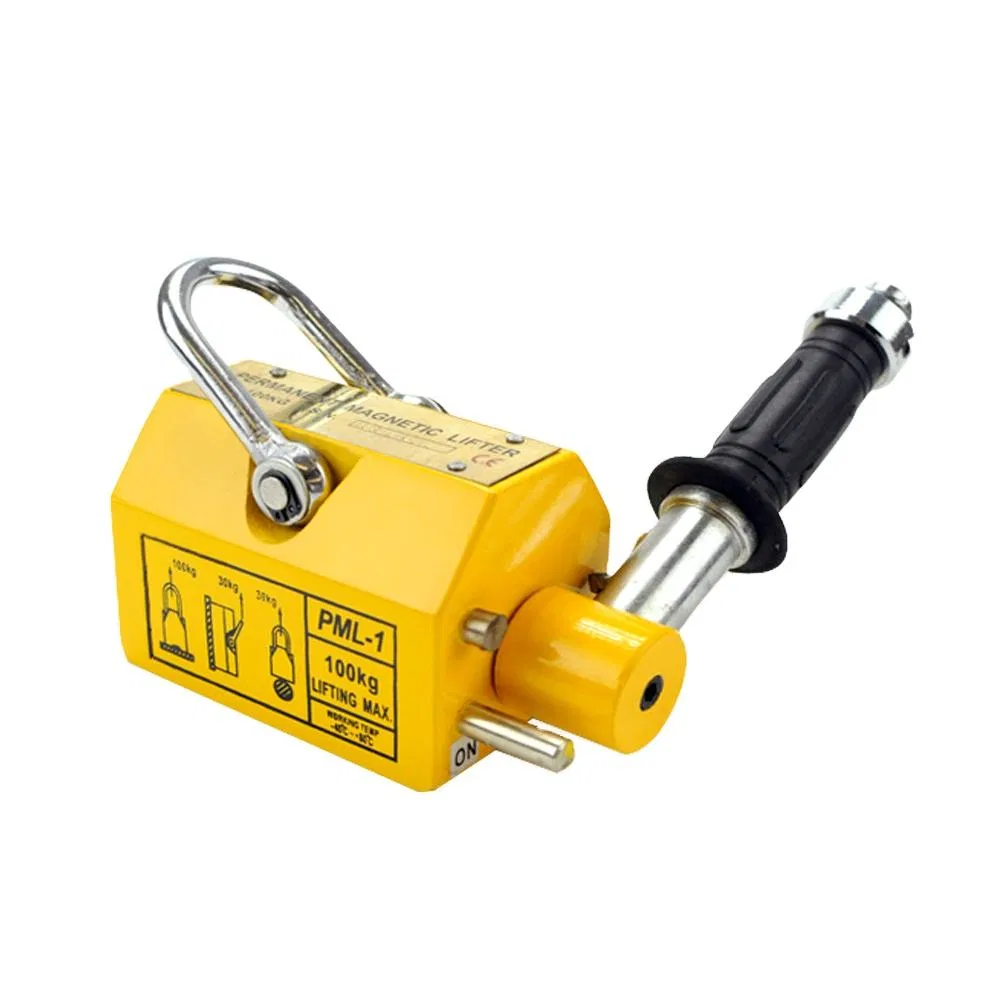

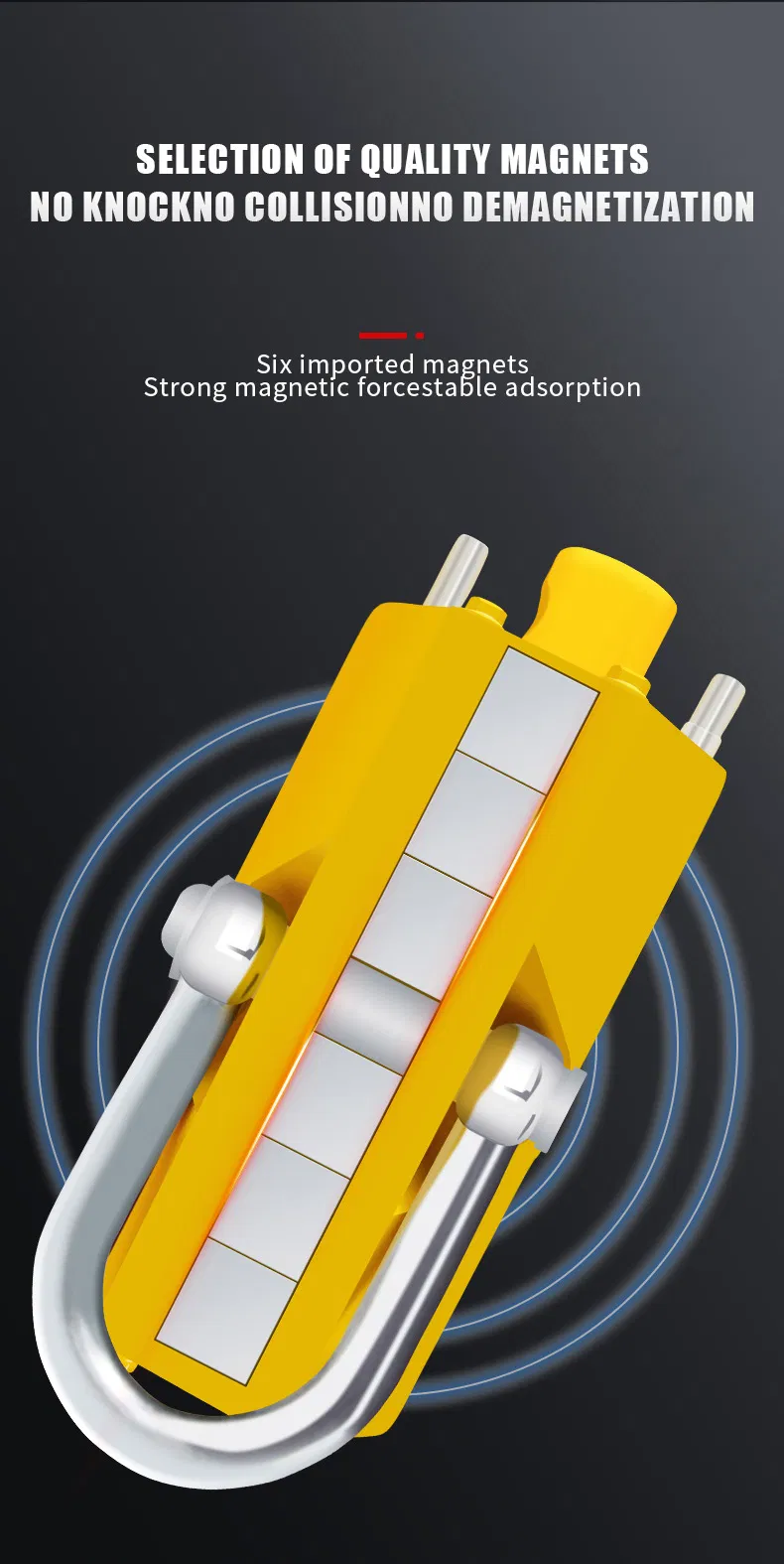

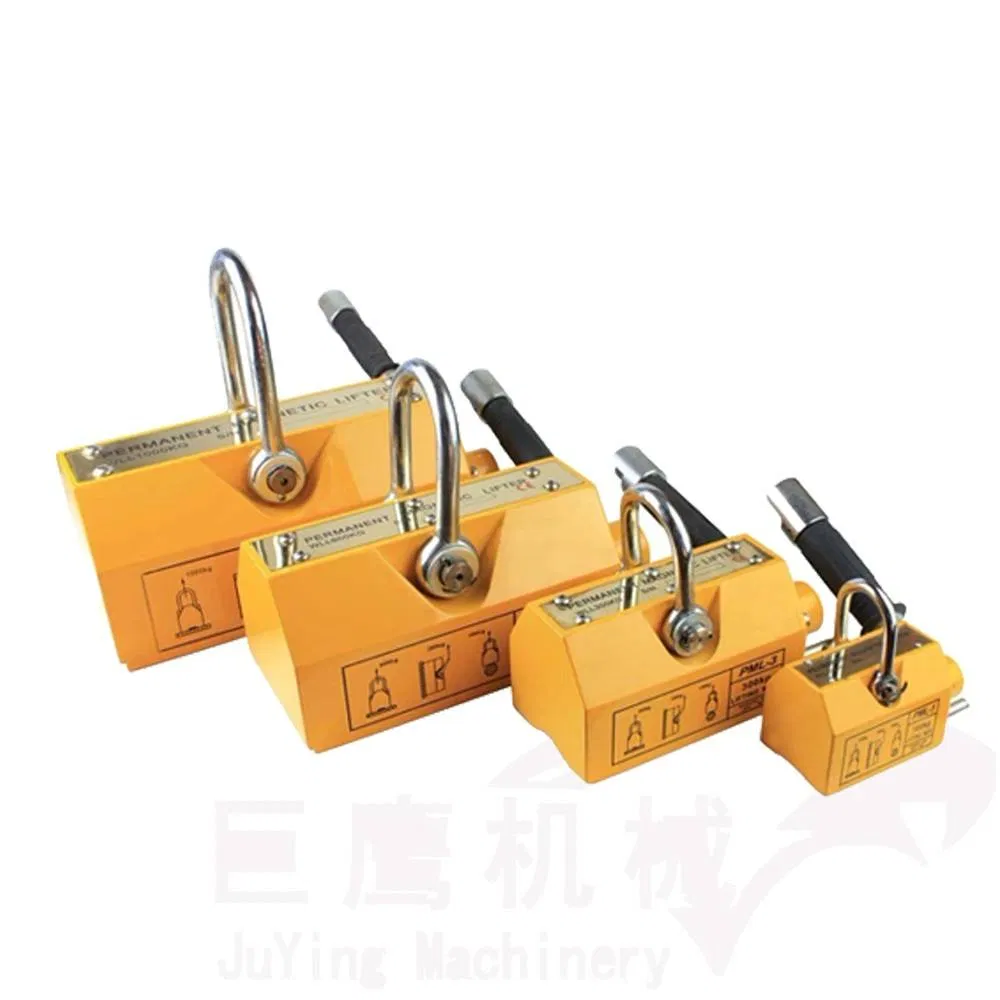

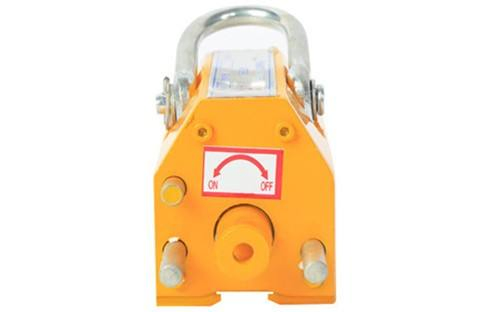

Lifting magnet has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are used to lift and transport the steel and iron for factories, docks, warehouses, and so on.

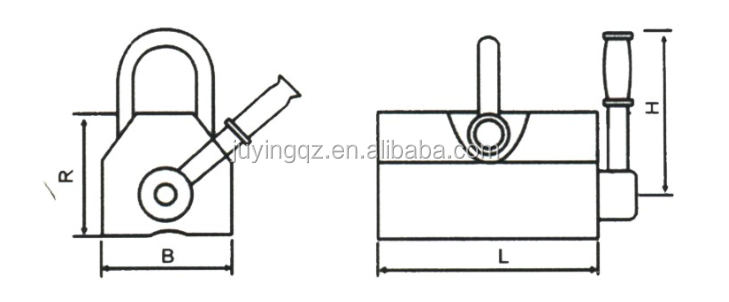

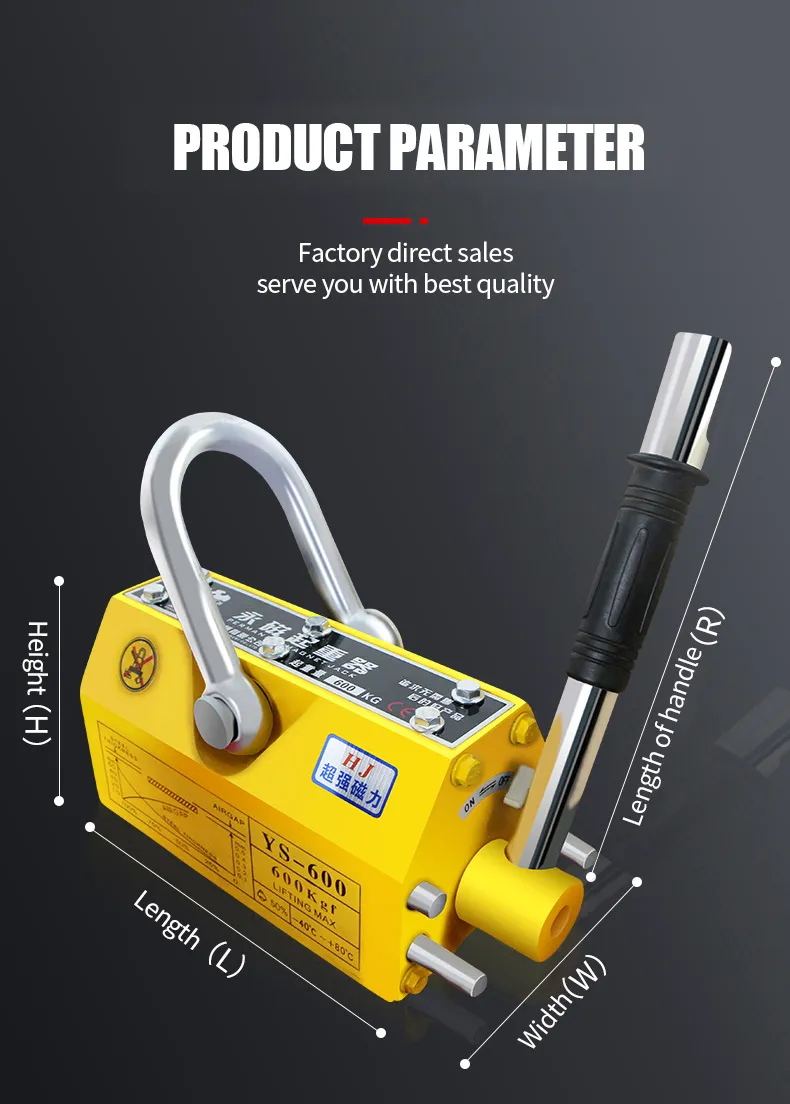

| Model | Capacity (kg) | Break load (kg) | Size (mm) | N.W (kg) | Dimension L*W*H(cm) | |||
|---|---|---|---|---|---|---|---|---|
| L | B | H | R | |||||
| PML-100 | 100 | 250 | 90 | 63 | 68 | 145 | 3 | 25*16*16 |
| PML-400 | 400 | 1000 | 160 | 95 | 180 | 160 | 11 | 32*20*17 |
| PML-600 | 600 | 1500 | 220 | 115 | 125 | 230 | 20 | 37*23*21 |
| PML-1000 | 1000 | 2500 | 260 | 145 | 145 | 280 | 35 | 43*28*24 |
| PML-1500 | 1500 | 3750 | 310 | 145 | 145 | 280 | 48 | 44*26*23 |
| PML-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 65 | 52*30*31 |
| PML-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 90 | 60*30*31 |
| PML-5000 | 5000 | 12500 | 580 | 300 | 300 | 650 | 190 | 73*40*48 |

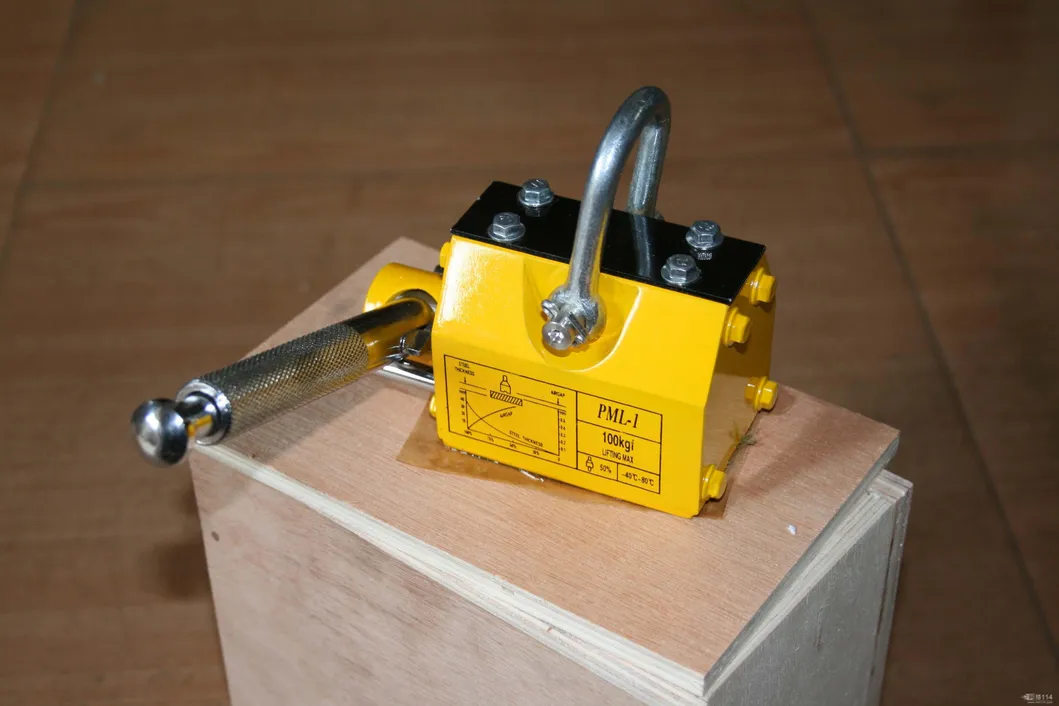

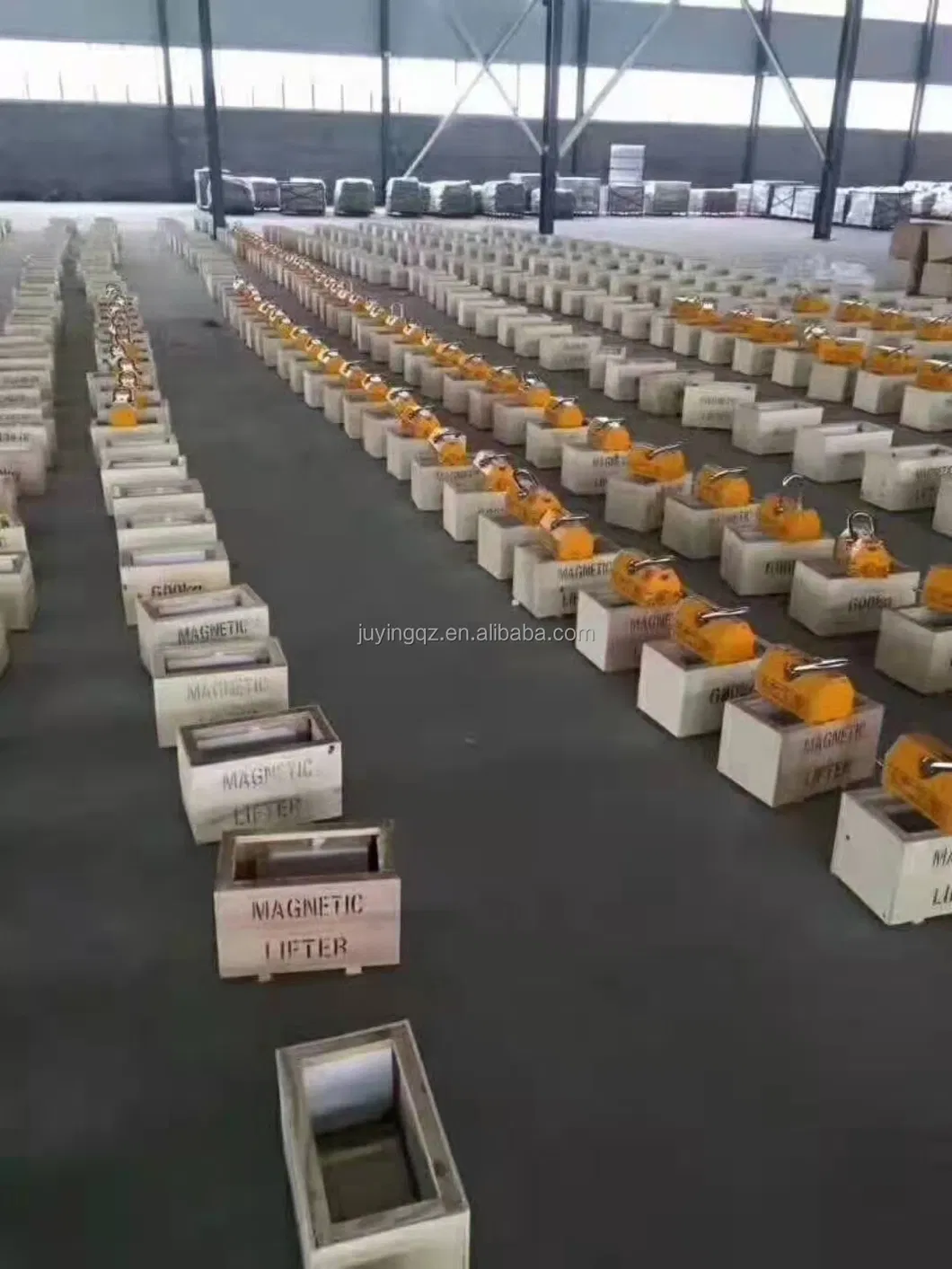

Before packing, every lifting magnet must be checked by our inspection system. The Magnetic Lifter must be confirmed to lift the steel plate at full load. If it fails this test, the piece will not be passed for shipment.
