Glinder lift
1 / 5

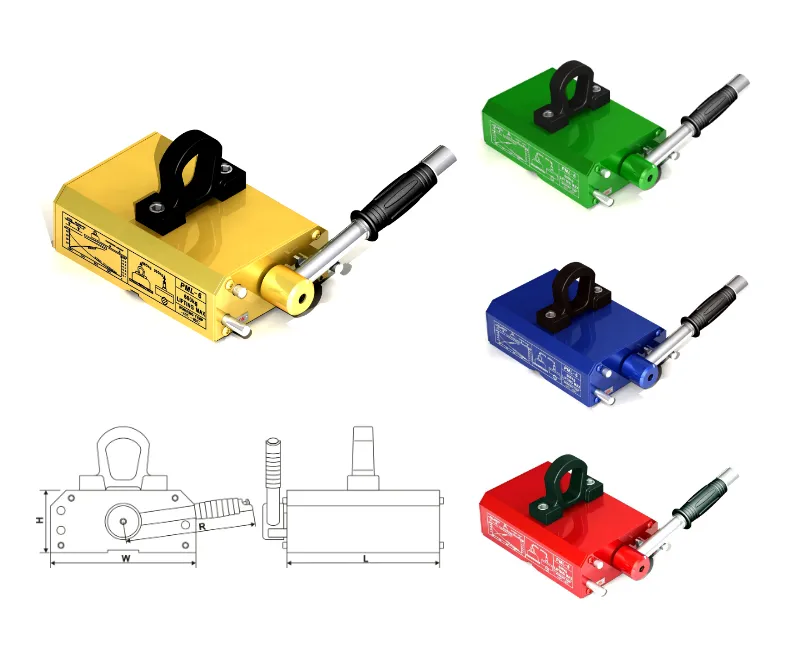

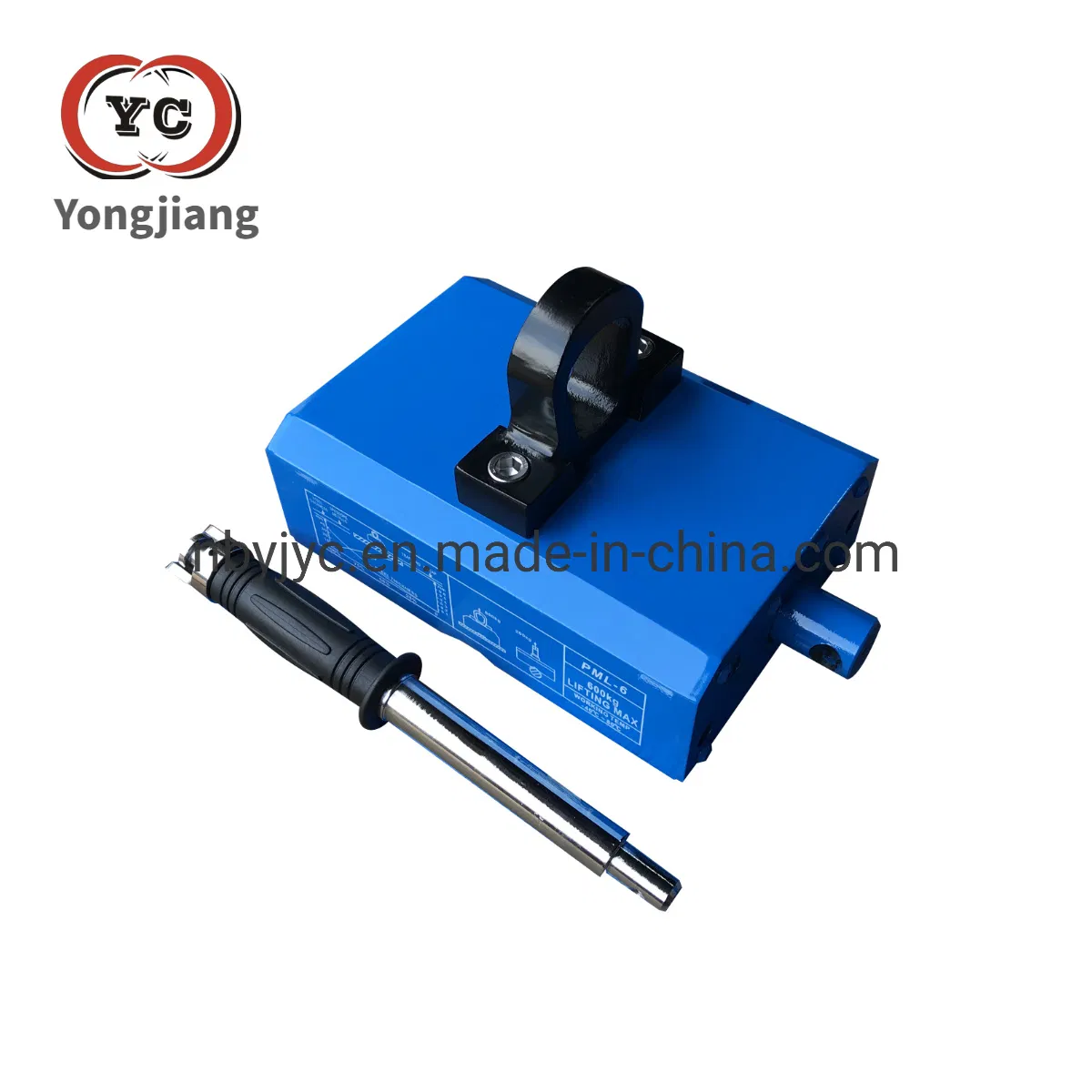

The innovative handle design significantly reduces operating effort, requiring only 30%-40% of the strength compared to standard single-magnetic lifters. These units are highly versatile and capable of lifting thin magnetic-inductive materials with a thickness as low as 5mm.

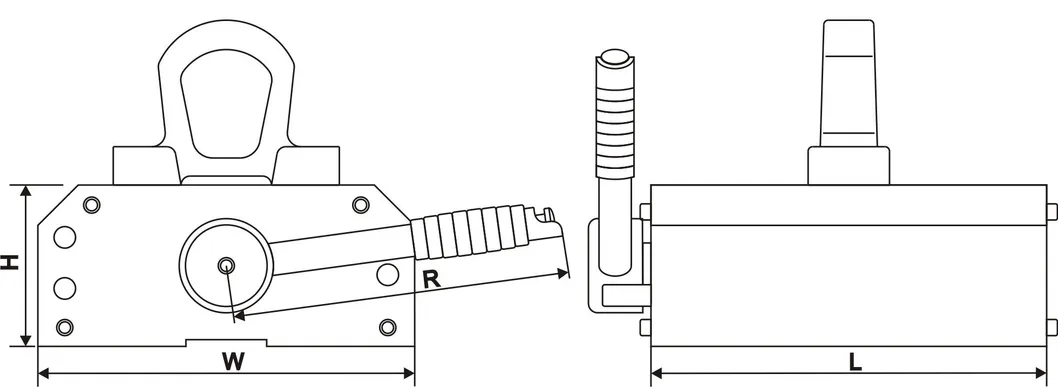

| Model | Rated Lifting Strength (kgf) | Cylindrical Lifting Strength (kgf) | Max Pull-off Strength (kgf) | Length (mm) | Width (mm) | Height (mm) | Handle Length (mm) | N.W (kg) |
|---|---|---|---|---|---|---|---|---|
| PML-3 | 300 | 100 | 900 | 163 | 133 | 60 | 180 | 9.5 |

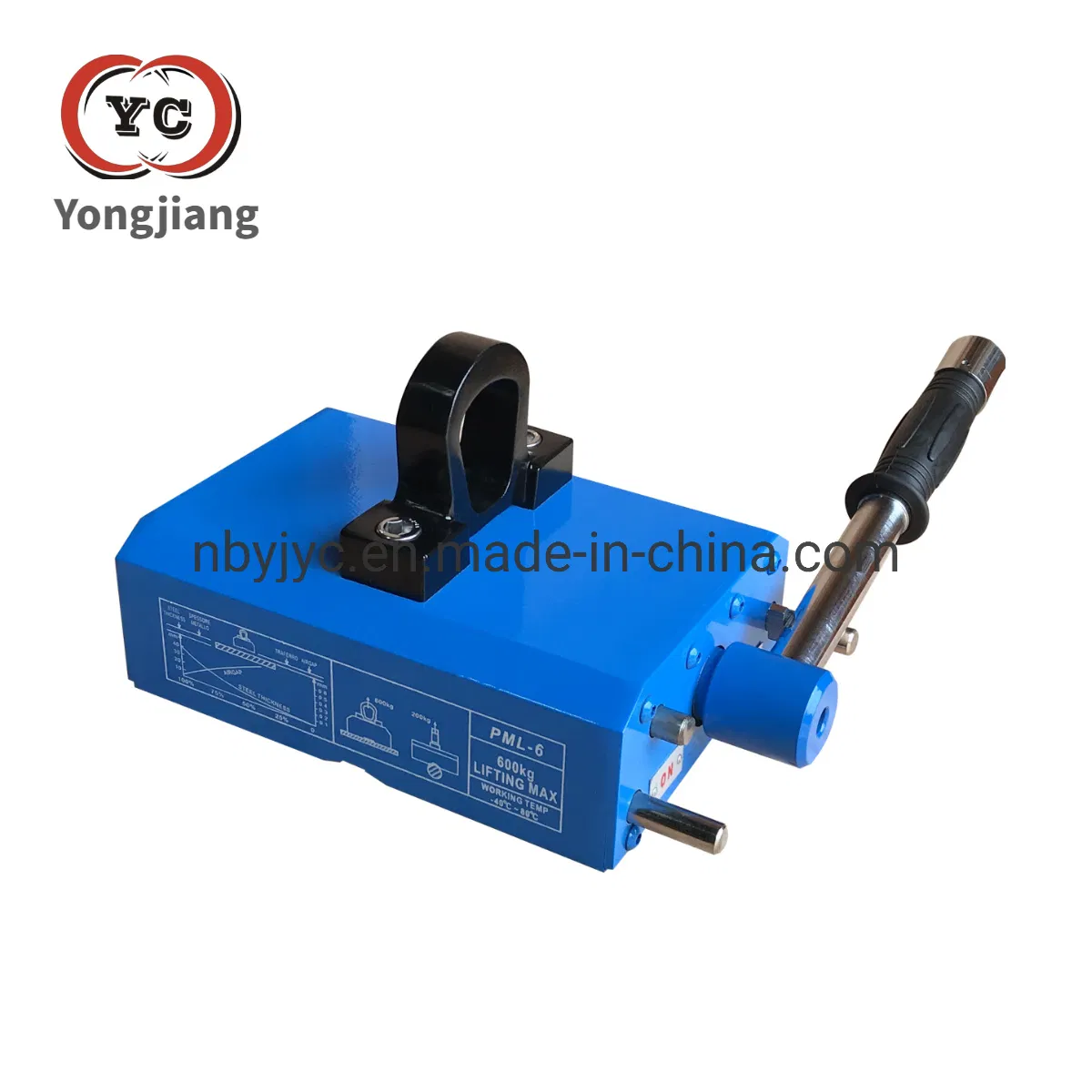

| PML-6 | 600 | 200 | 1800 | 234 | 162 | 74 | 220 | 21 |

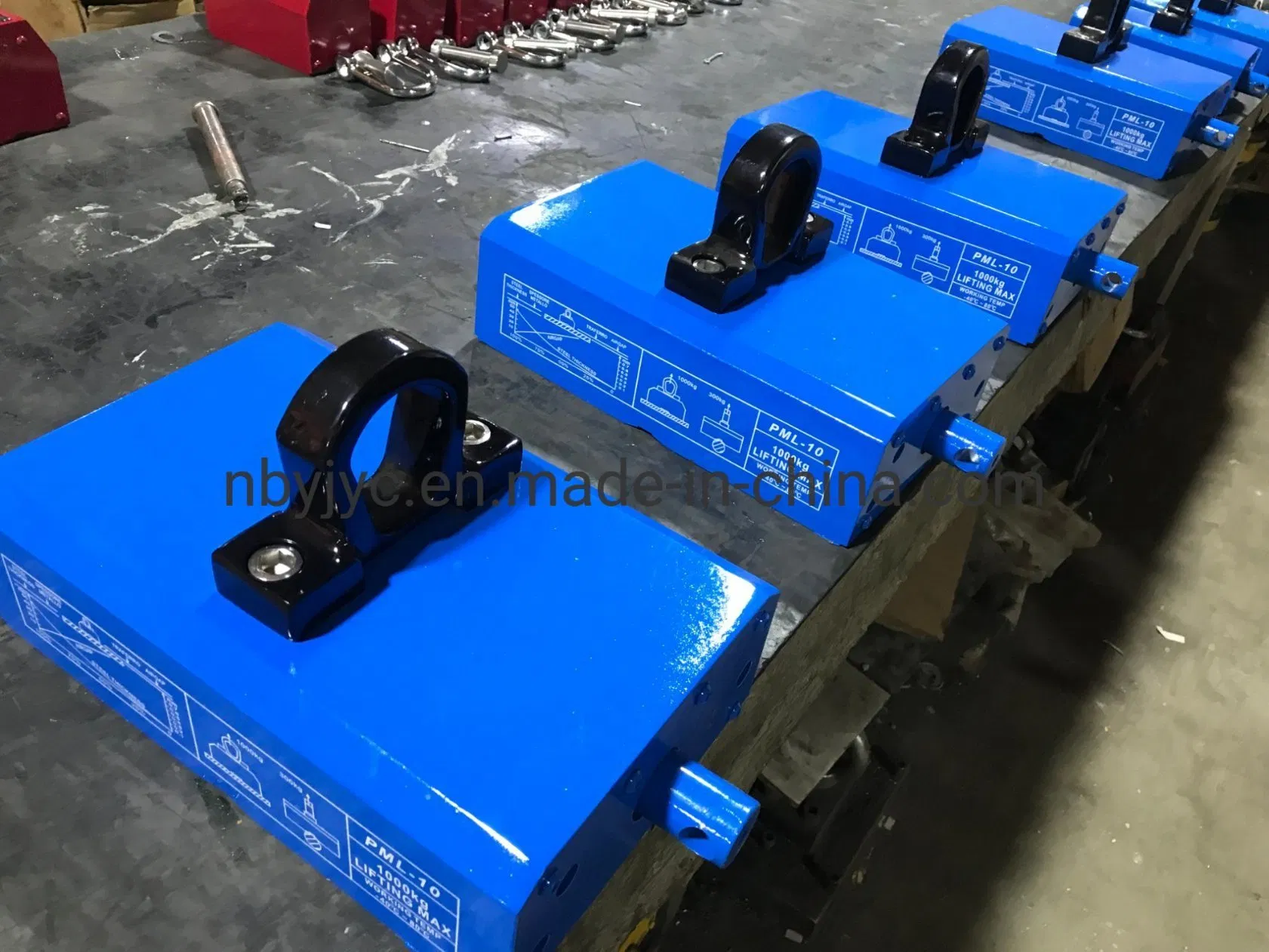

| PML-10 | 1000 | 300 | 3000 | 302 | 190 | 87 | 265 | 37.5 |
| PML-20 | 2000 | 600 | 6000 | 441 | 231 | 107 | 380 | 77 |
Our permanent magnetic lifters and equipment have been manufactured with expertise since 2004. The products have successfully passed quality testing from German Rhine Technology and hold CE certification.
We adhere to the belief of "Quality first, Credit foremost" and look forward to global cooperation.
