Basic Specifications
Color
Red, Yellow, Customizable
Material
Permanent Neodymium Magnets
Magnet Activation

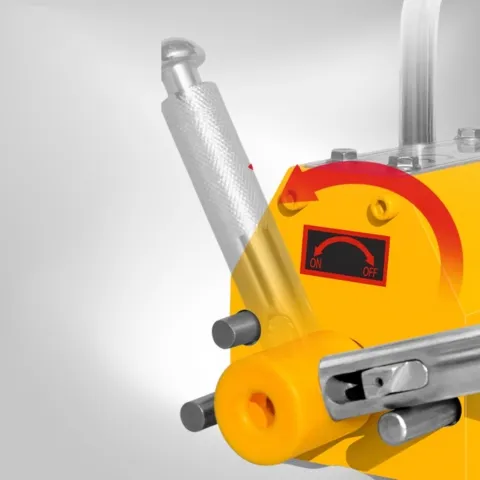

Locking on/off Handle
Safety Factor
2-3.5 Safety Factor
Operation Temp
Lower Than 80°C
Transport Package
Wood Box
★

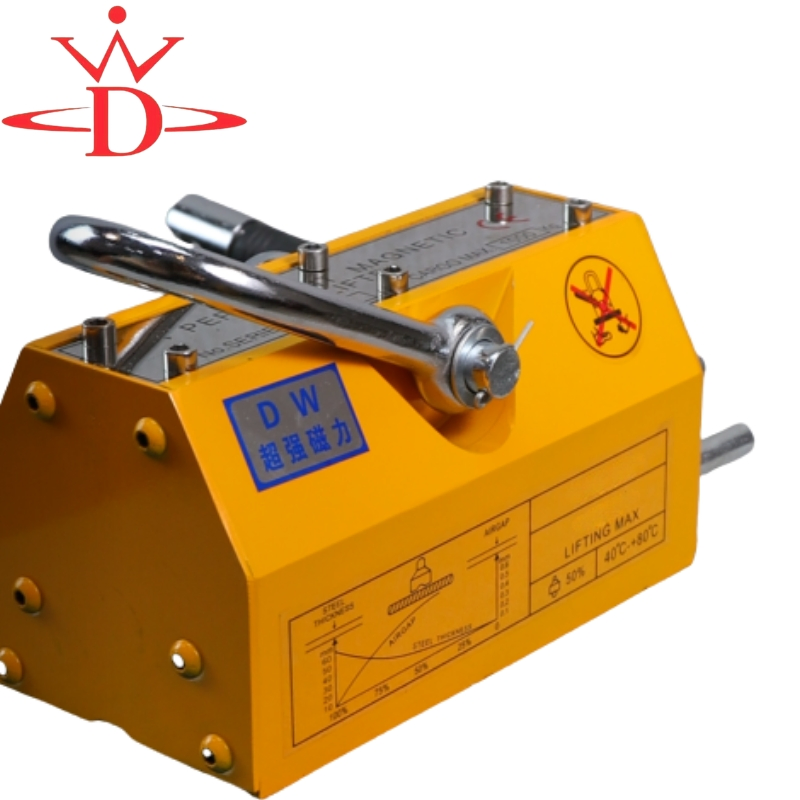

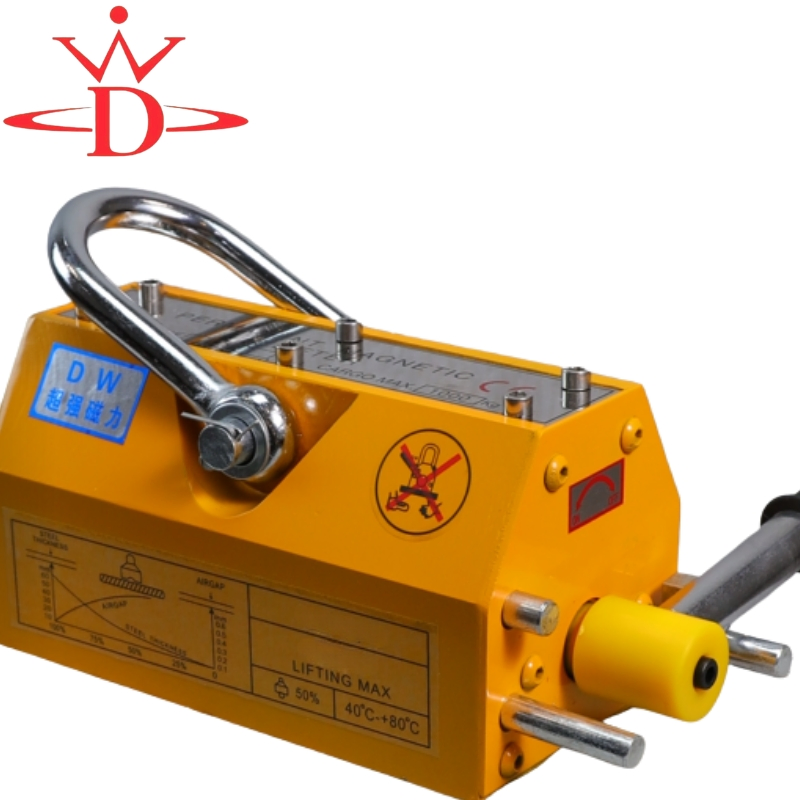

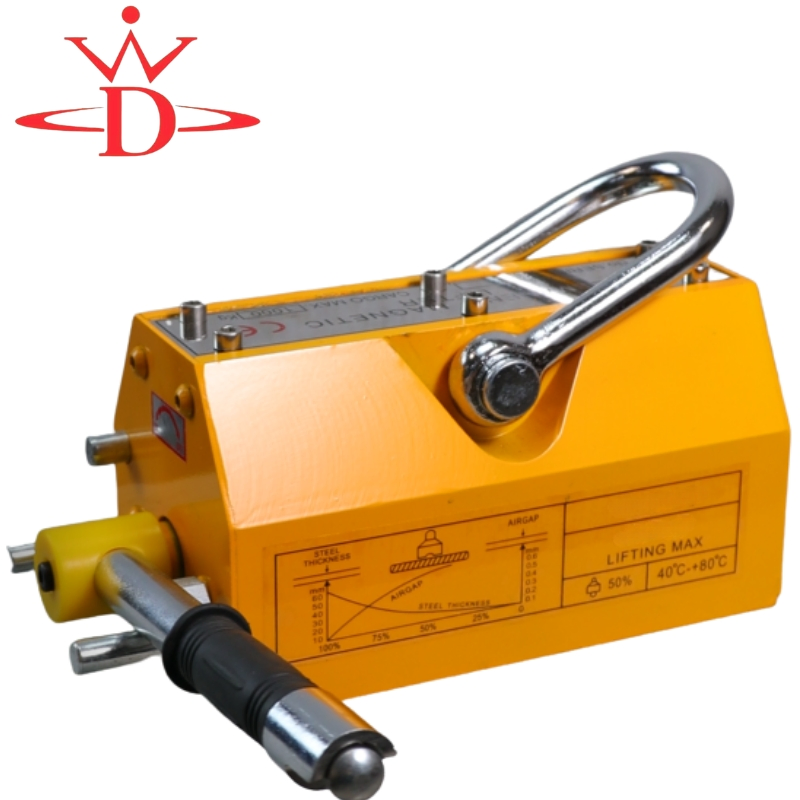

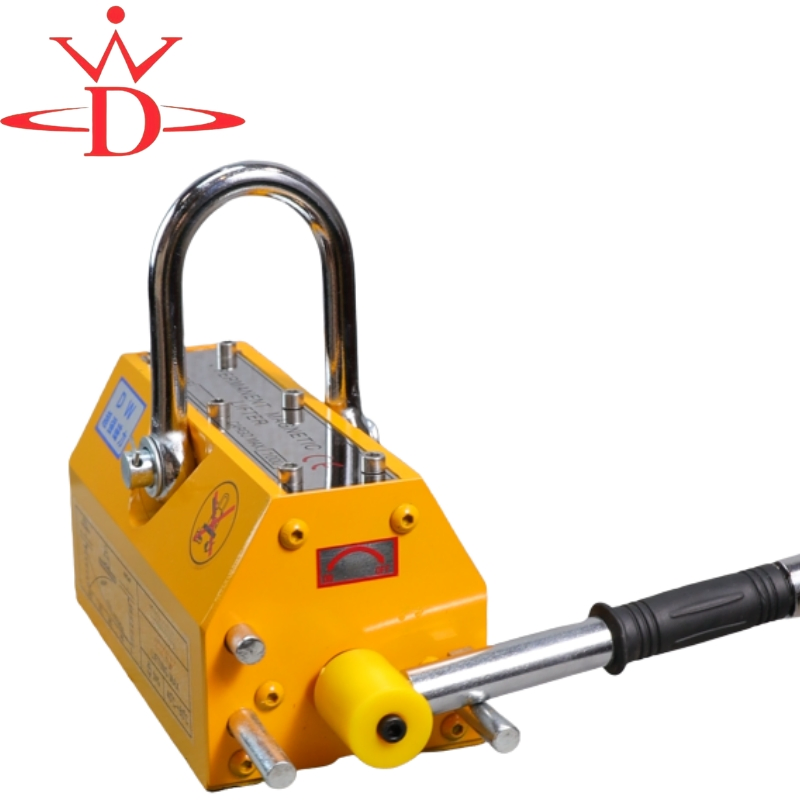

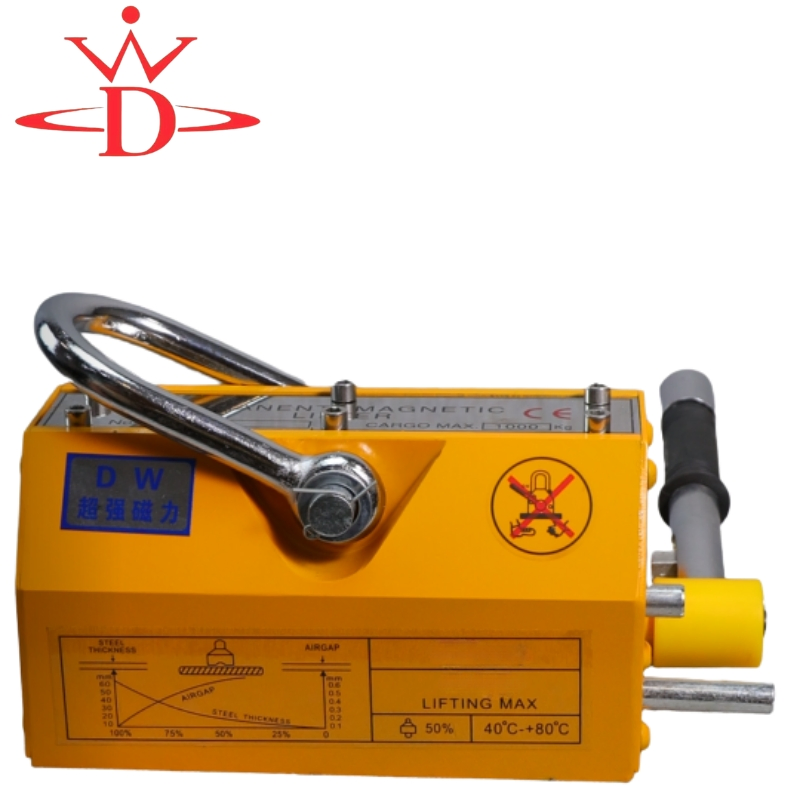

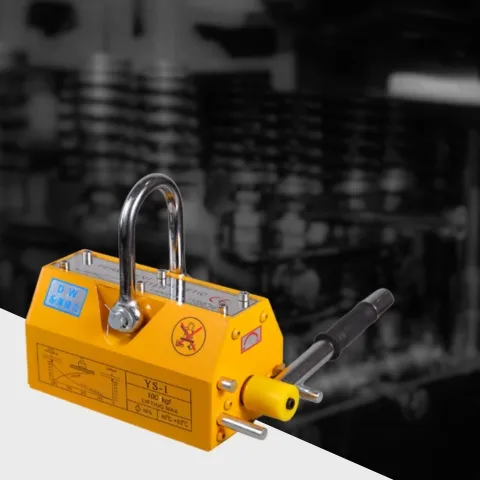

YS Series Permanent Magnet Lifter
The YS series strength permanent magnet lifter is primarily used for lifting plate or cylindrical workpieces made of ferromagnetic material during hoisting processes.

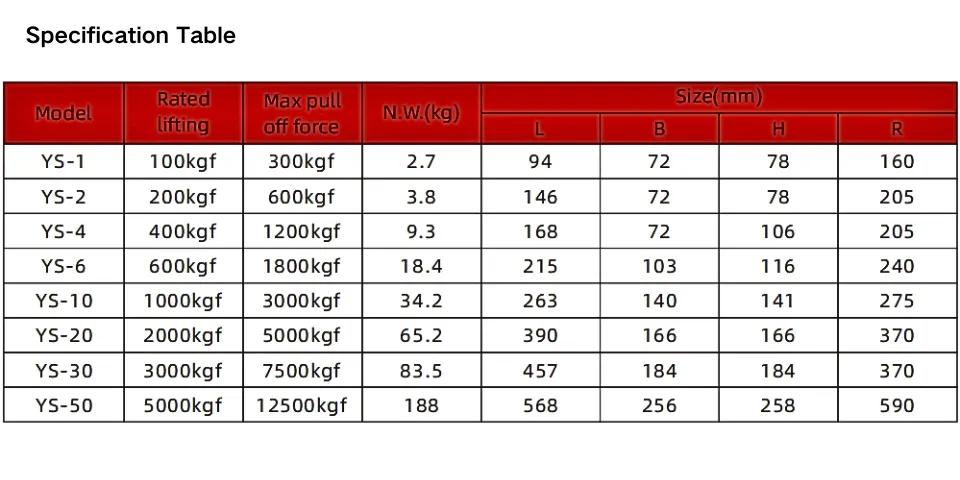

Rated Load (KGS): 100, 200, 400, 600, 1000, 2000, 3000, 5000
It features a light structure, convenient operation, strong magnetic force, and high safety & reliability, significantly enhancing labor productivity in factories, docks, and warehouses.
💎
Core Selling Points
Wide Application
Widely used in factories, terminals, and warehouses, matching scenarios like steel markets, power construction sites, and shipbuilding wharves.

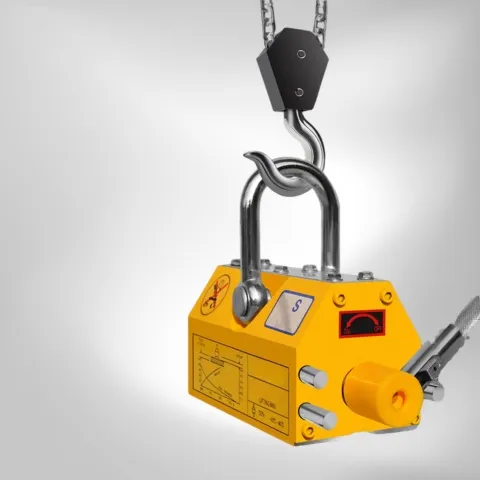

High-Performance Magnet
Adopts high-performance permanent neodymium magnets, ensuring strong magnetic force and non-demagnetizing performance.
Dual Compatibility (V-Shape + Flat)
V-shaped bottom design allows for the adsorption of both flat steel plates and round steel workpieces.
3.5x Safety Pull-Off Force
The maximum pull-off force is 3.5 times the rated lifting force, ensuring maximum safety during heavy-duty operations.
Power-Free Magnetism
Maintains stable magnetism without electricity, resulting in zero residual magnetism on the workpieces.
📷

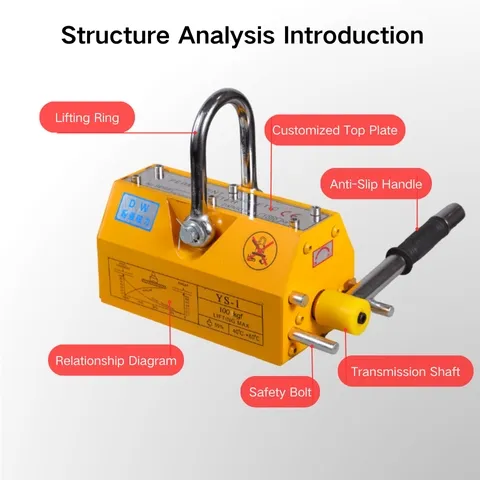

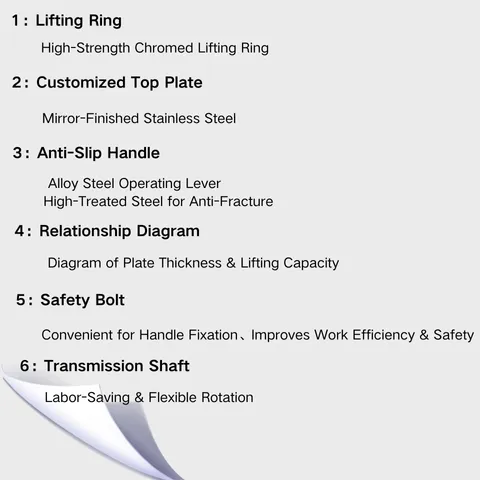

Product Details & Applications
⚠️
Usage Precautions
1No-load operation of the product is strictly prohibited.
2Must be used within the rated load range; overloading is strictly prohibited.
3No personnel are allowed to stand or pass under the product during operation.
4Operating temperature shall not exceed 80°C to avoid demagnetization.
5Load testing must be performed every 2 years to ensure ongoing safety.
6Workpiece length should not exceed 3 meters; otherwise, use 2 or more units.
❓
Frequently Asked Questions
What is the typical response time for inquiries?
We aim to contact you within 12 hours to address your requirements as quickly as possible.
How are the products packaged for shipping?
We use fumigation-free wooden cases with foam liners and steel strapping to ensure the products are safe and shockproof during transit.
What shipping methods do you support?
We support sea, air, express, and rail freight. We will recommend the most efficient option based on your order quantity.
Do you offer customization or OEM services?
Yes, with over 10 years of experience, we fully support OEM and all custom requirements to meet your specific needs.
When does production begin after payment?
Once payment is received and confirmed, we issue a receipt and initiate the production process immediately.
What is the safety factor of these lifters?
Our permanent magnet lifters are designed with a high safety factor ranging from 2 to 3.5 times the rated capacity.
