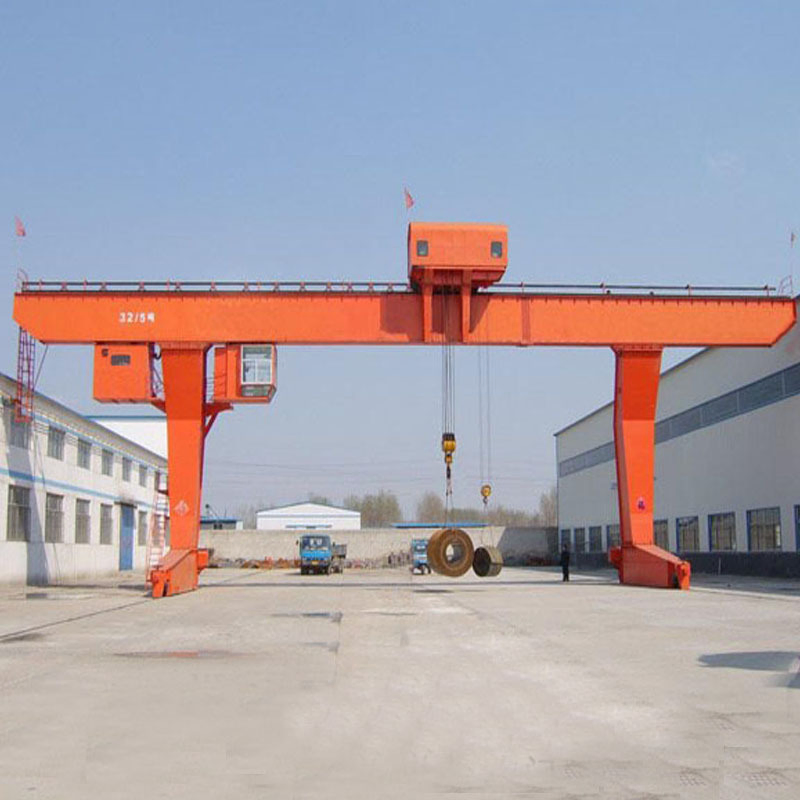

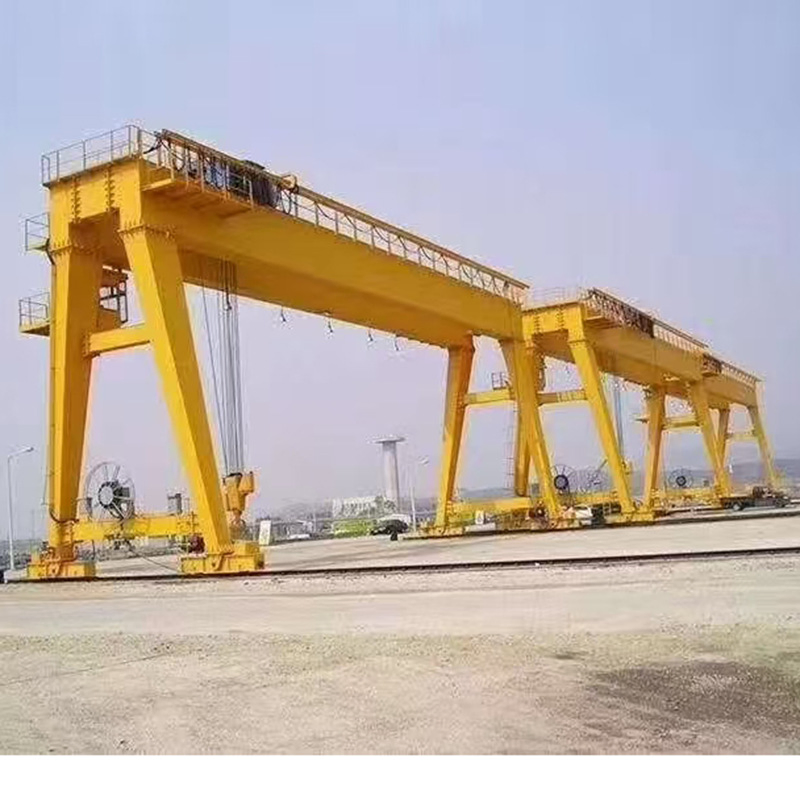

Heavy-Duty Indoor Outdoor Electric Hoist Gantry Crane with Remote

1 / 5

Heavy-Duty Indoor Outdoor Electric Hoist Gantry Crane with Remote

Customization:	Available
After-sales Service:	18 Months
Warranty:	18 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

DQQM-04

Certification

CE, ISO9001

Condition

New

Max Lifting Weight

>200t

Max Lifting Height

>40m

Operation Form

Air + Ground Operation

Type

Common Gantry Crane

Main Girder Form

Single Girder

Load Capacity

1-500t

Span

30m

Height

15m

HS Code

8426193000

Packaging & Delivery

Package Size

6000.00cm * 2000.00cm * 1500.00cm

Package Gross Weight

40000.000kg

Product Overview

What's a gantry crane and what's it used for?

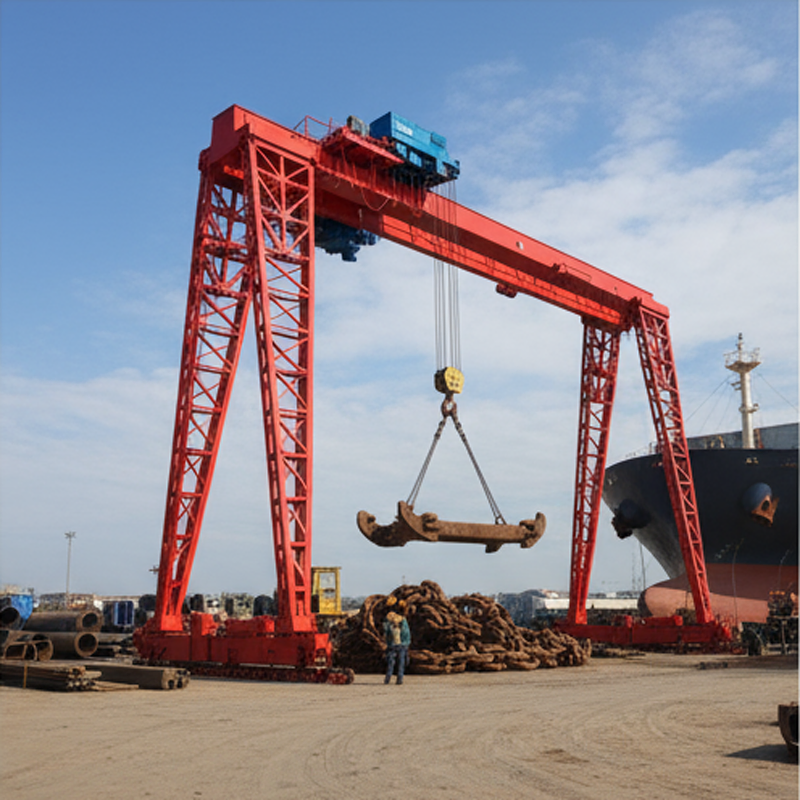

A gantry crane is a variant of a bridge crane. At ports, it is mainly used for loading and unloading operations of goods and bulk cargo in outdoor cargo yards and material yards. Its metal structure resembles a door-shaped frame, with two legs installed under the main beam, allowing it to move directly on tracks on the ground. The ends of the main beam can be equipped with outward-extending cantilever beams. Gantry cranes are characterized by high land utilization, a wide operating range, strong adaptability, and versatility, making them widely used in port cargo yards.

Technical Introduction

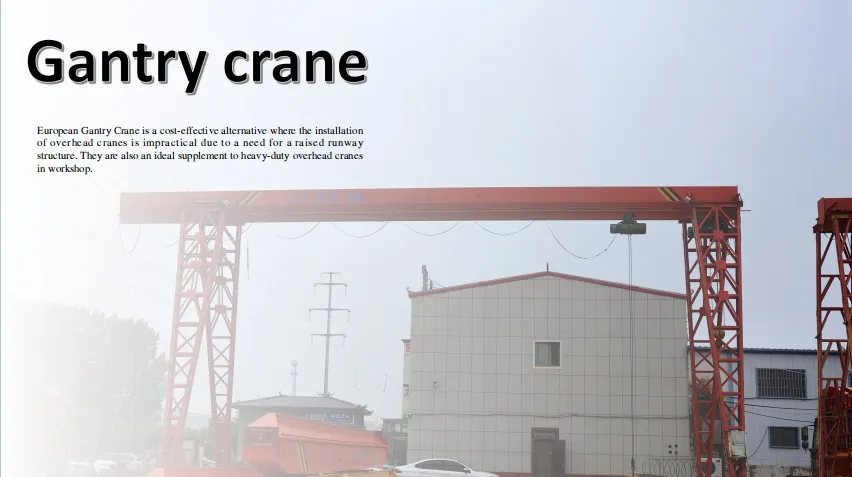

European Gantry Crane is a cost-effective alternative where the installation of overhead cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to heavy-duty overhead cranes in workshop.

Crane Capacity

3 ton to 20 ton

Crane Span

7.5 m to 28.5 m

Lifting Height

6m to 18m

Working Class

A5, A6, A7

Load (t)	Altitude (m)	Fly-past (m)	Rail Type	Power (kW)
5-10	10	18-35	p43	30-48
15-20	10	18-35	p43	70-90
30-50	10	18-35	Qu80	100-150

Key Features

Simple structure and easy installation processes.
Produced in accordance with international standards.
Advanced overload protection device with automatic warnings.
Polyurethane buffer zones to prevent collision and derailment.
High-quality welding using gas protection or submerged arc welding with UT non-destructive testing.
Standard safety monitoring including sound/light alarms and infrared anti-collision.
Flexible power options: powered by cables or sliding contact lines.

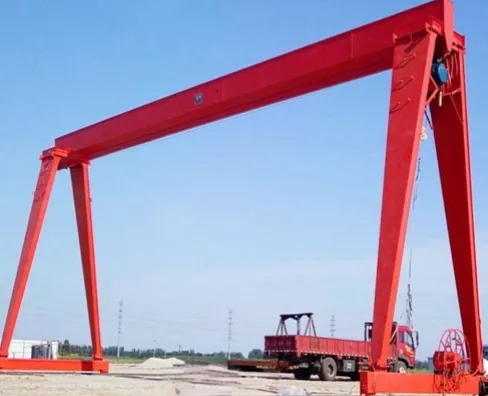

Product Display

Frequently Asked Questions

1. What are the primary applications of a gantry crane? Gantry cranes are primarily used for loading and unloading operations in outdoor cargo yards, material yards, and port facilities due to their wide operating range and high land utilization.

2. What safety features are included with this equipment? The crane includes an overload protection device, polyurethane buffers to prevent collisions, sound and light alarms, and infrared anti-collision systems.

3. What is the maximum load capacity for the DQQM-04 series? The series can support a lifting weight of over 200 tons, with customizable options ranging from 1 ton up to 500 tons depending on specific requirements.

4. Can the crane span and height be customized? Yes, while standard spans are around 30m and heights around 15m, the specifications can be fully customized based on your technical drawings and site needs.

5. What power supply methods are supported? The cranes can be powered either through heavy-duty cables or via sliding contact lines for continuous operation along the tracks.

6. What certifications does the gantry crane hold? All units are manufactured according to international standards and hold CE and ISO9001 certifications to ensure quality and safety.
