Electric Mobile Harbour/Port Crane: Portal/Dock Level Luffing Hoisting Crane with Winch Load Lifting Mechanism & Electrical Hoist Gantry Crane 20-1000 Ton

Customization:	Available
After-sales Service:	24 Hours Online & Overseas Technical Service
Warranty:	12 Months or 24 Months

1

Basic Specifications

Model NO.	MQ	Certification	CE, ISO9001, SGS
Condition	New	Operation Form	Cabin/Ground/Remote
Max Lifting Height	30-40m	Max Lifting Weight	>200t
Material	Steel	Lifting Mechanism	Electric Winch Trolley
Power Supply	AC 3p 380V 50Hz	Safety Devices	Limit Switch & Protect Switch Included

2

Product Description

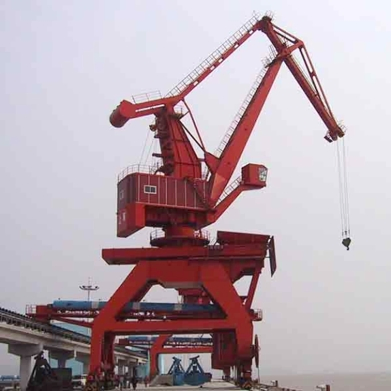

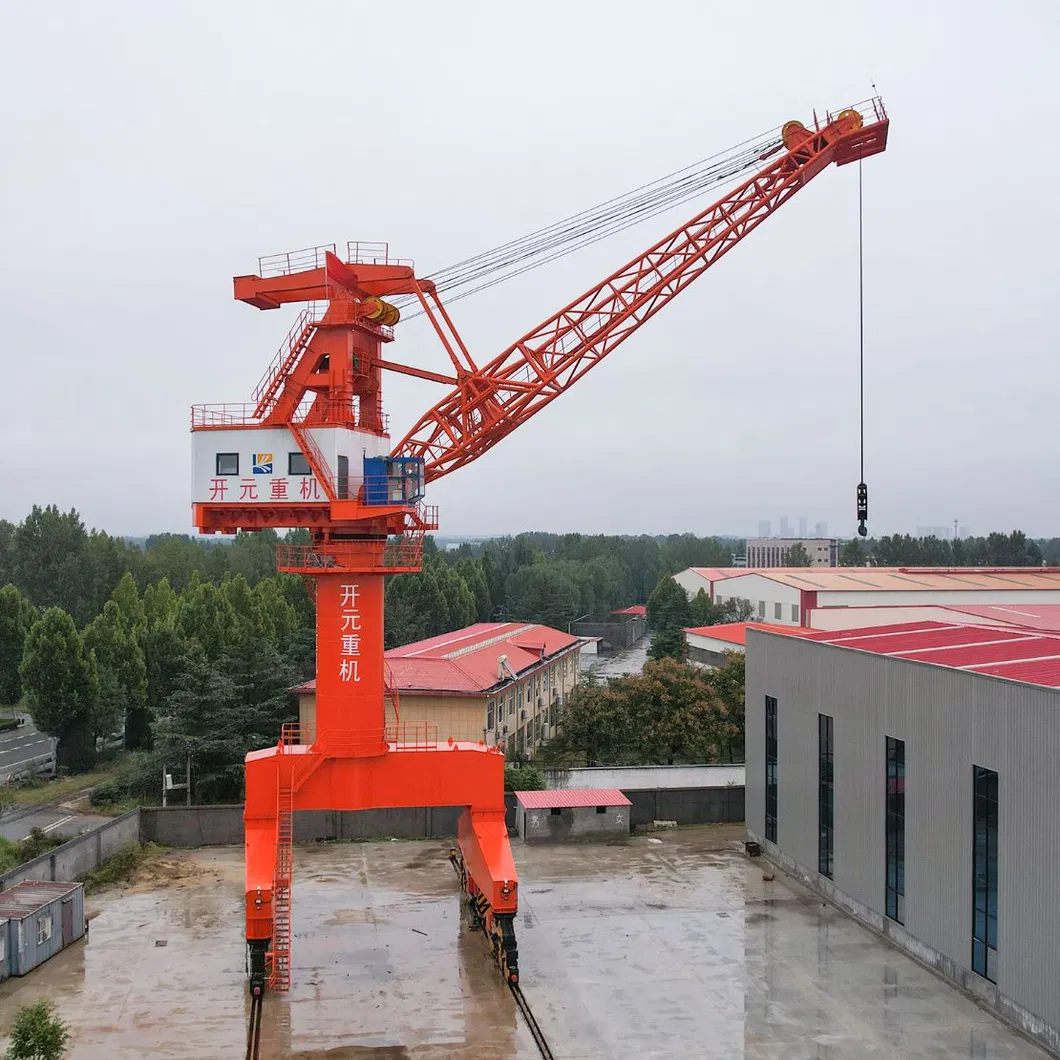

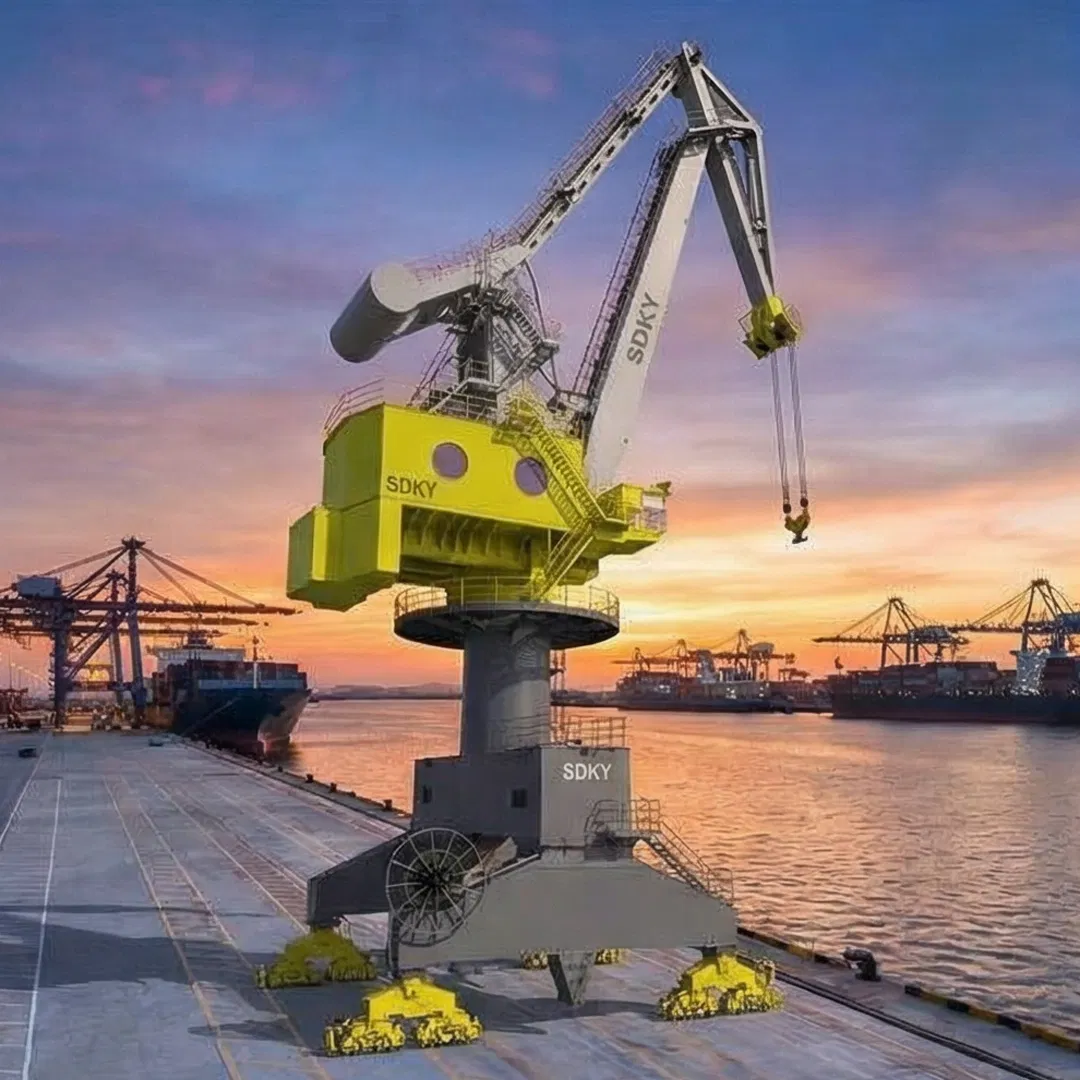

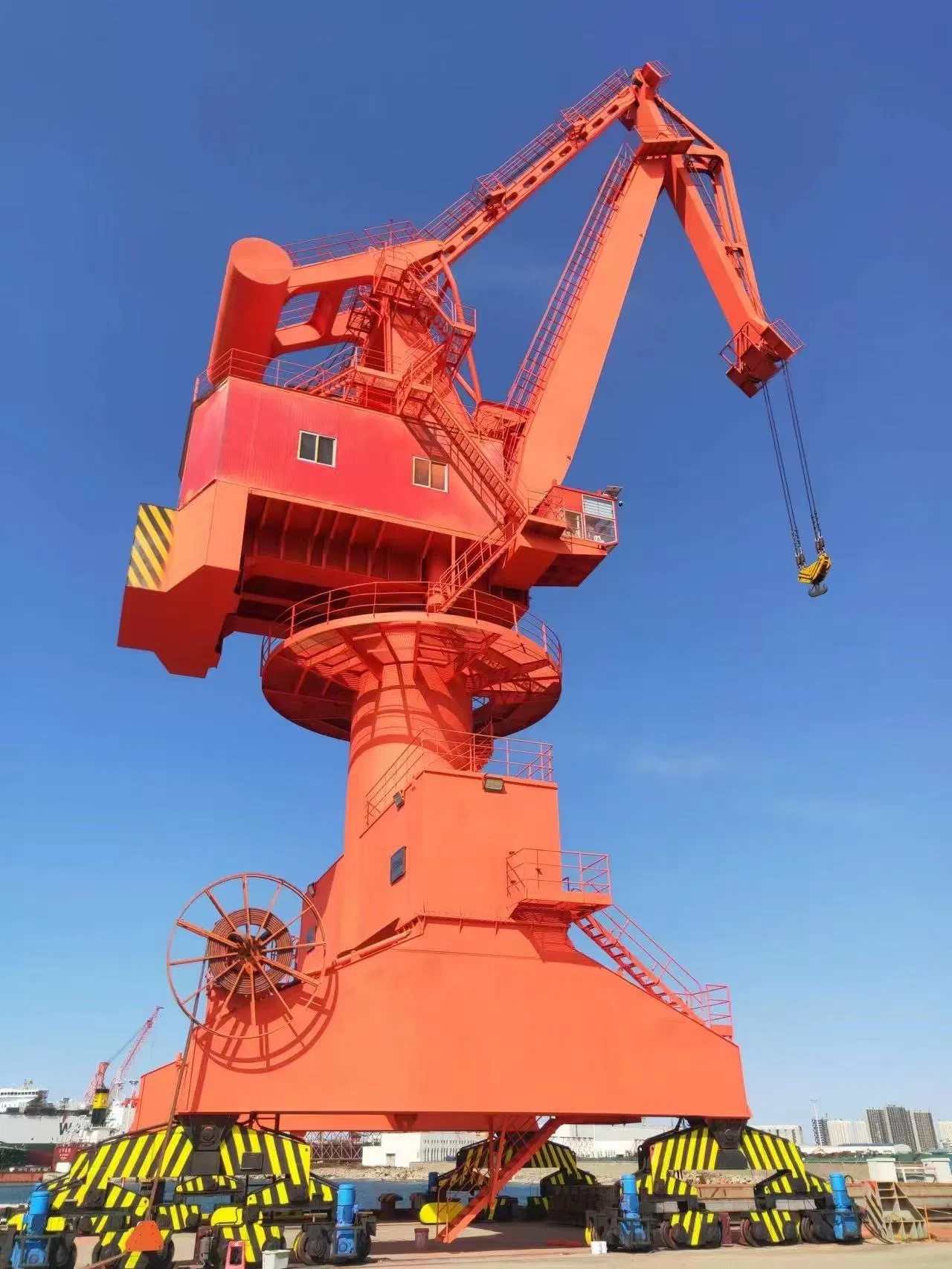

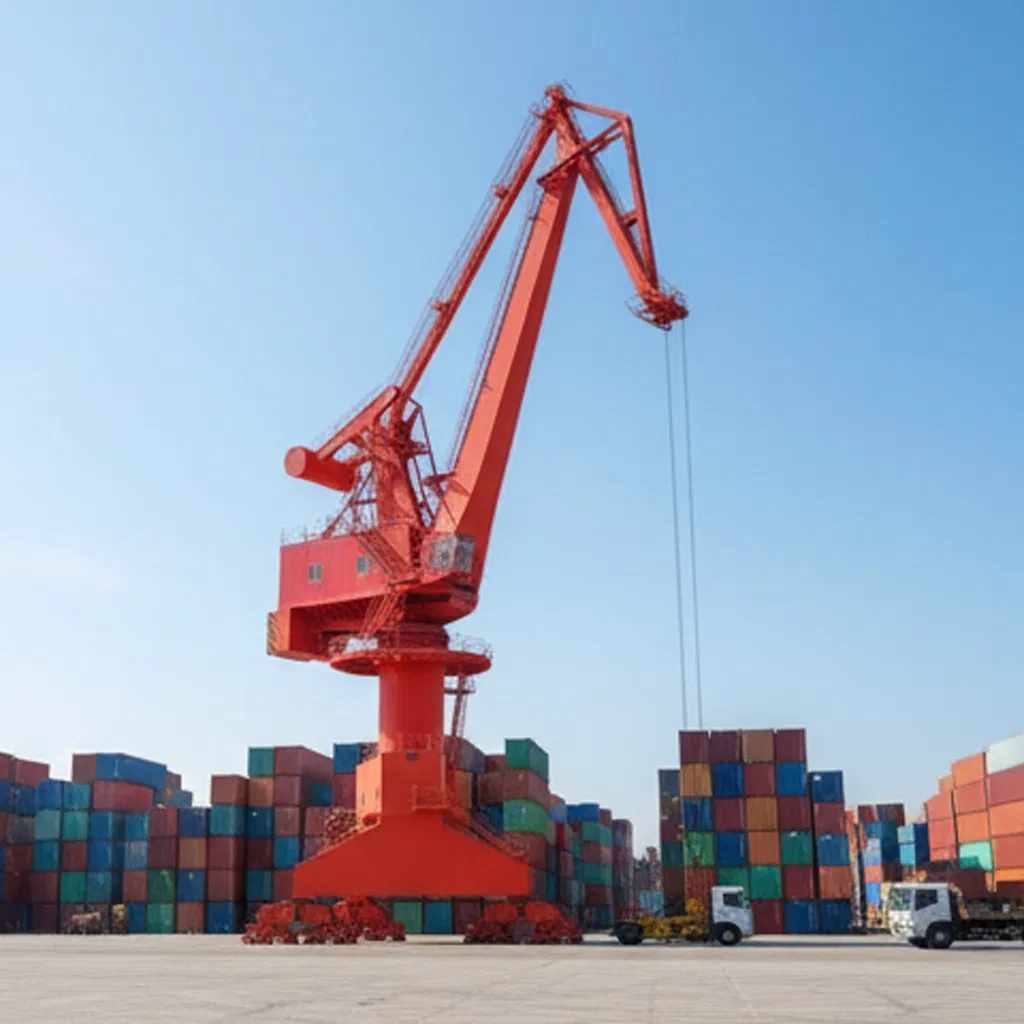

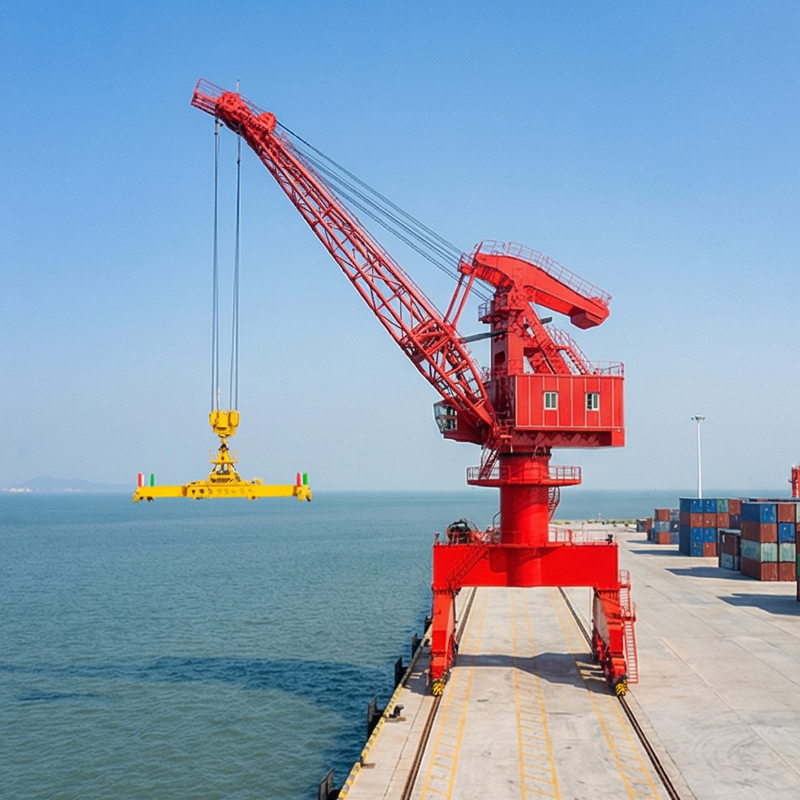

Mobile Harbour Crane & Luffing Crane: Professional Port & Portal Crane Solutions

Unilateral Axial Design

This portal crane is designed for efficient loading and unloading operations, featuring a single cantilever structure. It is lightweight and has a small wheel pressure, which lowers the investment in foundational construction for ports and terminals, creating outstanding economic benefits.

As a new-generation, highly versatile crane, it supports both rack luffing and wire-rope luffing. This dual luffing capability ensures stable load handling even when lifting different weights. It can perform 360° rotation and luffing at any angle, and is compatible with hooks and grabs, making it suitable for handling bulk cargo, general cargo, and containers.

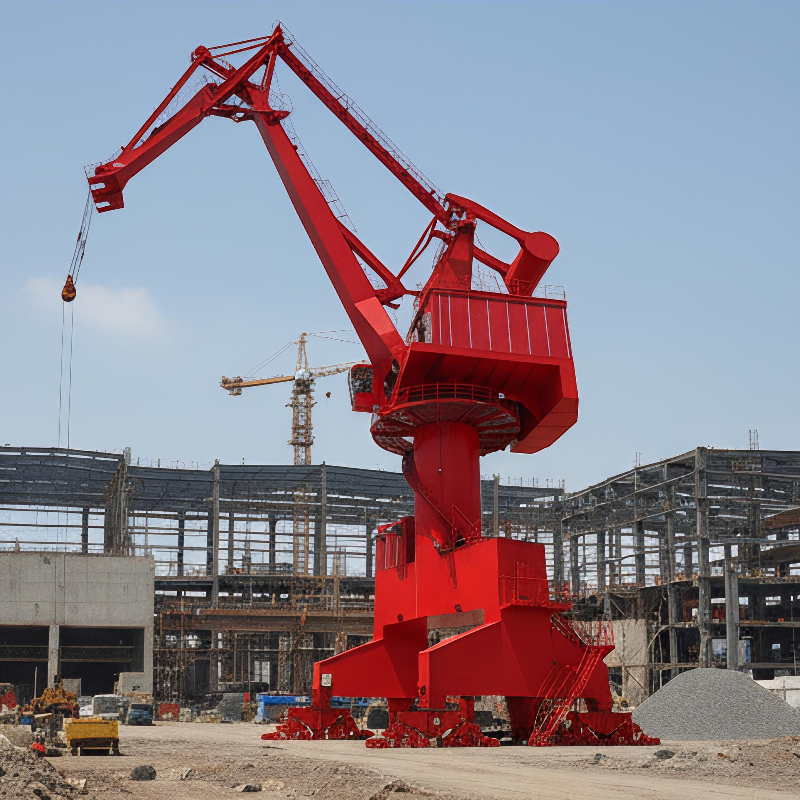

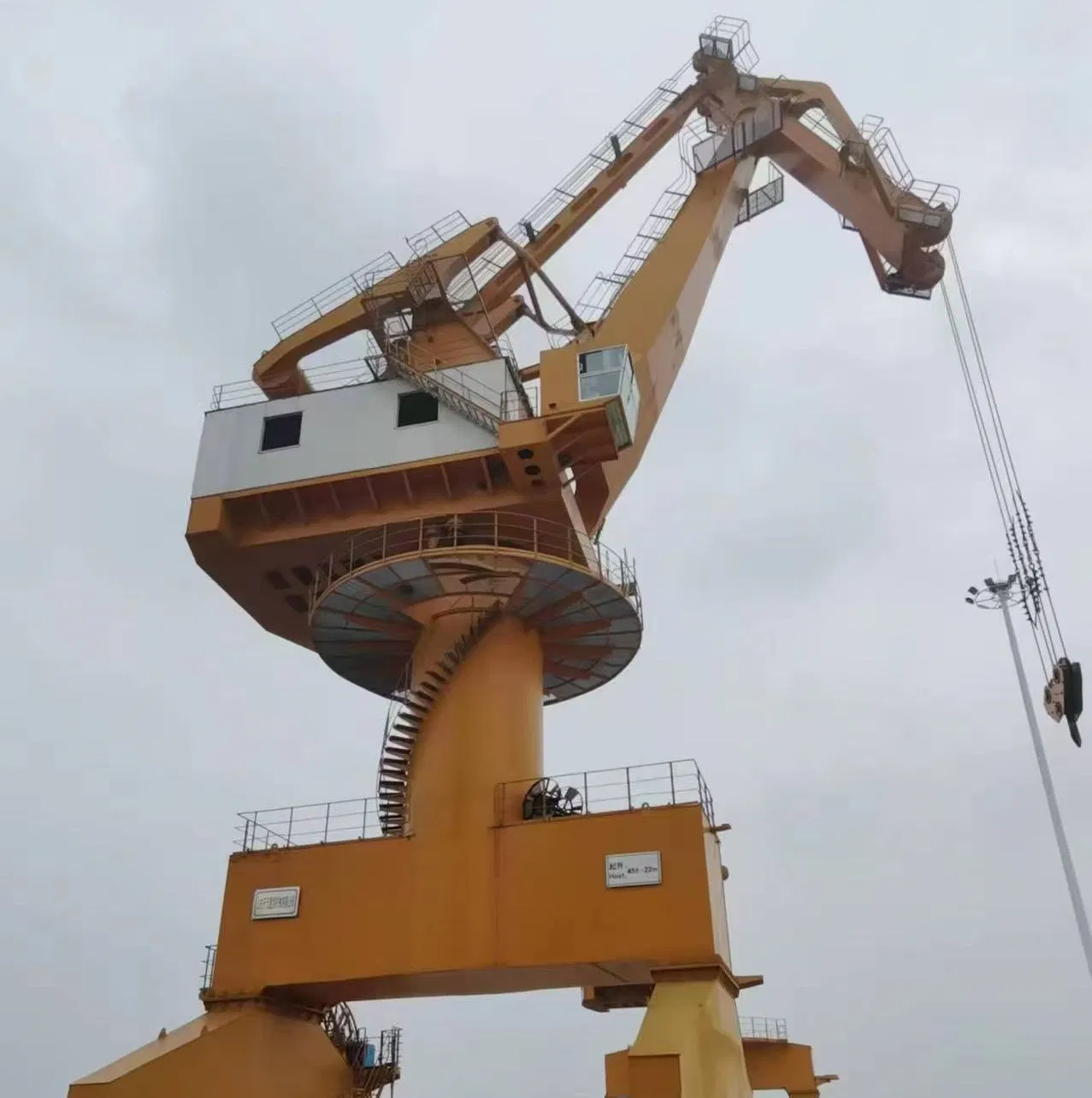

Four-bar Linkage Mechanism

The crane is equipped with a mobile full-circle slewing mechanism and a double-link-bar jib. This advanced four-bar linkage design delivers an extended cantilever reach, enabling it to serve larger vessels with wider berths and improving operational coverage.

Its robust structural design ensures stable performance even under heavy loads and frequent use, providing reliable service for busy port operations.

Overall Advantages

With its sleek, modern appearance and advanced engineering, this rack luffing portal crane is the ideal choice for general cargo ports and terminals. It offers efficient, precise, and adaptable material handling, and its optimized structural design ensures easy maintenance and exceptional durability.

3

Why Choose Our Lifting Solutions

More than 10 years of professional crane manufacturing experience.
Unique international standard indoor warehouse for high-precision manufacturing.
Senior design engineers providing expert mechanical and electrical solutions.
Strict supervision of the whole production process and seaport loading.
Optimized compact shipping methods to reduce sea freight costs.

4

Package and Delivery

Packaging Details	1. Electric parts packed in iron boxes to prevent distortion. 2. Steel structures fastened securely by bolts.
Shipping Methods	By container ship (for standard sizes) or bulk ship (for oversized truncated sections). Optimized to reduce cost.
Delivery Lead Time	Within 180 work days after receiving the deposit.

5

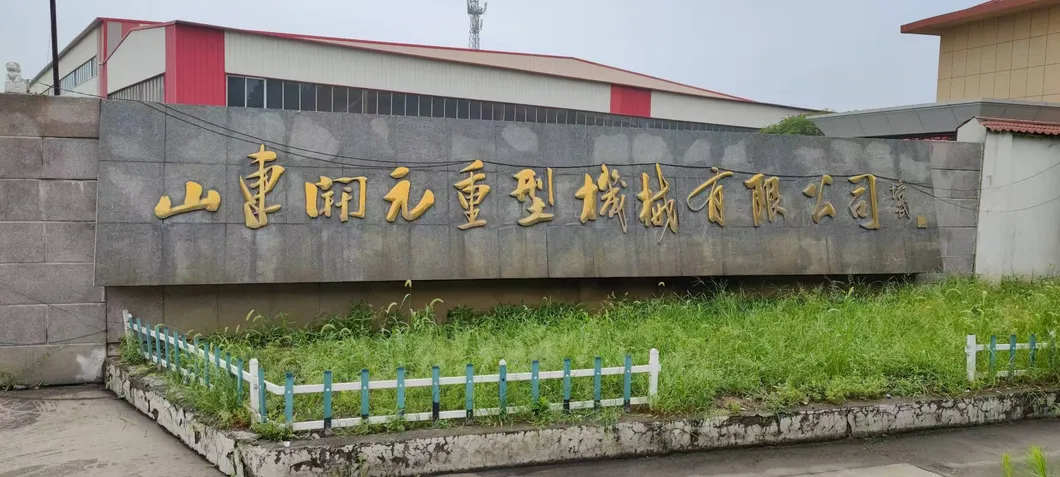

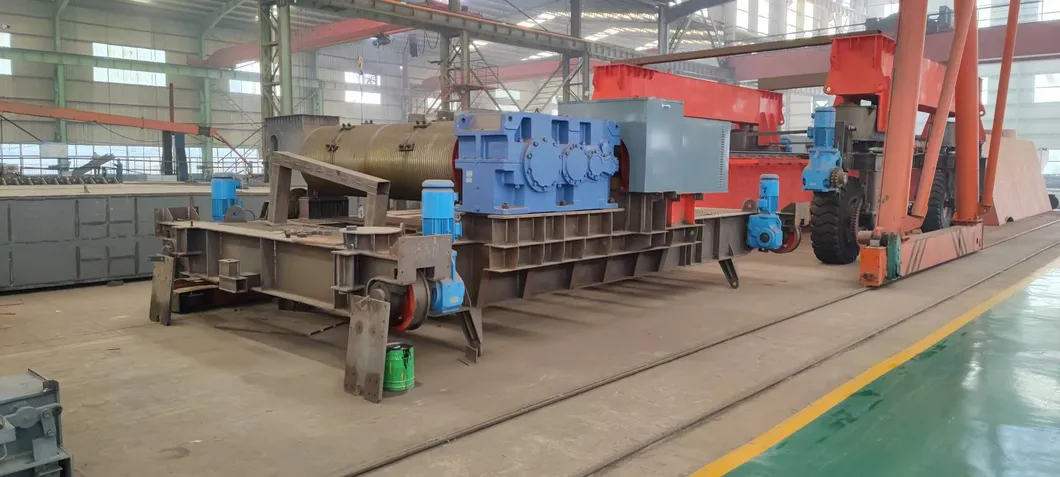

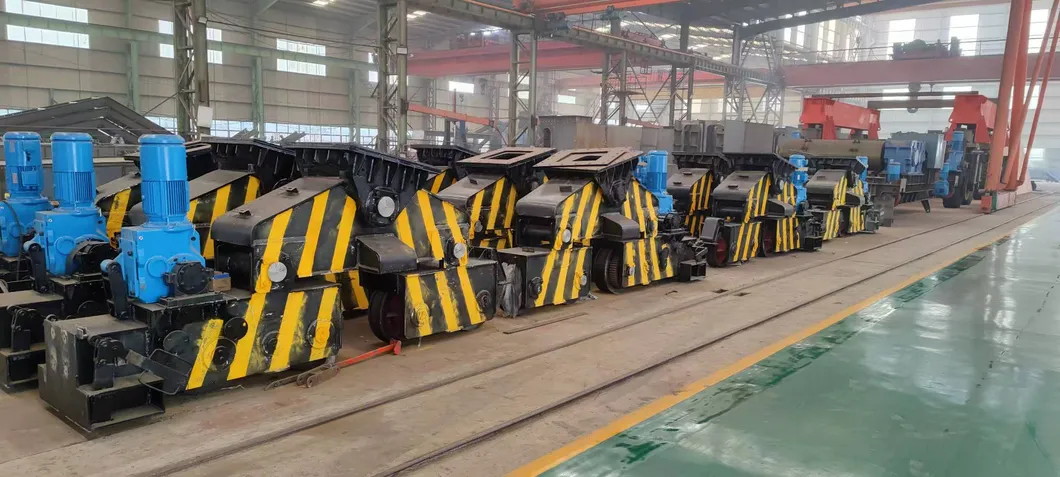

Manufacturing Capabilities

Founded in 2006, our facility has evolved into a professional lifting equipment supplier with profound technical prowess. We maintain a rigorous quality management system, holding ISO9001 international quality certification and various Class A special equipment licenses.

The facility includes 30,000 m² of standardized workshops and 20,000 m² of outdoor operation grounds. Equipped with advanced CNC cutting, welding, and flaw detection equipment, we achieve an annual steel processing capacity of 10,000 tons.

?

Frequently Asked Questions

1. Is your crane product customized?

Yes. Because working conditions vary, all products are customized based on lifting capacity, span, lift height, and power source requirements.

2. What operating methods are available for selection?

We offer pendant controllers with push buttons as standard. Remote control and cabin control with joysticks are also available upon request.

3. What is the maximum lifting capacity available?

Our standard cranes can handle up to 600 tons, while electric hoists reach up to 80 tons. Special customizations can exceed these limits.

4. Can the crane work in a workshop with limited space?

Yes, we have special low-headroom products designed specifically for workshops with limited space. Our engineers can provide detailed dimensions.

5. Are these cranes suitable for hazardous environments?

For hazardous or special environments, please consult our technical team to ensure the appropriate safety and protection specifications are applied.

6. How should I provide information to get a quote?

Please provide the Lifting Capacity, Span, Lifting Height, and Power Source. Any additional details or drawings will help us provide a more accurate quote.
