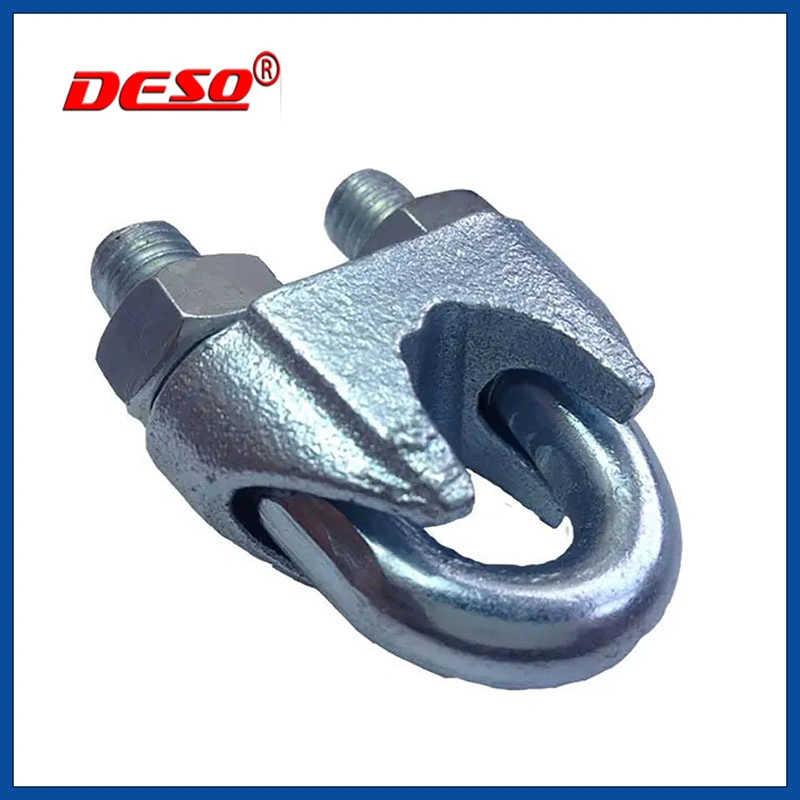

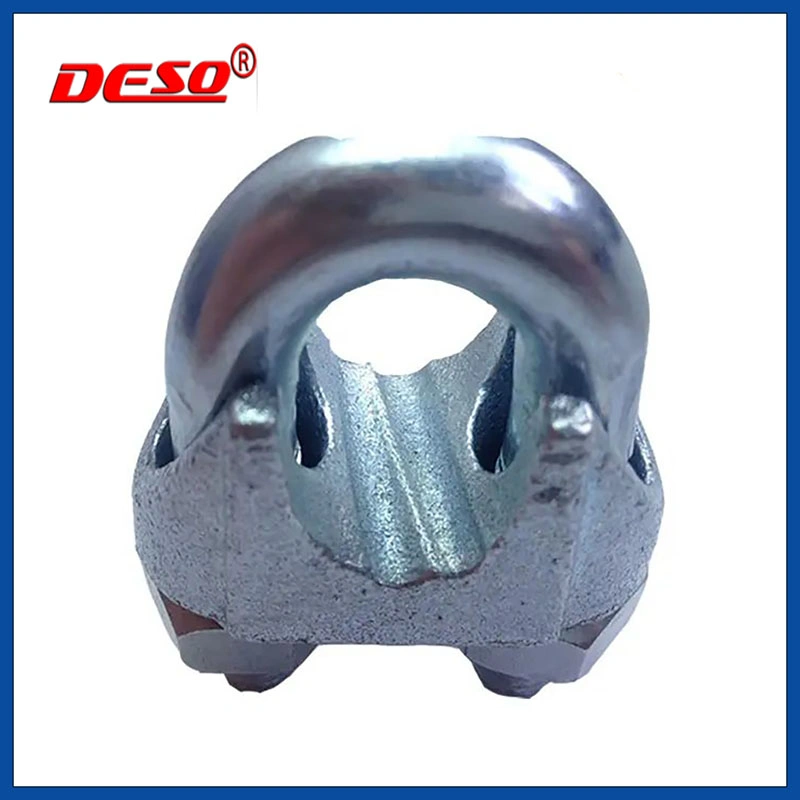

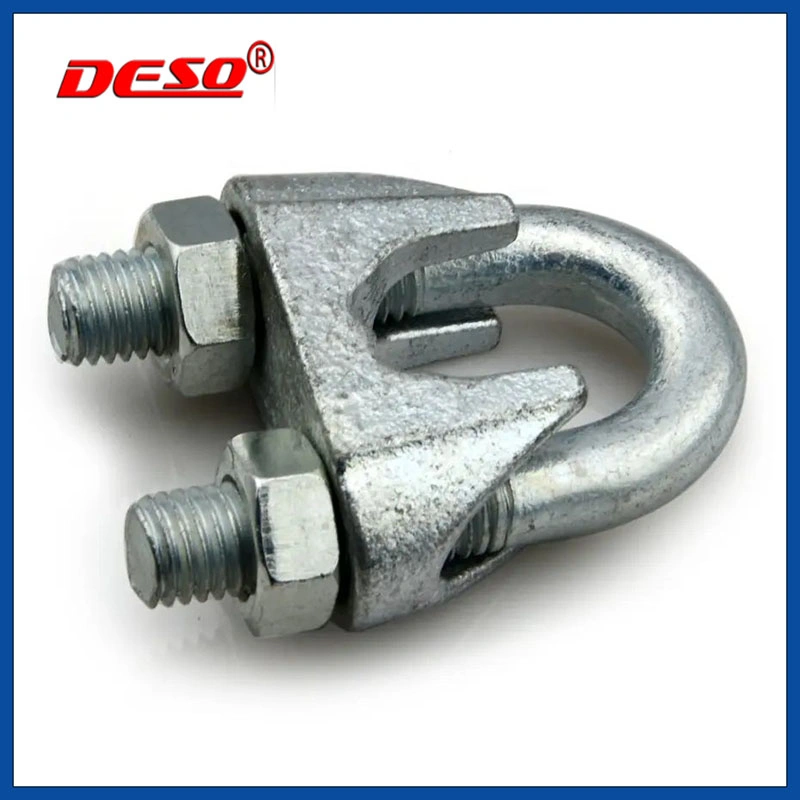

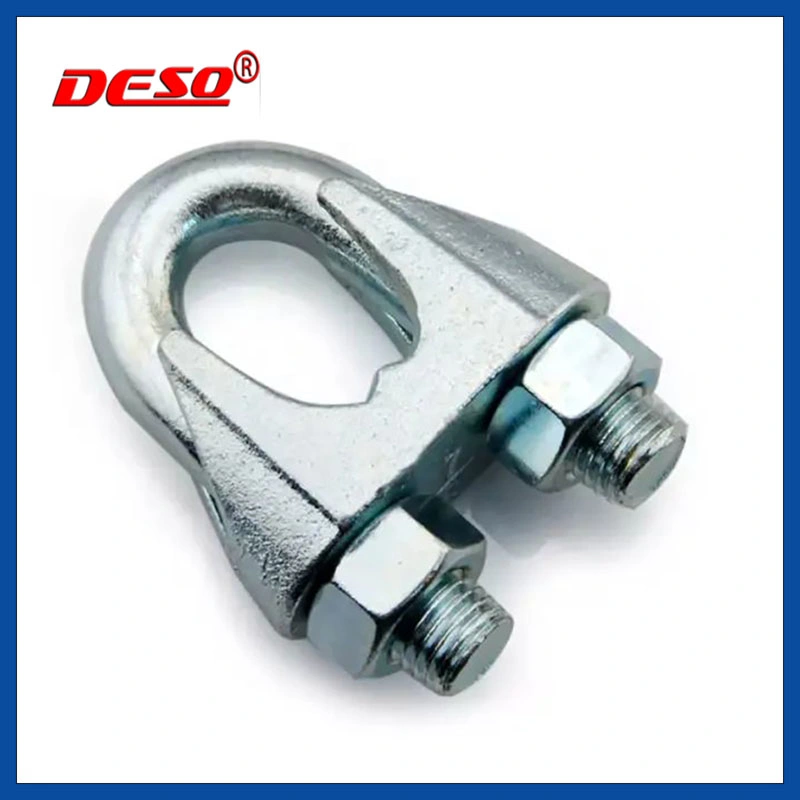

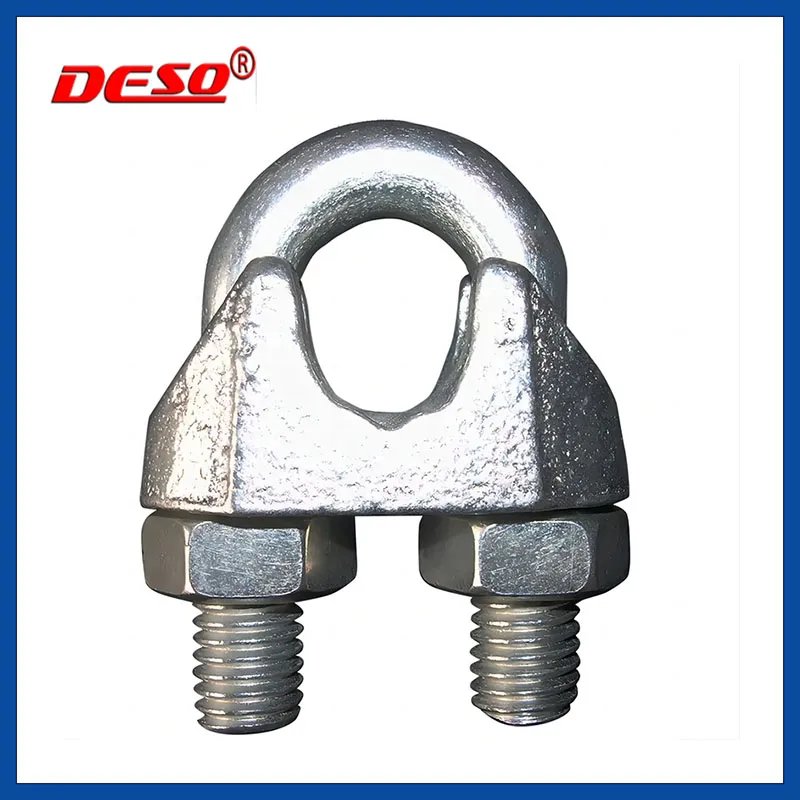

Factory Price DIN741 Rigging Galvanized Malleable Steel Wire Rope Clip

1 / 5

Factory Price DIN741 Rigging Galvanized Malleable Steel Wire Rope Clip

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

DIN741

Structure

U-Shaped

Standard

Condition

New

Color

Silver

Surface

Galvanized

Technology

Drop Forged, Casting, Polished

Payment

T/T L/C

Delivery Time

10-30 Days

Package

Carton or Wooden Box

Specification

3-40mm

Origin

China Mainland

HS Code

73269019

Capacity

40000PCS Per Month

🛠️ Product Description

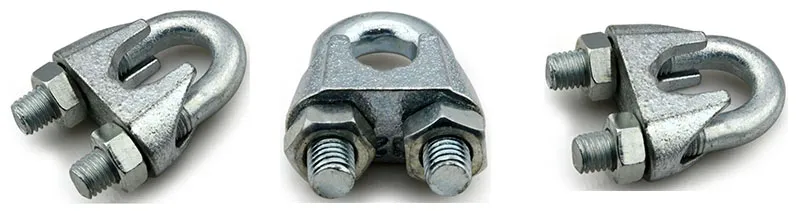

DIN741 Wire Rope Clip

Product	Wire rope clip
Standard	DIN741
Size	3mm ~ 40mm
Material	Carbon steel, malleable iron, 304/316 stainless steel
Surface Treatment	Hot dipped galvanized, electro galvanized, color painted, high polished
Heat treated	Drop forged, tempered and quenched
Features	Same strength as wire rope, high load security, long life service
Usage	Fixing the wire rope
Package	Gunny bag/woven bag/carton and pallet

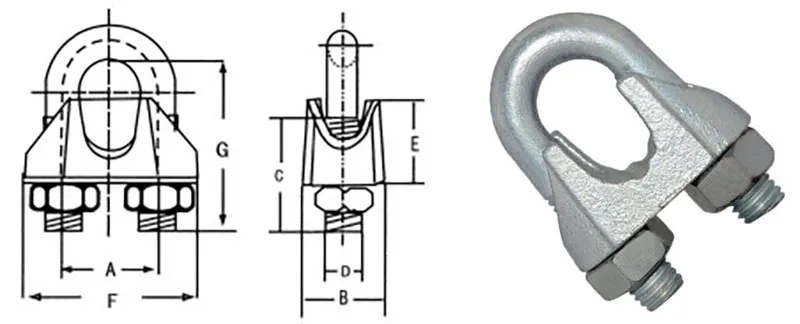

📐 Drawing and Technical Data

Item No.	Wire Rope Size		Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
Item No.	mm	in	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
DIN741-3	3	1/8	0.014	9	10	12	4	10	21	16
DIN741-5	5	3/16	0.015	11	11	13	5	10	23	19
DIN741-6.5	6.5	1/4	0.021	13	12	15	5	11	26	23
DIN741-8	8	5/16	0.041	16	14	19	6	15	30	28
DIN741-10	10	3/8	0.068	19	18	22	8	17	34	34
DIN741-13	13	1/2	0.13	24	23	30	10	21	42	45
DIN741-16	16	5/8	0.21	29	26	33	12	26	50	51
DIN741-19	19	3/4	0.28	32	29	38	12	30	54	63
DIN741-26	26	1	0.44	41	35	45	14	37	65	81
DIN741-40	40	1-1/2	1.04	58	45	60	16	55	88	124

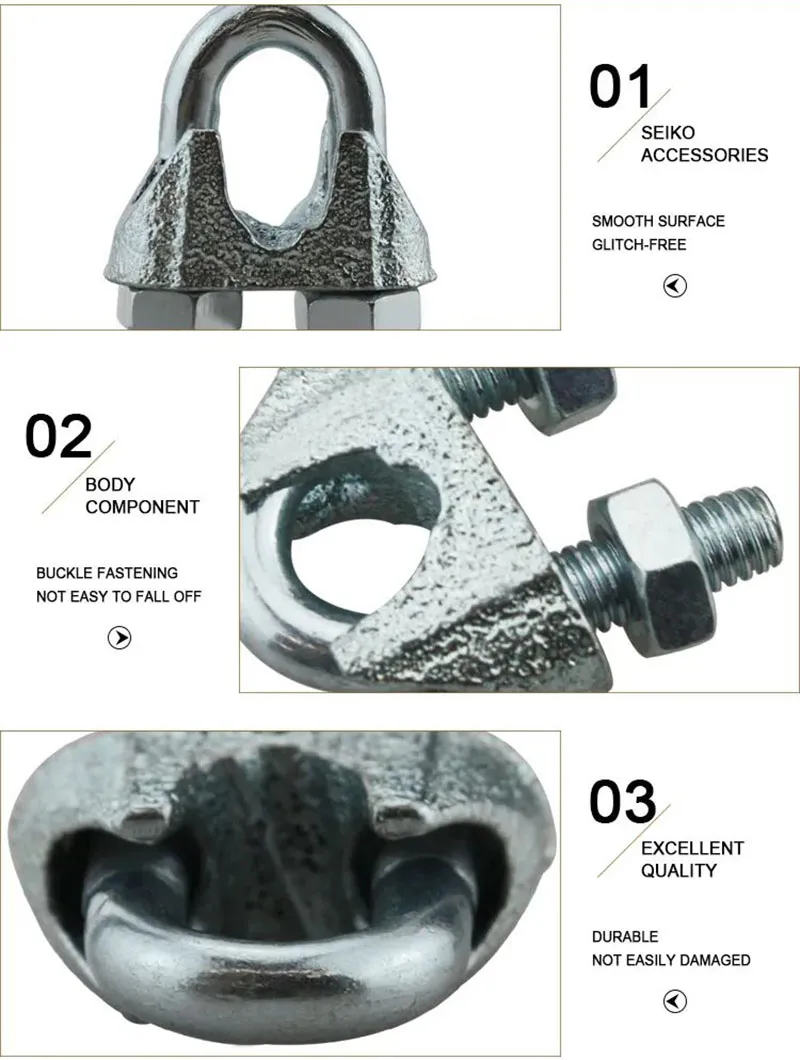

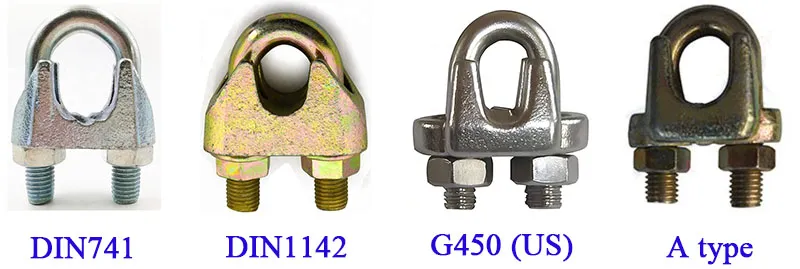

🔍 Product Details & Main Types

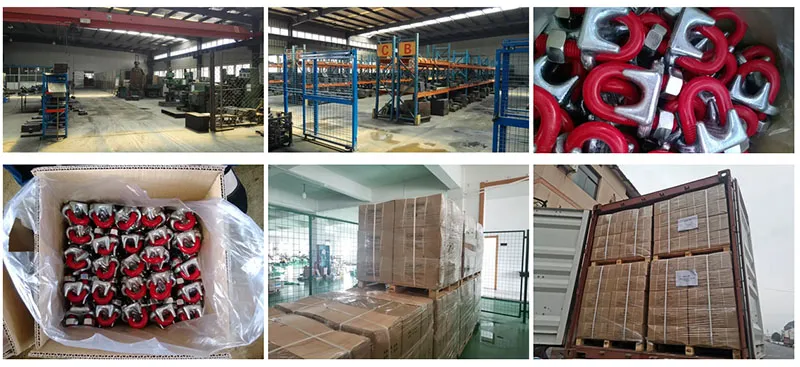

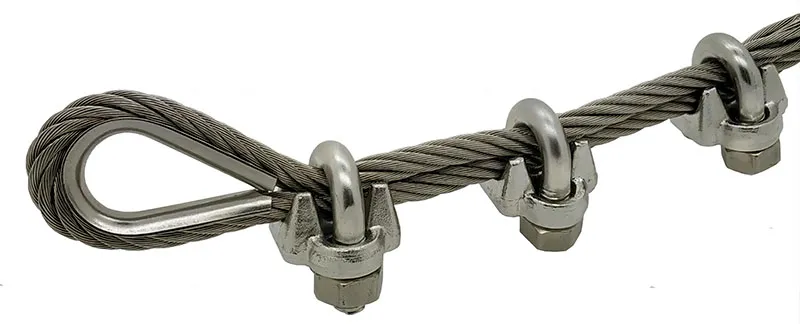

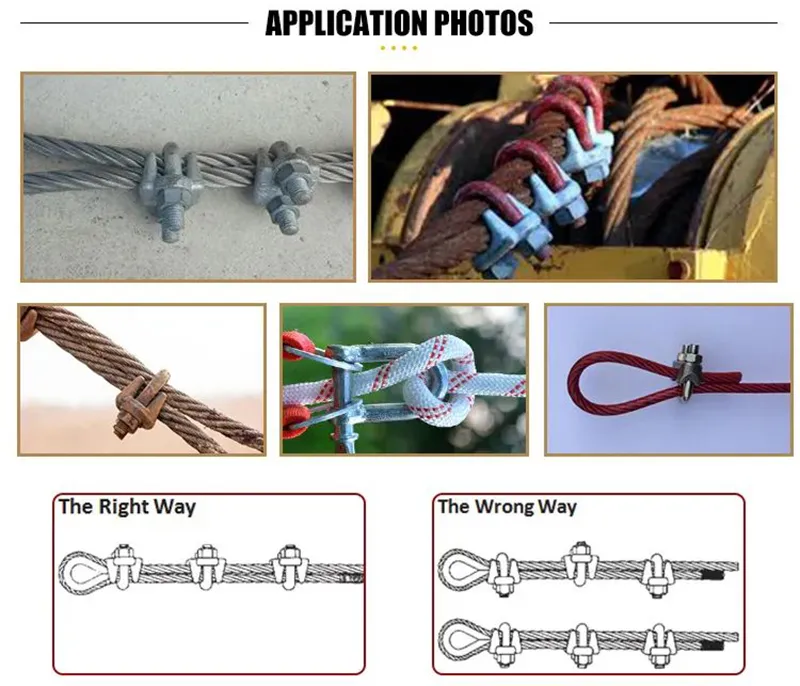

🚀 Application & Process

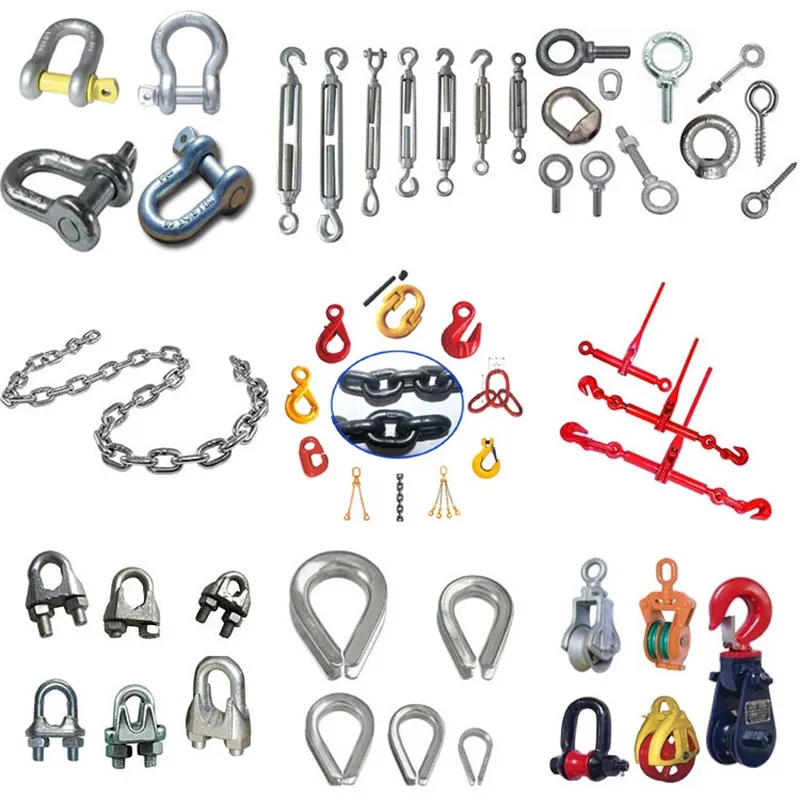

🔗 Related Products

Frequently Asked Questions

What is the standard of these wire rope clips?

Our wire rope clips are manufactured strictly according to the DIN741 standard, ensuring international compatibility and reliability.

What materials are available for the DIN741 clips?

We offer clips in Carbon Steel, Malleable Iron, and high-grade 304 or 316 Stainless Steel to suit different environmental conditions.

What range of sizes do you provide?

We provide a comprehensive size range from 3mm up to 40mm, covering most industrial and rigging requirements.

What surface treatments are applied for corrosion resistance?

Options include Hot Dipped Galvanized, Electro Galvanized, Color Painted, and High Polished finishes for maximum durability.

What is the typical delivery time for an order?

The standard delivery time ranges from 10 to 35 days, depending on the order quantity and specific customization requirements.

Can these clips be used for heavy lifting?

Yes, our drop-forged and heat-treated clips are designed for high load lifting security and offer the same strength as the wire rope itself.
