1. Basic Specifications

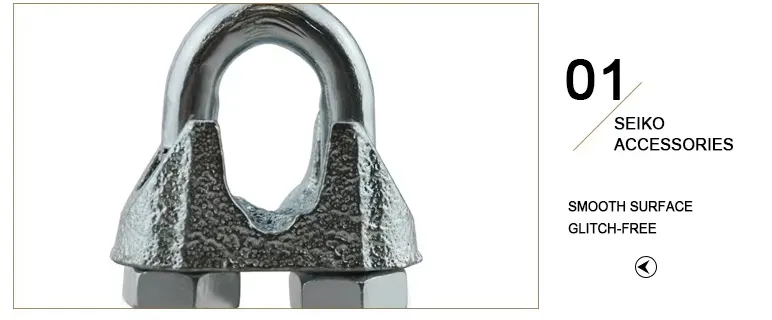

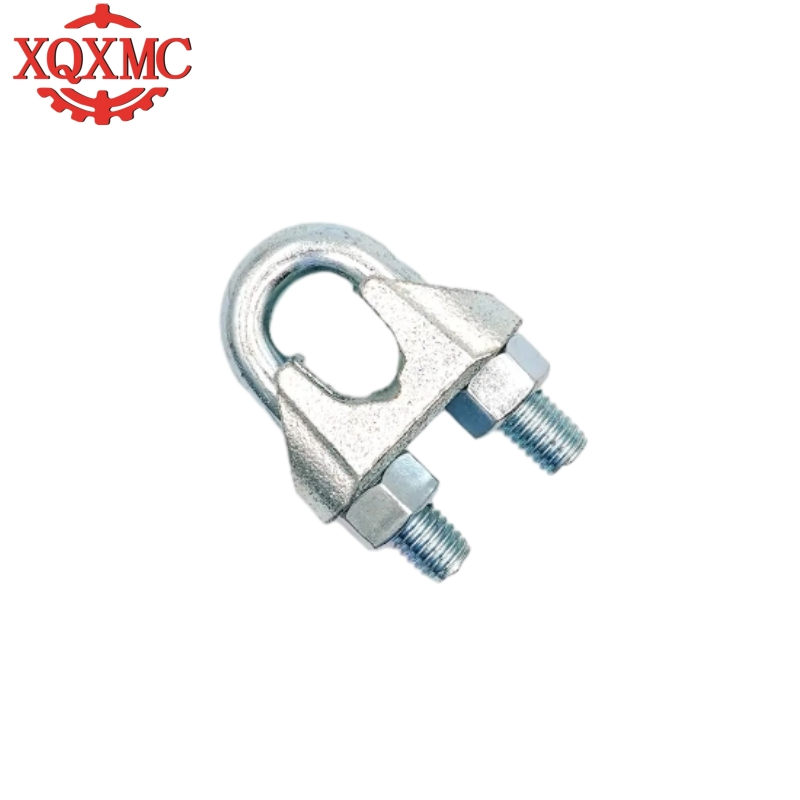

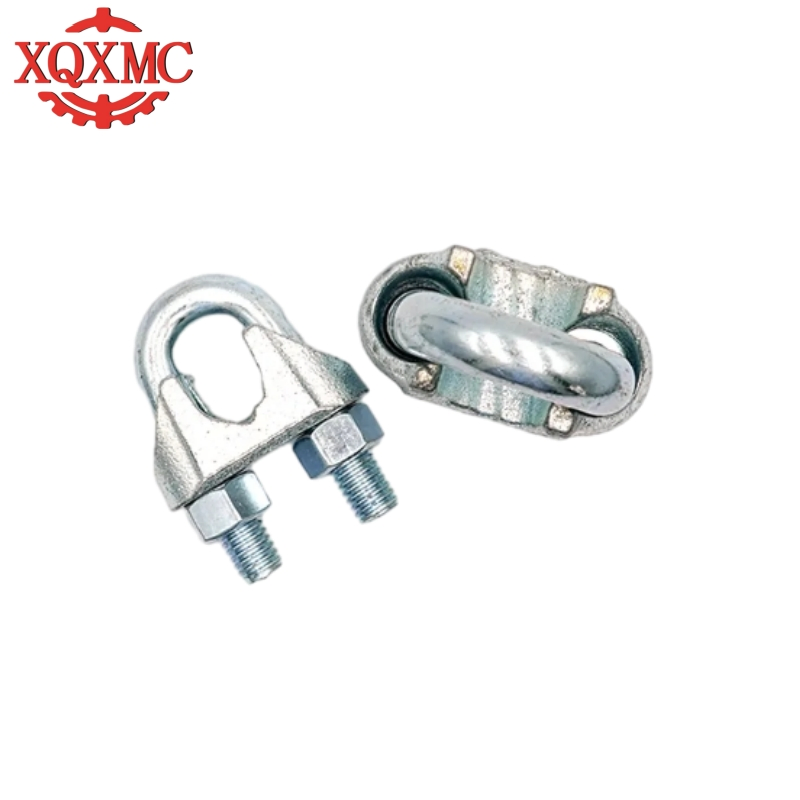

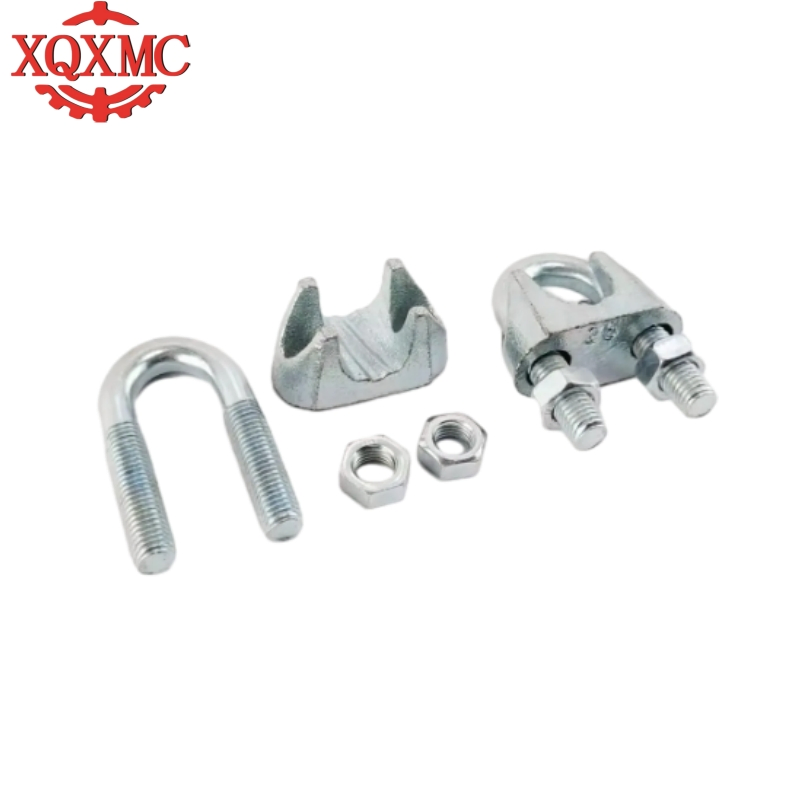

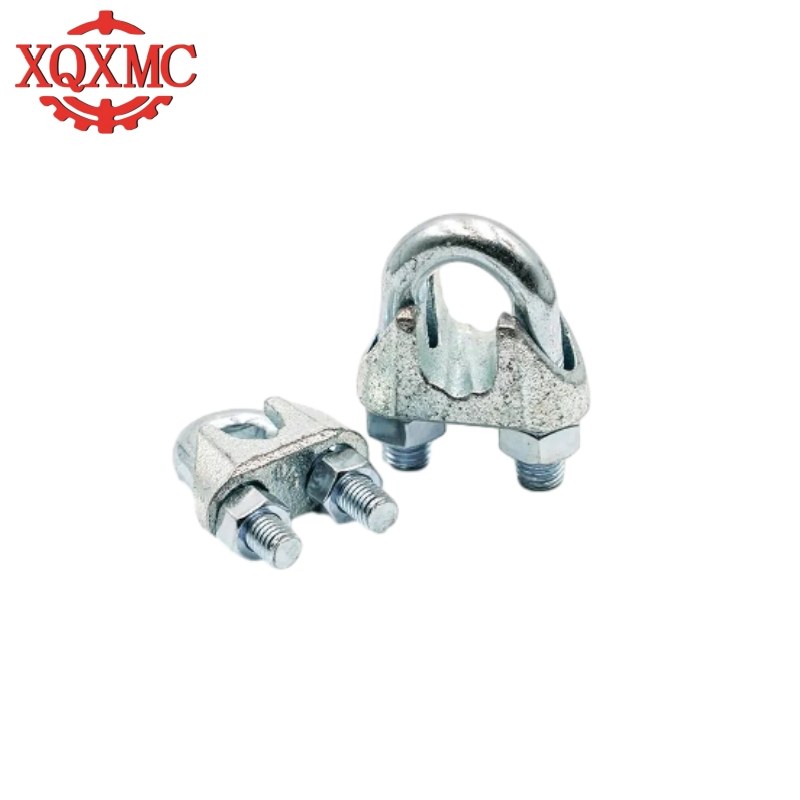

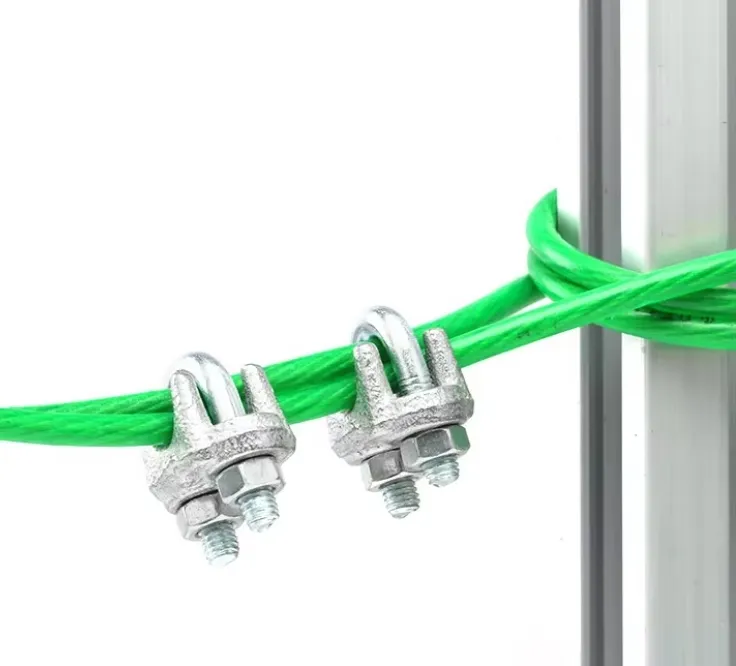

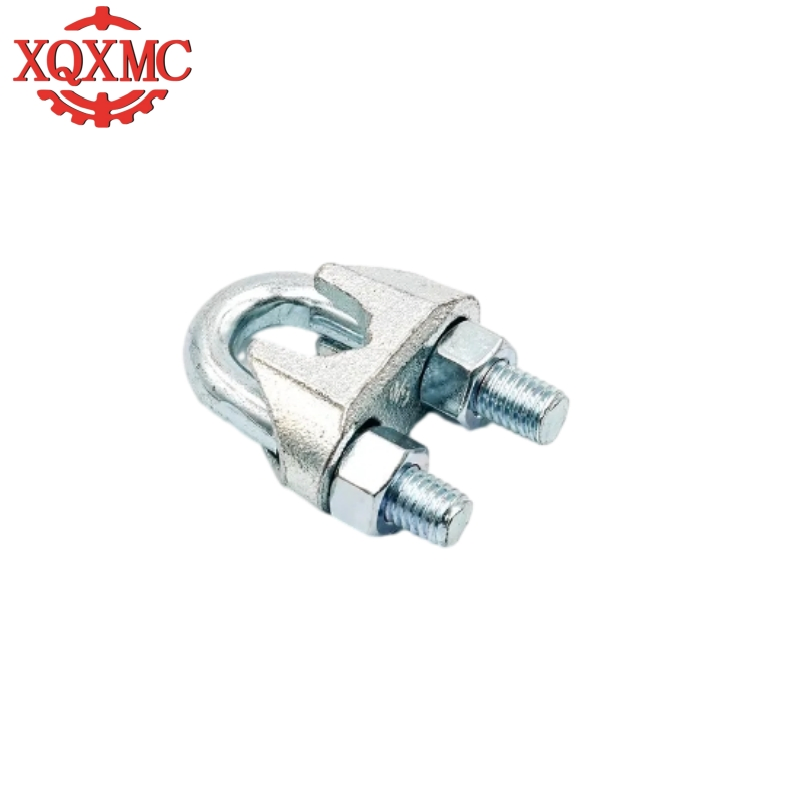

Product: U.S. Type Galvanized Malleable Wire Rope Clips
Size Range: 1/16" to 1-1/8" (approx. 2mm to 35mm).
2. Features
High Strength: Designed to withstand large tensile forces.
Easy Installation: Quick assembly and disassembly to improve efficiency.

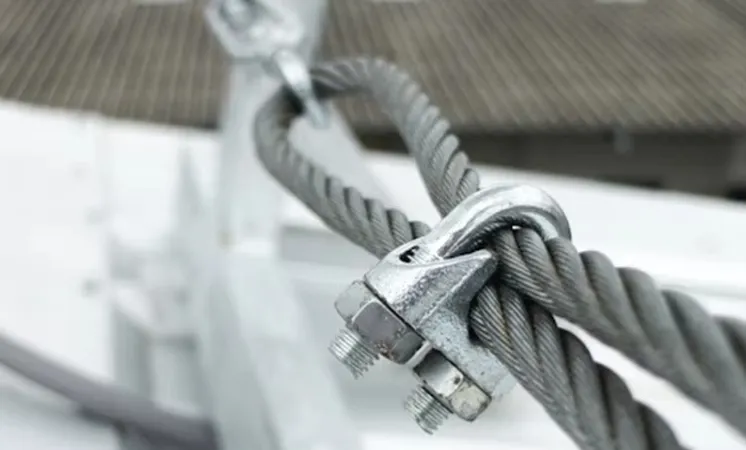

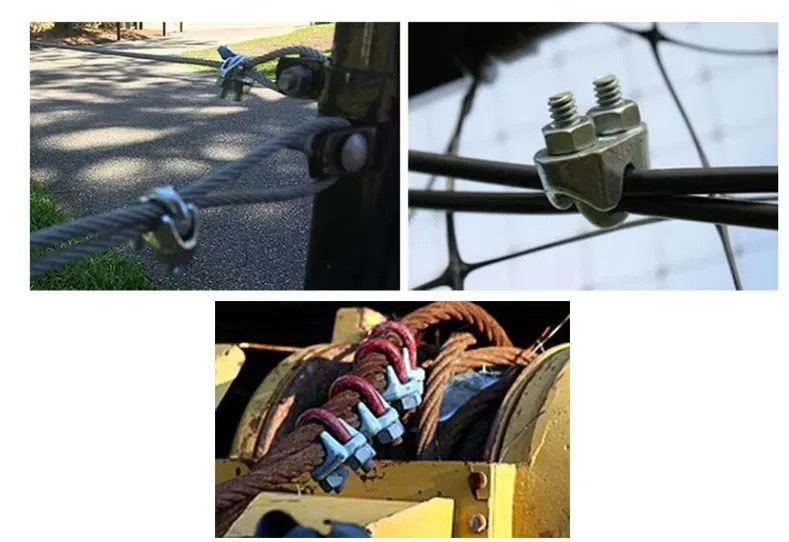

Commonly used for fixing and connecting wire ropes in lifting equipment, rigging systems, marine engineering, bridge construction, and mining industries.

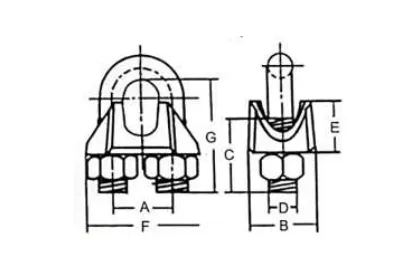

| Size (in) | A | B | C | D | E | F | G | WT (kg) |
|---|---|---|---|---|---|---|---|---|
| 1/8 | 11 | 14 | 14 | 10-24 | 10.8 | 22 | 20 | 1.5 |
| 3/16 | 13.5 | 15 | 16 | 1/4-20 | 13 | 26 | 14 | 3 |
| 1/4 | 17 | 18.5 | 20 | 5/16-18 | 15 | 32 | 31.5 | 5.18 |
| 5/16 | 18.3 | 20 | 22 | 5/16-18 | 16 | 35 | 34 | 5.95 |
| 3/8 | 22.5 | 22 | 27 | 3/8-16 | 22 | 40.5 | 41.8 | 10.01 |
| 1/2 | 27 | 26 | 35 | 7/16-14 | 23.3 | 49 | 53.9 | 17.42 |
| 5/8 | 33 | 28.5 | 40 | 1/2-13 | 28 | 57.5 | 59.2 | 24.84 |
| 1 | 45.5 | 42 | 55 | 5/8-11 | 43 | 77.5 | 87.5 | 68.32 |

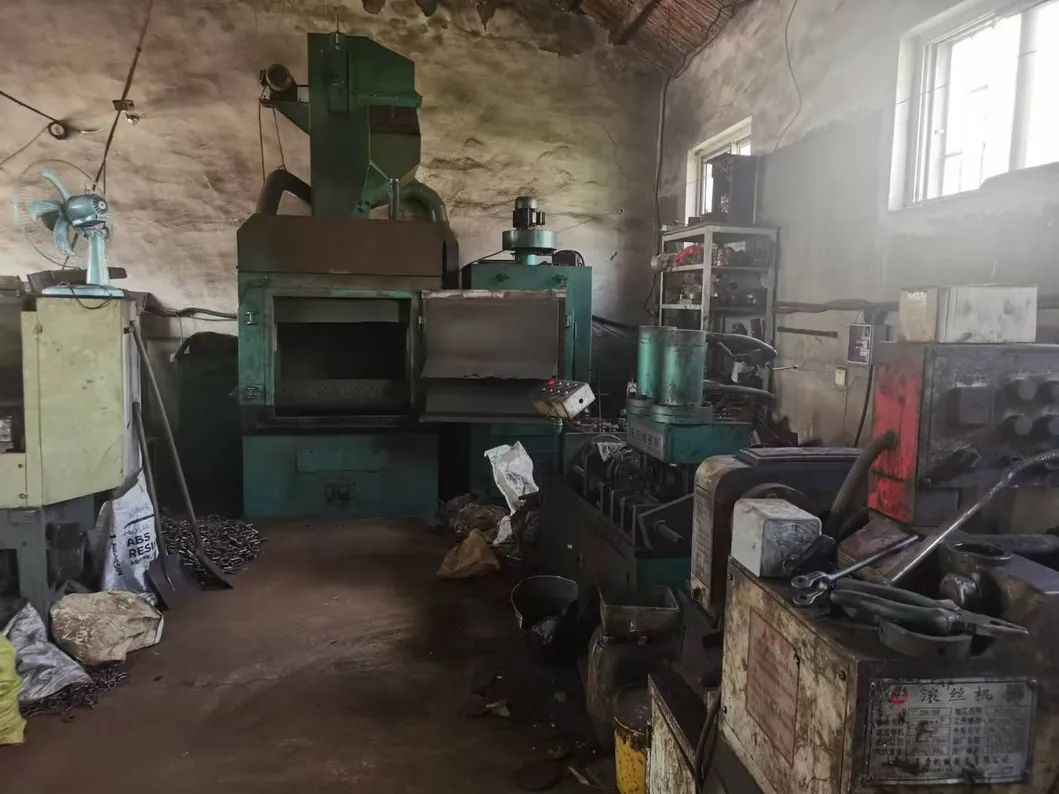

Established in 2001, our facility has over 20 years of history in hardware rigging and forging. We specialize in the production and sales of open-body turnbuckles, die forging shackles, and wire rope connecting parts. Our business spans across the United States, Russia, Japan, and other global markets.
Equipped with advanced production methods and strong technical capacity, we adhere to the principle of quality first, ensuring safe production and timely delivery for total customer satisfaction.
