Glinder lift
1 / 5
| Model NO. | T0011 | Usage | Industrial, Household |
|---|---|---|---|
| Installation | External | Condition | New |
| Custom Service | Available | Transport Package | Carton, Bag or Pallet |
| Specification | M4-M24 | Trademark | XME |
| Origin | China | HS Code | 73269090 |
| Production Capacity | 1,000,000 PCS/Year | ||

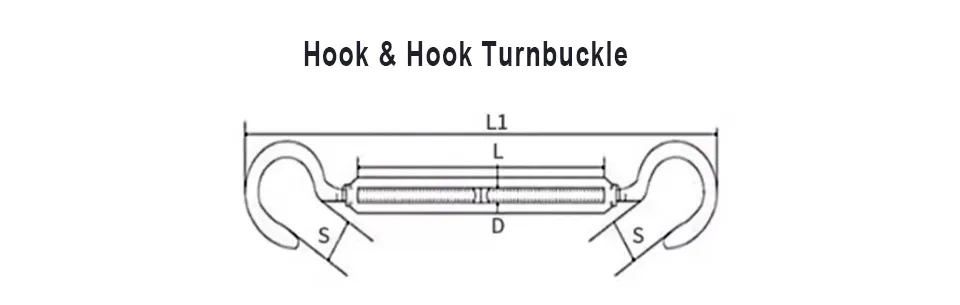

| Specification | D (mm) | S (mm) | L (mm) | L1 (mm) | Adjustable Distance (mm) | Weight/100pcs (kg) |
|---|---|---|---|---|---|---|
| M4 | 4.66 | 7.74 | 61.2 | 106.4 | 39.0 | 3.53 |
| M5 | 4.70 | 7.72 | 73.6 | 122.0 | 59.0 | 3.85 |
| M6 | 5.70 | 10.50 | 91.0 | 145.0 | 64.0 | 6.60 |
| M8 | 7.60 | 10.00 | 121.0 | 189.0 | 96.0 | 13.30 |
| M10 | 10.44 | 12.60 | 151.0 | 133.0 | 115.0 | 26.10 |
| M12 | 11.50 | 16.34 | 199.0 | 299.0 | 163.0 | 47.50 |
| M16 | 16.00 | 21.80 | 248.0 | 385.0 | 193.0 | 99.90 |

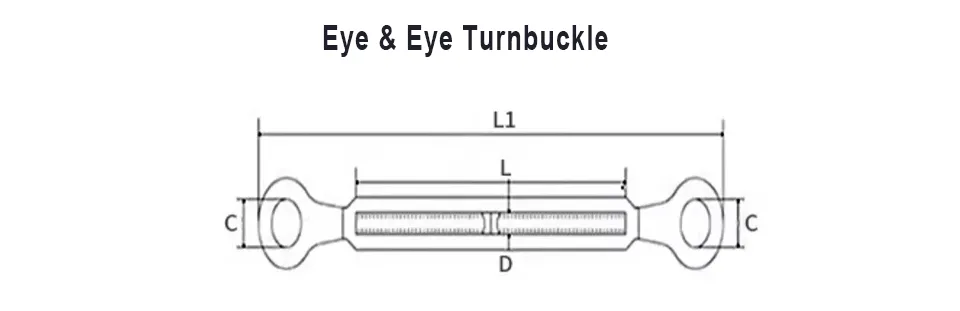

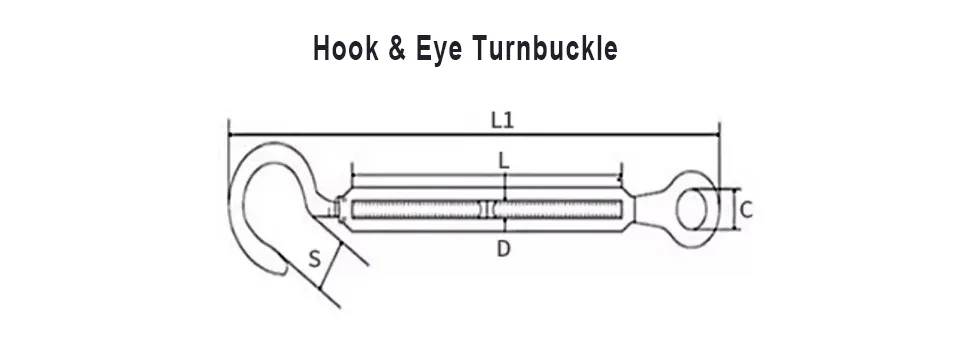

| Specification | C (mm) | D (mm) | S (mm) | L (mm) | L1 (mm) | Weight/100pcs (kg) |
|---|---|---|---|---|---|---|
| M4 | 10.70 | 4.66 | 7.74 | 61.2 | 106.4 | 3.428 |
| M6 | 11.24 | 5.70 | 10.50 | 91.0 | 145.0 | 6.691 |
| M12 | 18.60 | 11.50 | 16.34 | 199.0 | 299.0 | 46.652 |
| M20 | 30.10 | 20.00 | 22.10 | 299.0 | 465.0 | 195.800 |
Superior Durability: Anti-Oxidation, Corrosion-Resistant & Ultra-Strong – Solid Construction for Heavy-Duty Performance!

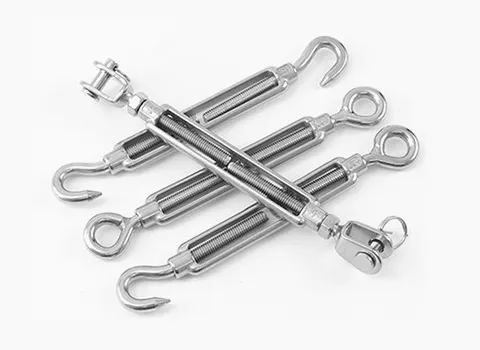

Expertly crafted from superior materials featuring a brilliant polished surface - beautifully designed for both style and durability.
Ideal process for manufacturing high-precision, corrosion-resistant, and long-life stainless steel turnbuckles suited for industrial applications.

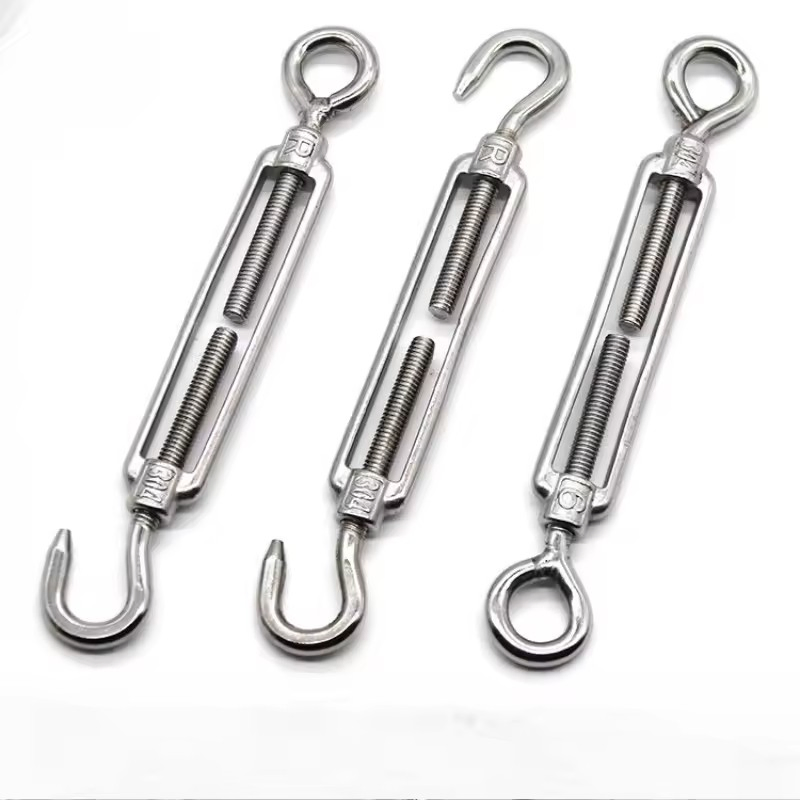

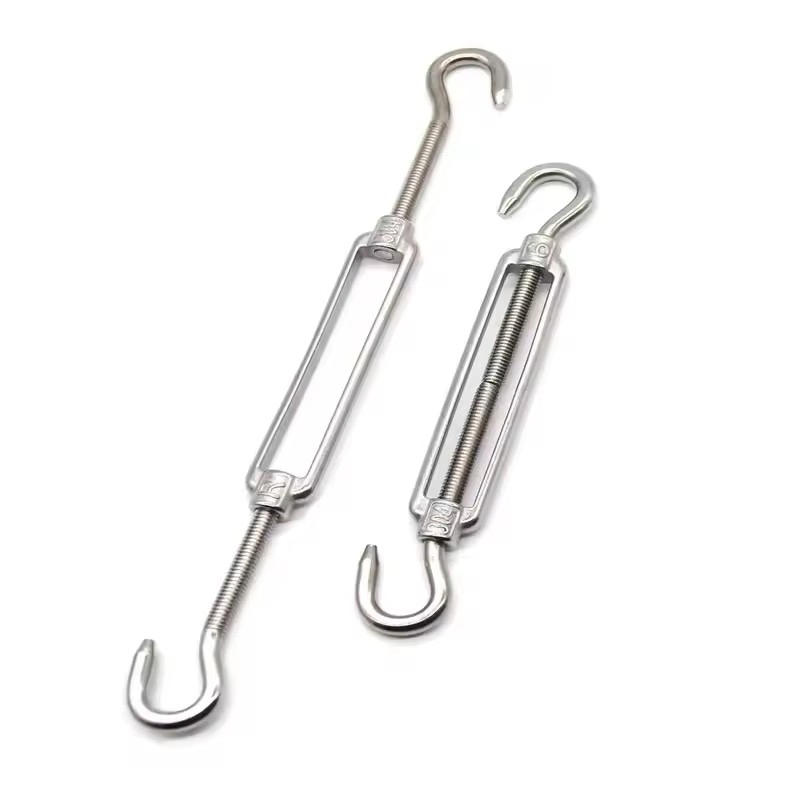

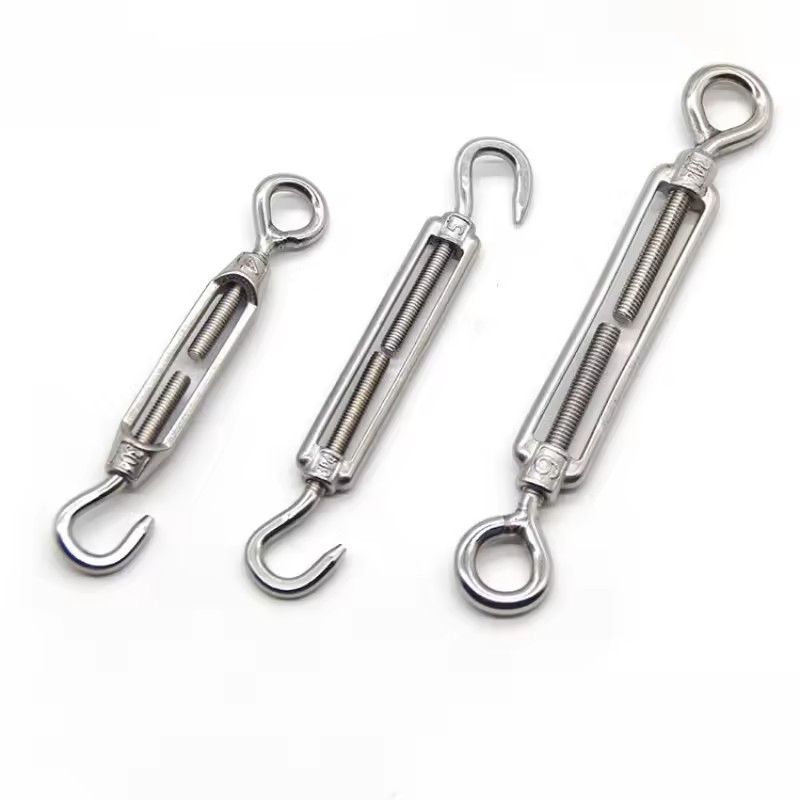

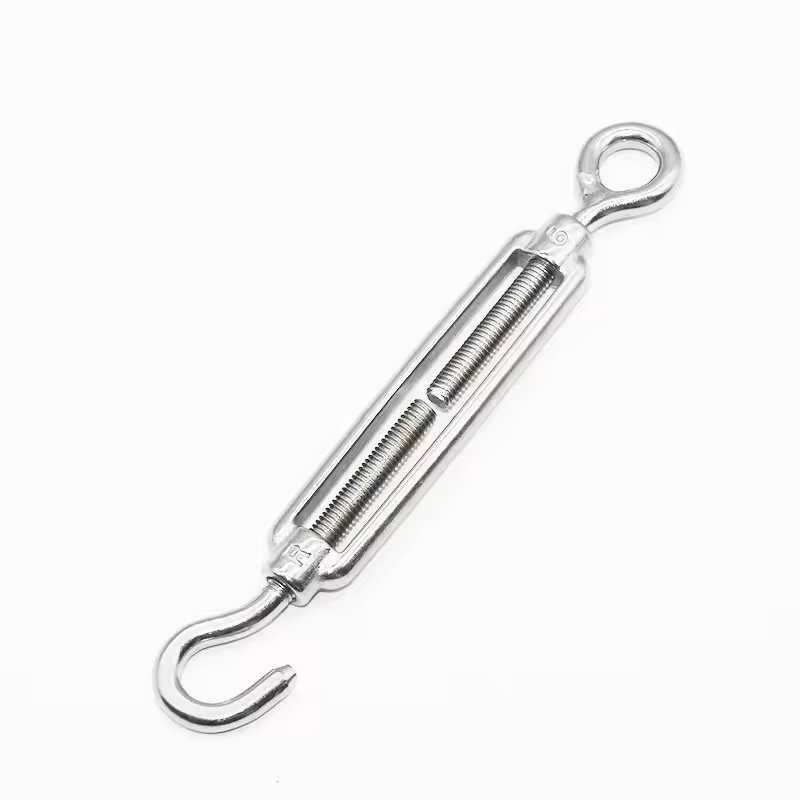

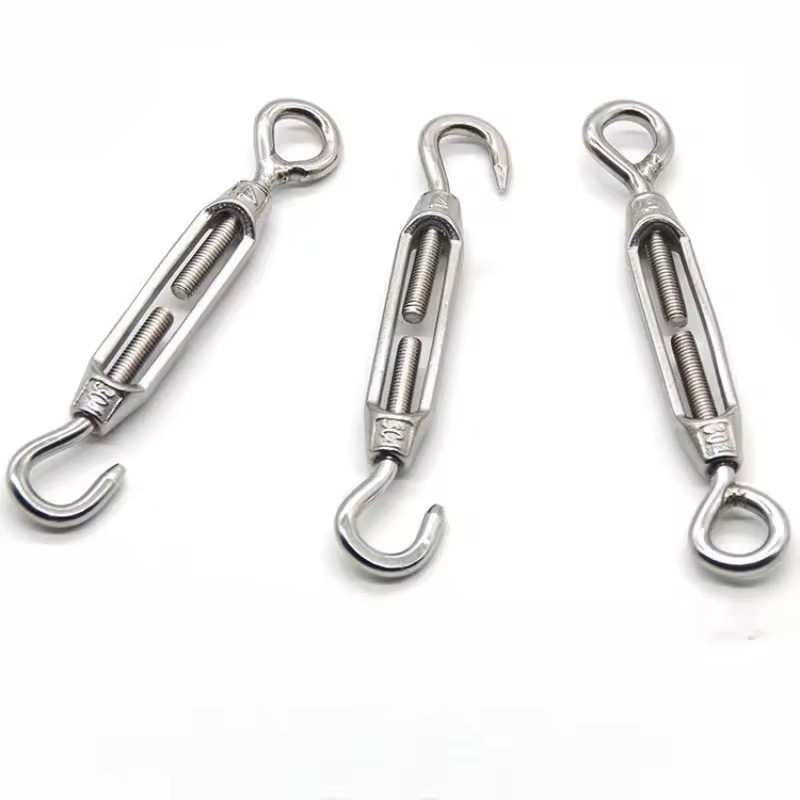

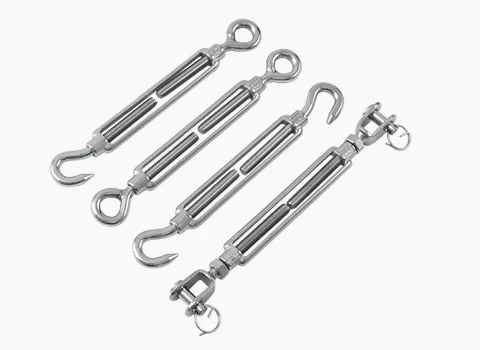

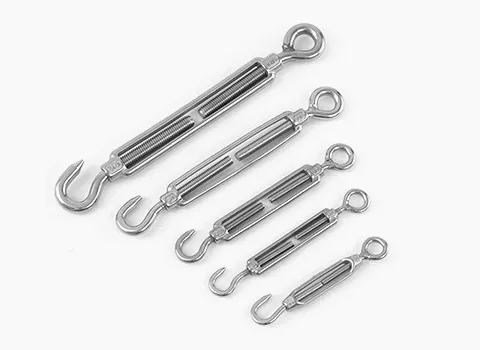

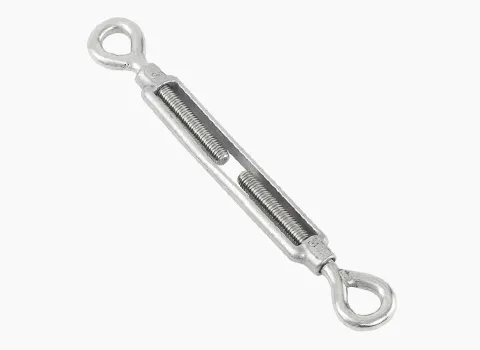

Complete Turnbuckle Solution – Jaw & Jaw (CC-type), Hook & Eye (CO-type), and Eye & Eye (OO-type) from M4 to M30.

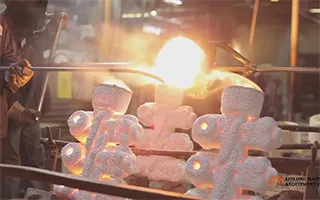

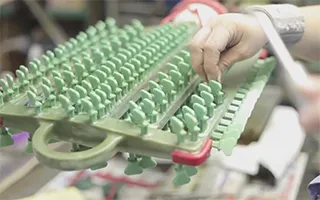

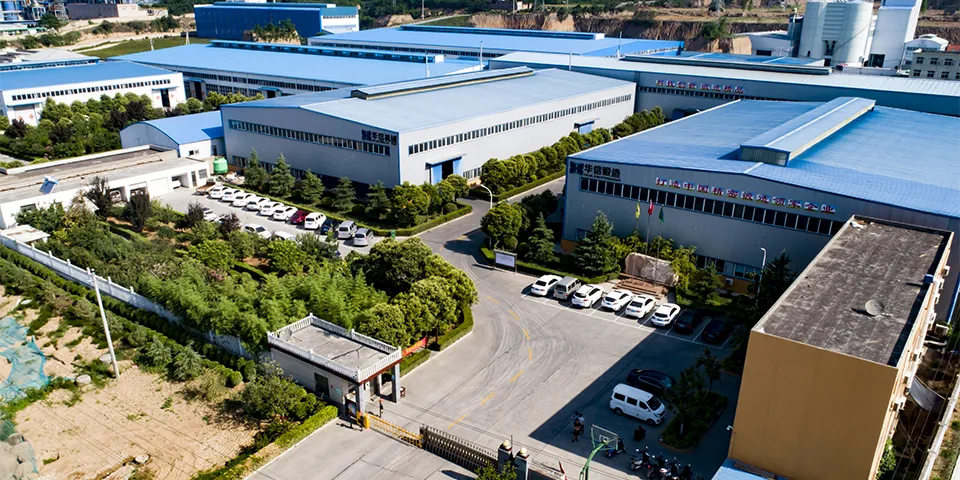

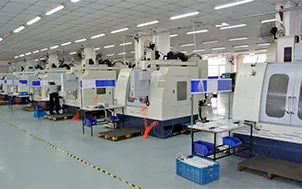

Our facility is a leading manufacturing enterprise specializing in precision casting, machining, and heat treatment. We operate a modern silica sol investment casting production line with an annual capacity of 3,500 tons of high-quality precision castings.
Stainless steel rigging hardware is one of our core specialties. We have developed over 1,000 product varieties, including rigging components, 304/316 turnbuckles, and lifting eye nuts. Our products meet international quality standards for marine, construction, and industrial applications globally.
