Telescopic Over Height Spreader Lifting Beam

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Basic Info.

Model NO.

OHAT20

Type

Safety Hook

Material

Q355b

Lifting Capacity

50t

Fixed Form

Welding Type

Lifting Eye Type

Folded Eye

Rope Core Type

Steel Core

Power Source

Manual Operation

Shape

Flat

Certification

GS, CE, RoHS, ISO 9001, ABS Rina

Sling Color

Yellow

Rated Lifting Load

50t

Self-Weight

5.0t

Allowable Load Eccentricity

10%

Ambient Temperature

-10~+55

Transport Package

Container

Specification

6340*2934*2896mm

HS Code

8431209000

Production Capacity

1000

Product Description

Telescopic Over Height Spreader Lifting Beam

It is comprised by two parts which including an over-height frame and a park standing. The park standing can be used for protecting the OHF from been worn out. In addition, it is applicable for the maintenance of relevant equipment. It can be attached by the forklift, which makes it convenient to move in the yard.

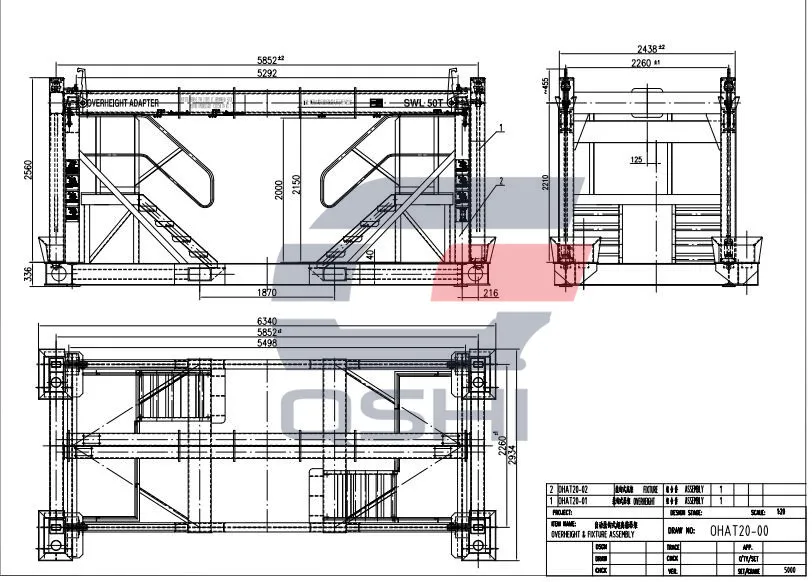

Drawing & Technical Specifications

Model: OH0100
Effective height: 2896 mm
High self-weight: 5.0 tons (2.1 tons hanger, chassis 2.9 tons)
Scope of application: 20, 40, 45 feet ISO compliant containers
Spreader rated lifting capacity (spreader): 40 tons; ultimate load 50 tons
Applicable ambient temperature: -10 ~ +55 ºC
Overall adapt of flange connection (easy to load containers)
Connection method: Over-height spreader frame and container connected by rotating pin
Spreader on the hole are installed M10 * 1 flat brass nozzle
Material selection: the main material Q355

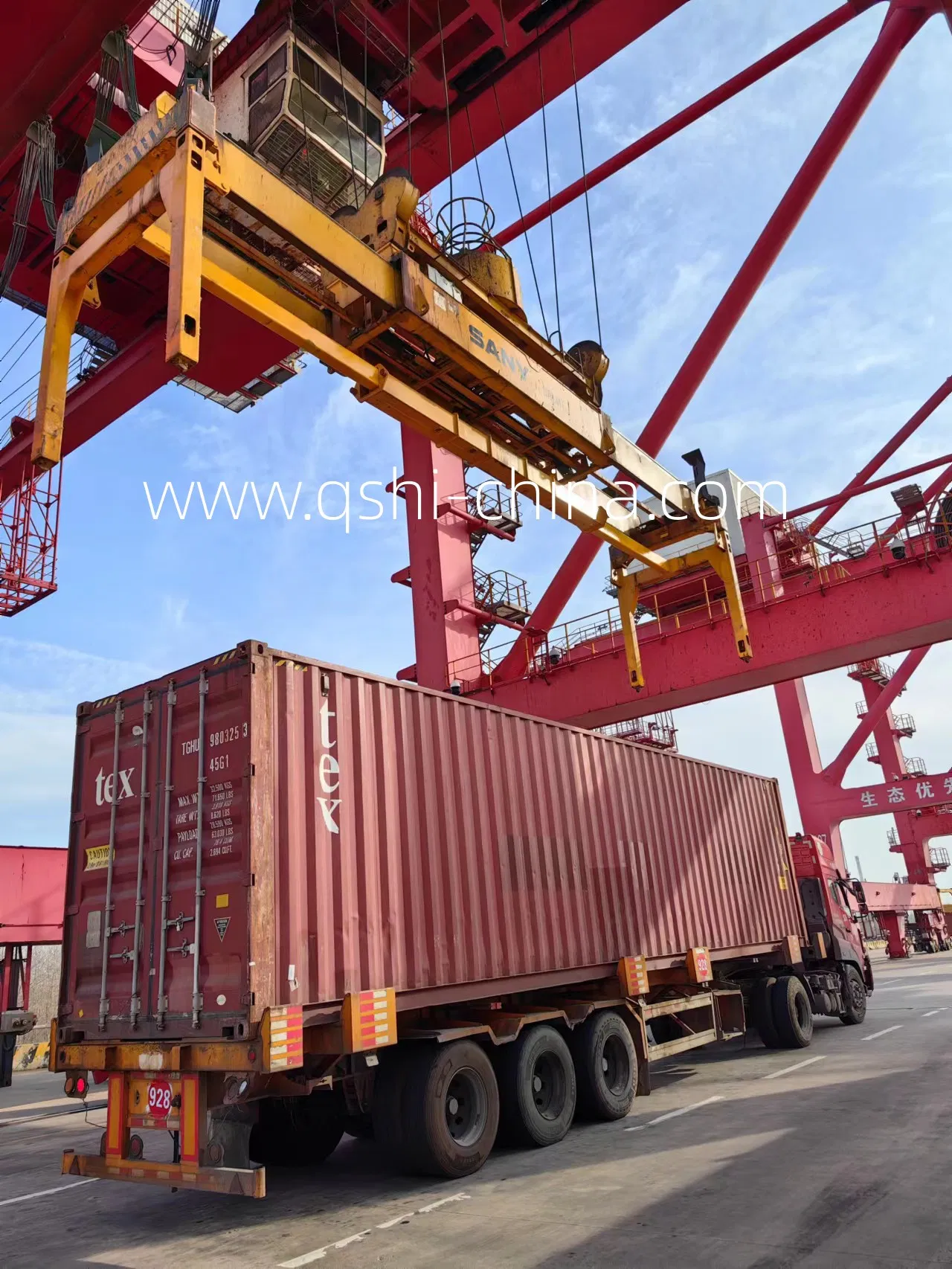

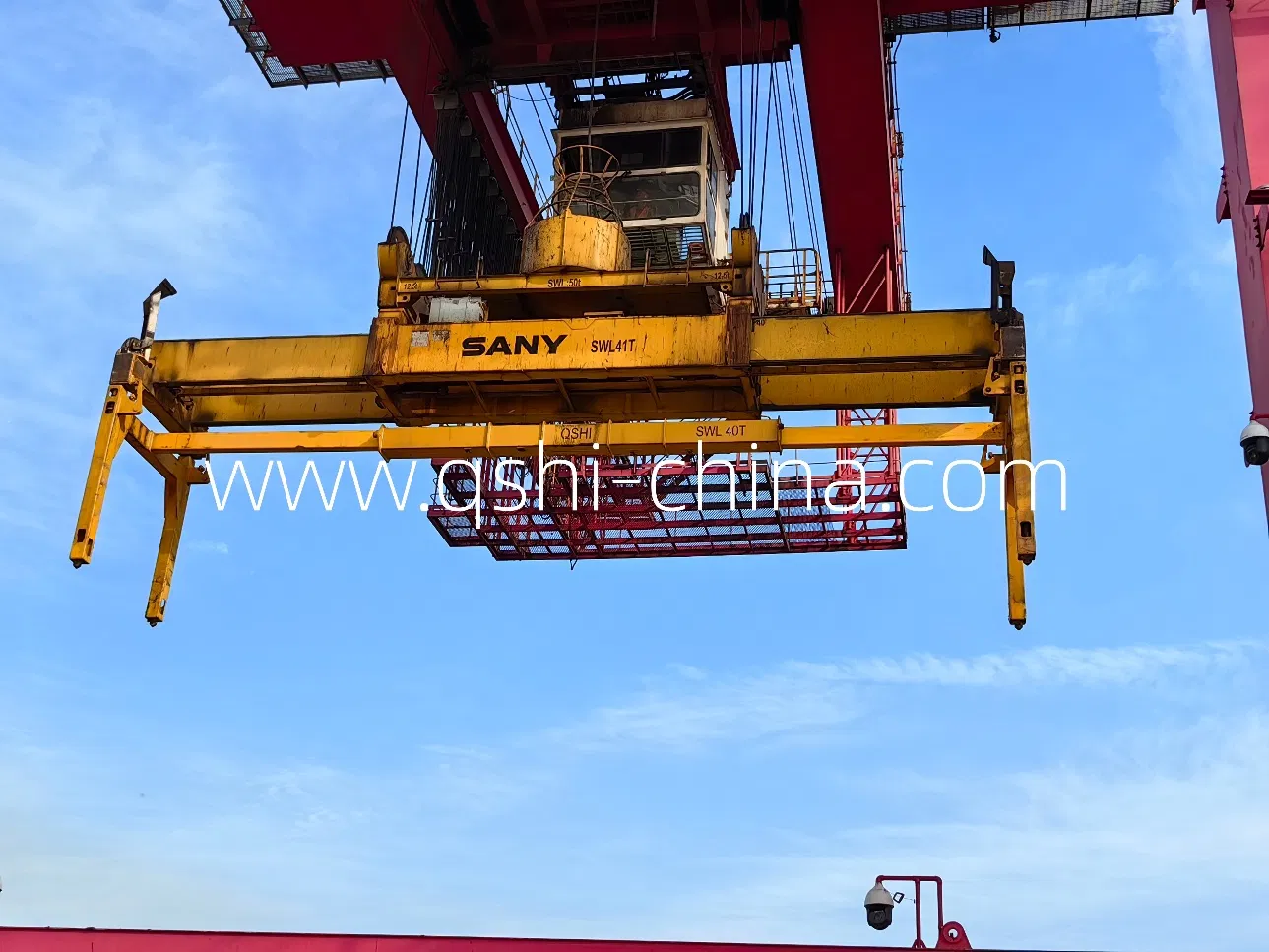

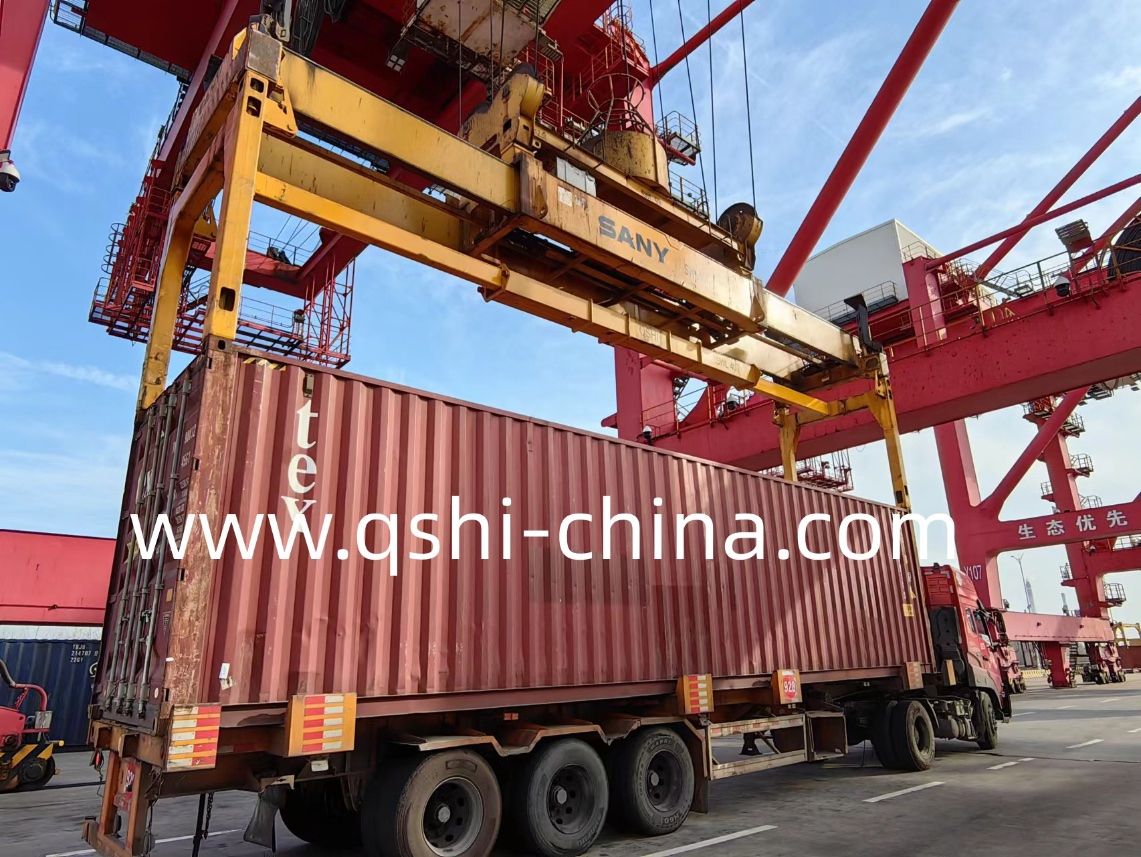

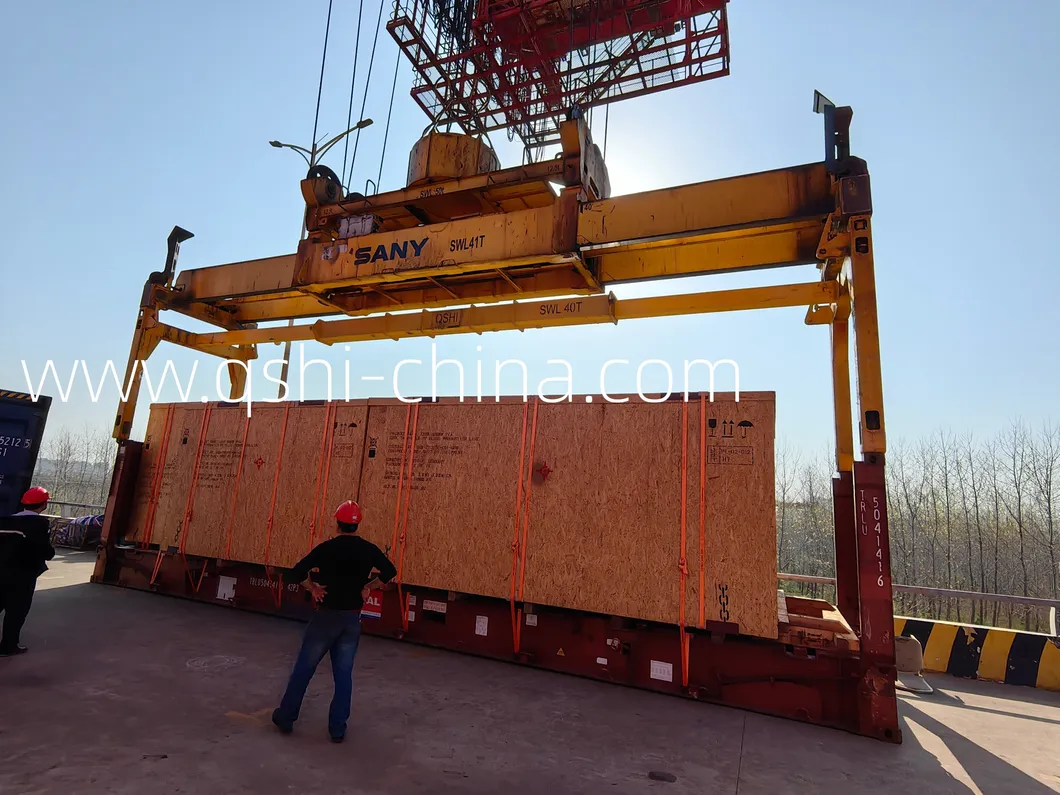

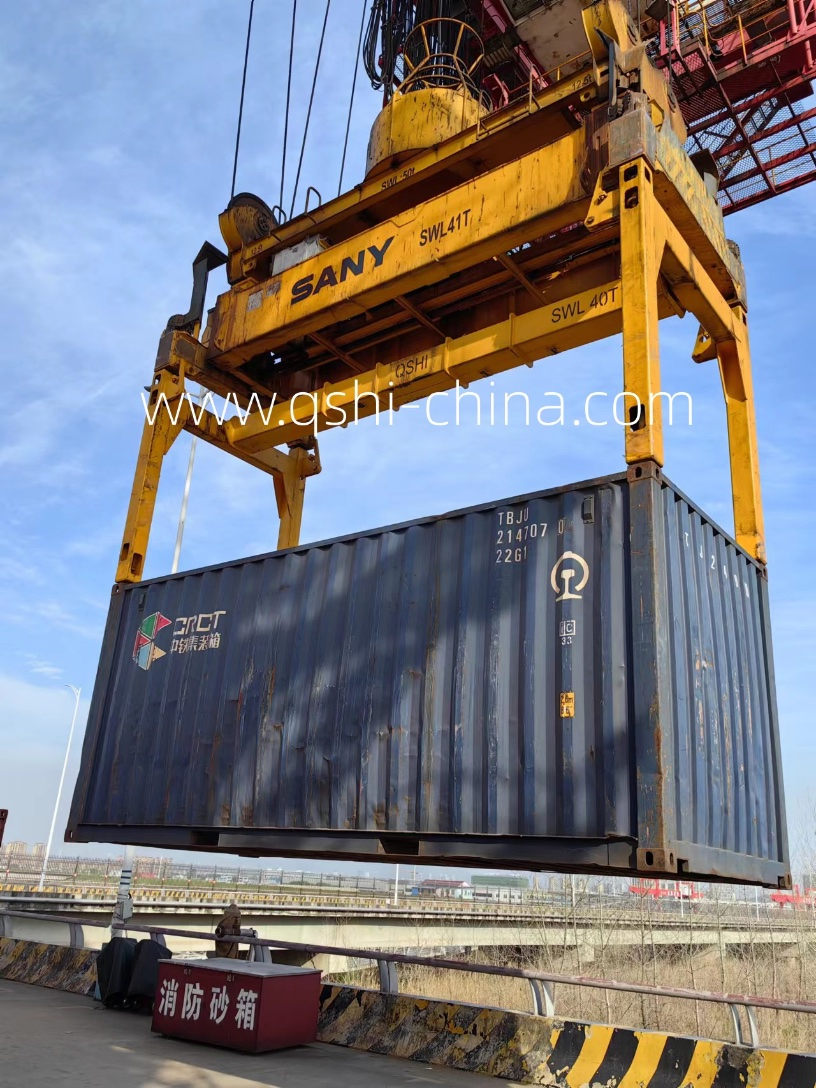

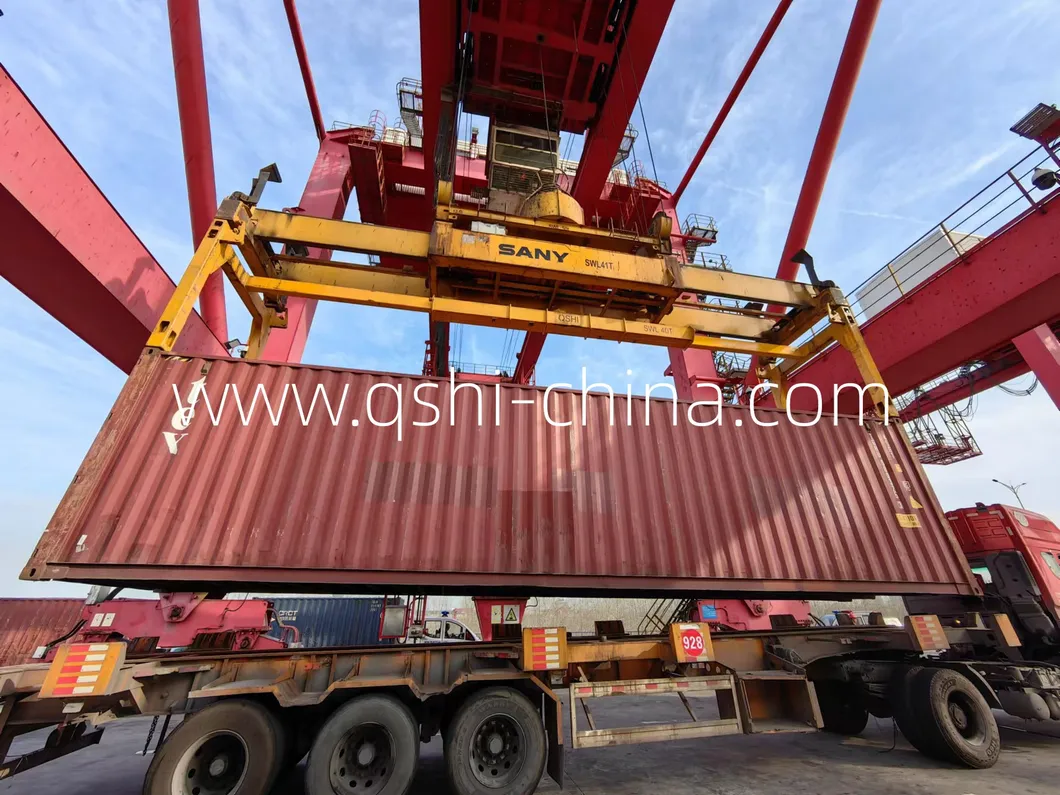

Product Gallery

Loading Test & Packing

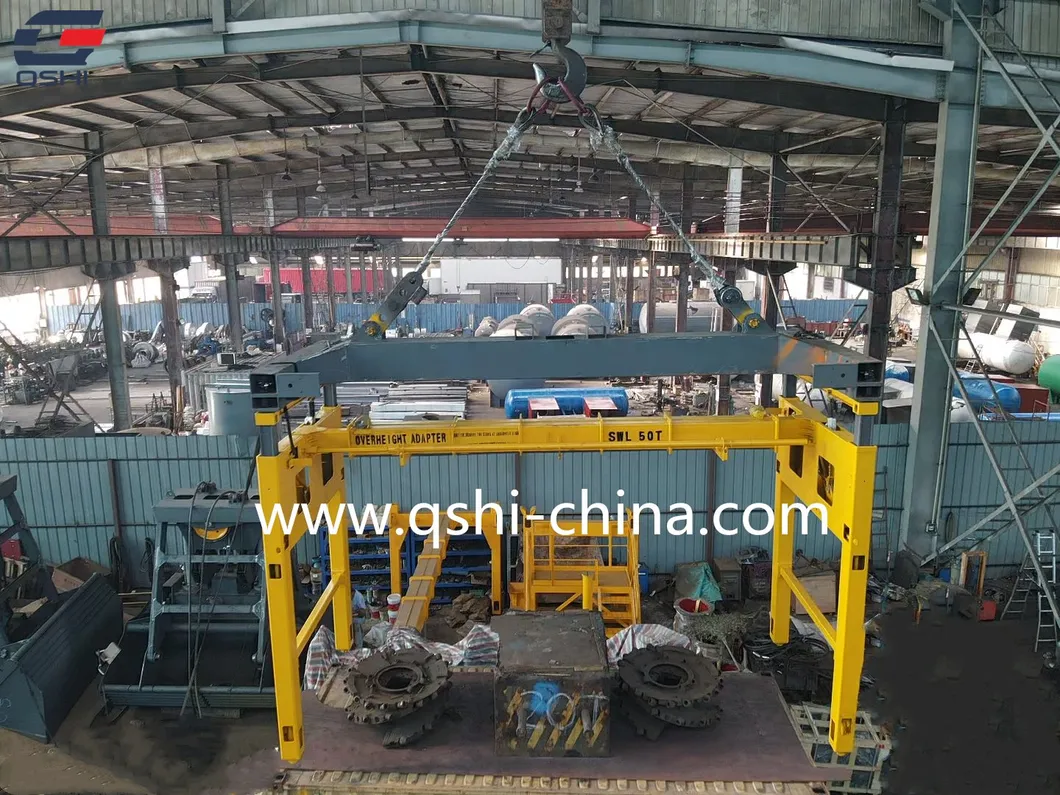

Loading Test:

Packing: Packing

Professional Services

1. Pre-sale services:

Design customized project for clients.
Design and manufacture products according to clients special requirement.
Train technical personnel for clients.

2. Services during the sale:

Help clients to find reasonable freight forwarders ahead of delivery.
Help clients to draw solving plans.

3. After-sale services:

Assist clients to prepare for the construction scheme.
Install and debug equipment.
Train the first-line operators.
Examine equipment and take initiative to eliminate troubles immediately.
Provide technical exchanging.

Frequently Asked Questions

Q1: What container sizes is this over-height spreader compatible with? A: It is designed to work with 20, 40, and 45 feet ISO compliant containers.

Q2: What is the maximum lifting capacity of the spreader? A: The spreader has a rated lifting capacity of 40 tons, with an ultimate load capacity of 50 tons.

Q3: How does the park standing benefit the equipment? A: The park standing protects the over-height frame (OHF) from wear and tear and facilitates easier maintenance of the equipment.

Q4: What is the operating temperature range for this equipment? A: The equipment is designed to operate reliably in ambient temperatures ranging from -10 ºC to +55 ºC.

Q5: How is the spreader connected to the container? A: The connection is established between the over-height spreader frame and the container using a secure rotating pin method.

Q6: Is it easy to move the spreader within a port or yard? A: Yes, it is designed to be forklift-compatible, which makes it very convenient to transport and reposition in the yard.
