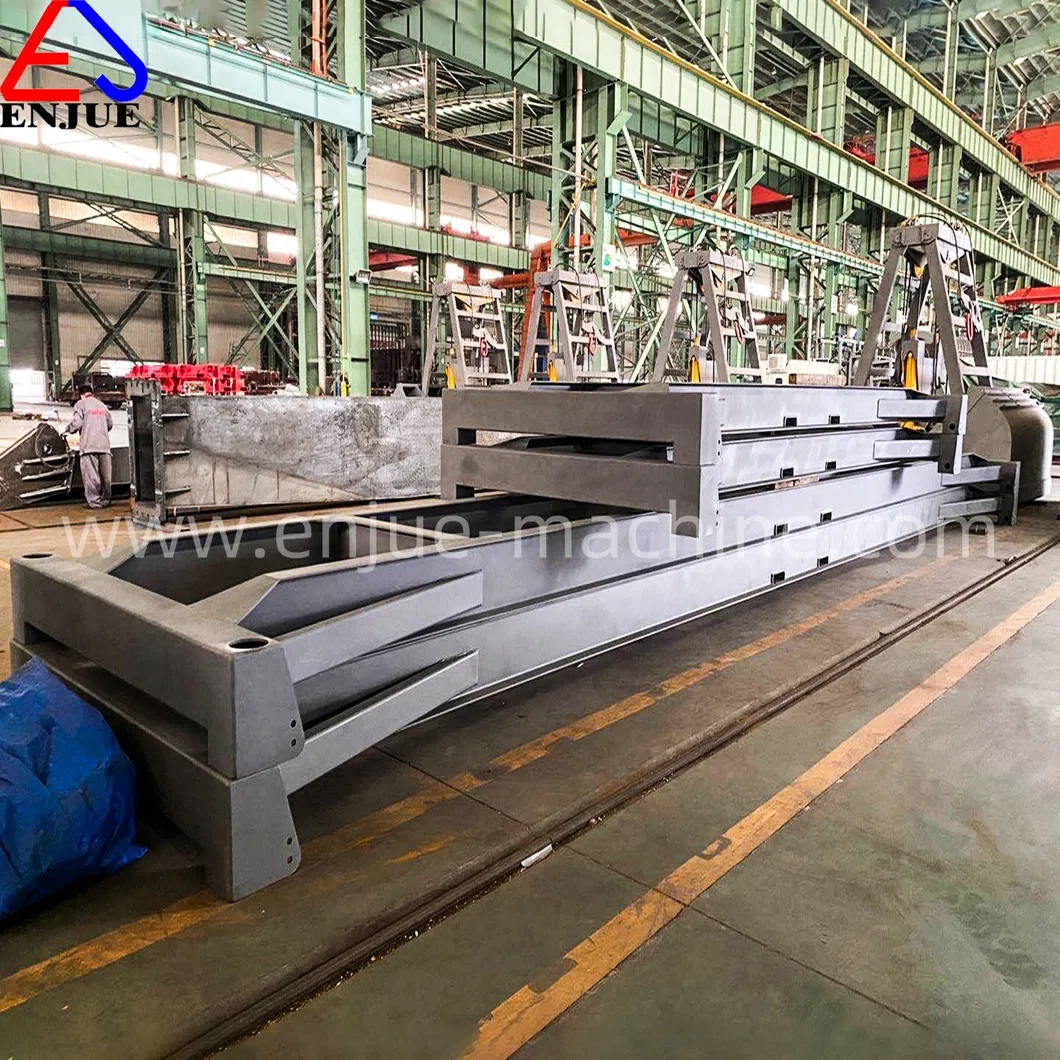

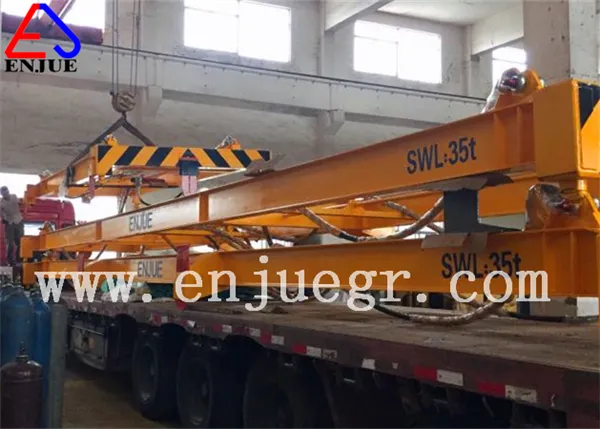

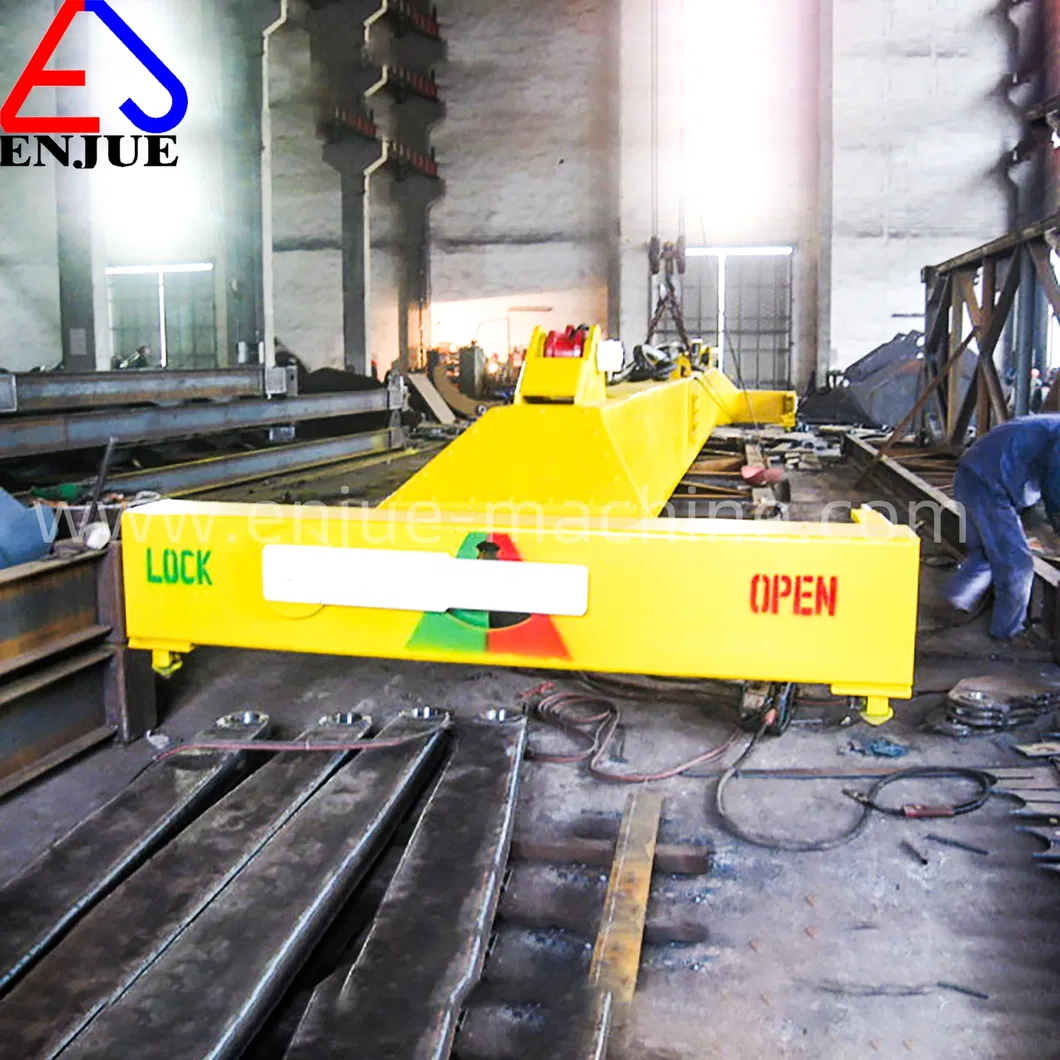

This semi-automatic mechanical container lifting spreader is designed for ISO 20ft and 40ft containers. It is a robust I-type lifting beam solution for efficient port and terminal operations.

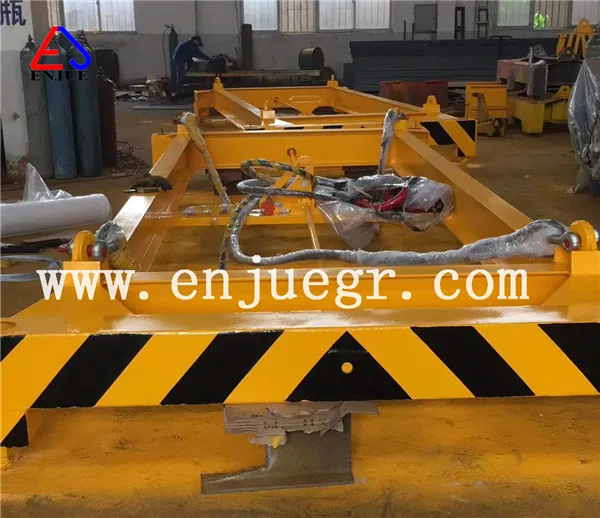

The automatic container spreader includes 4 steel wire ropes with rigging rings at the ends. The crane connection side features a concentrated ring for stability.
| Item | 20' Unit | 40' Unit |
|---|---|---|
| Rated SWL | 25-35T | 32-45T |
| Max. SWL | 40T | 50T |
| Dead Weight | 1.2-2.6T | 1.2-2.6T |
| Dimension Item | 20' Specification | 40' Specification |
|---|---|---|
| Distance between lock centers (Length) | ≈ 5853 mm | ≈ 11985 mm |
| Distance between lock centers (Width) | ≈ 2260 mm | ≈ 2260 mm |
| Overall Length | ≈ 6058 mm | ≈ 12188 mm |
| Overall Width | ≈ 2610 mm | ≈ 2610 mm |
| Frame Height | ≈ 636 mm | ≈ 731 mm |
| Item | 20' Set | 40' Set |
|---|---|---|
| Dia. of pressed wire rope slings | 32 mm | 36 mm |
| Length of pressed wire rope slings | 3.5m (4 pieces) | 8.5m (4 pieces) |
| Steel Frame Material | Q345B | Q345B |

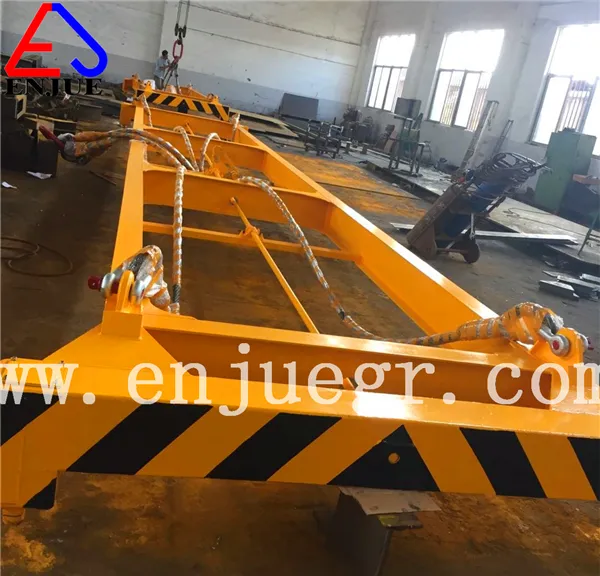

Simple locking/unlocking mechanism where the middle rope strains to turn and lock the pins.
Optimized for use with conventional ships, harbour cranes, and gantry systems.
Four twist locks activated through one manually operated handle for high reliability.

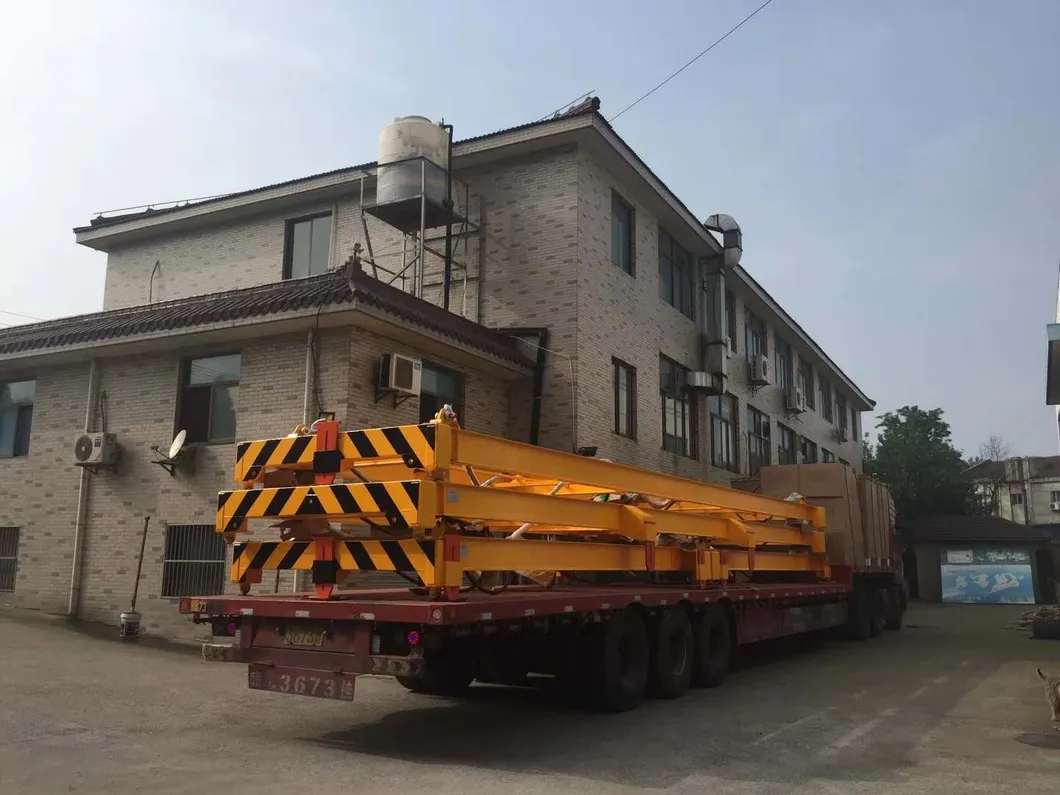

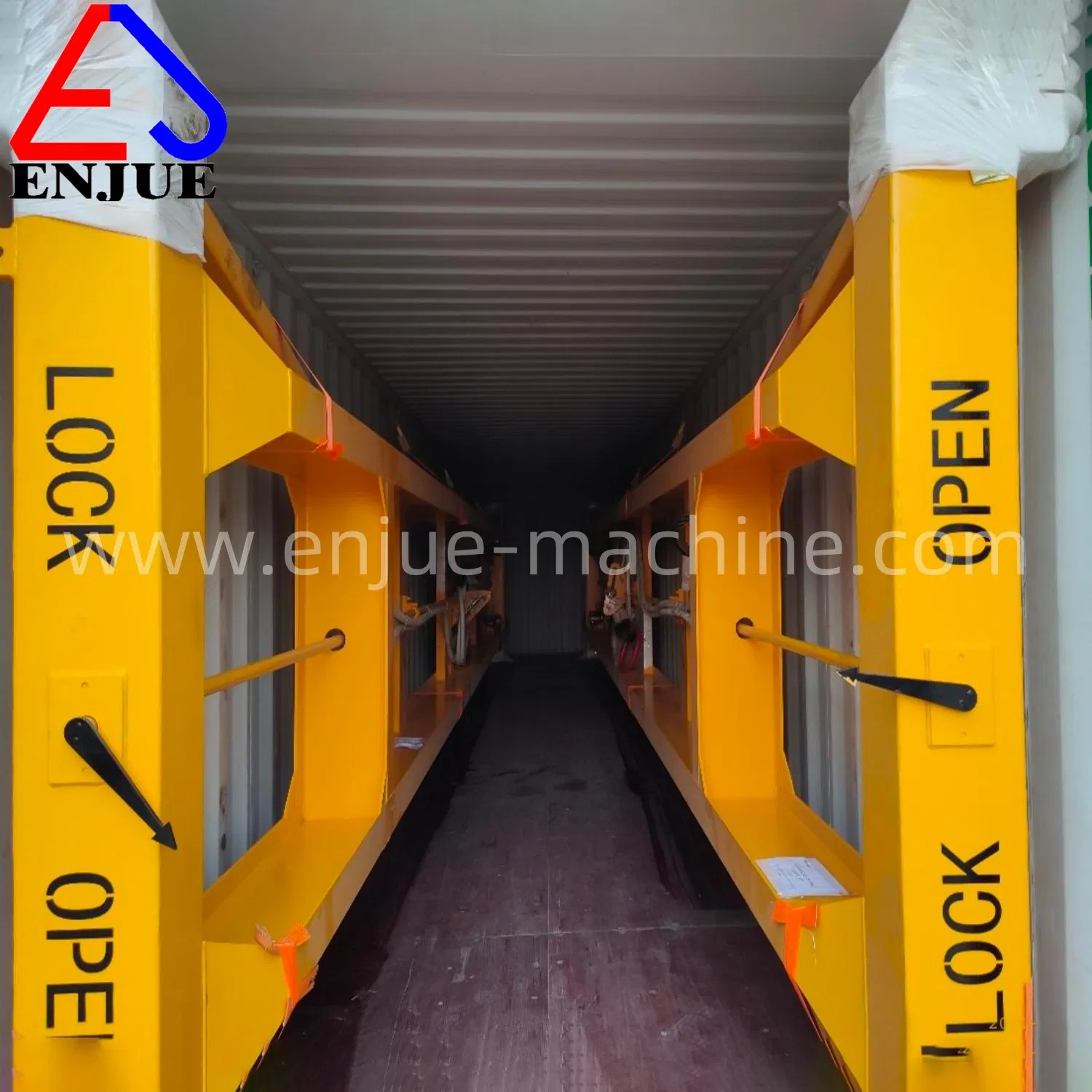

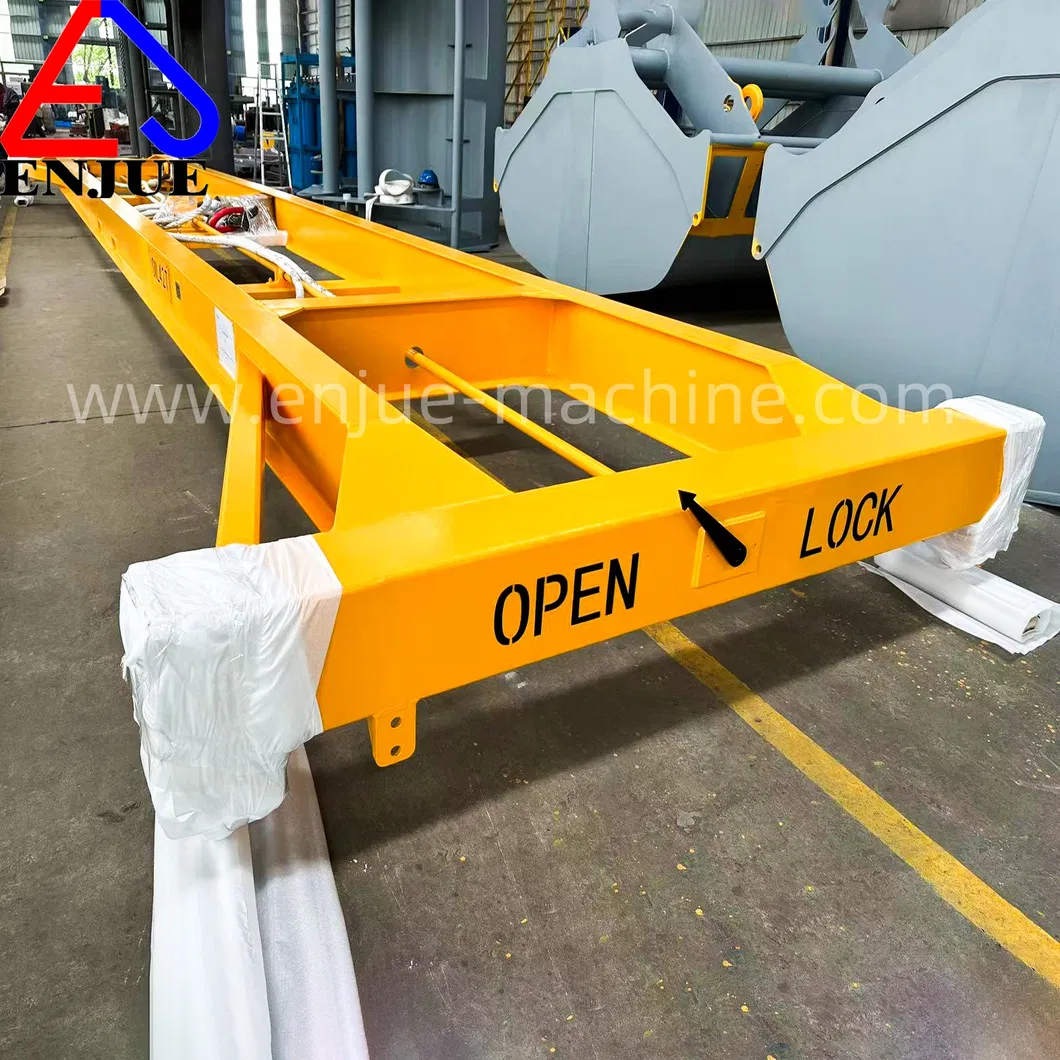

Shipping Method: Transported via 45HQ or RORO vessel. Standard nude packing ensures secure delivery.
