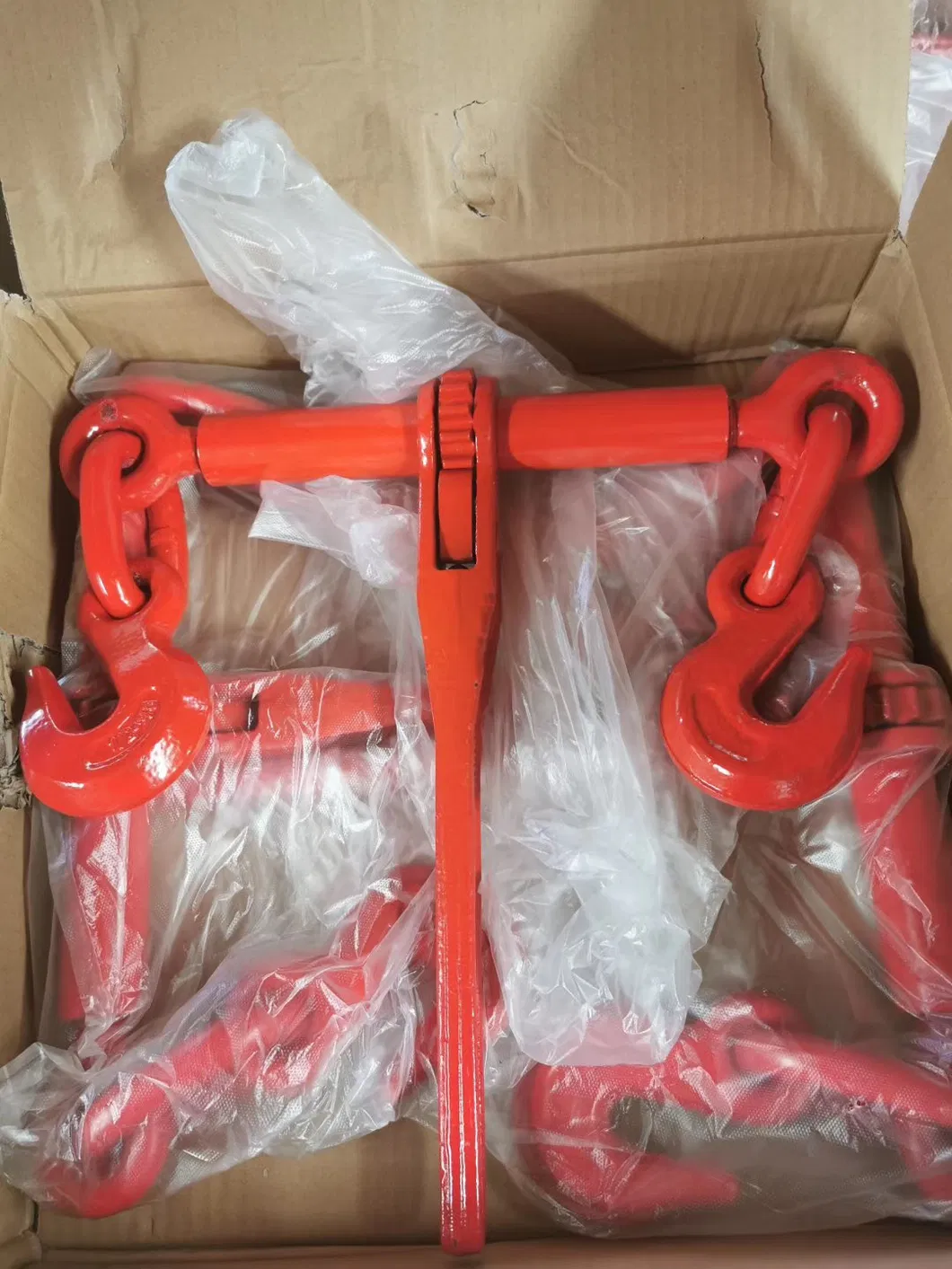

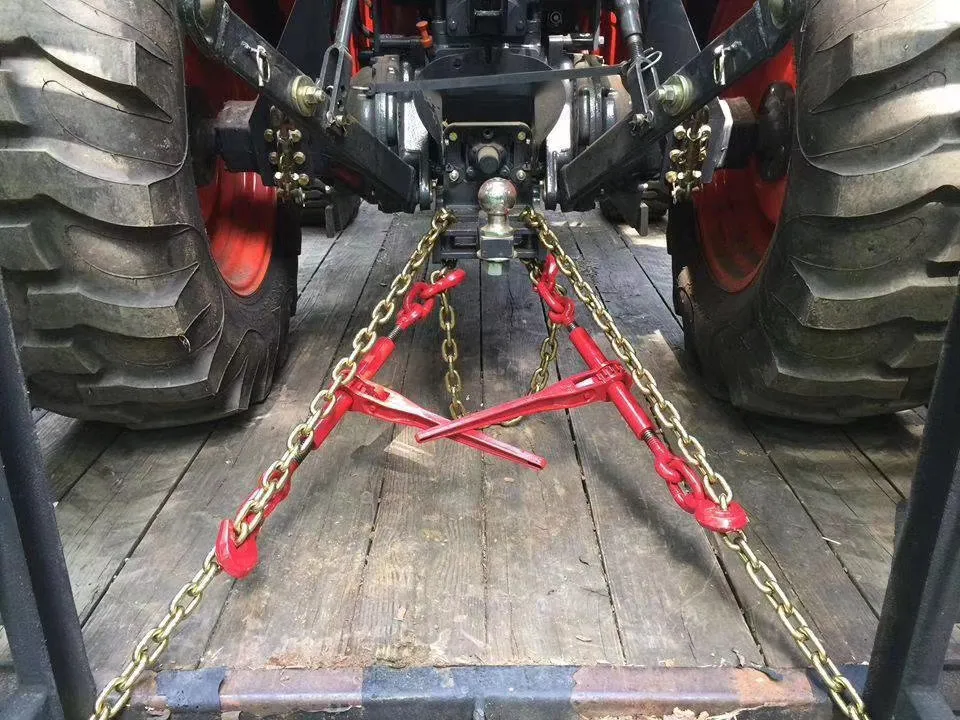

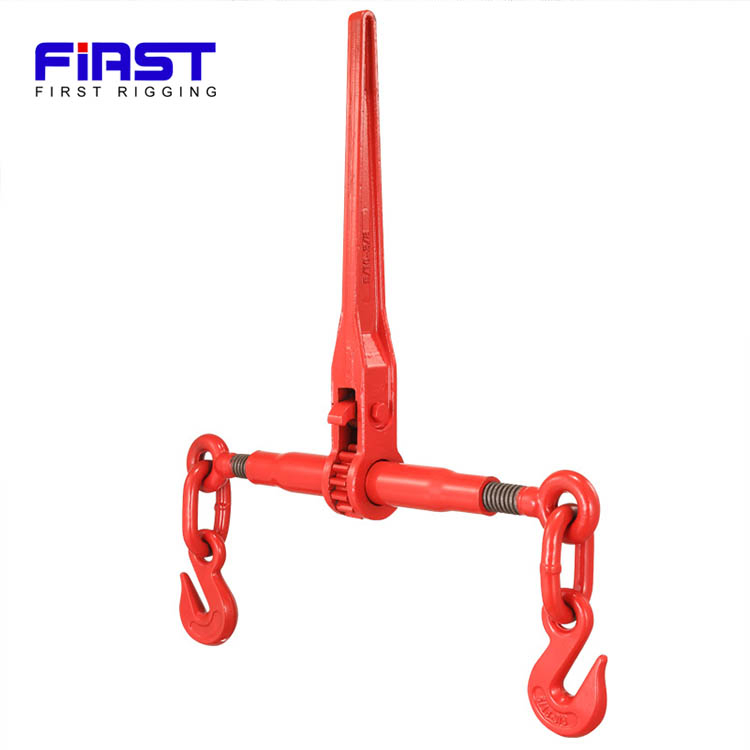

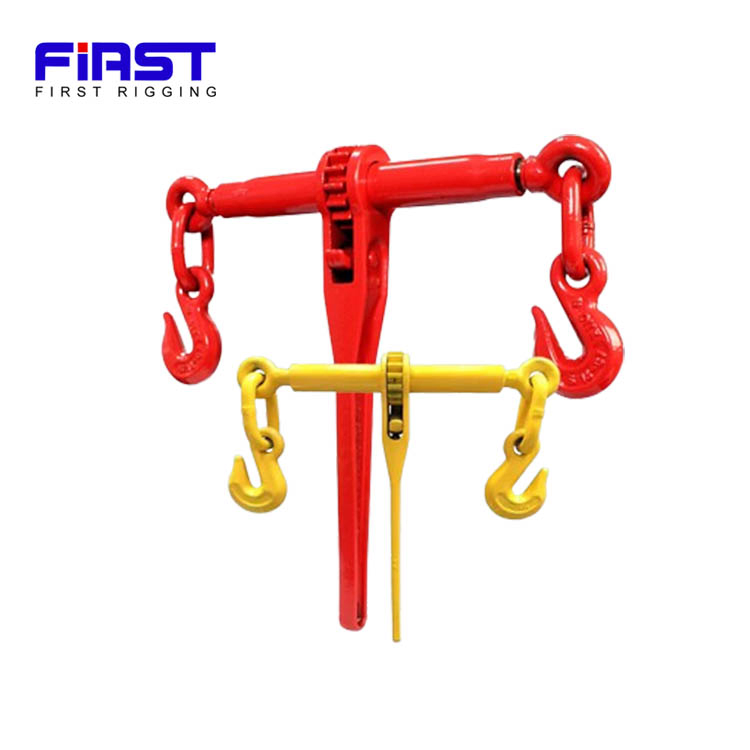

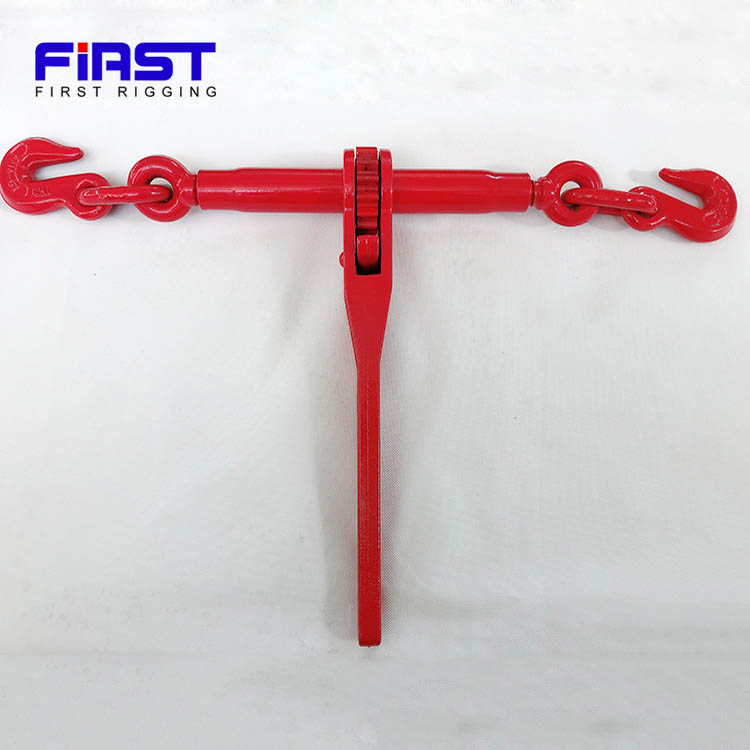

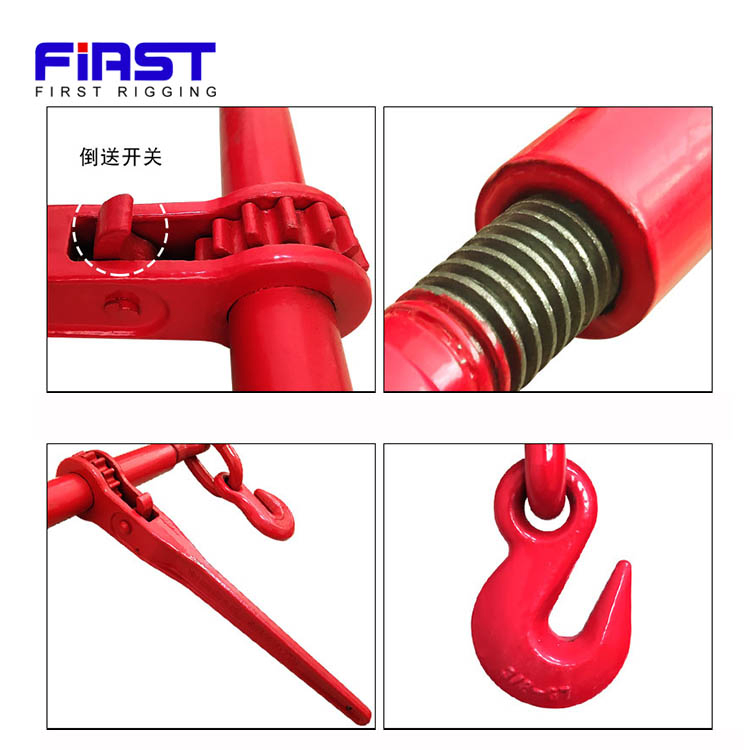

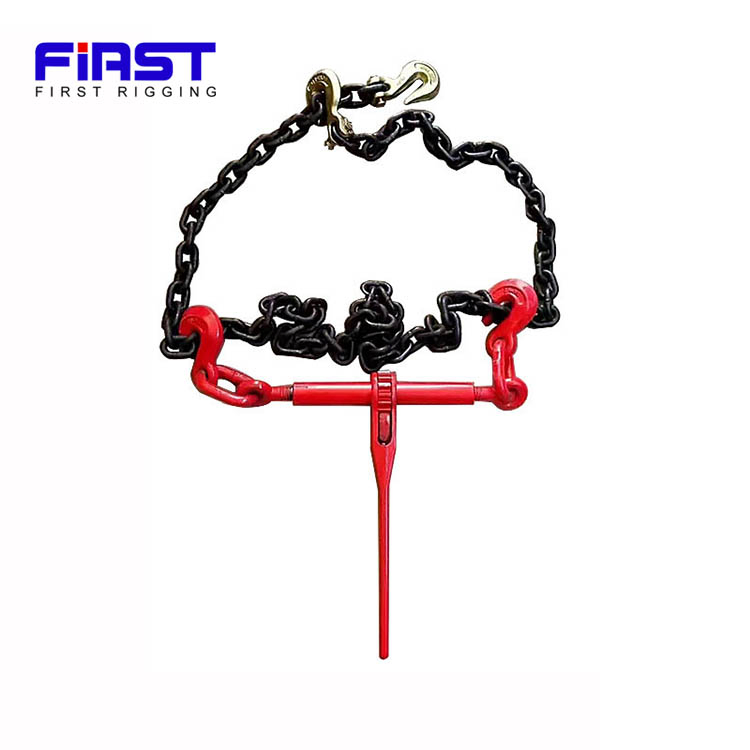

WHOLESALE DROP FORGED RATCHET TYPE LOAD BINDER FOR LASHING
Material: Carbon steel, Alloy steel
Surface treatment: Galvanized, Plastic spraying
Color: Red, grey, green, or as requested
Key Features: High strength, light weight, exquisite design, strong versatility, diverse functions, and convenient safety inspection.
| Type | WLL (Lbs) | Max WLL | Break Load (Lbs) | Weight (Lbs) | Main Parameters (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | E1 | F | F1 | G | |||||
| 1/4-5/16 | 2200 | 4400 | 7800 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.78 | 31.23 | 0.35 |
| 5/16-3/8 | 7100 | 14200 | 11.23 | 14.0 | 10.0 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 33.13 | 0.50 |
| 3/8-1/2 | 12000 | 24000 | 12.83 | 14.0 | 10.0 | 1.38 | 2.75 | 25.25 | 33.25 | 27.63 | 35.63 | 0.63 |
| 1/2-5/8 | 13000 | 26000 | 14.55 | 14.0 | 10.0 | 1.38 | 2.75 | 26.38 | 34.38 | 29.44 | 37.44 | 0.72 |
Standard export packing: Plastic bags, high-quality cartons, and pallets. Delivery typically occurs within 25-30 working days after advance payment receipt.
Products are widely applied in ships, steel, petrochemical, and coal mining industries. We maintain independent import/export rights and can provide certifications such as CCS, LR, and DNV.
